    Peerless by Tymphany PLS-P830984 2-1/2" Full Range Woofer

    € 26,45 4 In stock: delivery time 1-4 business days
    Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €25,13 per piece
    • Low international shipping rates
    • Same day shipping*
    • Pay with PayPal, Creditcard, and more
    • In-house technical support

    Product description

    Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.



    Highlights

    • Neodymium magnet
    • Double-vented motor
    • Anodized aluminum center dome
    • Distortion-reducing semi-progressive surround
    • Copper pole piece cap controls impedance



    Product details

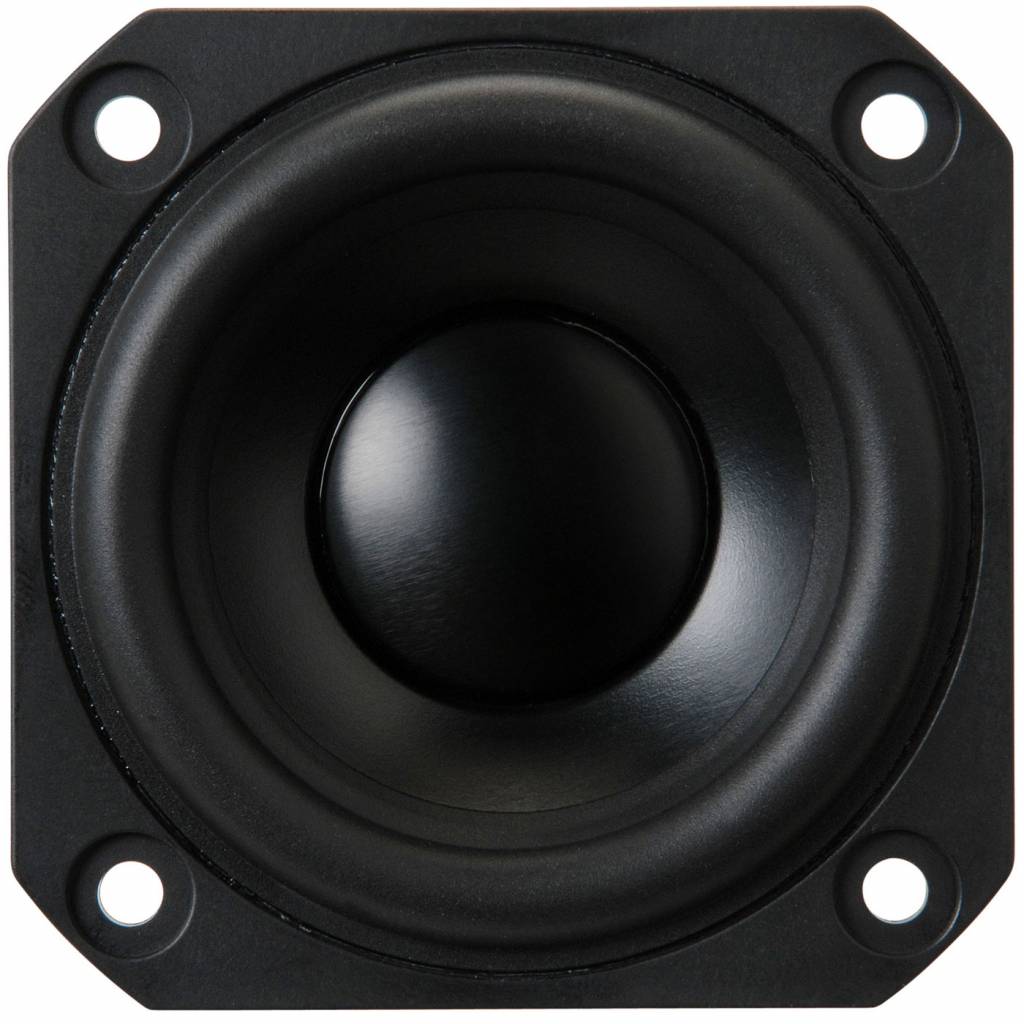

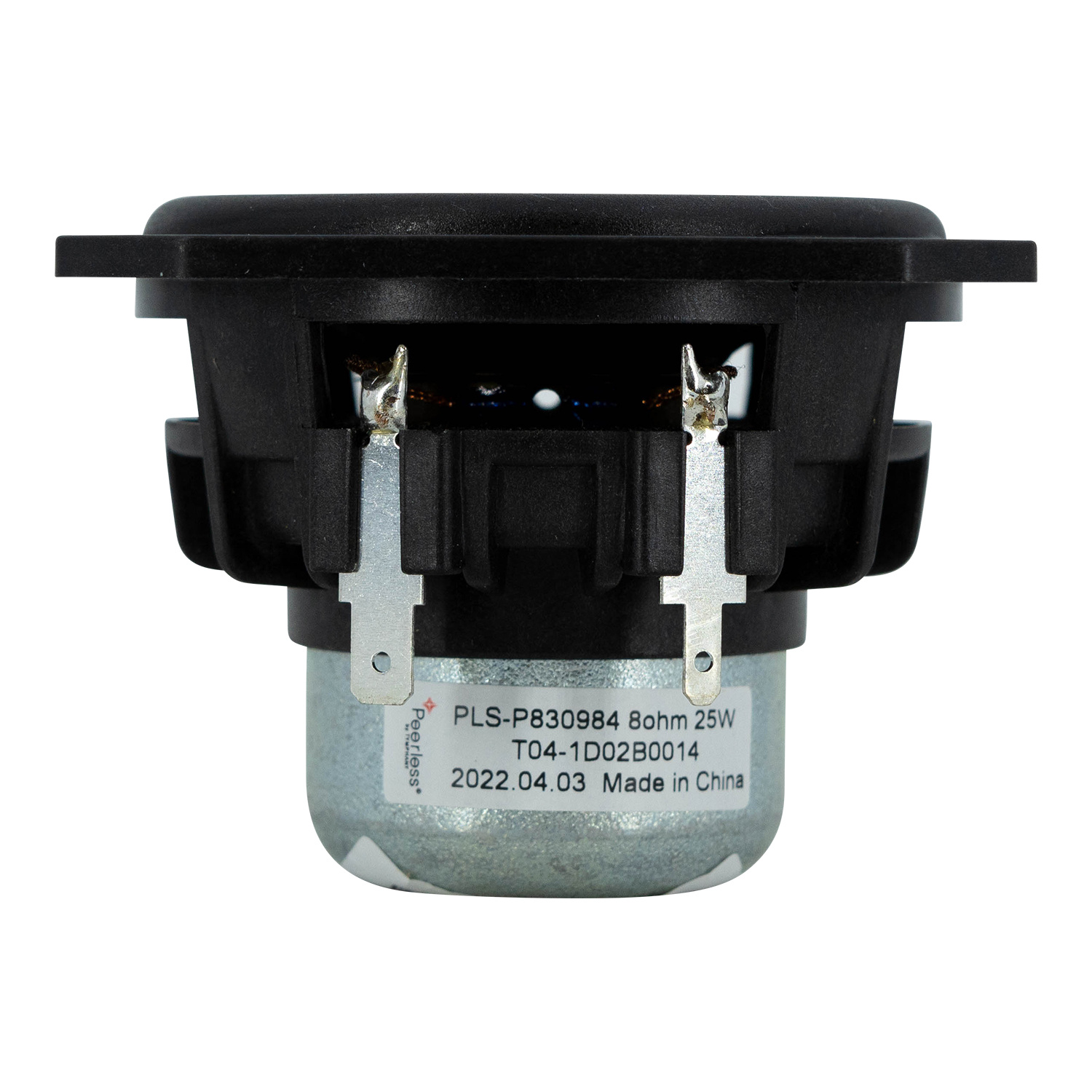

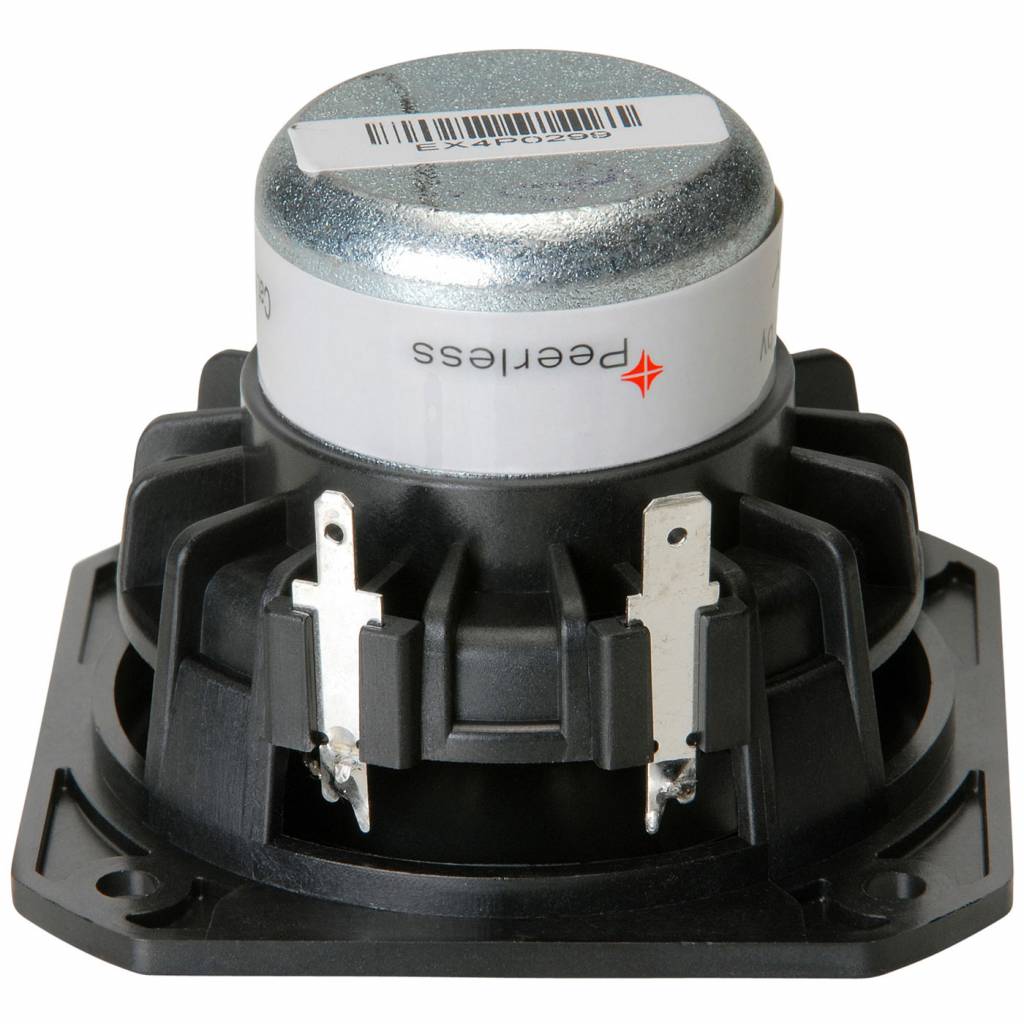

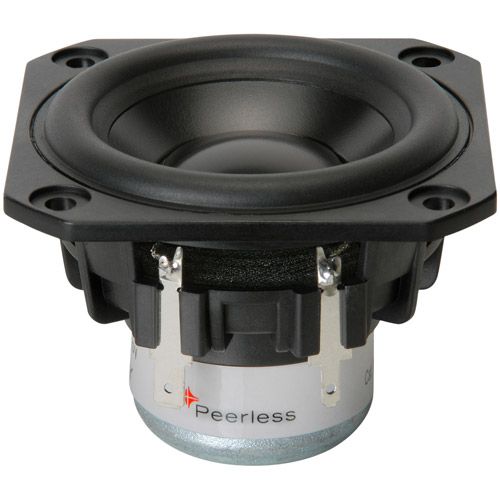

    Peerless by Tymphany PLS-P830984 2-1/2" Full Range Woofer



    This 2.5 inch 8 ohm member of the PLS family sets a high standard for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

    Specifications

    Article number
    PLS-P830984
    Woofer Series
    PLS Series
    Woofer Type
    Full-Range
    Nominal Diameter
    2-1/2"
    Power Handling (RMS)
    25 Watts
    Impedance
    8 ohms
    Sensitivity
    82.2 dB 2.83V/1m
    Frequency Response
    100 to 10,000Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    0.05 mH
    Resonant Frequency (Fs)
    111 Hz
    Mechanical Q (Qms)
    5.4
    Electromagnetic Q (Qes)
    0.83
    Total Q (Qts)
    0.72
    Diaphragm Mass Inc. Airload (Mms)
    2.03g
    Mechanical Compliance of Suspension (Cms)
    1.02 mm/N
    Surface Area of Cone (Sd)
    22.2 cm²
    BL Product (BL)
    3.27 Tm
    Compliance Equivalent Volume (Vas)
    0.03 ft.³
    Maximum Linear Excursion (Xmax)
    2.05 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Basket / Frame Material
    Polymer
    Magnet Material
    Neodymium
    Overall Outside Diameter
    2.72"
    Overall Depth
    2.02"
    Baffle Cutout Diameter
    2.43"
    # Mounting Holes
    4
    Sealed Volume
    0.1 ft.³
    Sealed F3
    123 Hz
    Vented Volume
    0.1 ft.³
    Vented F3
    68 Hz

    Reviews

    5 from 5Based on 2 reviews
    Review this product
    5 van 5
    High quality speaker. A perfect replacement for the inferior speaker fitted in the matching speaker unit for my leading brand amateur radio transceiver.
    By Ray G. on 24 March 2020
    5 van 5
    Performed fully to expectations.
    By James M. on 15 March 2019
