        OX20SC00-04 Dome Tweeter

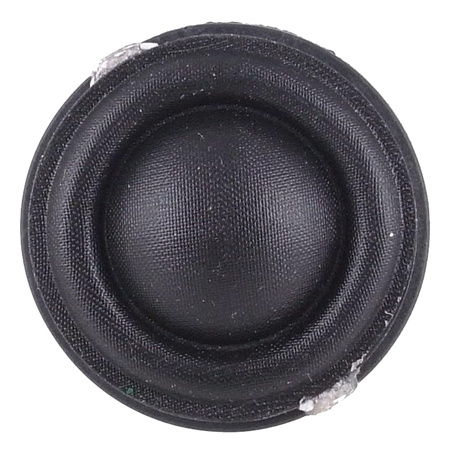

        Peerless by Tymphany OX20SC00-04 Dome Tweeter

        €24,95

        10+ In stock

        Peerless by Tymphany OX20SC00-04 Dome Tweeter

        5 reviews
        4 from 5
        5 reviews
        5 stars
        60%
        4 stars
        20%
        3 stars
        0%
        2 stars
        20%
        1 star
        0%
        View all reviews
        € 20,62€ 24,95 10+ In stock
        • -5% Purchase 4 for only € 23,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Pros and cons

        According to our specialists
        • Faceplate-less design for custom mounting
        • Low Fs, low distortion
        • Limited range

        Product description Peerless by Tymphany OX20SC00-04 Dome Tweeter

        Tymphany's OX20SC00-04 tweeter features a coated textile diaphragm, high-energy neodymium magnet, and does not include a faceplate.



        Highlights of the Peerless OX20SC00-04 Dome Tweeter

        • Sensitivity (SPL at 1m / 2.83V): 90.7 dB
        • Resonant Frequency (Fs): 1024.9 Hz
        • Smooth, extended response and high efficiency
        • Self-shielding neodymium motor



        Product details Peerless OX20SC00-04 Dome Tweeter

        Peerless by Tymphany OX20SC00-04 3/4" Fabric Dome Tweeter



        This OX family tweeter features a 19 mm diameter 4 ohm voice coil, a damped silk diaphragm with large surround roll, a neodymium magnet motor to produce a compact motor, and a metal rear chamber to provide both a lower resonant frequency and added heat sinking for power handling capacity. The product is designed to fit snugly into small applications, while providing excellent dynamic sound quality.



        FAQ about the Peerless OX20SC00-04 Dome Tweeter

        What materials are used in the construction of the OX20SC00-04?

        • Dome Material: Silk, for a natural and smooth treble response.
        • Magnet: Ferrite, offering stable motor force.
        • Voice Coil: Aluminum-wound for lightweight, responsive movement.





        Peerless manufacturing code: T04-1EM190006

        Show more

        Specifications

        Article number
        OX20SC00-04
        EAN
        0844632083617
        Tweeter Type
        Soft Dome
        Tweeter Series
        OX Series
        Cone / Dome Diameter
        19 mm | 3/4"
        Power Handling (RMS)
        20 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        2200 to 28,000 Hz
        Resonant Frequency (Fs)
        1060 Hz
        DC Resistance (Re)
        3.20 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        7.72
        Electromagnetic Q (Qes)
        1.70
        Total Q (Qts)
        1.39
        Overall Outside Diameter
        1.31"
        Cutout Diameter
        1.13''
        Depth
        0.92"

        Show more

        5 of 5
        -
        By Florian on 11 September 2024
        2 of 5
        I received the driver in a very poor packaging. I was indeed worried, if the driver could have been damaged under the transport. The driver was not even in a box, but wrapped around with paper and a bit of polystyrene foam. Fortunately, it did play, bur the much less expensive Dayton Audio ND25FN-4 Dome Tweeter, was much nicer packed.
        By Jørn Lindquist on 5 May 2024
