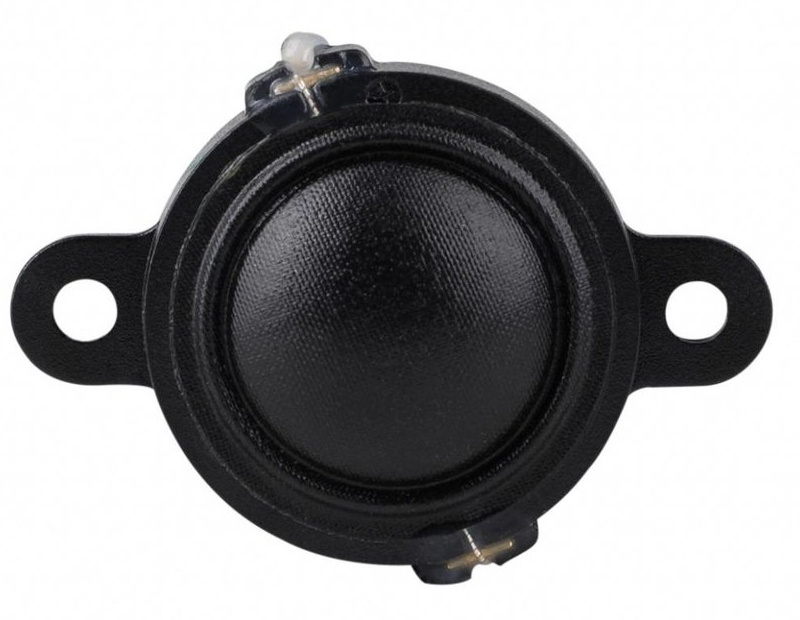

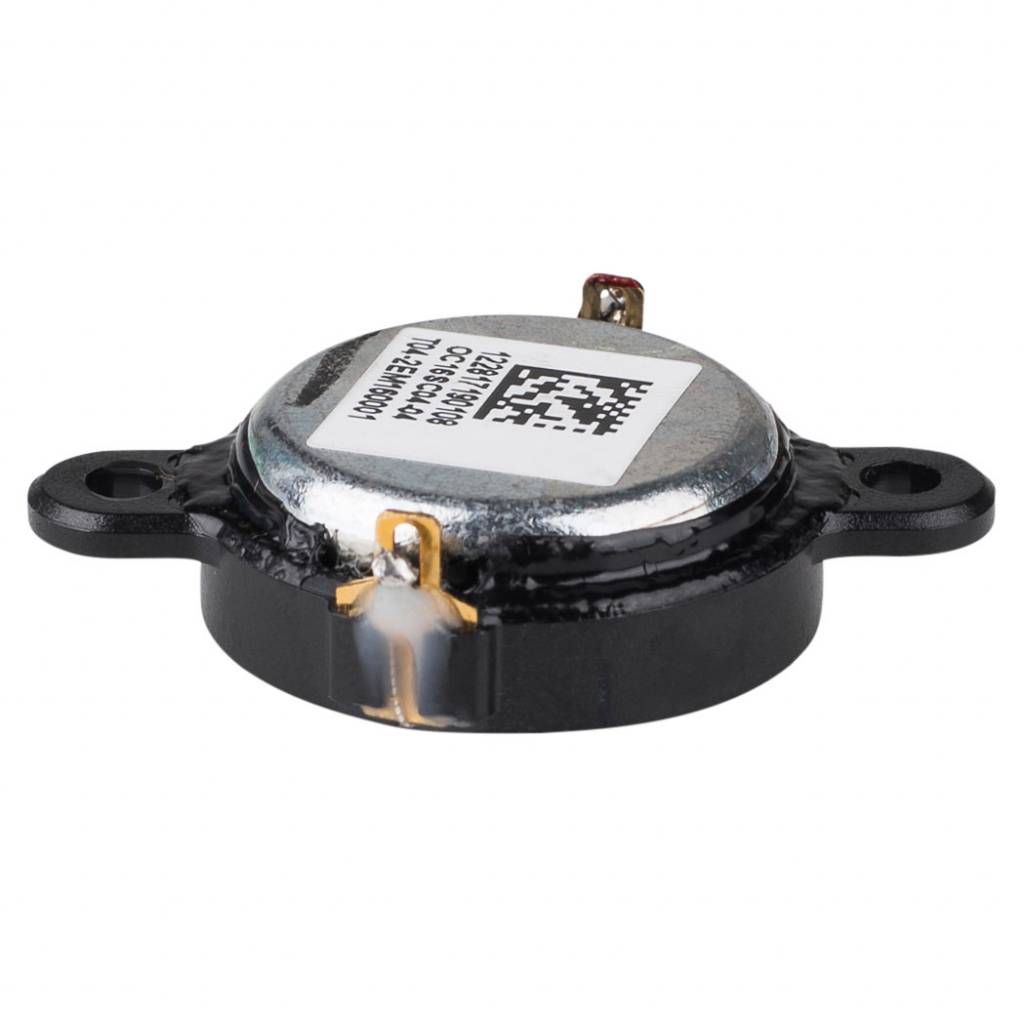

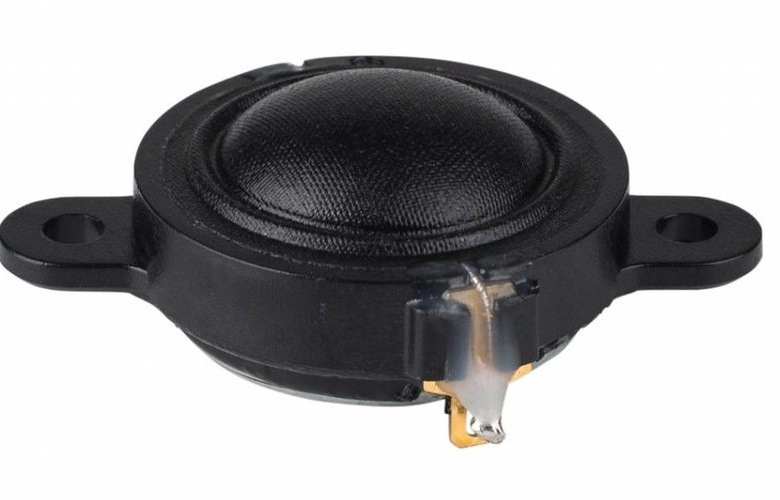

Peerless by Tymphany OC16SC04-04 5/8'' Fabric Dome Tweeter 4 Ohm

6 reviews

Brand: Peerless by Tymphany

Show all Dome tweeter

Compare

5/8" | 4 Ω

OC16SC04-04 5/8'' Fabric Dome Tweeter 4 Ohm

€ 9,46€ 11,45 Out of stock: please contact us for accurate delivery times

Backorder

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

For quality high frequency when space is at a premium the Peerless OC16SC04-04 is an outstanding choice. This 5/8" soft dome tweeter is just over 1" diameter with a rear mount design for a clean look which takes up very little space.

Highlights

Ferrofluid provides cooling for the voice coil and improved damping
Damped fabric dome and surround for smooth, natural response
Powerful neodymium motor minimizes size and weight
Great for tight spaces and car audio applications

Product details

Peerless by Tymphany OC16SC04-04 5/8'' Fabric Dome Tweeter 4 Ohm

This OC family tweeter features a 16 mm 4 ohm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the neodymium magnet motor, providing enhanced cooling of the voice coil. The tweeters butterfly comes with 2 mounting holes and with 2 pin terminals. The product is designed to fit snugly into small applications, while providing excellent dynamic sound quality.

Specifications

Article number: OC16SC04-04
Tweeter Type: Soft Dome
Tweeter Series: OC Series
Cone / Dome Diameter: 16 mm | 5/8"
Power Handling (RMS): 100 Watts
Impedance (Z): 4 Ω
Sensitivity: 83.7 dB 1W/1m
Frequency Response: 2500 to 25,000 Hz
Resonant Frequency (Fs): 2,153 Hz
DC Resistance (Re): 3.93 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 2.94
Electromagnetic Q (Qes): 4.19
Total Q (Qts): 1.73
Overall Outside Diameter: 1.02"
Cutout Diameter: 0.86"
Depth: 0.35"

Data sheet

Reviews

6 reviews

5 from 5Based on 6 reviews

Review this product

4 of 5

Had to test this... Not the exact replacement for the tweeter in B&O Beoplay A1, but good enough (B&O doesn’t sell spare parts for the A1). In this application there is a slight drop at ~4 kHz. In a correct application, tuned for this tweeter, all should be fine!

By Lars B. on 16 May 2020

5 of 5

Produit conforme à la description, sonorité très correcte pour cette gamme de prix (tout est relatif, ce produit m'a permis de remplacer 3 tweeters plus fabriqués, enceintes pourtant d'une grande marque française, comme quoi..."Le roi est mort, vive le roi ! " Livraison soignée, dôme bien protégé etc... Merci SoundImports

By Bruno R. on 21 January 2020
