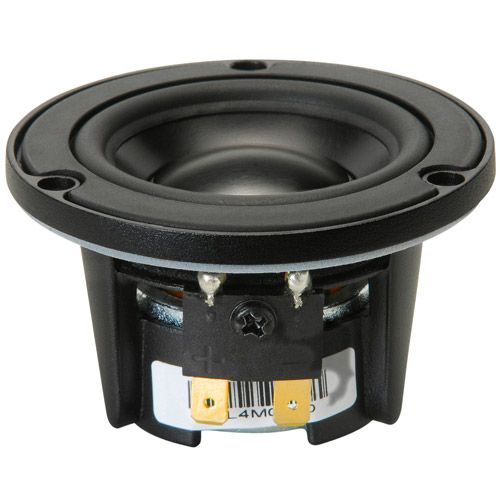

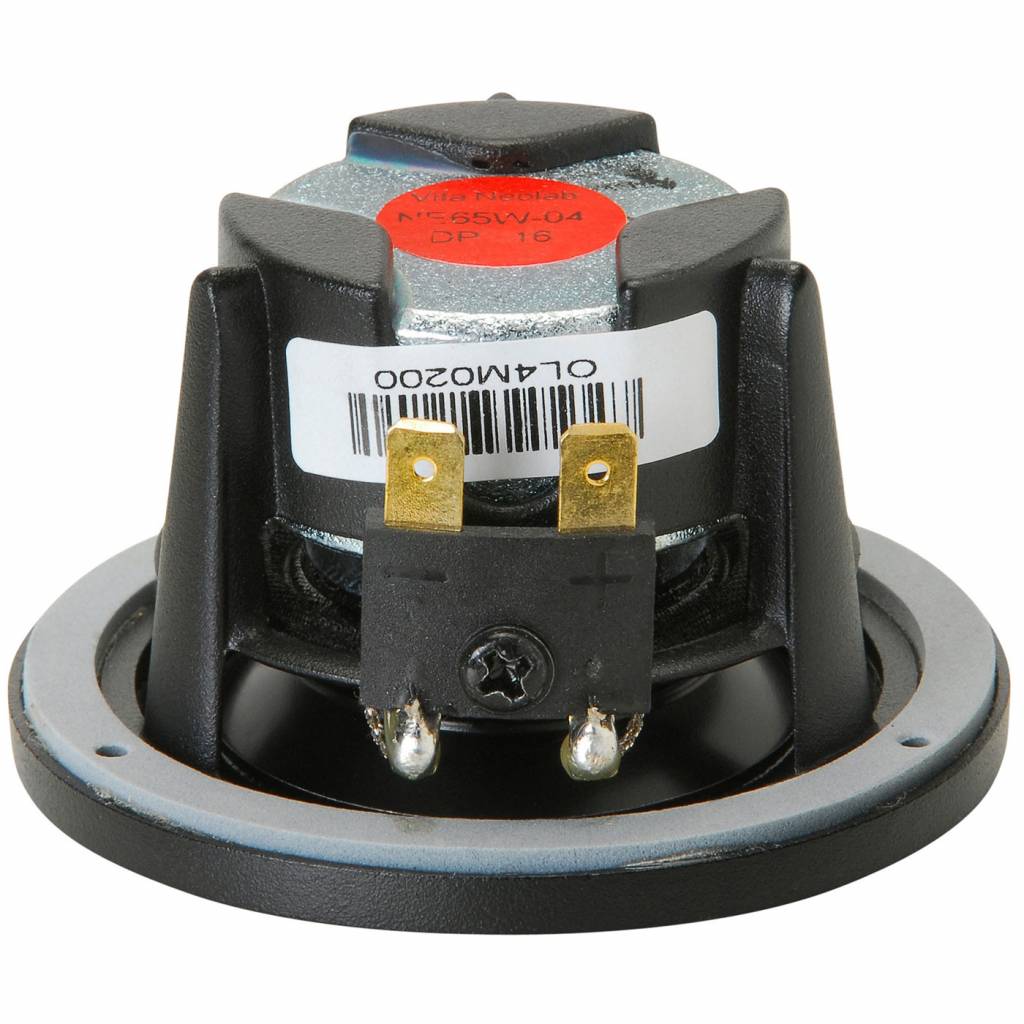

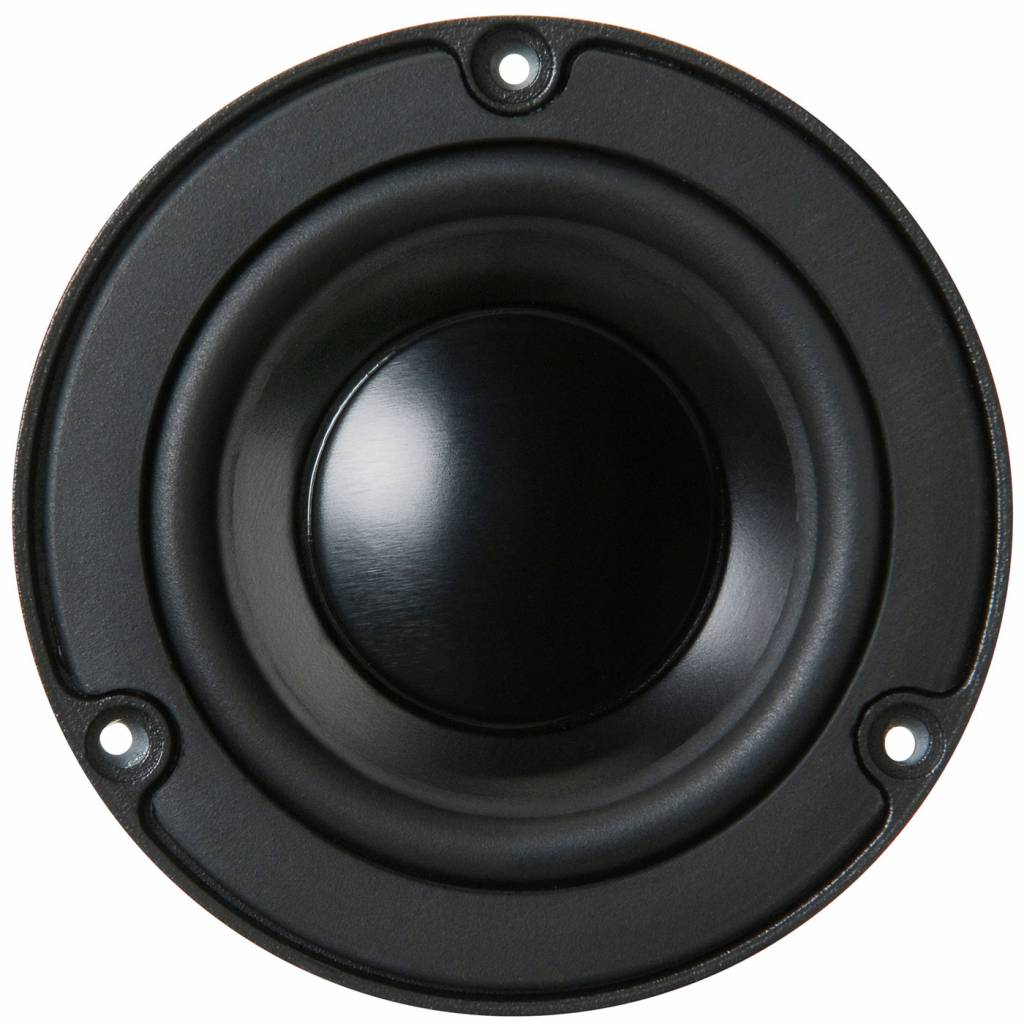

      Peerless by Tymphany NE65W-04 2" Full Range Woofer

      € 34,67€ 41,95 Out of stock: 4 expected on 06-10-2022
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 39,85 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.



      Highlights

      • Cast aluminum frame acts as a heatsink
      • Sculpted design promotes cooling and reduces reflections
      • High-strength compact neodymium motor
      • Aluminum cone with half-roll rubber surround
      • Long-throw voice coil on titanium former
      • Copper pole piece cap for extended HF response
      • 4 ohm nominal impedance



      Product details

      Peerless by Tymphany NE65W-04 2" Full Range Woofer



      This 2 inch 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The full-range drivers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone is aluminium, with a butyl rubber surround designed through finite element analysis for linearity of performance. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies.

      Specifications

      Article number
      NE65W-04
      Woofer Series
      NE Series
      Woofer Type
      Full-range
      Nominal Diameter
      2"
      Power Handling (RMS)
      20 Watts
      Power Handling (max)
      40 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      82.2 dB 1W/1m
      Frequency Response
      150 to 18,000 Hz
      Voice Coil Diameter
      1"
      DC Resistance (Re)
      3.7 ohms
      Voice Coil Inductance (Le)
      0.04 mH
      Resonant Frequency (Fs)
      166 Hz
      Mechanical Q (Qms)
      5
      Electromagnetic Q (Qes)
      0.74
      Total Q (Qts)
      0.65
      Diaphragm Mass Inc. Airload (Mms)
      1.58g
      Mechanical Compliance of Suspension (Cms)
      0.58 mm/N
      Surface Area of Cone (Sd)
      14.7 cm²
      BL Product (BL)
      2.85 Tm
      Compliance Equivalent Volume (Vas)
      0.006ft.³
      Maximum Linear Excursion (Xmax)
      1.65 mm
      Cone / Diaphragm Material
      Aluminum
      Surround Material
      Rubber
      Basket / Frame Material
      Cast Aluminum
      Magnet Material
      Neodymium
      Overall Outside Diameter
      2.56"
      Overall Depth
      1.47"
      Baffle Cutout Diameter
      1.83"
      # Mounting Holes
      3
      Sealed Volume
      0.01 ft.³
      Sealed F3
      206 Hz
      Vented Volume
      0.02 ft.³
      Vented F3
      105 Hz

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5
      Geweldige kleine mid driver. Compact en toch stijlvol. De klank is erg open en gedetailleerd, echte aanrader.
      By Joren C. on 1 April 2019
