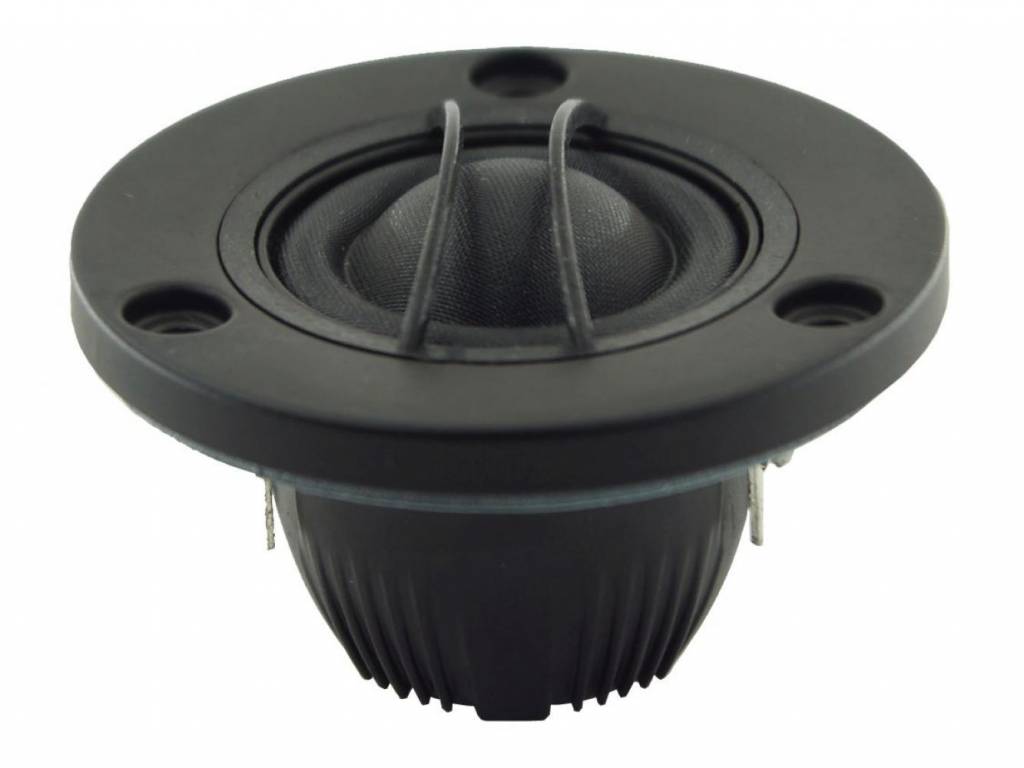

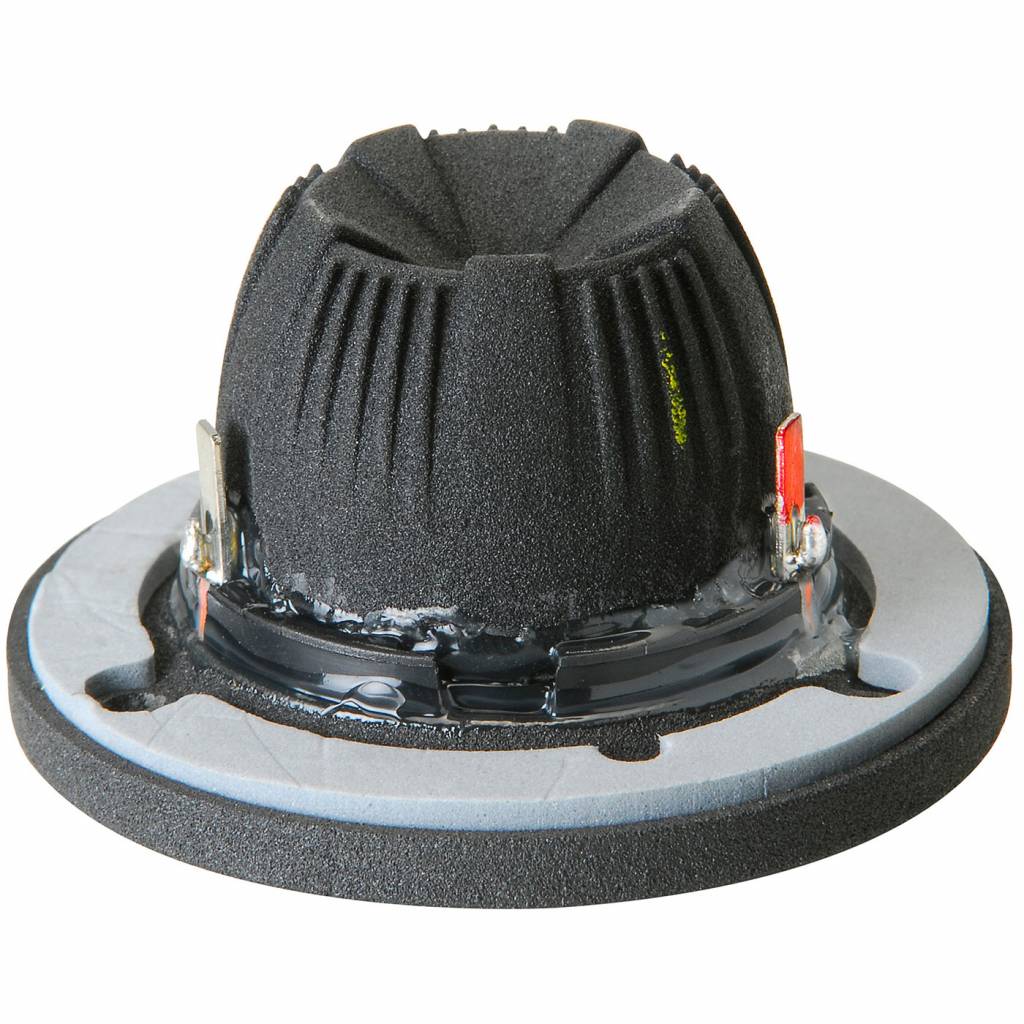

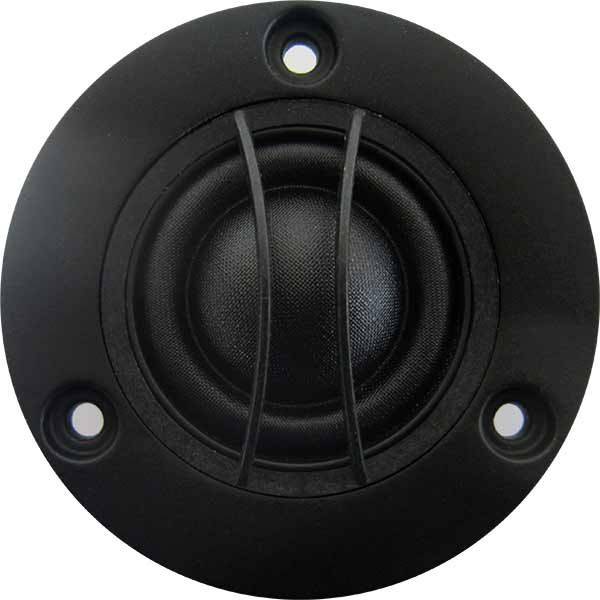

      Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter

      € 26,82€ 32,45 3 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €30,83 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.



      Highlights

      • 3/4" silk dome
      • Advanced design neo motor system
      • Copper caps reduce inductance and extend HF response
      • Aluminum rear chamber lowers resonance and doubles as a heatsink
      • Aluminum face plate and plastic protective grill



      Product details

      Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter



      The 19 mm 4 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The tweeters in this family feature finite element analysis designed Neodymium-Iron-Boron magnet (NdFeB) motors, with copper caps for extended frequency response and reduced distortion. The aluminium rear chambers offer extended low frequency performance, while doubling as heat sinking. The butterfly supporting the tweeter diaphragm is made of a high temperature plastic, consistent with the products high temperature performance rating, and features supporting terminals. The dome material in this design is silk, and the design has been optimized for sound quality and clarity. Rounding out the design is an aluminium face plate and plastic grille, which offers protection for the tweeter diaphragm.

      Specifications

      Article number
      NE19VTS-04
      Tweeter Type
      Soft Dome
      Tweeter Series
      NE Series
      Cone / Dome Diameter
      19 mm | 3/4"
      Power Handling (RMS)
      80 Watts
      Impedance (Z)
      4 Ω
      Sensitivity
      90 dB 1W/1m
      Frequency Response
      1,600 to 25,000 Hz
      Resonant Frequency (Fs)
      816 Hz
      DC Resistance (Re)
      2.80 ohms
      Voice Coil Inductance (Le)
      0.01 mH
      Mechanical Q (Qms)
      4.60
      Electromagnetic Q (Qes)
      1.48
      Total Q (Qts)
      1.12
      Overall Outside Diameter
      2.04"
      Cutout Diameter
      1.50"
      Depth
      1.14"

      Show more
