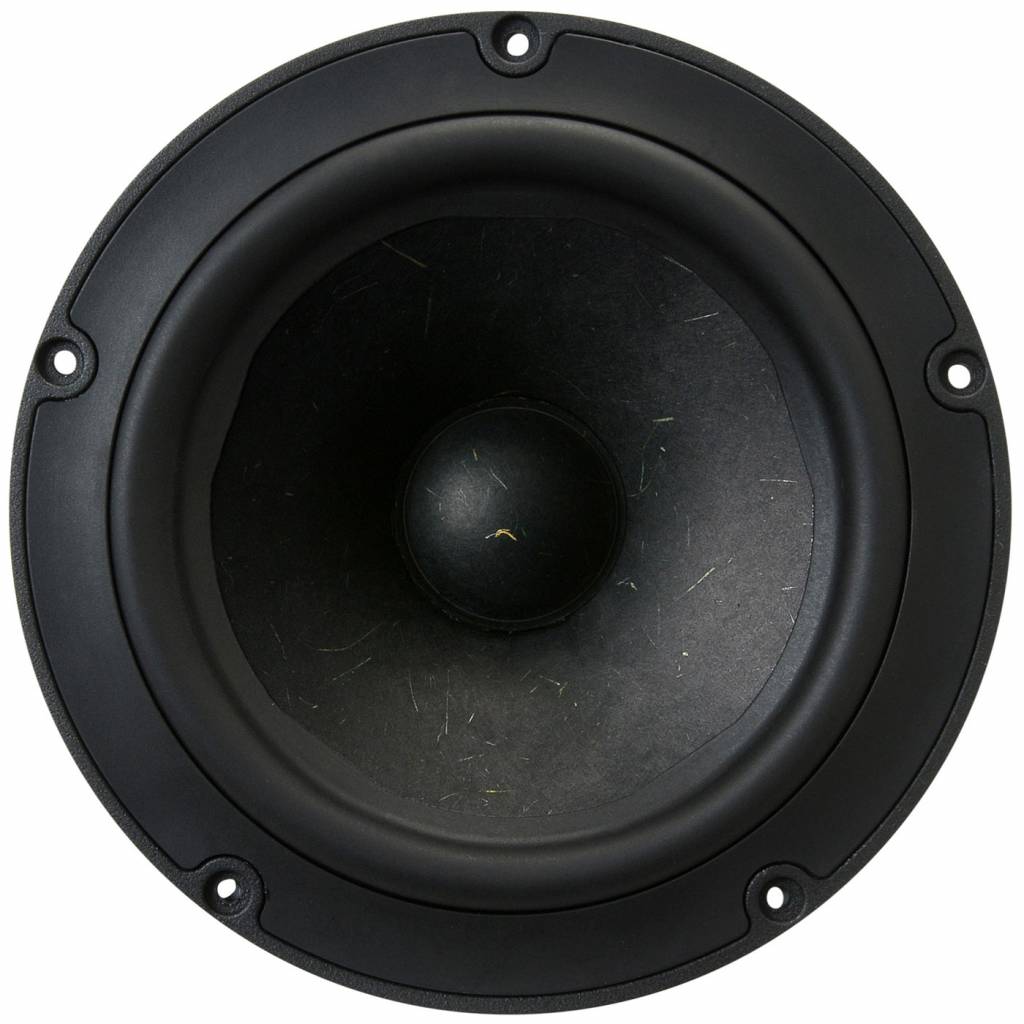

    Peerless by Tymphany NE180W-08 6-1/2" Woofer

    € 99,13€ 119,95 4 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €113,95 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Tymphany's NE180W-08 6-1/2" speaker is an advanced, well-engineered woofer and midbass driver designed for accurate audio reproduction.



    Highlights

    • Cast aluminum frame promotes motor cooling
    • Sculpted design improves airflow and reduces reflections
    • High-strength compact neodymium magnet system
    • Proprietary coated natural wood fiber cone with half-roll rubber surround
    • Long-throw 1-1/2" voice coil on titanium former
    • Copper pole piece cap for extended HF response
    • 8 ohm nominal impedance



    Product details

    Peerless by Tymphany NE180W-08 6-1/2" Woofer

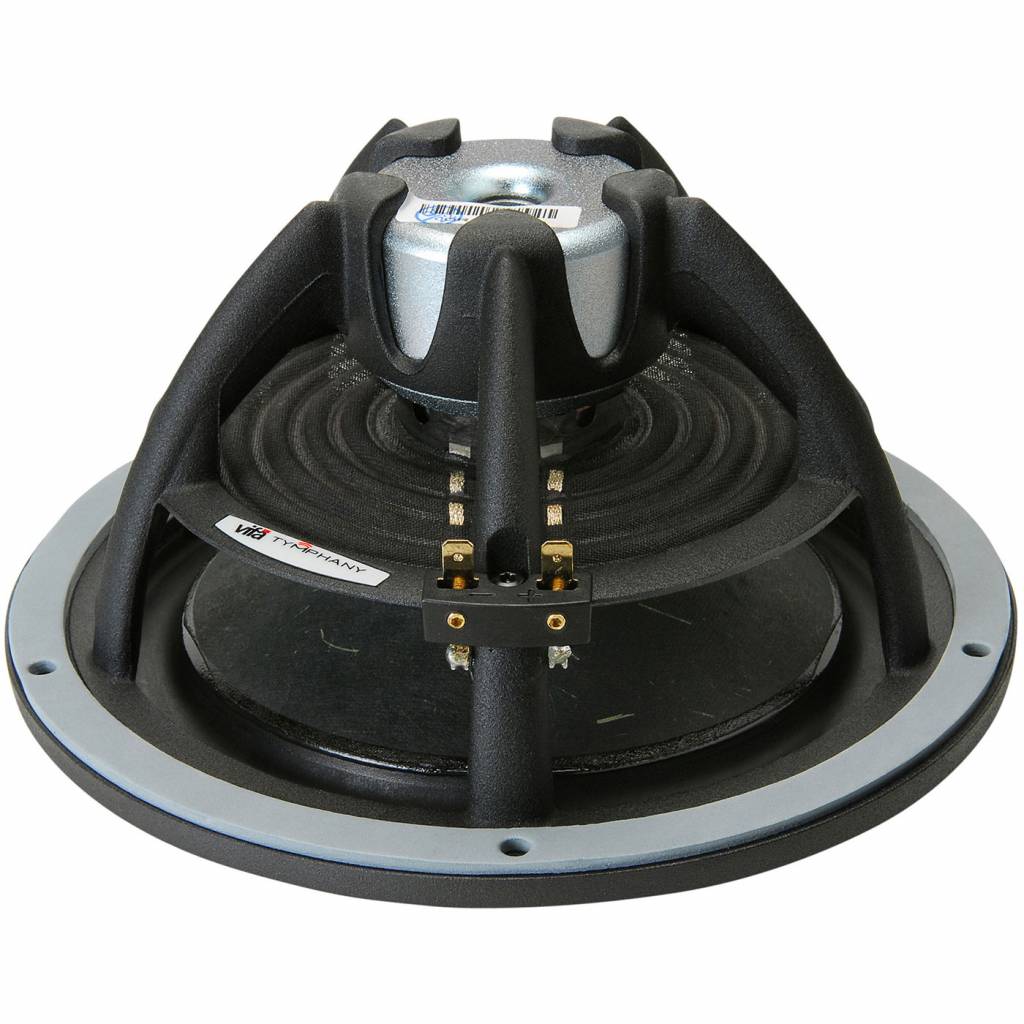

    This 6.5 inch 8 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas and processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.

    Specifications

    Article number
    NE180W-08
    Woofer Type
    Woofer
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    80 Watts
    Power Handling (max)
    160 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    87.4 dB 2.83V/1m
    Frequency Response
    40 to 4,000 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    6.2 ohms
    Voice Coil Inductance (Le)
    0.12 mH
    Resonant Frequency (Fs)
    42 Hz
    Mechanical Q (Qms)
    7.4
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.39
    Diaphragm Mass Inc. Airload (Mms)
    16.39g
    Mechanical Compliance of Suspension (Cms)
    0.86 mm/N
    Surface Area of Cone (Sd)
    136.9 cm²
    BL Product (BL)
    8.17 Tm
    Compliance Equivalent Volume (Vas)
    0.8 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
    Cone / Diaphragm Material
    Wood Fiber
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Overall Outside Diameter
    7.09"
    Overall Depth
    3.65"
    Baffle Cutout Diameter
    6.18"
    # Mounting Holes
    5
    Sealed Volume
    0.24 ft.³
    Sealed F3
    86 Hz
    Vented Volume
    0.58 ft.³
    Vented F3
    47 Hz

    Reviews

    5 from 5Based on 3 reviews
    Review this product
    4 van 5
    I am going to use this woofer in a 2 way system, with mostly digital components. I.e. miniDSP, Fiio DA, classD amp and a HTPC as digital sound source. I have read tests on the 4ohm sibling, and this looks very promising. I have built, previously, with Peerless 830991, with same components as above, with greate result! In spring I will build with the NE-woofer. Looking forward to that!!!
    By Tord J. on 10 February 2021
    5 van 5
    Great sounding mid and lightweight. Sounds great with peerless corundum dome tweeter.
    By Joonas R. on 18 April 2019
