        NE123W-08 4" Full Range Woofer

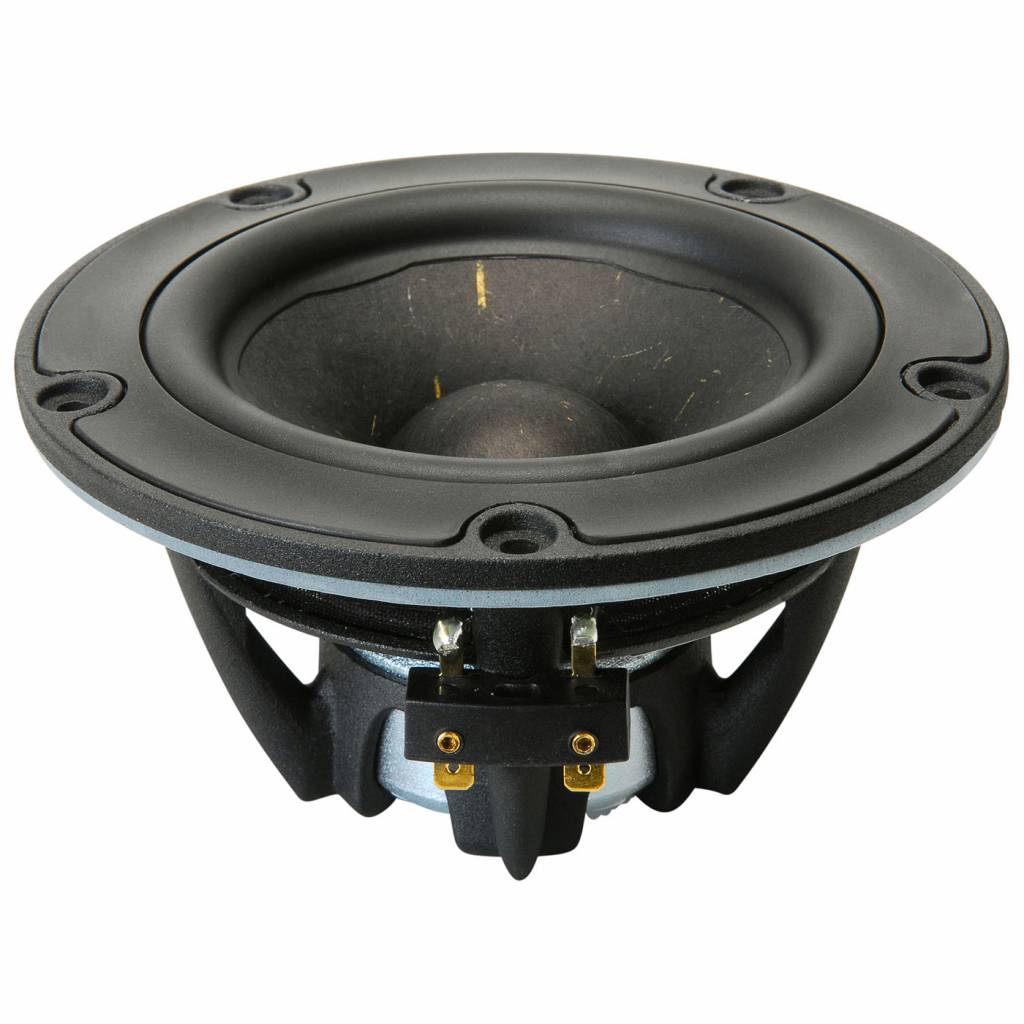

        Peerless by Tymphany NE123W-08 4" Full Range Woofer

        €89,95

        Out of stock

        Peerless by Tymphany NE123W-08 4" Full Range Woofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        50%
        4 stars
        50%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 74,34€ 89,95 Out of stock
        • -5% Purchase 4 for only € 85,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description Peerless by Tymphany NE123W-08 Full-range Woofer

        The high fidelity/low distortion Tymphany NE123W-08 4" Neodymium Woofer utilizes advanced design and measurement technologies in combination with carefully selected construction materials.



        Highlights

        • Cast aluminum frame promotes motor cooling
        • Sculpted design improves airflow and reduces reflections
        • High-strength compact neodymium magnet system
        • Proprietary coated natural wood fiber cone with half-roll rubber surround
        • Long-throw 1-1/4" voice coil on titanium former
        • Copper pole piece cap for extended HF response
        • 8 ohm nominal impedance



        Product details

        Peerless by Tymphany NE123W-08 4" Full Range Woofer

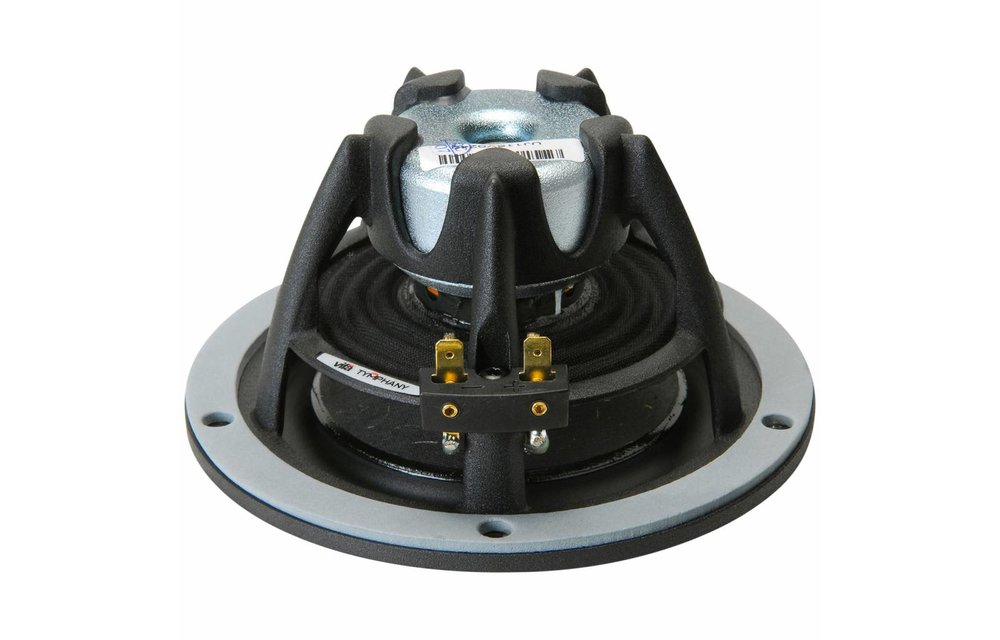

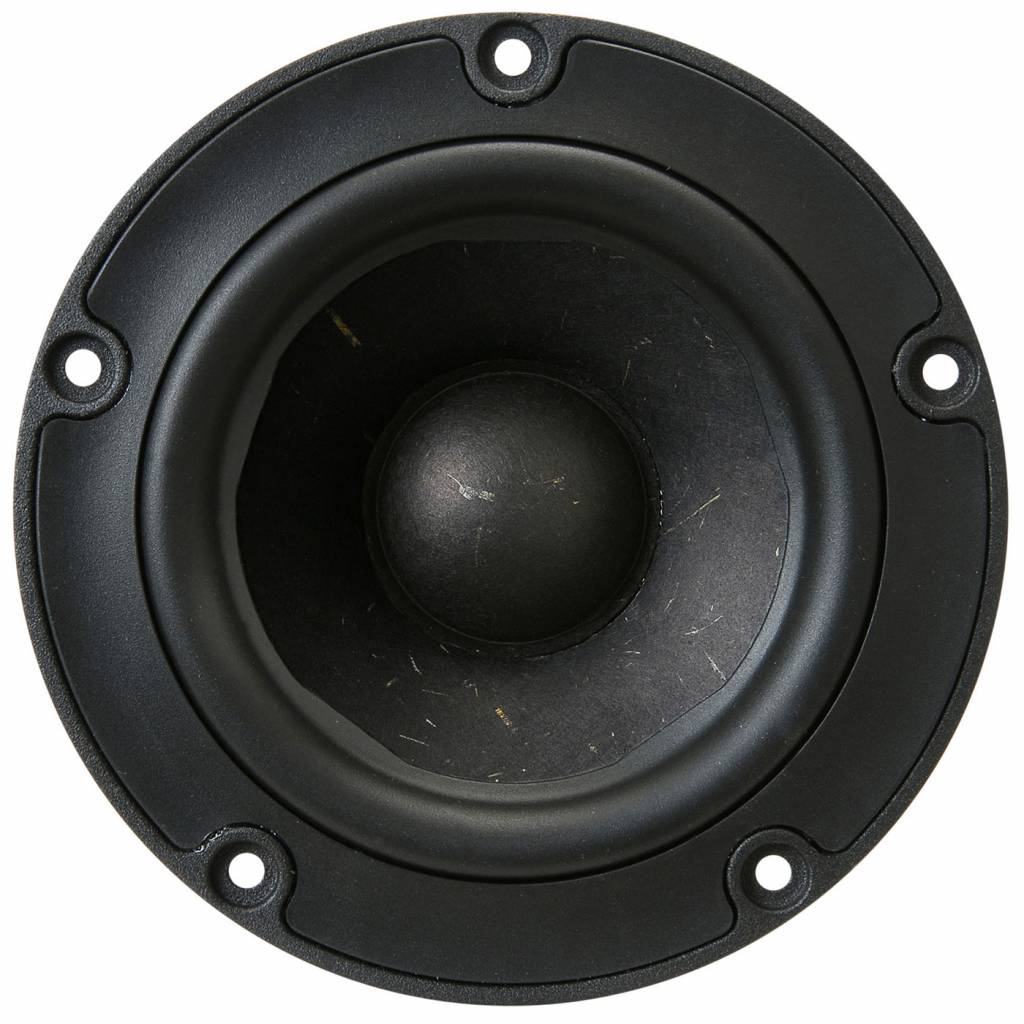

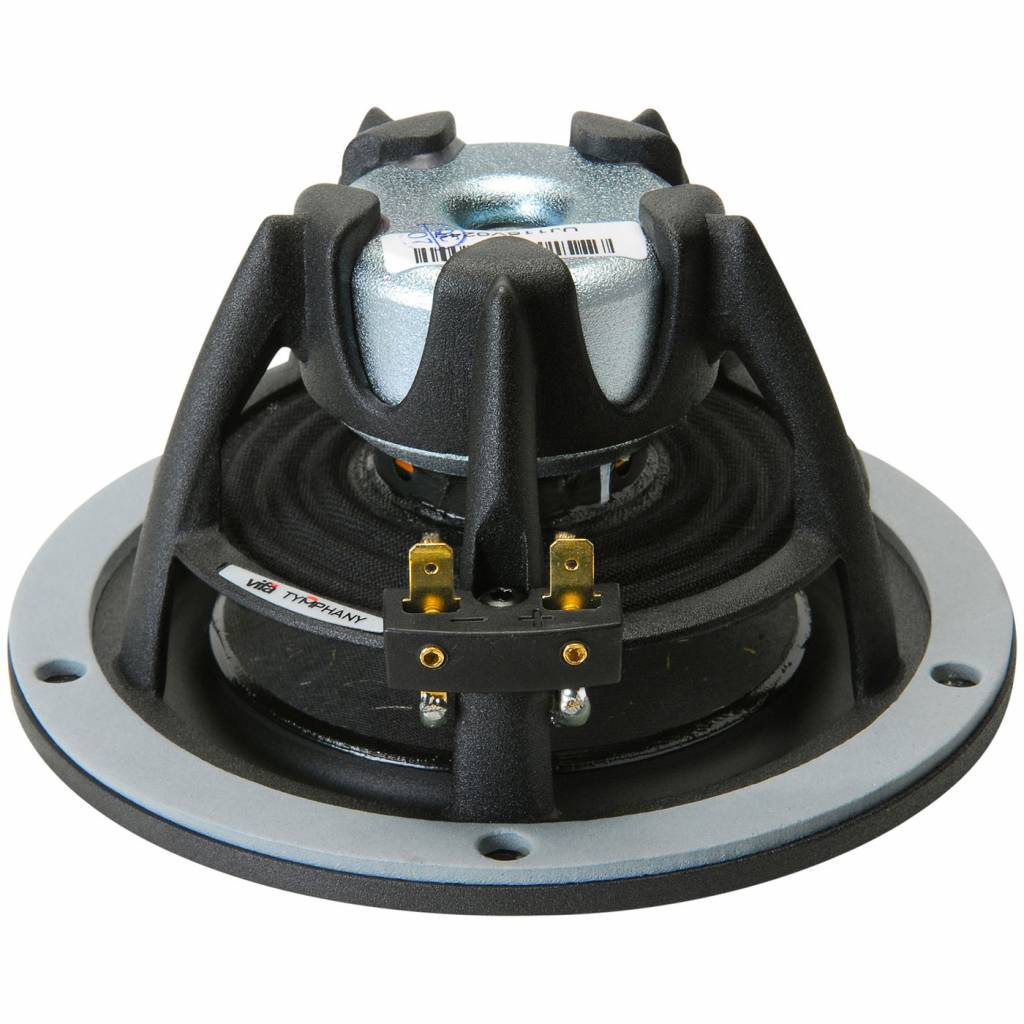

        This 4 inch 8 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas and processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.

        Show more

        Specifications

        Article number
        NE123W-08
        EAN
        0844632092596
        Woofer Series
        Peerless by Tymphany NE series
        Woofer Type
        Full Range Woofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        45 Watts
        Power Handling (max)
        90 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        86.2 dB
        Voice Coil Diameter
        1.28"
        DC Resistance (Re)
        6.3 ohms
        Voice Coil Inductance (Le)
        0.06 mH
        Resonant Frequency (Fs)
        61 Hz
        Mechanical Q (Qms)
        4.98
        Electromagnetic Q (Qes)
        0.37
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        4.7g
        Mechanical Compliance of Suspension (Cms)
        1.43 mm/N
        Surface Area of Cone (Sd)
        54.1 cm²
        BL Product (BL)
        5.53 Tm
        Compliance Equivalent Volume (Vas)
        0.21 ft.³
        Maximum Linear Excursion (Xmax)
        3.1 mm
        Cone / Diaphragm Material
        Wood Fiber
        Surround Material
        Rubber
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Neodymium
        Overall Outside Diameter
        4.84"
        Overall Depth
        2.58"
        Baffle Cutout Diameter
        3.86"
        # Mounting Holes
        5
        Sealed Volume
        0.05 ft.³
        Sealed F3
        141 Hz
        Vented Volume
        0.1 ft.³
        Vented F3
        84 Hz

        Show more

        4 of 5
        Last pair worked well for 3 years and then bit the dust and my crossovers and design had these specifically so had to use the same 4" for replace of mids in my 3 way speakers. tried other 4" but just was not the same of course.
        By Robert on 2 January 2023
        5 of 5
        hiend device
        By tiziano t. on 13 March 2020
