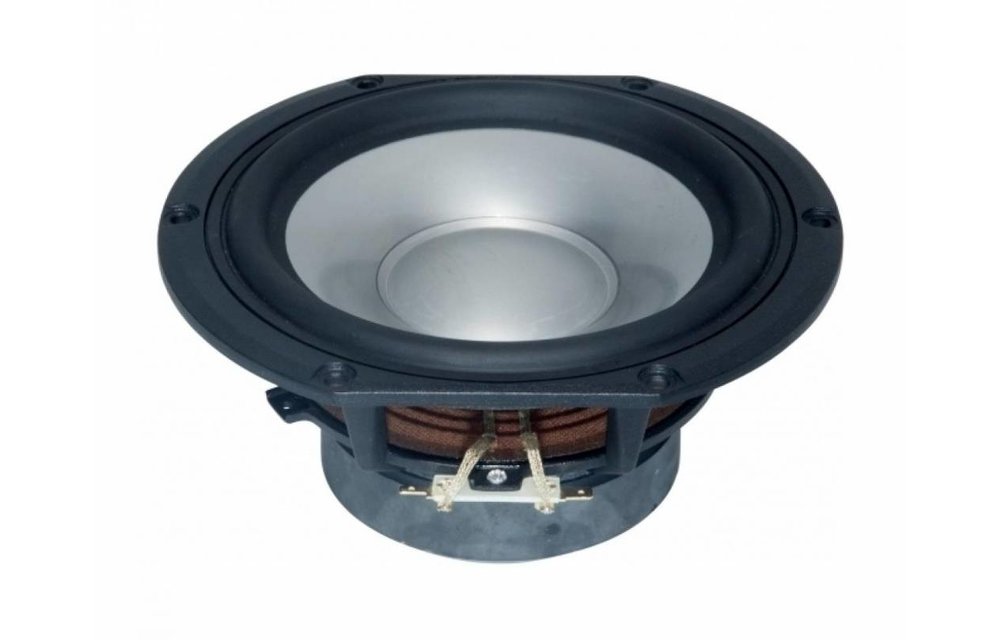

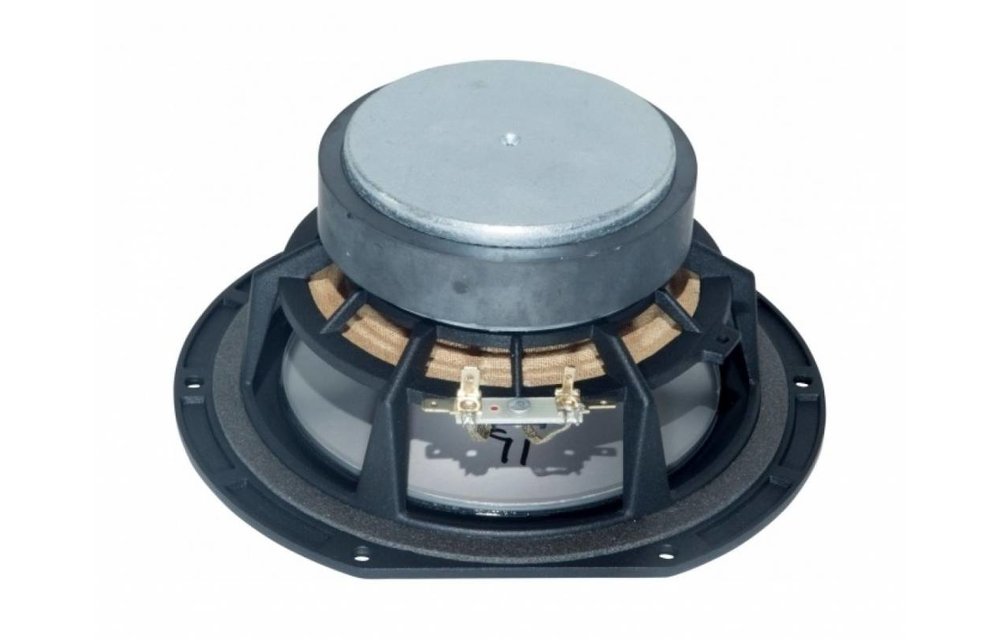

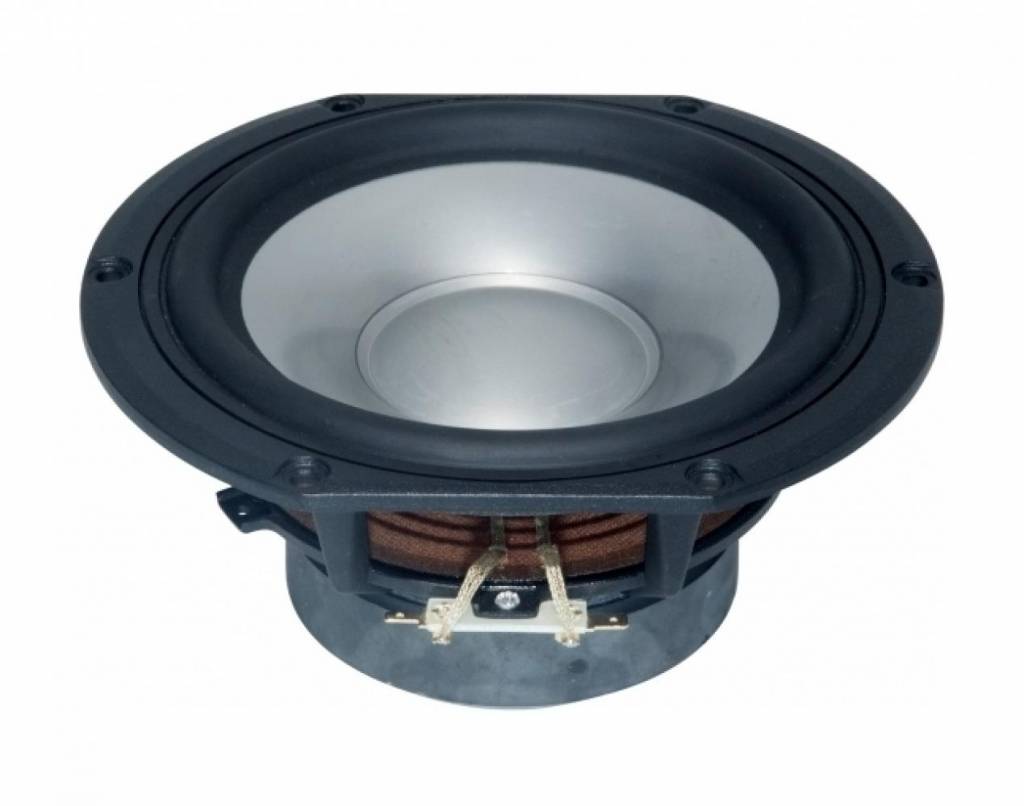

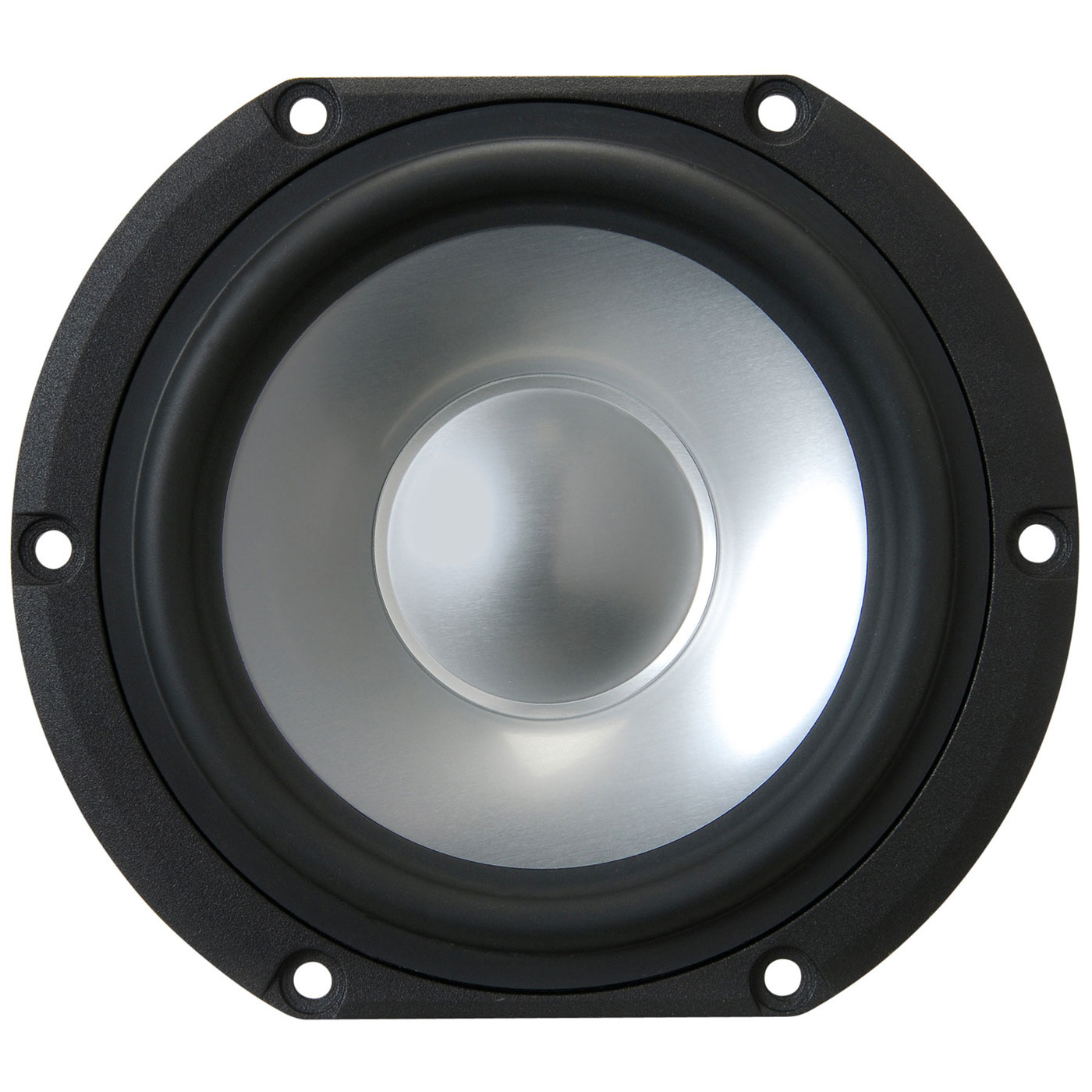

        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

        Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

        €76,45

        Out of stock

        Add to cart

        Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        6.5" | 8 Ω
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        € 63,18€ 76,45 Out of stock
        • -5% Purchase 4 for only € 72,63 per piece
        € 76,45
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer
        HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

        Product description Peerless by Tymphany HDS-P835025 Bass-midwoofer

        The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments



        Highlights

        • Truncated cast aluminum frame
        • Aluminum cone with half-roll rubber surround
        • Long-throw voice coil
        • Shorting rings for reduced distortion
        • Under-spider and voice coil ventilation



        Product details

        Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer



        This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is aluminium, offering a unique visual and acoustic experience.

        Show more

        Specifications

        Article number
        HDS-P835025
        EAN
        0844632084041
        Woofer Series
        Peerless by Tymphany HDS series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        55 Watt
        Power Handling (max)
        110 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.2 dB
        Frequency Response
        40 - 3000 Hz
        Voice Coil Diameter
        32 mm
        DC Resistance (Re)
        6.3 Ω
        Voice Coil Inductance (Le)
        0.39 mH
        Resonant Frequency (Fs)
        38 Hz
        Mechanical Q (Qms)
        3.3
        Electromagnetic Q (Qes)
        0.42
        Total Q (Qts)
        0.37
        Diaphragm Mass Inc. Airload (Mms)
        20.13 g
        Mechanical Compliance of Suspension (Cms)
        0.86 mm/N
        Surface Area of Cone (Sd)
        143.1 cm²
        BL Product (BL)
        8.58 Tm
        Compliance Equivalent Volume (Vas)
        24.6 L
        Maximum Linear Excursion (Xmax)
        5.39 mm
        Cone / Diaphragm Material
        Aluminum
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        182.37 mm
        Overall Depth
        88.14 mm
        Baffle Cutout Diameter
        146.05 mm
        # Mounting Holes
        6
        Sealed Volume
        6.8 L
        Sealed F3
        95 Hz
        Vented Volume
        13.88 L
        Vented F3
        48 Hz
