        HDS-P830874 6-1/2" PPB Cone HDS Woofer

        Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer

        €69,95

        10+ In stock

        Add to cart

        Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer

        5 reviews
        5 from 5
        5 reviews
        5 stars
        80%
        4 stars
        0%
        3 stars
        20%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Peerless by Tymphany
        Show all Peerless by Tymphany woofers
        6.5" | 8 Ω
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        € 57,81€ 69,95 10+ In stock
        • -5% Purchase 4 for only € 66,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer
        HDS-P830874 6-1/2" PPB Cone HDS Woofer

        Product description Peerless by Tymphany HDS-P830874 Bass-midwoofer

        The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments



        Highlights

        • Truncated cast aluminum frame
        • PPB polypropylene cone with half-roll rubber surround
        • Long-throw voice coil for high excursion
        • Shorting rings for reduced distortion
        • Under-spider and voice coil ventilation



        Product details

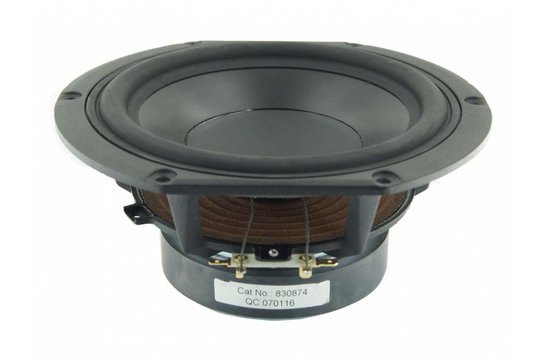

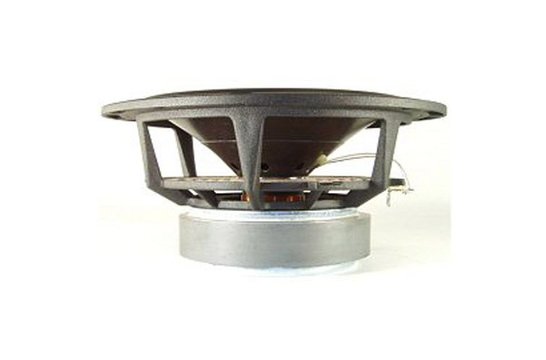

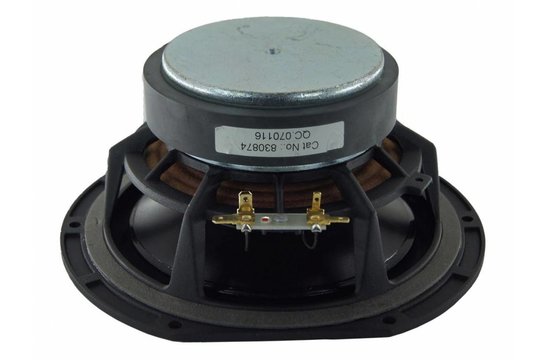

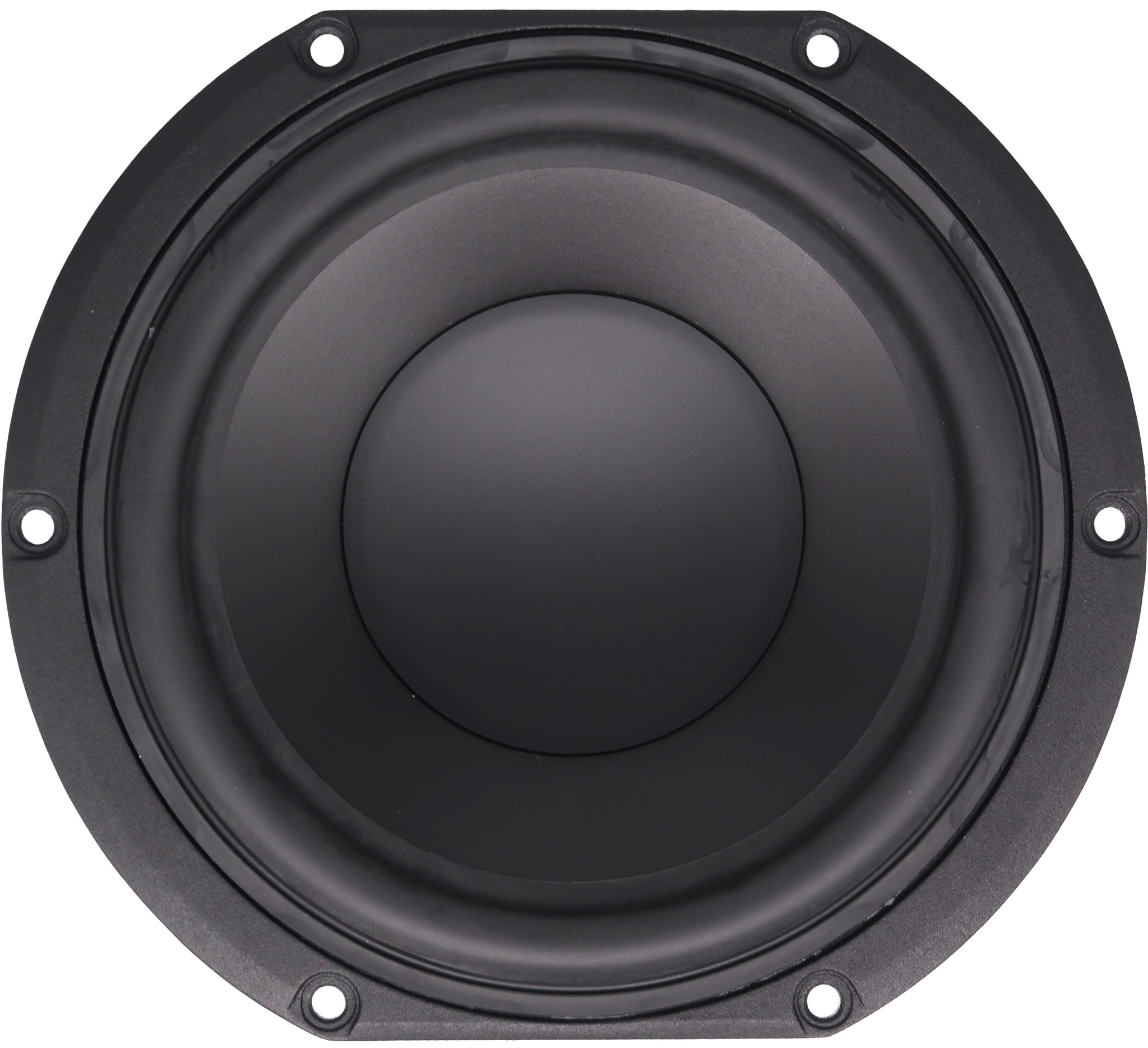

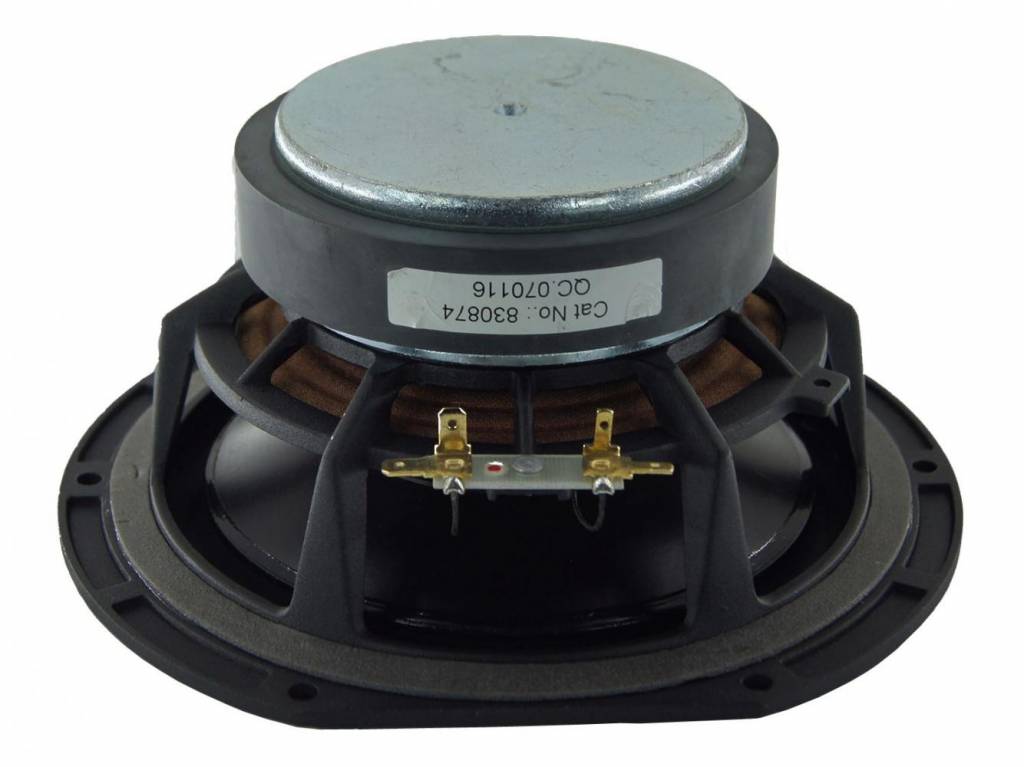

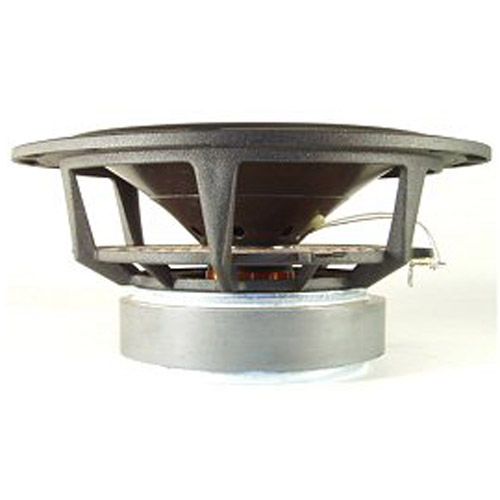

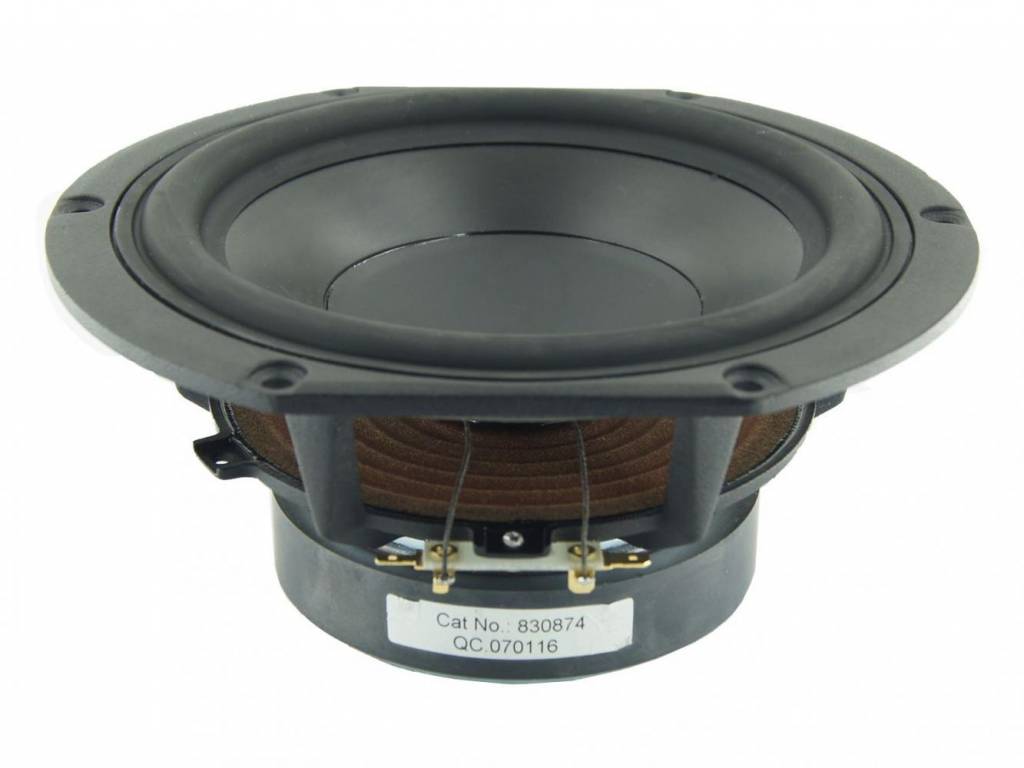

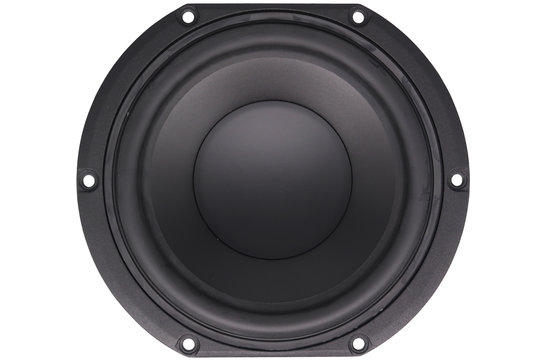

        Peerless by Tymphany HDS-P830874 6-1/2" PPB Cone HDS Woofer



        This 6.5 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is damped black polypropylene, offering a unique visual and acoustic experience.

        Show more

        Specifications

        Article number
        HDS-P830874
        EAN
        0844632084065
        Woofer Series
        Peerless by Tymphany HDS series
        Woofer Type
        Midwoofer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        75 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.7 dB
        Frequency Response
        100 - 2500 Hz
        Voice Coil Diameter
        32.4 mm
        DC Resistance (Re)
        6.3 Ω
        Voice Coil Inductance (Le)
        0.418 mH
        Resonant Frequency (Fs)
        61 Hz
        Mechanical Q (Qms)
        3.68
        Electromagnetic Q (Qes)
        0.595
        Total Q (Qts)
        0.51
        Diaphragm Mass Inc. Airload (Mms)
        18.8 g
        Mechanical Compliance of Suspension (Cms)
        370 μm/N
        Surface Area of Cone (Sd)
        143 cm²
        BL Product (BL)
        8.71 Tm
        Compliance Equivalent Volume (Vas)
        10.6 L
        Maximum Linear Excursion (Xmax)
        8.65 mm
        Cone / Diaphragm Material
        Polypropyleen
        Surround Material
        Rubber
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        Ø 182.3 x 164.3 mm
        Overall Depth
        87 mm
        Baffle Cutout Diameter
        146 mm
        Bolt Circle Diameter
        170 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.8 mm

        Show more

        Reviews

        5 reviews
        Review this product
        3 of 5
        -
        By Pierre on 7 March 2023
        5 of 5
        Outstanding midwoofer with low distortion, no noise or buzzing towards low frequencies, controlled behaviour of the cone edge/surround and on top of that, it just looks gorgeous with its truncated basket.
        By AR on 22 September 2022
