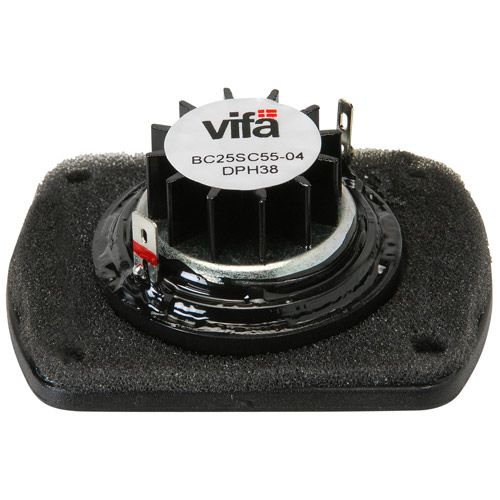

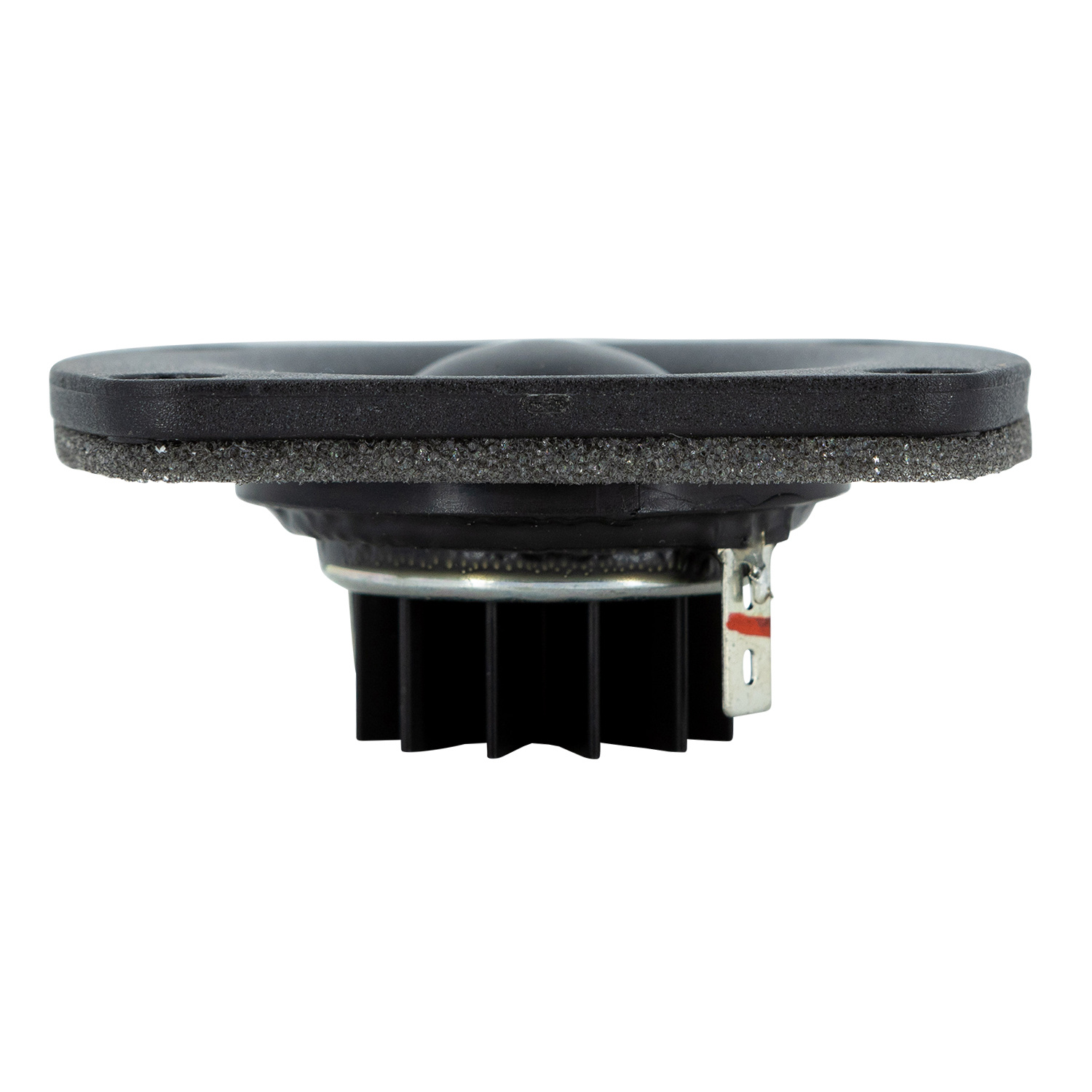

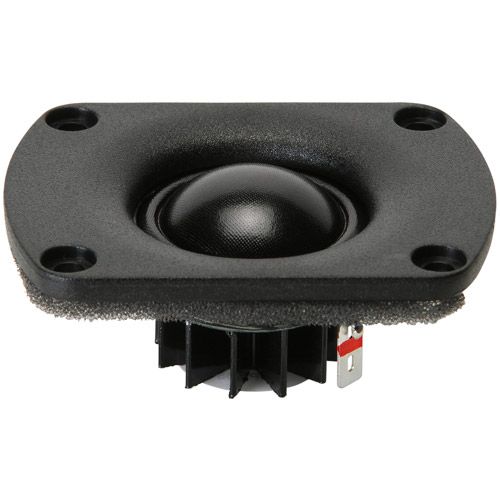

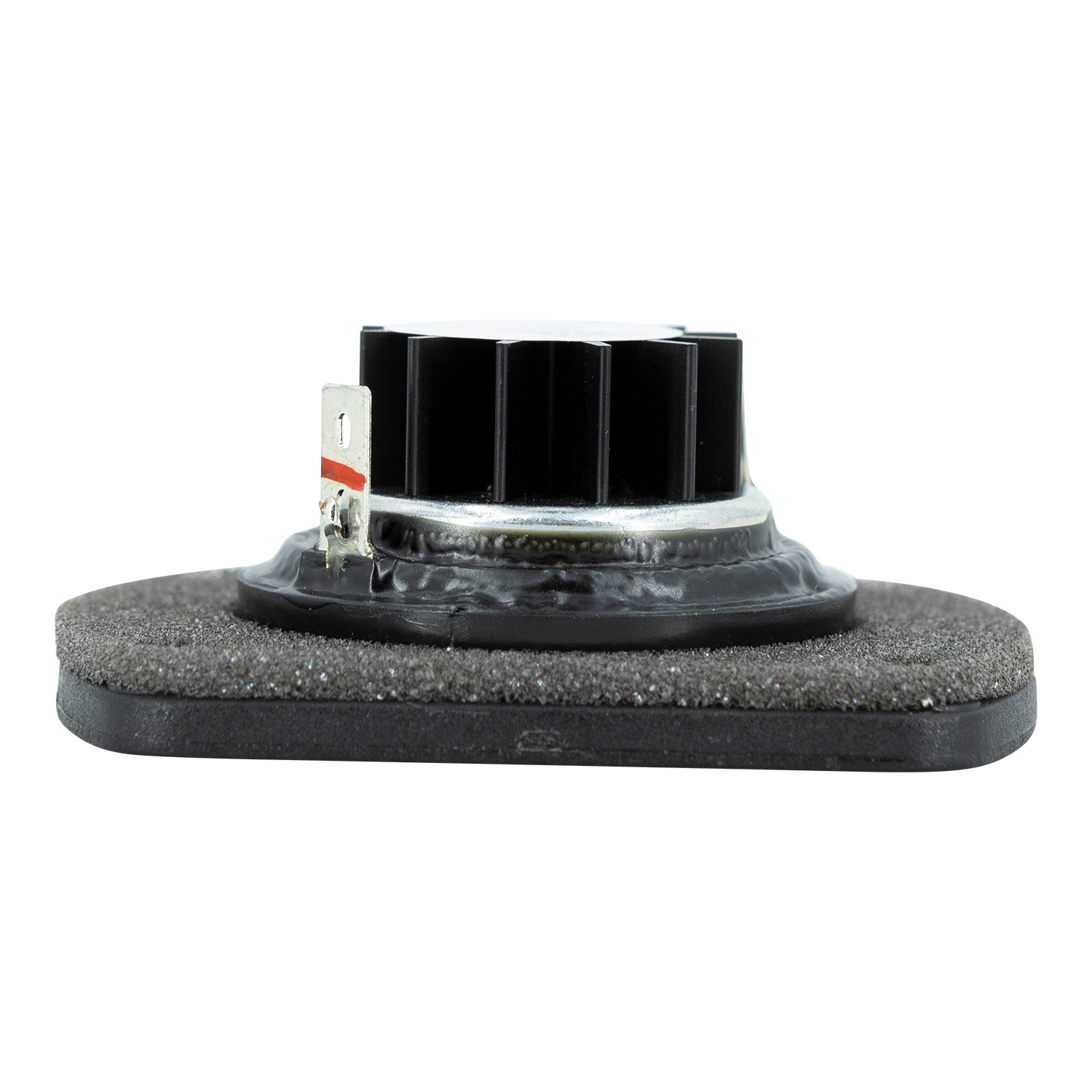

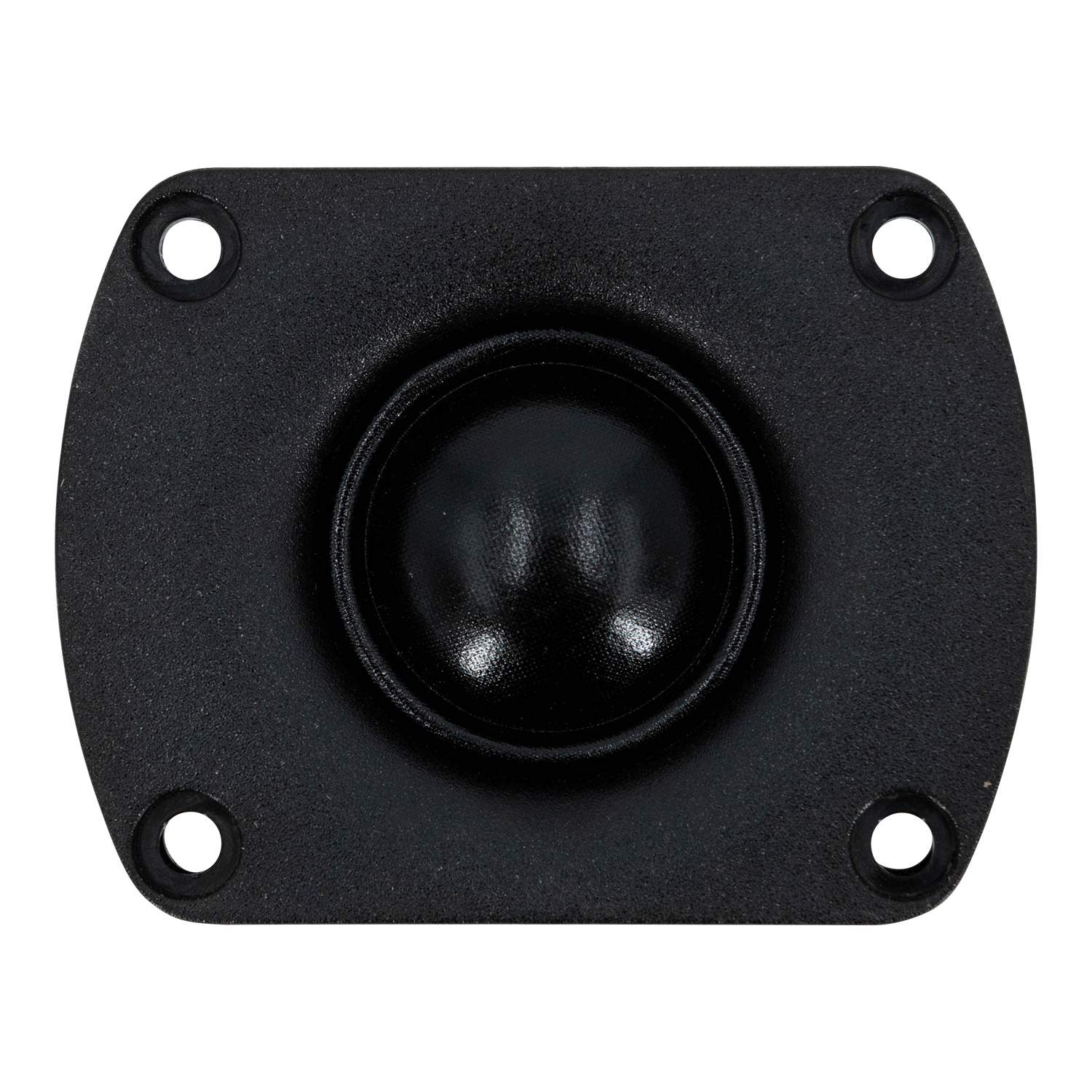

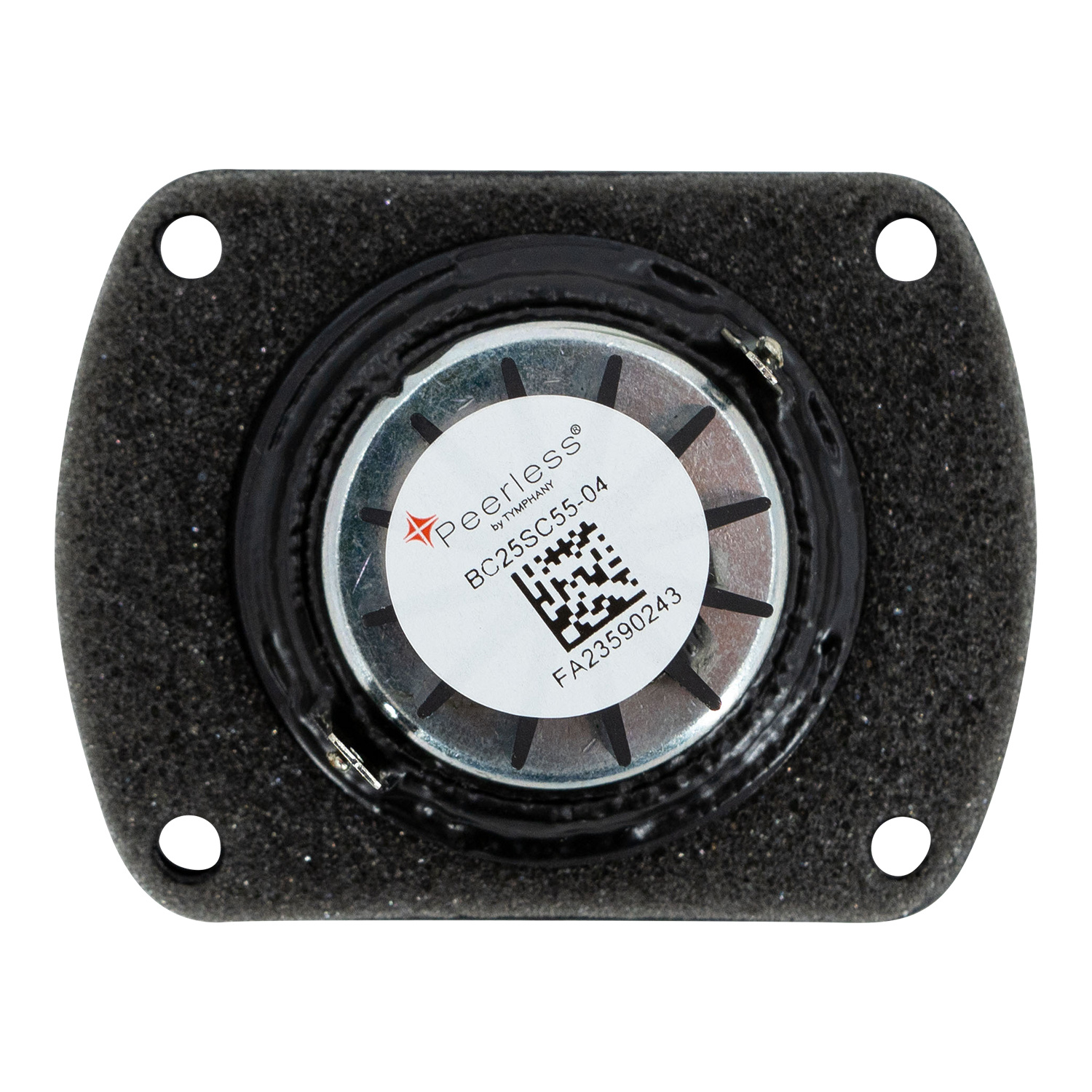

Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

Name: Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter
Brand: Peerless by Tymphany
SKU: BC25SC55-04
Price: 23.45 EUR
Availability: InStock
Rating: 4 (2 reviews)

2 reviews

Brand: Peerless by Tymphany

Show all Dome tweeter

Compare

1" | 4 Ω

€ 19,38€ 23,45 4 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

The smooth-sounding BC25 SC55-04 1" compact soft dome tweeter from Tymphany features high output and response past 30 kHz thanks to a high-strength neodymium motor with heatsink fins.

Highlights

Polymer faceplate with recessed waveguide loading
1" treated soft dome
Neodymium magnet for high output and compact size
Truncated faceplate permits optimal driver spacing
Rear heatsink increases thermal management
Frequency response extends past 30 kHz

Product details

Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the neodymium magnet motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes, complete with sealing gasket which helps in reducing vibration between baffle and driver. A finned heat sink has been added for improved power handling.

Specifications

Article number: BC25SC55-04
Tweeter Type: Soft Dome
Tweeter Series: BC Series
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 25 Watts
Impedance (Z): 4 Ω
Sensitivity: 94 dB 1W/1m
Frequency Response: 2200 to 28,000 Hz
Resonant Frequency (Fs): 1,320 Hz
DC Resistance (Re): 3 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 3.82
Electromagnetic Q (Qes): 1.83
Total Q (Qts): 1.24
Overall Outside Diameter: 2.74”x 2.13”
Cutout Diameter: 1.70”
Depth: 1.10"

Data sheet

Reviews

2 reviews

4 from 5Based on 2 reviews

Review this product

4 of 5

Overall very nice, well build tweeter. Personally, I had some effort to get the relavtively high output at Fs under control in my 2 way setup. Ended up in a third order cross-over. With this the tweeter sounds very balanced now.

By Ralph W. on 3 July 2022

4 of 5

Prima tweeter, zeker voor dat geld. Ik gebruik ze in een stel B&W DM603S1 boxen ter vervanging van de originele tweeters, die schel klonken en niet echt helder. Gemonteerd met een zelfgemaakt montageplaatje klinken ze een stuk beter dan de originele tweeters, die €89 per stuk kosten. Klasse spul, dit.

By Rob d. on 5 July 2019
