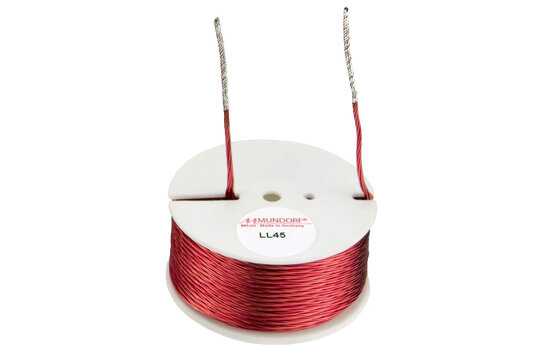

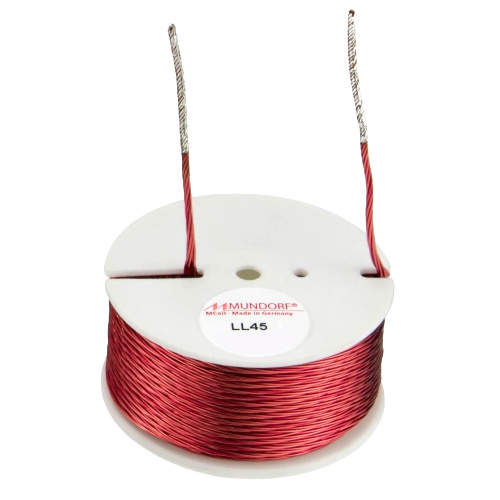

        LL45-0,68 | 0,68 mH | 0,34 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        Mundorf LL45-0,68 | 0,68 mH | 0,34 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        €38,95

        Out of stock

        Add to cart

        Mundorf LL45-0,68 | 0,68 mH | 0,34 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Mundorf
        LL45-0,68 | 0,68 mH | 0,34 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil
        € 32,19€ 38,95 Out of stock
        € 38,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LL45-0,68 | 0,68 mH | 0,34 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        Pros and cons

        According to our specialists
        • No vibrations or noise
        • OFC-Copper Hepta Strand

        Product description Mundorf LL45-0,68 | 0,68 mH | 0,34 Ω | 2% | 17 AWG

        The Mundorf LL45-0,68 is a 0.68 mH MCoil AirCore Hepta Strand coil with tight ±2% tolerance, 0.34 Ohm DC resistance and 17 AWG OFC-copper conductor construction for refined high and mid frequency crossover applications.


        Highlights of the Mundorf LL45-0,68

        • 0.68 mH inductance with ±2% tolerance
        • 0.34 Ohm DC resistance
        • Air-core coil with OFC-copper Hepta Strand conductor
        • 17 AWG wire, 1.11 mm² cross section and 1.19 mm conductor diameter
        • Baked winding fixation on L5828 coil body

        Product details Mundorf LL45-0,68

        Mundorf LL45-0,68 0.68 mH MCoil AirCore Hepta Strand Coil 0.34 Ohm 2% 17 AWG

        The Mundorf LL45-0,68 is part of the MCoil LL AirCore Hepta Strand series, designed for high-quality crossover components where precision and musical refinement matter. With an inductance of 0.68 mH and ±2% tolerance, it is suited to accurate filter design in demanding loudspeaker projects.


        Its air-core construction avoids core-related saturation effects, while the OFC-copper Hepta Strand conductor supports detailed signal transmission. Mundorf positions these coils as a first choice for high and mid frequency applications focused on fine detail, refined musical fidelity and holographic, live-like staging.


        The LL45-0,68 features a 0.34 Ohm DC resistance and uses 17 AWG wire with a 1.11 mm² cross section and 1.19 mm conductor diameter. The baked winding fixation helps keep the coil mechanically stable, supporting consistent performance inside a crossover assembly.


        With Ø58 x H28 mm dimensions and an L5828 coil body type, this Mundorf coil is compact enough for many speaker crossover layouts while retaining the build characteristics expected from the MCoil LL AirCore Hepta Strand range.

        Show more

        Specifications

        Article number
        LL45-0,68
        EAN
        4060158005261
        Inductance
        0.68 mH
        DCR
        0.34 Ω
        Tolerance
        2%
        Wire diameter
        25 AWG
        Dimensions: Ø * H (mm)
        58 x 28

        Show more
