        LL45-0,22 | 0,22 mH | 0,18 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

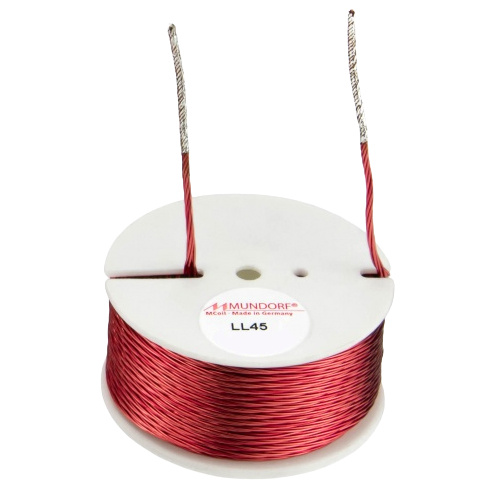

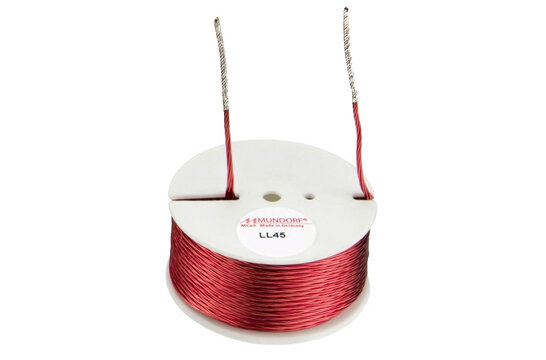

        Mundorf LL45-0,22 | 0,22 mH | 0,18 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        €21,95

        Out of stock

        Add to cart

        Mundorf LL45-0,22 | 0,22 mH | 0,18 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Mundorf
        LL45-0,22 | 0,22 mH | 0,18 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil
        € 18,14€ 21,95 Out of stock
        € 21,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        LL45-0,22 | 0,22 mH | 0,18 Ω | 2% | 17 AWG | MCoil AirCore Hepta Strand Coil

        Pros and cons

        According to our specialists
        • No vibrations or noise
        • OFC-Copper Hepta Strand

        Product description Mundorf LL45-0,22 | 0,22 mH | 0,18 Ω | 2% | 17 AWG

        The Mundorf LL45-0,22 is a 0.22 mH MCoil LL AirCore Hepta Strand coil with 2% tolerance, 0.18 Ohm DC resistance and a 17 AWG OFC copper conductor for refined high and mid frequency crossover applications.


        Highlights of the Mundorf LL45-0,22

        • 0.22 mH inductance with ±2% tolerance
        • Low 0.18 Ohm DC resistance
        • OFC copper Hepta Strand conductor
        • 1.11 mm² wire cross section, AWG 17, 1.19 mm
        • Air-core coil with baked winding fixation

        Product details Mundorf LL45-0,22

        Mundorf LL45-0,22 0.22 mH MCoil AirCore Hepta Strand Coil 0.18 Ohm 2% 17 AWG

        The Mundorf LL45-0,22 is part of the MCoil LL AirCore Hepta Strand series, designed for high quality crossover components in demanding loudspeaker builds. With its 0.22 mH inductance, ±2% tolerance and 0.18 Ohm DC resistance, it offers precise electrical values for accurate crossover design.


        Its OFC copper Hepta Strand conductor combines a 1.11 mm² cross section with AWG 17 wire specification and a 1.19 mm conductor diameter. This construction is intended for finely detailed, refined musical reproduction in high and mid frequency applications where clarity and staging are important.


        As an air-core design, the LL45-0,22 avoids the use of a magnetic core and features baked winding fixation for mechanical stability. It is a strong choice when selecting premium coils for passive speaker filters.


        The compact Ø58 x H18 mm coil body makes the LL45-0,22 practical for crossover layouts where space is limited. It fits well in DIY and upgrade projects for speakers that require a high grade 0.22 mH inductor with low resistance and tight tolerance.

        Show more

        Specifications

        Article number
        LL45-0,22
        EAN
        4060158005209
        Inductance
        0.22 mH
        DCR
        0.18 Ω
        Tolerance
        2%
        Wire diameter
        25 AWG
        Dimensions: Ø * H (mm)
        58 x 18

        Show more
