        L71-1,8 | 1,8 mH | 1,22 Ω | 2% | 21 AWG | MCoil AirCore Coil

        Mundorf L71-1,8 | 1,8 mH | 1,22 Ω | 2% | 21 AWG | MCoil AirCore Coil

        €10,95

        10+ In stock

        Add to cart

        Mundorf L71-1,8 | 1,8 mH | 1,22 Ω | 2% | 21 AWG | MCoil AirCore Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Mundorf
        L71-1,8 | 1,8 mH | 1,22 Ω | 2% | 21 AWG | MCoil AirCore Coil
        € 9,05€ 10,95 10+ In stock
        € 10,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        L71-1,8 | 1,8 mH | 1,22 Ω | 2% | 21 AWG | MCoil AirCore Coil

        Pros and cons

        According to our specialists
        • OFC -Copper
        • Getaped

        Product description Mundorf L71-1,8 | 1,8 mH | 1,22 Ω | 2% | 21 AWG

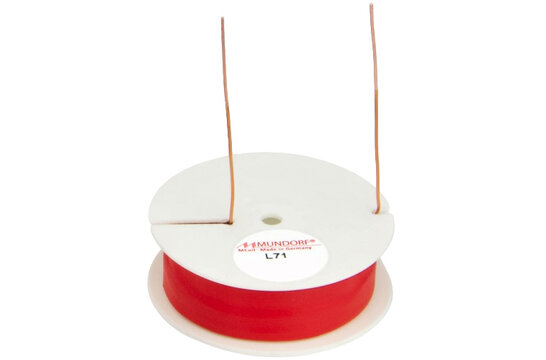

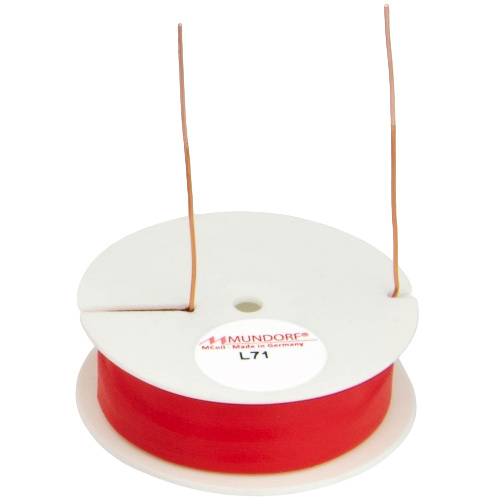

        The Mundorf L71-1,8 is a compact 1.8 mH MCoil L AirCore coil with ±2% tolerance, 1.22 Ohm DC resistance and 21 AWG OFC copper SolidCore wire.


        Highlights of the Mundorf L71-1,8

        • 1.8 mH inductance with ±2% tolerance
        • 1.22 Ohm DC resistance
        • Air-core coil with OFC copper SolidCore conductor
        • 0.40 mm² wire cross section, AWG 21, 0.71 mm wire
        • Taped winding fixation for a stable coil structure

        Product details Mundorf L71-1,8

        Mundorf L71-1,8 1.8 mH MCoil AirCore Coil 1.22 Ohm 2% 21 AWG

        The Mundorf L71-1,8 is part of the MCoil L AirCore range, designed for use as a precision inductive element in passive speaker networks and other crossover components. With an inductance of 1.8 mH and a tight ±2% tolerance, it is suited for builds where predictable electrical values are important.


        This air-core design uses an OFC copper SolidCore conductor with a 0.40 mm² cross section. The wire specification is AWG 21 with a 0.71 mm conductor diameter, giving the coil a DC resistance of 1.22 Ohm.


        The winding is taped for fixation, helping the coil maintain its physical structure during handling and installation. Its Ø40 x H20 mm dimensions make it a compact choice among passive crossover coils.


        Use the L71-1,8 when you need a Mundorf air-core coil with clearly defined electrical values for DIY or replacement work in speakers. The coil body type is L4020, matching its Ø40 x H20 mm format.

        Show more

        Specifications

        Article number
        L71-1,8
        EAN
        4060158004097
        Inductance
        1.8 mH
        DCR
        1.22 Ω
        Tolerance
        2%
        Wire diameter
        21 AWG
        Dimensions: Ø * H (mm)
        40 x 20
