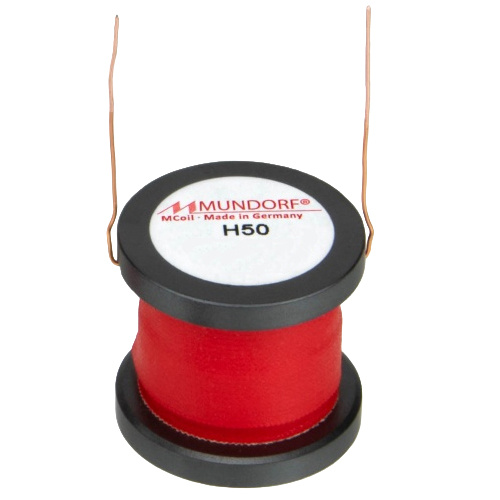

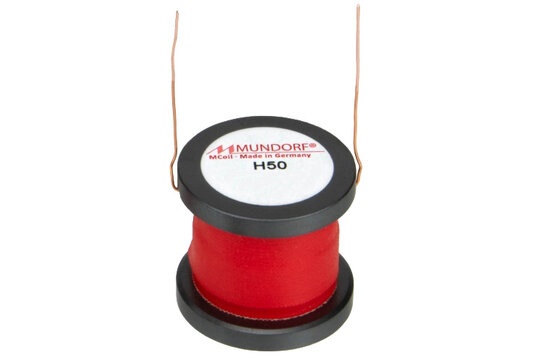

        H50-10 | 10 mH | 1,50 Ω | 3% | 24 AWG | MCoil Ferrite/Aronit DrumCore Coil

        Mundorf H50-10 | 10 mH | 1,50 Ω | 3% | 24 AWG | MCoil Ferrite/Aronit DrumCore Coil

        €12,55

        Out of stock

        Add to cart

        Mundorf H50-10 | 10 mH | 1,50 Ω | 3% | 24 AWG | MCoil Ferrite/Aronit DrumCore Coil

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Mundorf
        H50-10 | 10 mH | 1,50 Ω | 3% | 24 AWG | MCoil Ferrite/Aronit DrumCore Coil
        € 10,37€ 12,55 Out of stock
        € 12,55
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        H50-10 | 10 mH | 1,50 Ω | 3% | 24 AWG | MCoil Ferrite/Aronit DrumCore Coil

        Pros and cons

        According to our specialists
        • OFC -Copper
        • Getaped
        • Low Re

        Product description Mundorf H50-10 | 10 mH | 1,50 Ω | 3% | 24 AWG

        The Mundorf H50-10 is a 10 mH MCoil Ferrite/Aronit DrumCore coil with low-tolerance winding, OFC copper conductor and a compact taped construction for loudspeaker crossover applications.


        Highlights

        • 10 mH inductance with ±3% tolerance
        • 1.50 Ω DC resistance
        • 24 AWG OFC copper SolidCore conductor
        • Taped winding fixation with F3025 coil body

        Product details

        Mundorf H50-10 | 10 mH | 1.50 Ω | 3% | 24 AWG MCoil Ferrite/Aronit DrumCore Coil

        The Mundorf H50-10 is part of the MCoil H Ferrite/Aronit DrumCore series, designed for use in passive loudspeaker crossover components where compact size and stable electrical values are important. This version provides 10 mH inductance with a ±3% tolerance, making it suitable for precise filter design.


        With a DC resistance of 1.50 Ω, the H50-10 offers a practical balance between inductance value, winding resistance and physical size. The ferrite/Aronit drum core construction helps achieve higher inductance in a compact format compared with many equivalent air-core designs.


        The coil is wound with an OFC copper SolidCore conductor with a 0.20 mm² cross section, corresponding to 24 AWG and a 0.50 mm wire diameter. Its taped winding fixation keeps the coil mechanically stable during installation and everyday use inside a loudspeaker cabinet.


        The H50-10 has dimensions of Ø30 x H25 mm and uses the F3025 coil body type. It is a reliable choice for crossover builders who need a 10 mH drum core inductor with defined tolerance, compact mounting dimensions and dependable performance within coils and ferrite core coils.

        Show more

        Specifications

        Article number
        H50-10
        EAN
        4060158011774
        Inductance
        10 mH
        DCR
        1.50 Ω
        Tolerance
        3%
        Wire diameter
        24 AWG
        Dimensions: Ø * H (mm)
        30 x 25

        Show more
