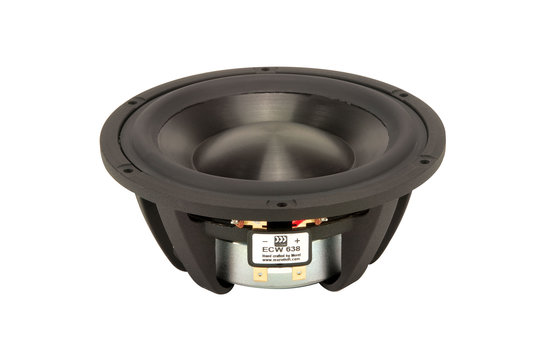

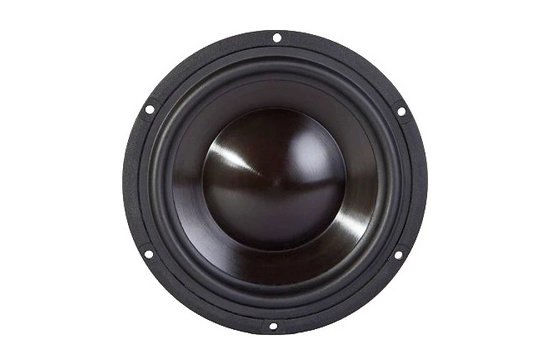

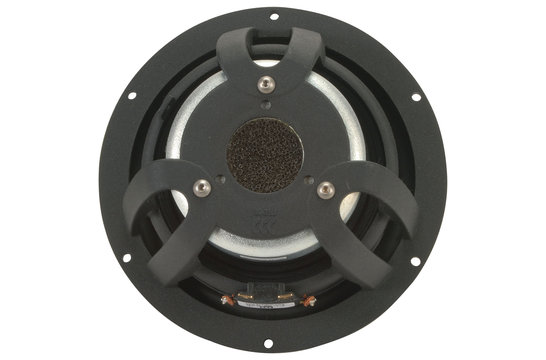

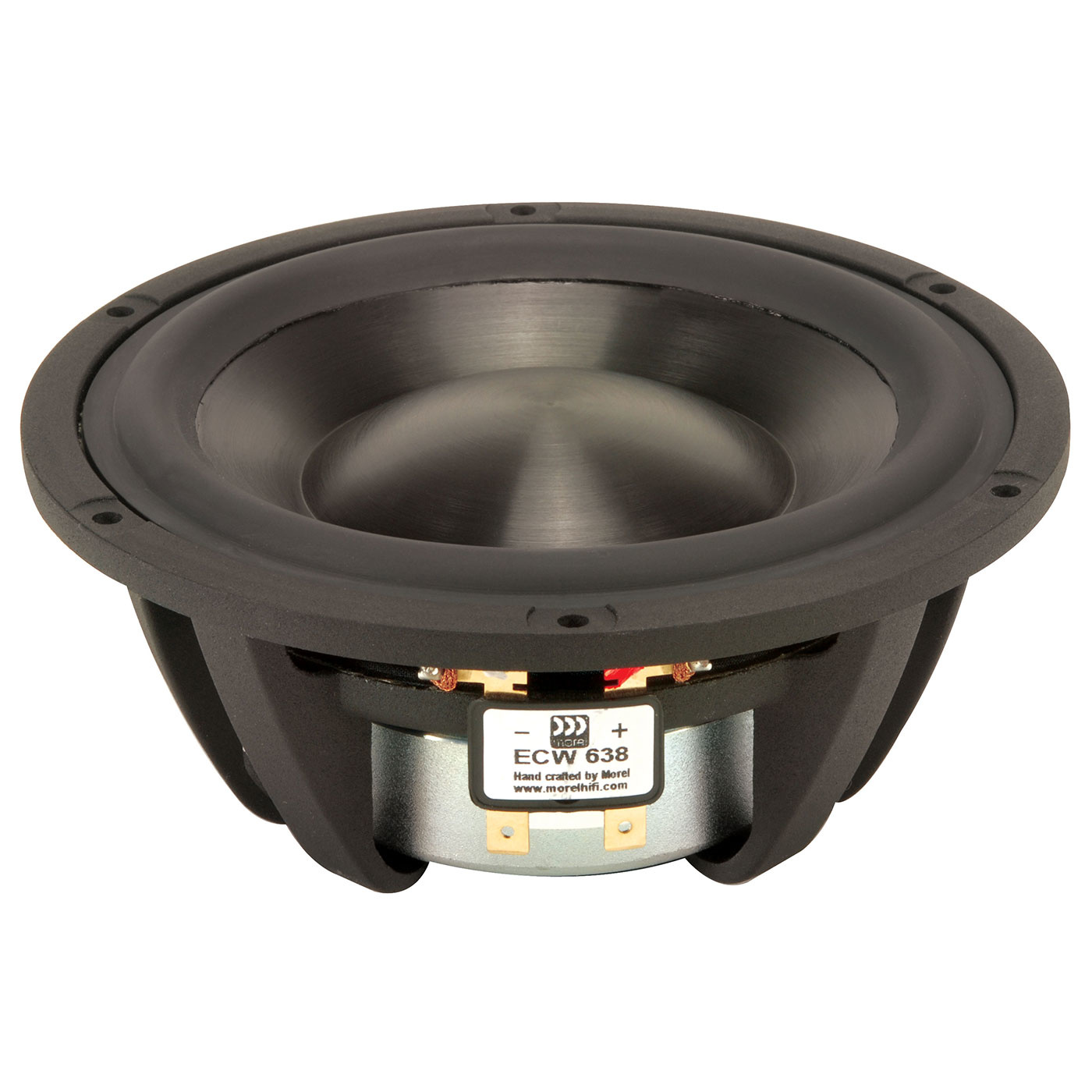

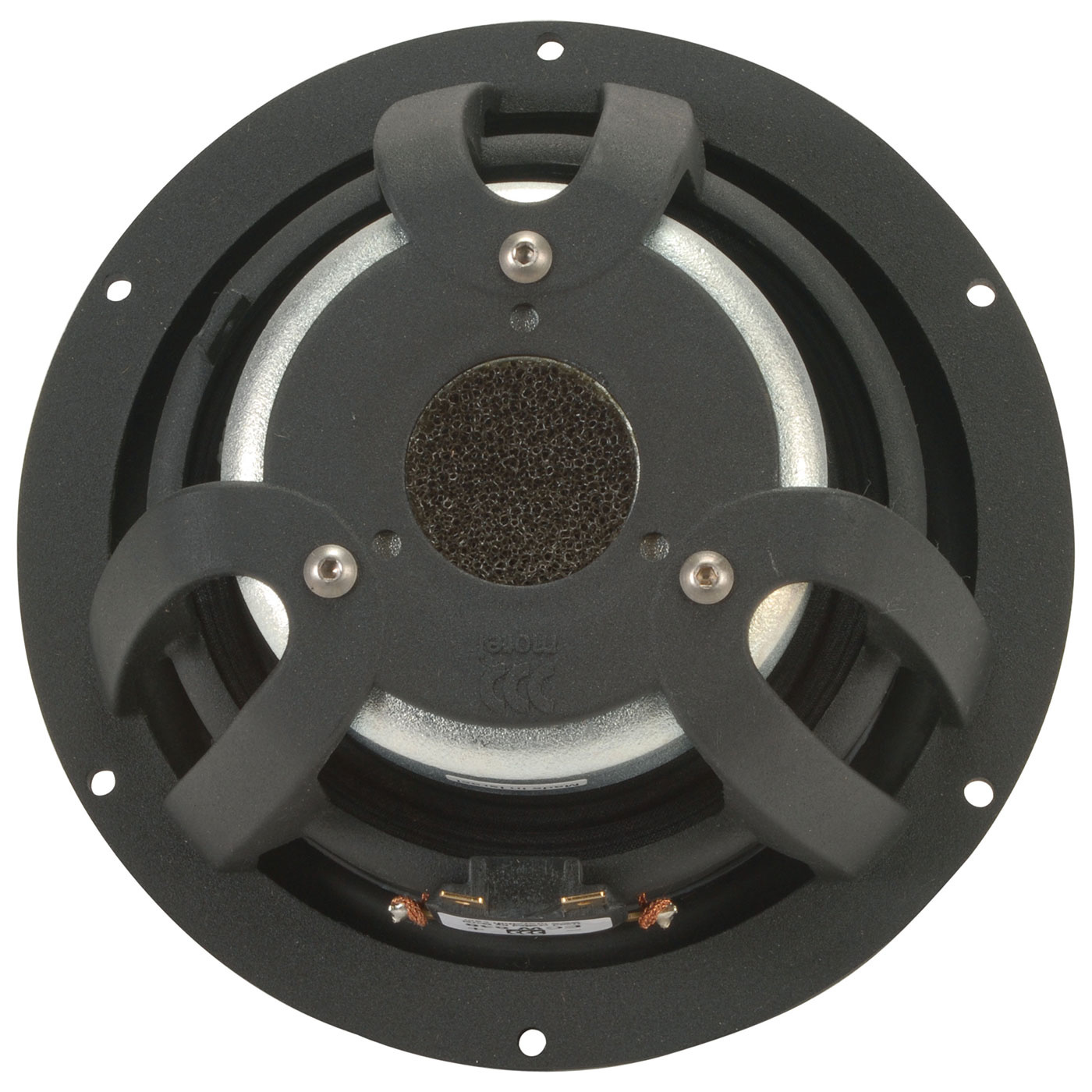

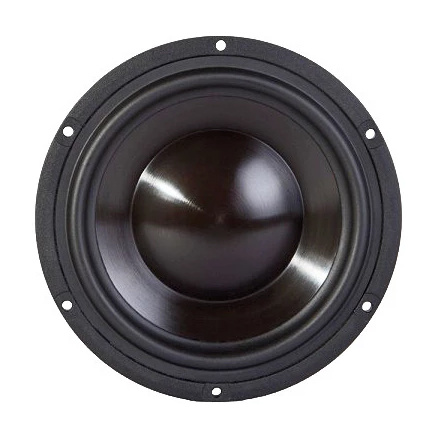

    Morel Elite EW 638 6" Woofer

    € 148,72€ 179,95 2 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €170,95 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Morel Elite Series 6" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.



    Highlights

    • DPC (Damped Polymer Composite) cone material
    • Large diameter Hexatech™ aluminum voice coil
    • Hybrid™ neodymium/ferrite magnet
    • Uniflow™ chassis removes air restrictions
    • High power handling



    Product details

    Morel Elite EW 638 6" Woofer



    Morel Elite Series 6" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. Frequency response is extremely flat and overall definition is superb. Suitable for the most demanding audio reproduction systems. Latest version of Morel's MW-167, HU-631, and HU-621 drivers.

    Specifications

    Article number
    EW 638
    Woofer Series
    Elite Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6"
    Power Handling (RMS)
    150 Watts
    Power Handling (max)
    1,000 Watts
    Impedance (Z)
    8 ohms
    Sensitivity
    87 dB 2.83V/1m
    Frequency Response
    40 to 4,000 Hz
    Voice Coil Diameter
    3"
    DC Resistance (Re)
    5 ohms
    Voice Coil Inductance (Le)
    0.52 mH
    Resonant Frequency (Fs)
    39 Hz
    Mechanical Q (Qms)
    1.71
    Electromagnetic Q (Qes)
    0.39
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    16g
    Mechanical Compliance of Suspension (Cms)
    1.06 mm/N
    Surface Area of Cone (Sd)
    119 cm²
    BL Product (BL)
    0.85 Tm
    Compliance Equivalent Volume (Vas)
    0.72 ft.³
    Maximum Linear Excursion (Xmax)
    6 mm
    Driver's Mechanical Losses (Rms)
    2.26 N·s/m
    Cone / Diaphragm Material
    Poly Composite
    Voice Coil Wire Material
    Aluminum
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Overall Outside Diameter
    6.3"
    Overall Depth
    2.72"
    Baffle Cutout Diameter
    5.512"
    # Mounting Holes
    6
    Mounting Hole Diameter
    4.2 mm
    Sealed Volume
    0.11 ft.³
    Sealed F3
    104 Hz
    Vented Volume
    0.26 ft.³
    Vented F3
    64 Hz
