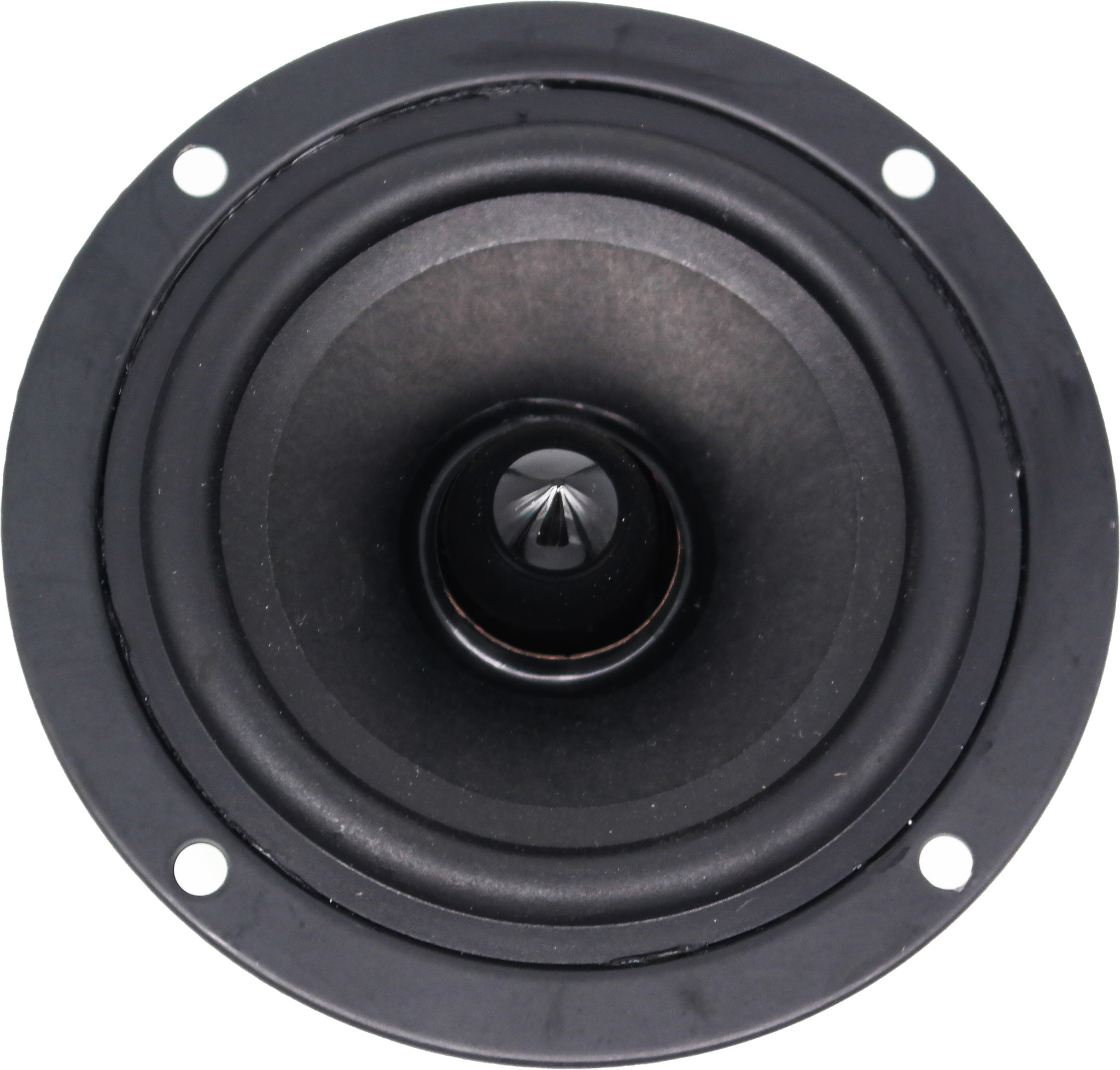

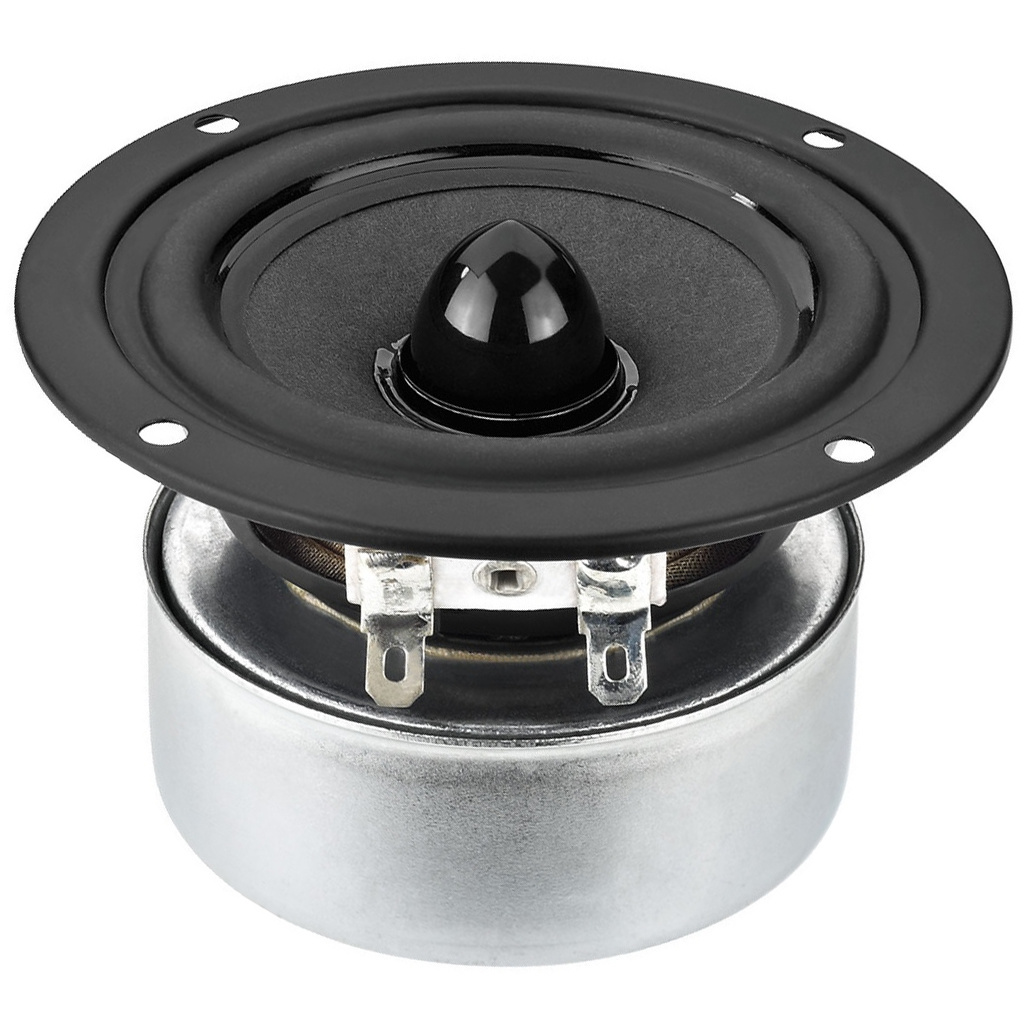

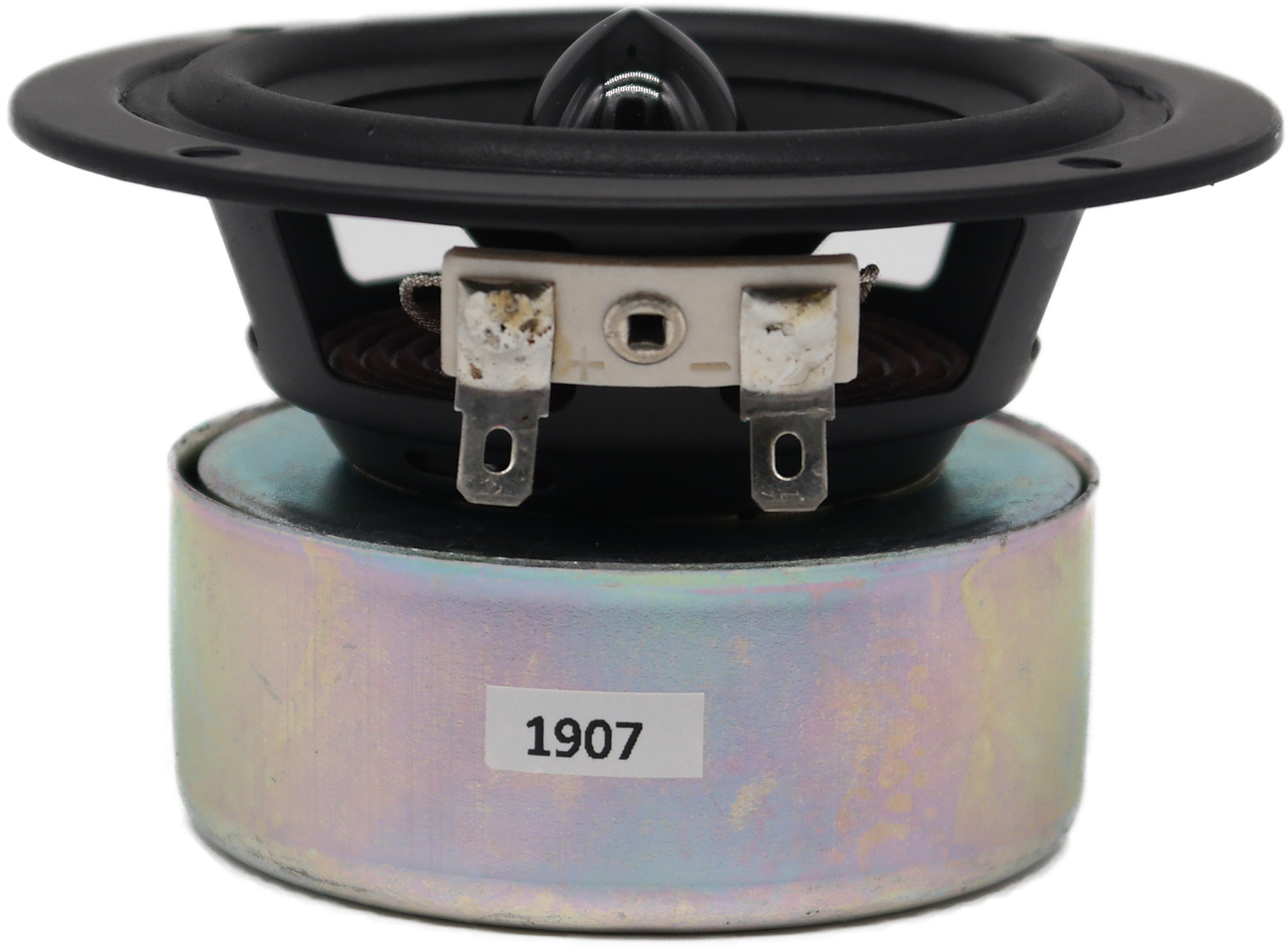

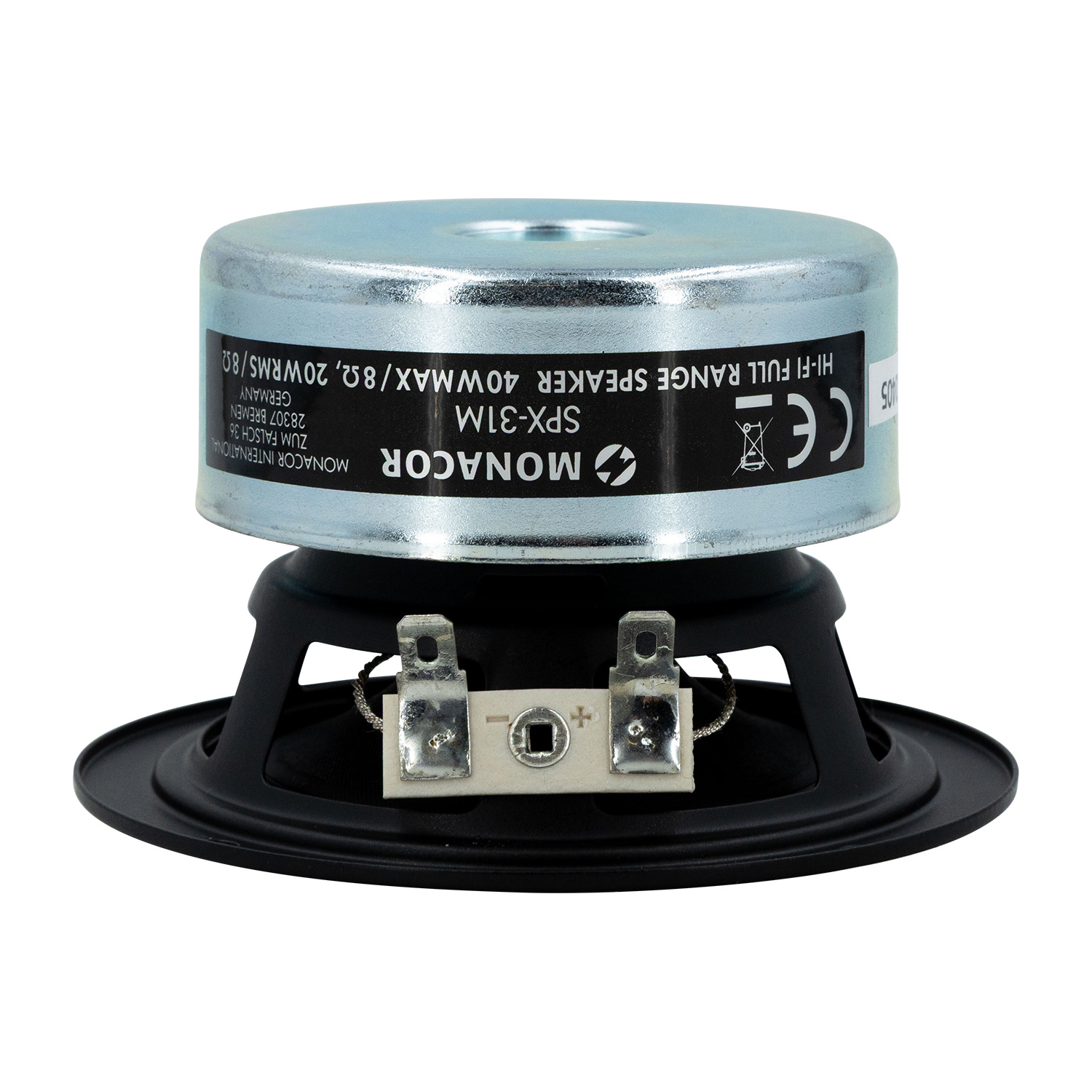

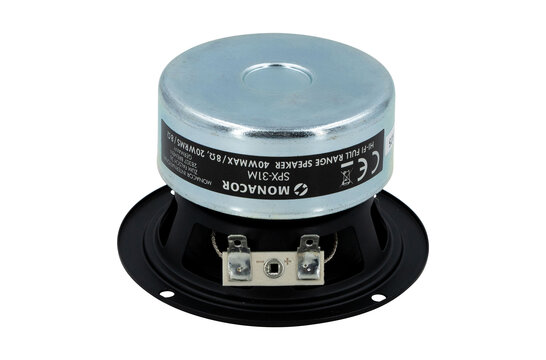

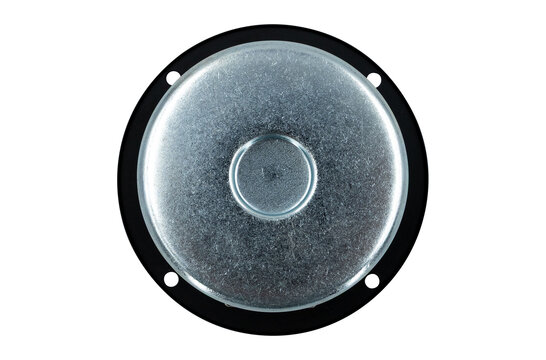

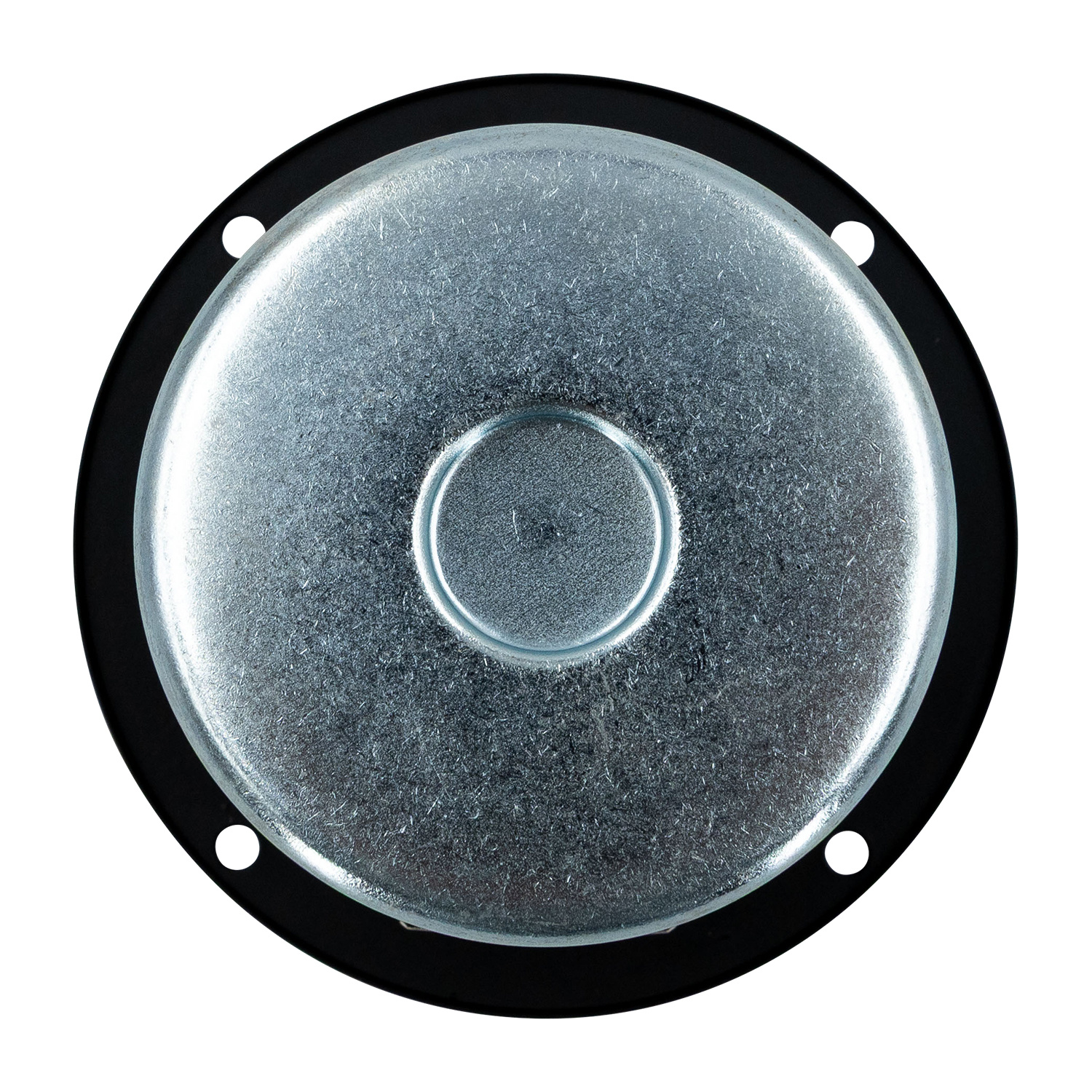

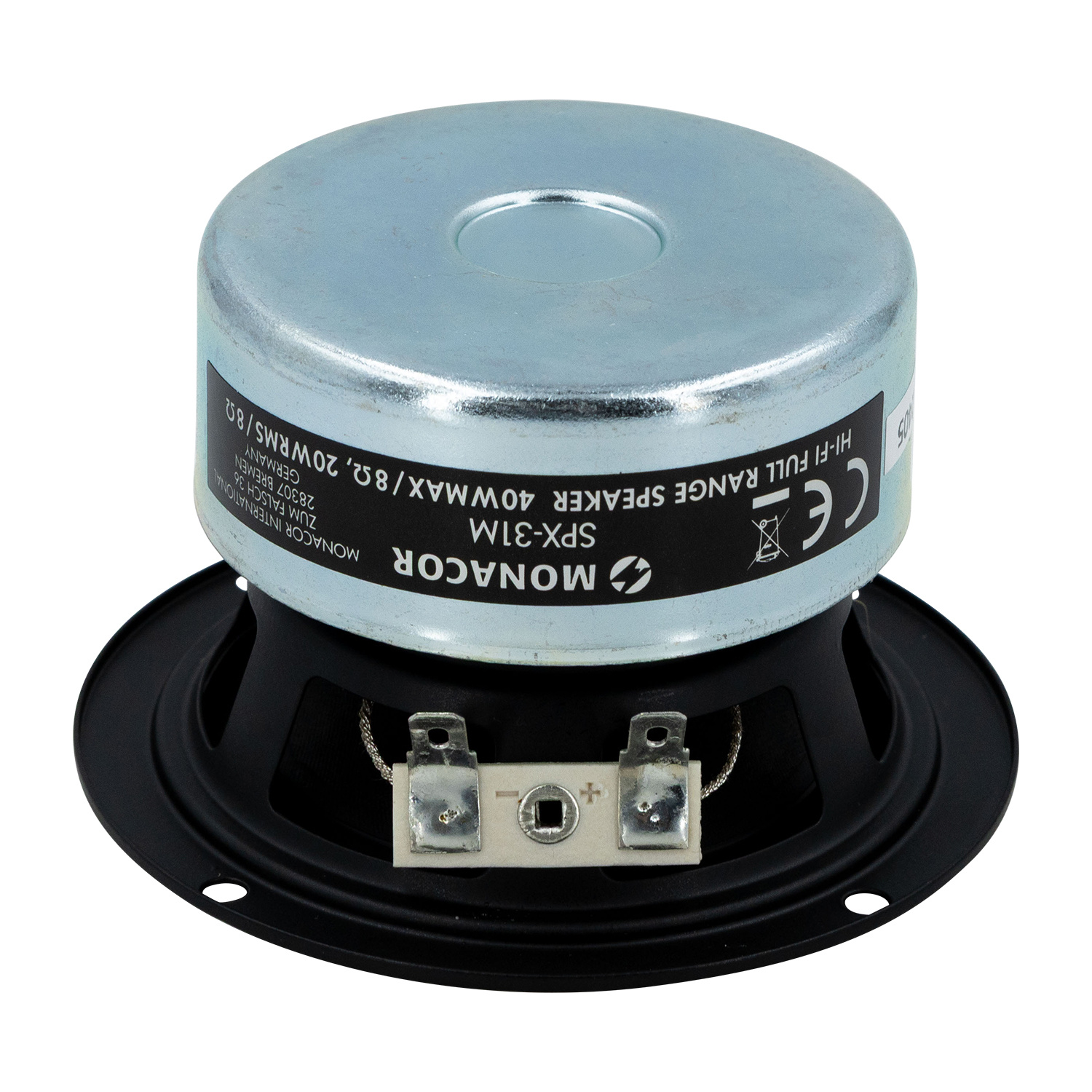

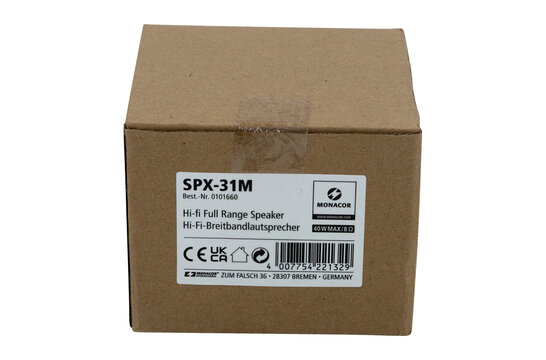

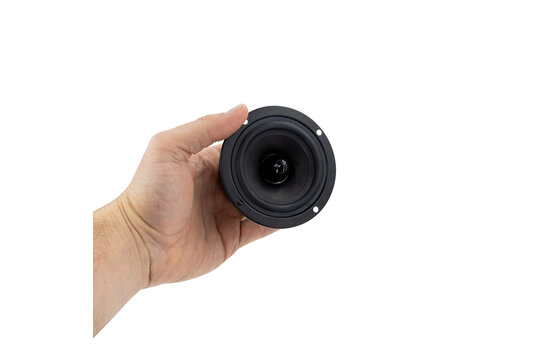

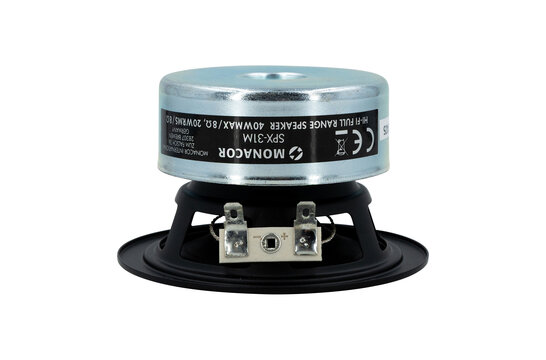

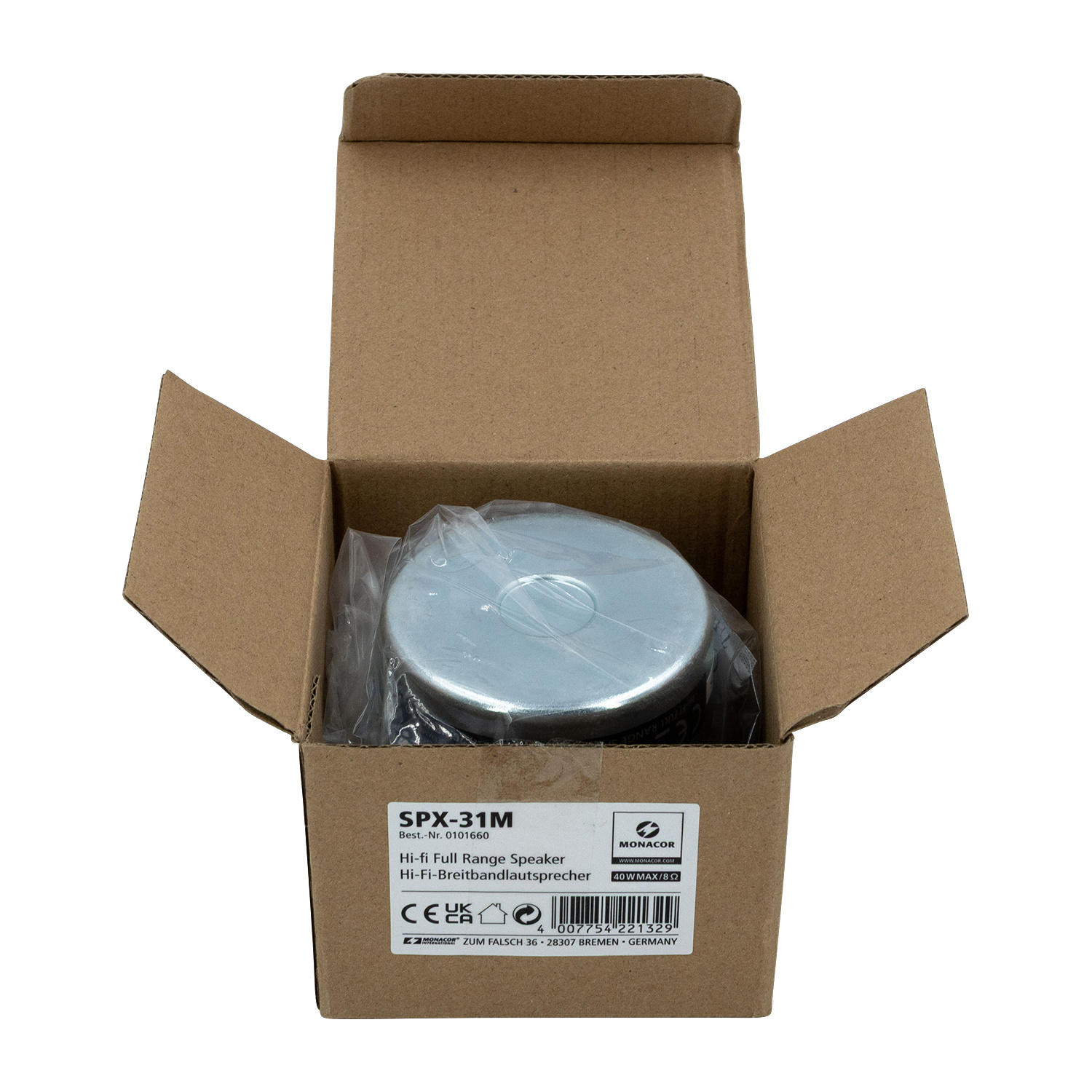

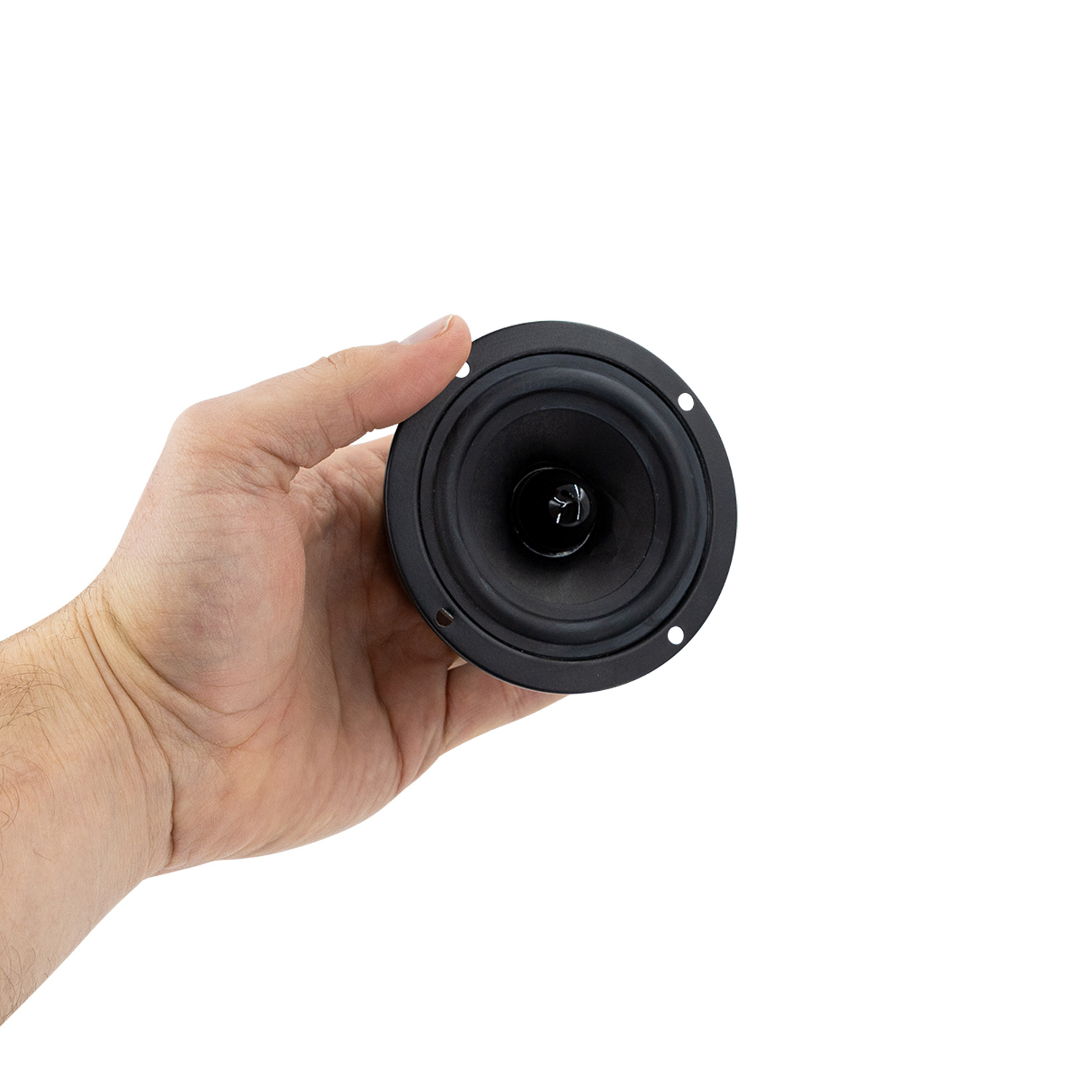

Monacor SPX-31M 3'' Full Range Driver 8 Ohm

Brand: Monacor

Show all Woofers

Compare

3" | 8 Ω

SPX-31M 3'' Full Range Driver 8 Ohm

SPX-31M 3'' Full Range Driver 8 Ohm

SPX-31M 3'' Full Range Driver 8 Ohm

SPX-31M 3'' Full Range Driver 8 Ohm

SPX-31M 3'' Full Range Driver 8 Ohm

SPX-31M 3'' Full Range Driver 8 Ohm

€ 20,62€ 24,95 Out of stock: please contact us for accurate delivery times

Backorder

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

An extremely versatile and well-regarded full range driver due to its elegant design and excellent sound quality.

Highlights

Excellent sound quality
High-quality paper cone
Aluminium phase plug

Product details

Monacor SPX-31M 3'' Full Range Driver

The Monacor SPX-31M is a 3'' full range driver with a high-quality paper cone. Paper cones exhibit less cone breakup and the aluminum phase plug further optimizes the radiation pattern. The cone is controlled by a rear-ventilated centering spider inside a powerful shielded magnet system. All of these features contribute to the excellent sound quality making it a perfect choice for small desktop speakers, satellite systems, midrange application in multi-way speakers or FAST speakers (full range and subwoofer technology).

Specifications

Article number: SPX-31M
Woofer Type: Full-Range
Nominal Diameter: 3''
Power Handling (RMS): 20 Watts
Power Handling (max): 40 Watts
Impedance (Z): 8 Ohms
Sensitivity: 86 dB 1W/m
Frequency Response: 100-22,000Hz
Voice Coil Diameter: 20 mm
Magnet Weight: 119 g
DC Resistance (Re): 6.4 Ohms
Voice Coil Inductance (Le): 0.18 mH
Resonant Frequency (Fs): v
Mechanical Q (Qms): 3.707
Electromagnetic Q (Qes): 0.69
Total Q (Qts): 0.58
Diaphragm Mass Inc. Airload (Mms): 1.9 g
Mechanical Compliance of Suspension (Cms): 0.92 mm/N
Surface Area of Cone (Sd): 32 cm2
BL Product (BL): 3.64 Tm
Compliance Equivalent Volume (Vas): 1.3 l
Maximum Linear Excursion (Xmax): 1.1 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Kapton
Basket / Frame Material: Stamped steel
Magnet Material: Ferrite
Shielded: Yes
Overall Outside Diameter: 93 mm
Overall Depth: 55 mm
Baffle Cutout Diameter: 71 mm
# Mounting Holes: 4
Mounting Hole Diameter: 4.3 mm
