        SPX-200WP 8'' Waterproof Full Range Driver 8 Ohm

        SPX-200WP 8'' Waterproof Full Range Driver 8 Ohm

        €59,95

        Monacor SPX-200WP 8'' Waterproof Full Range Driver 8 Ohm

        1 reviews
        3 from 5
        1 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        100%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Monacor
        € 49,55€ 59,95 Out of stock4 expected on 09-08-2024

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        A waterproof full range woofer with improved high frequency dispersion thanks to the whizzer cone and good bass reproduction in sealed enclosures



        Highlights

        • Excellent sound quality
        • Very wide frequency range, slightly rising towards the high frequencies
        • Improved high frequency dispersion thanks to the whizzer cone
        • Very good bass reproduction



        Product details

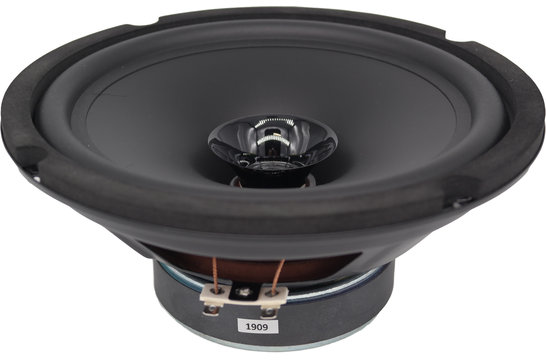

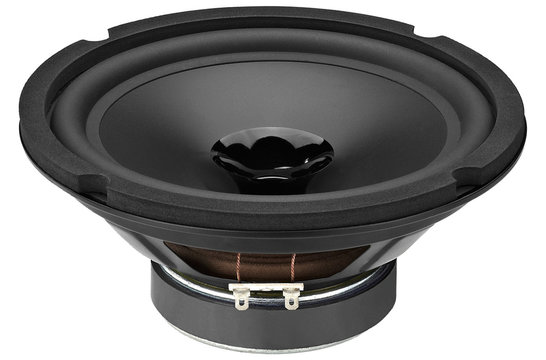

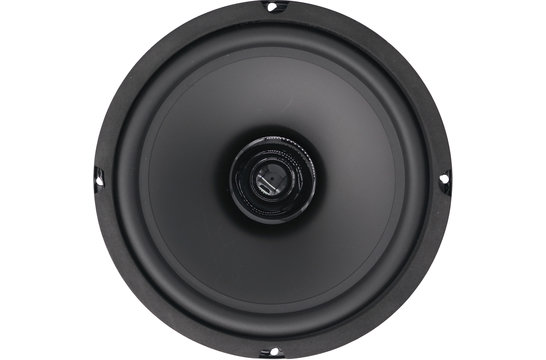

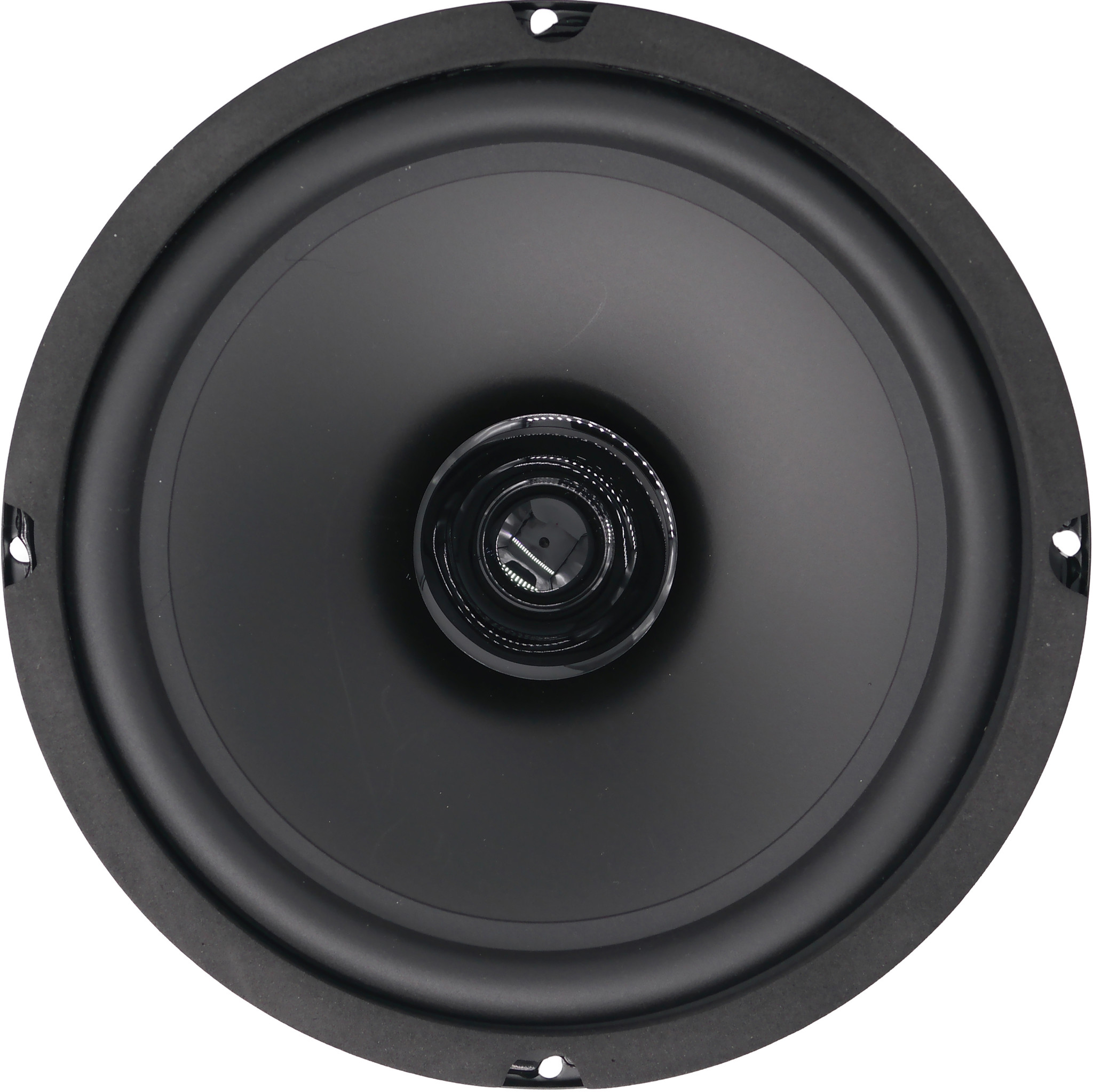

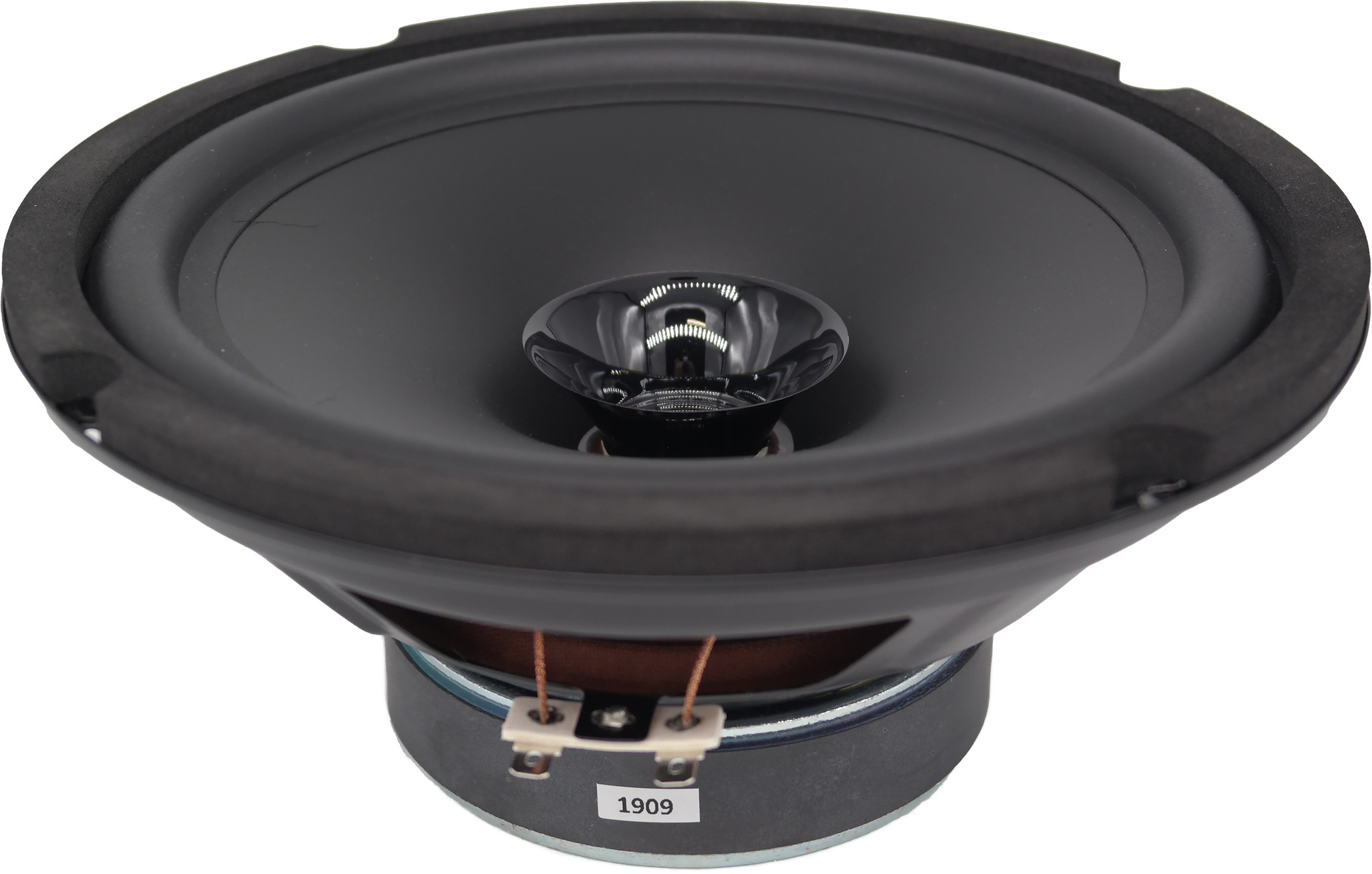

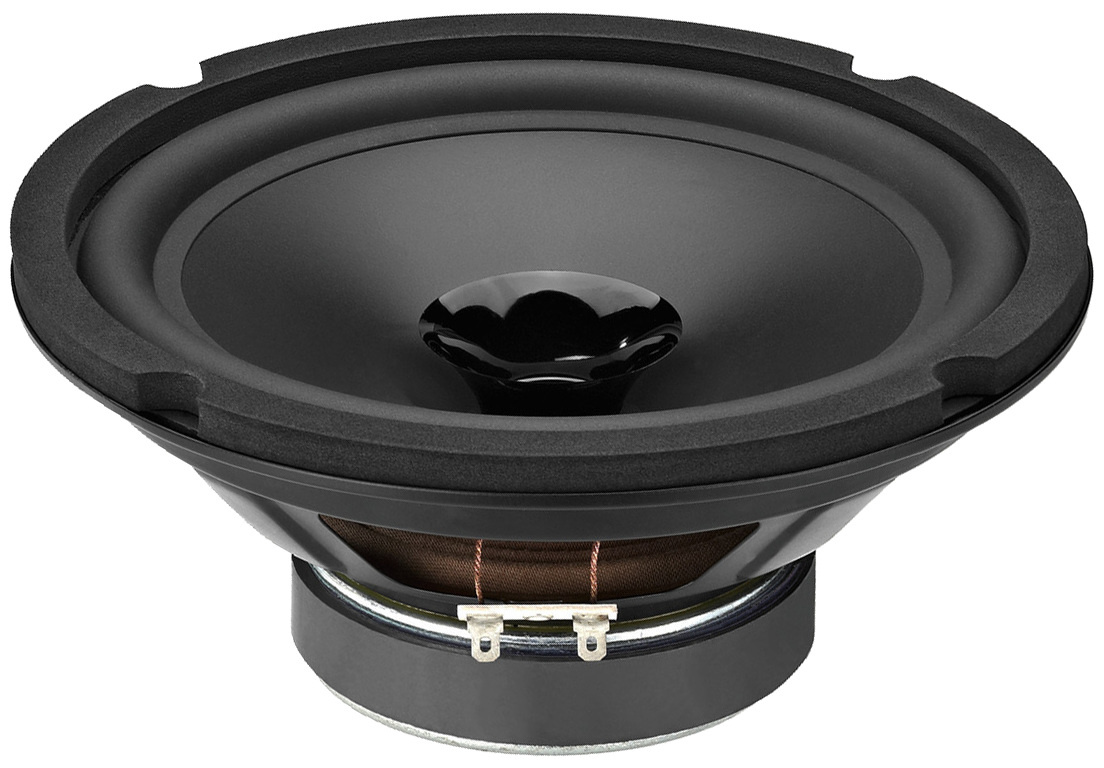

        Monacor SPX-200WP 8'' Waterproof Full Range Driver 8 Ohm



        As the name implies, the SPX-200WP is a waterproof full range woofer. It has a low-resonance and weatherproof polypropylene cone with rubber surround. It has a surprisingly good bass reproduction and is ideally suited for use in sealed enclosures.



        Furthermore it exhibits all the positive characteristics of a full range speaker, such as the point source reproduction, with reduced beaming in the highs thanks to the well-integrated whizzer cone: The best of both worlds!

        Show more

        Specifications

        Article number
        SPX-200WP
        Woofer Type
        Full-range
        Nominal Diameter
        8''
        Power Handling (RMS)
        50 Watts
        Power Handling (max)
        100 Watts
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        89 dB
        Frequency Response
        40-18,000 Hz
        Voice Coil Diameter
        25 mm
        Magnet Weight
        564 g
        DC Resistance (Re)
        7.6 Ohms
        Voice Coil Inductance (Le)
        0.35 mH
        Resonant Frequency (Fs)
        36 Hz
        Mechanical Q (Qms)
        4.18
        Electromagnetic Q (Qes)
        0.69
        Total Q (Qts)
        0.59
        Diaphragm Mass Inc. Airload (Mms)
        19.7 g
        Mechanical Compliance of Suspension (Cms)
        0.95 mm/N
        Surface Area of Cone (Sd)
        213 cm2
        BL Product (BL)
        6.79 Tm
        Compliance Equivalent Volume (Vas)
        60.5 l
        Maximum Linear Excursion (Xmax)
        2 mm
        Cone / Diaphragm Material
        Polypropylene
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Kapton
        Basket / Frame Material
        Stamped steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        203 mm
        Overall Depth
        89 mm
        Baffle Cutout Diameter
        180 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5 x 7 mm

        Show more
