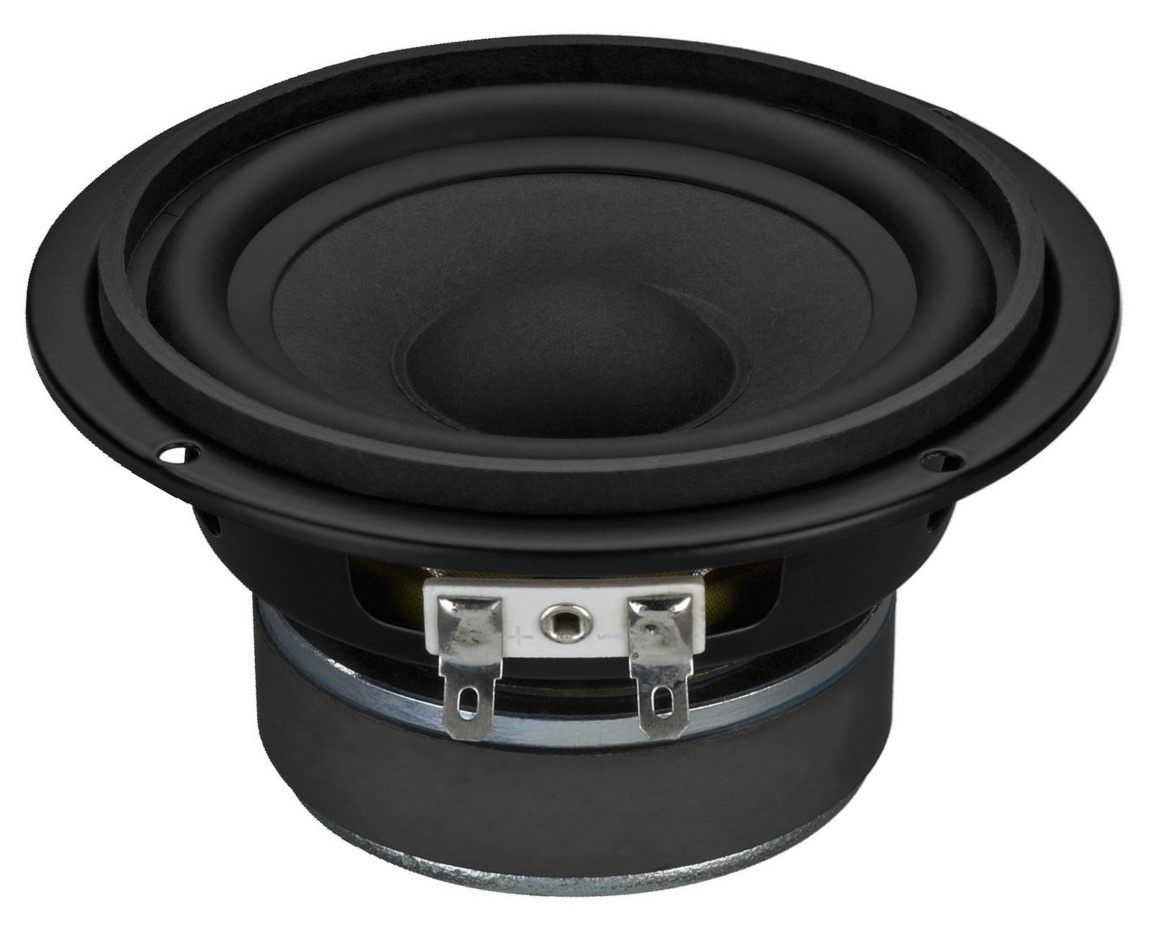

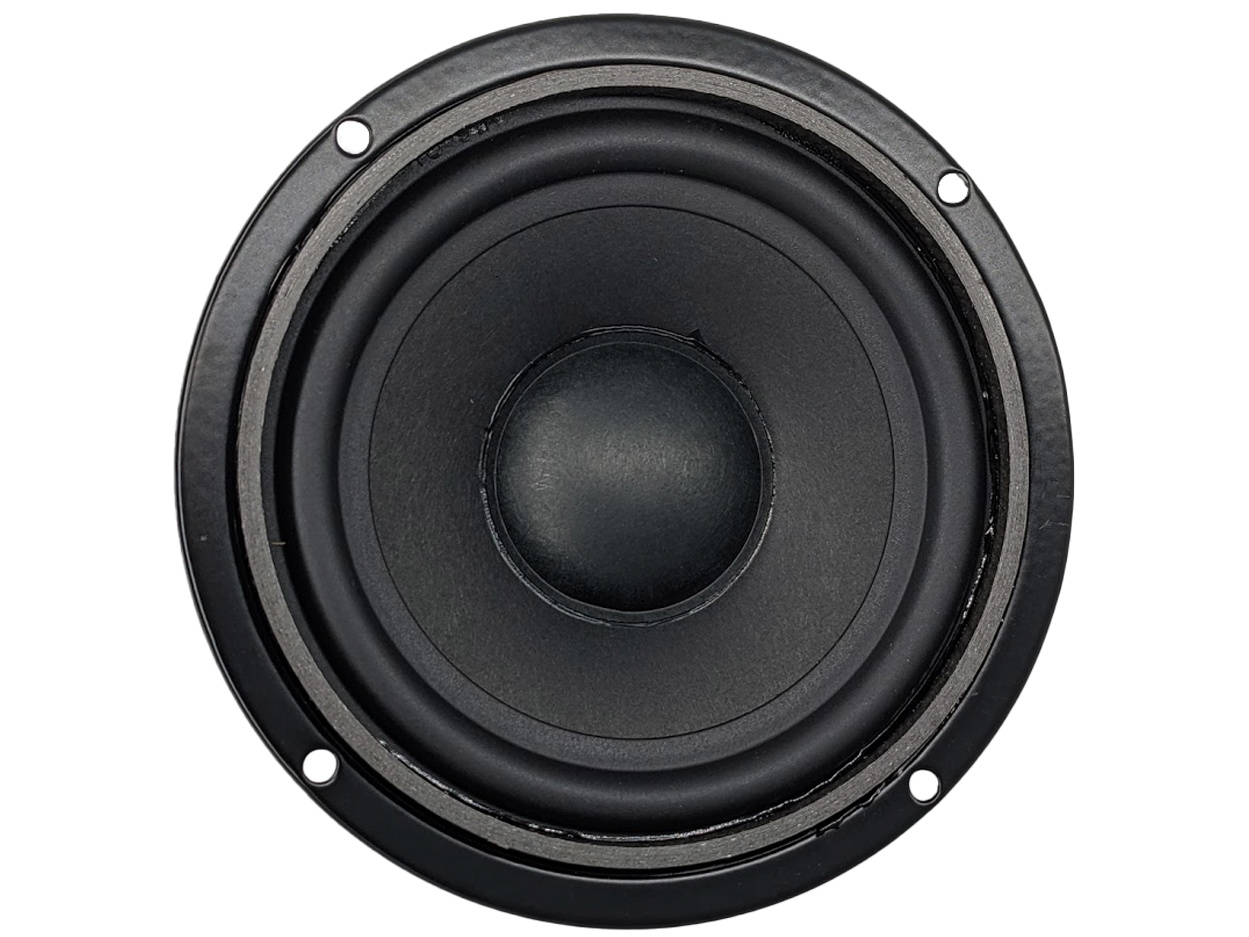

        SPM-116/8 Hi-fi 4'' bass-midrange speaker 40 W 8 Ω

        SPM-116/8 Hi-fi 4'' bass-midrange speaker 40 W 8 Ω

        €19,95

        Monacor SPM-116/8 Hi-fi 4'' bass-midrange speaker 40 W 8 Ω

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Monacor
        € 16,49€ 19,95 3 In stock
        • -5% Purchase 4 for only € 18,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Excellent replacement speaker of the same quality as from the original equipment manufacturer
        • Low-resonance paper cone
        • Long-term stable rubber surround
        • Also very well-suited for use as a full range speaker



        Monacor SPM-116/8 Hi-fi bass-midrange speaker 40 W 8 Ω


        A bass-midrange speaker of an appealing design which can even be used as a full range speaker when applying careful frequency-response correction.

        Show more

        Specifications

        Article number
        SPM-116/8
        Woofer Type
        Bass Midwoofer
        Nominal Diameter
        4''
        Power Handling (RMS)
        40 Watts
        Power Handling (max)
        80 W
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        f3-18000 Hz
        Voice Coil Diameter
        8.1"
        Magnet Weight
        230 g
        DC Resistance (Re)
        7.2 ohm
        Voice Coil Inductance (Le)
        0.4 mH
        Resonant Frequency (Fs)
        75 Hz
        Mechanical Q (Qms)
        1.9
        Electromagnetic Q (Qes)
        0.81
        Total Q (Qts)
        0.57
        Moving Mass Of Diaphragm (Mmd)
        3.8 g
        Mechanical Compliance of Suspension (Cms)
        0.98 mm/N
        Surface Area of Cone (Sd)
        57 cm2
        Compliance Equivalent Volume (Vas)
        1.6 ft.³
        Maximum Linear Excursion (Xmax)
        1.5 mm
        Voice Coil Former
        Aluminum

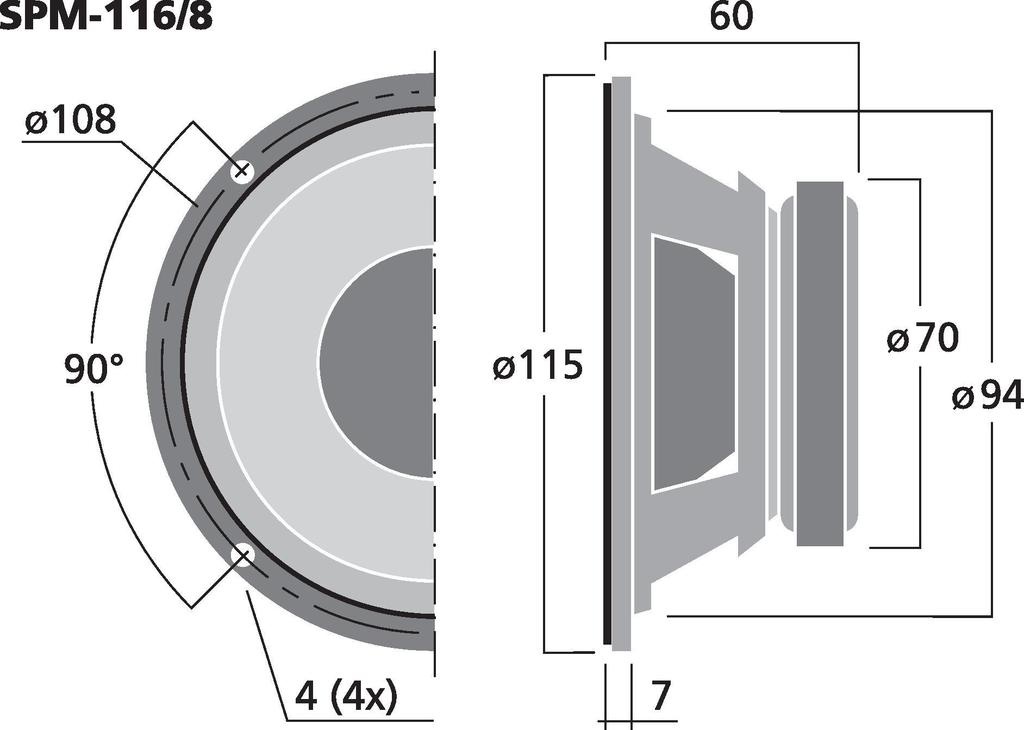

        Overall Outside Diameter
        115 mm
        Overall Depth
        60 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        108 mm

        Show more
