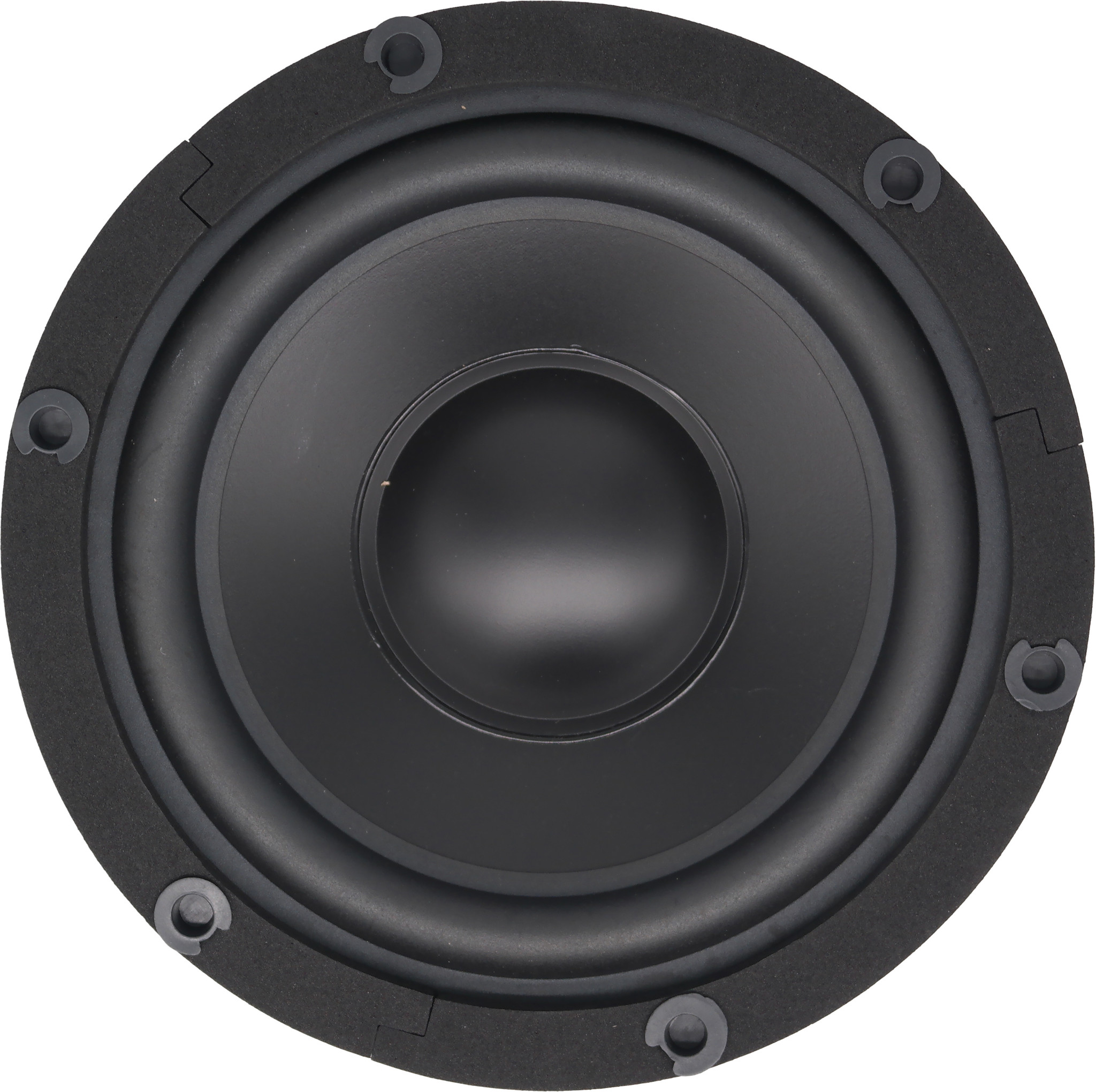

Monacor SPH-8M 8’’ Woofer

Brand: Monacor

Show all Woofer

Compare

8" | 8 Ω

SPH-8M 8’’ Woofer

SPH-8M 8’’ Woofer

SPH-8M 8’’ Woofer

SPH-8M 8’’ Woofer

€ 111,53€ 134,95 2 In stock: delivery time 1-4 business days

24h express shipping available
Same day shipping
In-house techniscal support
45 days worry-free returns

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Well designed woofer with balanced T/S parameters making it very well-suited for both bass-reflex and closed speaker systems.

Highlights

Broad frequency range
Dampened low-resonance polypropylene cone
Robust diecast aluminium basket
Magnet system with drilled pole core

Product details

Monacor SPH-8M 8’’ Woofer

The Monacor SPH-8M is a Hi-fi bass speaker of excellent workmanship. It features a dampened low-resonance polypropylene cone, a robust diecast aluminium basket of an elegant design with 6-hole screw connection and a magnet system with drilled pole core. The balanced T/S parameters make it very well-suited for both bass-reflex and closed speaker systems.

Specifications

Article number: SPH-8M
Woofer Type: Woofer
Nominal Diameter: 8''
Power Handling (RMS): 100 Watts
Power Handling (max): 150 Watts
Impedance (Z): 8 Ohms
Sensitivity: 89 dB 1W/m
Frequency Response: 35-2,500 Hz
Voice Coil Diameter: 38 mm
Magnet Weight: 790 g
DC Resistance (Re): 6.5 Ohms
Voice Coil Inductance (Le): 0.78 mH
Resonant Frequency (Fs): 35 Hz
Mechanical Q (Qms): 2.26
Electromagnetic Q (Qes): 0.50
Total Q (Qts): 0.41
Diaphragm Mass Inc. Airload (Mms): 27 g
Mechanical Compliance of Suspension (Cms): 0.71 mm/N
Surface Area of Cone (Sd): 240 cm2
BL Product (BL): 9.01 Tm
Compliance Equivalent Volume (Vas): 44 l
Maximum Linear Excursion (Xmax): 4.5 mm
Cone / Diaphragm Material: Polypropylene
Surround Material: Rubber
Voice Coil Wire Material: Copper
Voice Coil Former: Aluminum
Basket / Frame Material: Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 222 mm
Overall Depth: 97 mm
Baffle Cutout Diameter: 180 mm
# Mounting Holes: 6
Mounting Hole Diameter: 5.5 mm
