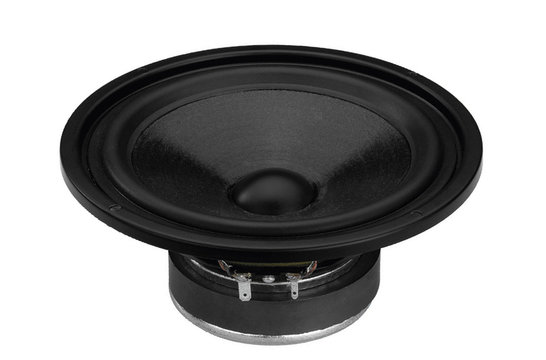

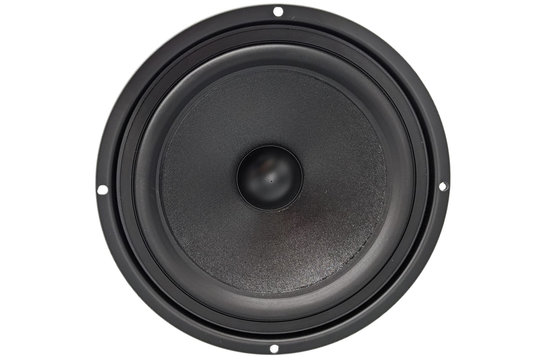

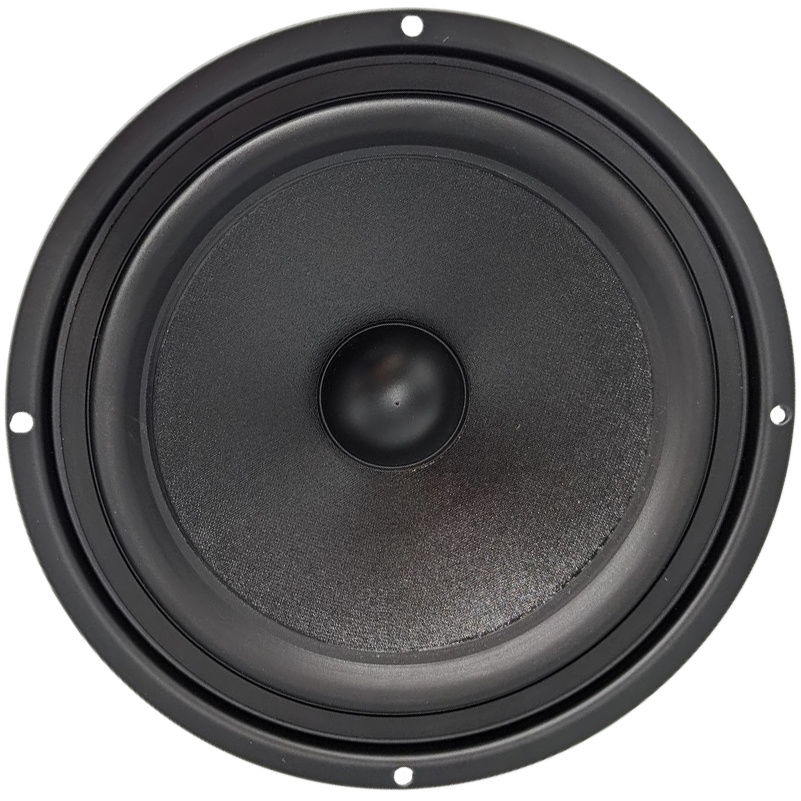

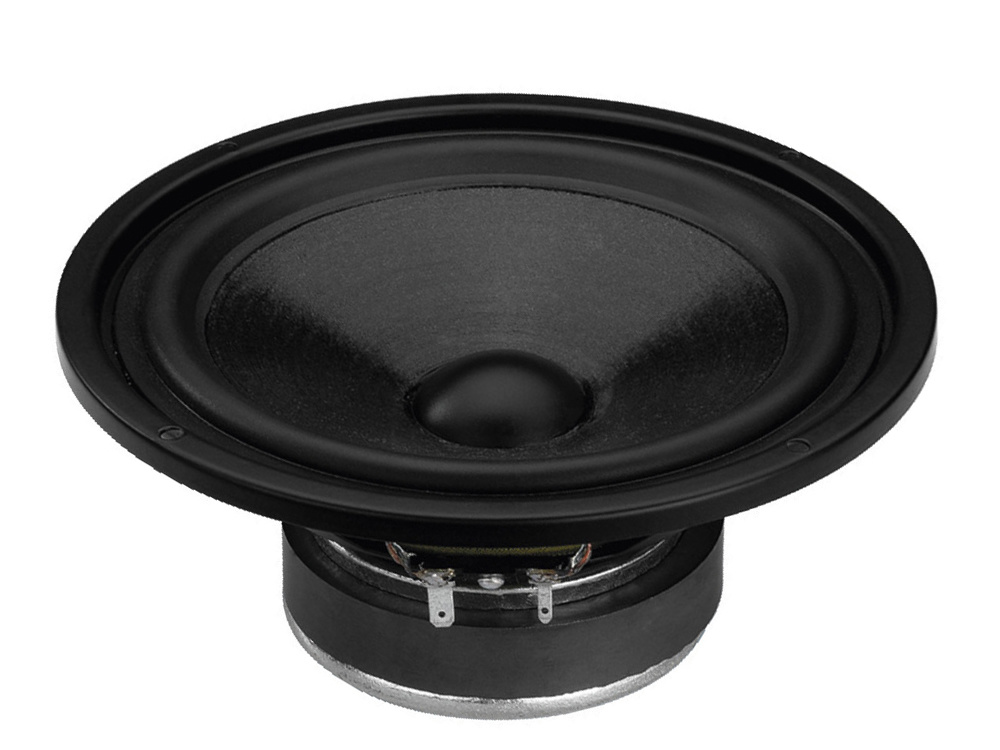

      Monacor SPH-176 High-quality hi-fi bass-midrange speaker 6.75"

      € 56,57€ 68,45 2 In stock
      • -5% Order 4 for only € 65,03 per piece

      Buy now, pay later

      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Monacor presents the SPH-176, a mid-range woofer deally suited for various applications, from 2-way hi-fi speakers and attractive dual bass arrangements to very small subwoofers!



      Highlights

      • Coated paper cone, yet high pulsed power
      • Rubber surround
      • Bass-optimised drive characteristics



      Product Details

      Monacor SPH-176 High-quality hi-fi bass-midrange speaker 6.75"



      The SPH-176 allows for setting u speaker systems of highest level stability with an amazingly deep bass production.

      Show more

      Specifications

      Article number
      SPH-176
      Woofer Type
      Bass-midrange
      Nominal Diameter
      6.75"
      Power Handling (RMS)
      70 Watts
      Power Handling (max)
      120 Watts
      Sensitivity
      90 dB/W/m
      Frequency Response
      f3-4,500 Hz
      Voice Coil Diameter
      25 mm
      Magnet Weight
      450 g
      DC Resistance (Re)
      6.6 ohms
      Voice Coil Inductance (Le)
      0.75 mH
      Resonant Frequency (Fs)
      39 Hz
      Mechanical Q (Qms)
      2.27
      Electromagnetic Q (Qes)
      0.44
      Total Q (Qts)
      0.37
      Diaphragm Mass Inc. Airload (Mms)
      14 g
      Mechanical Compliance of Suspension (Cms)
      1.01 mm/N
      Surface Area of Cone (Sd)
      140 cm2
      BL Product (BL)
      7.70 Tm
      Compliance Equivalent Volume (Vas)
      27 l
      Maximum Linear Excursion (Xmax)
      ± 5.5 mm
      Voice Coil Former
      Aluminium

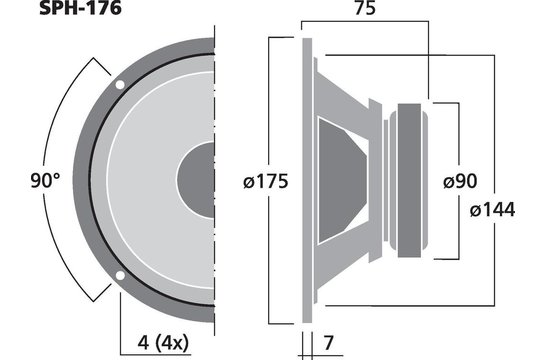

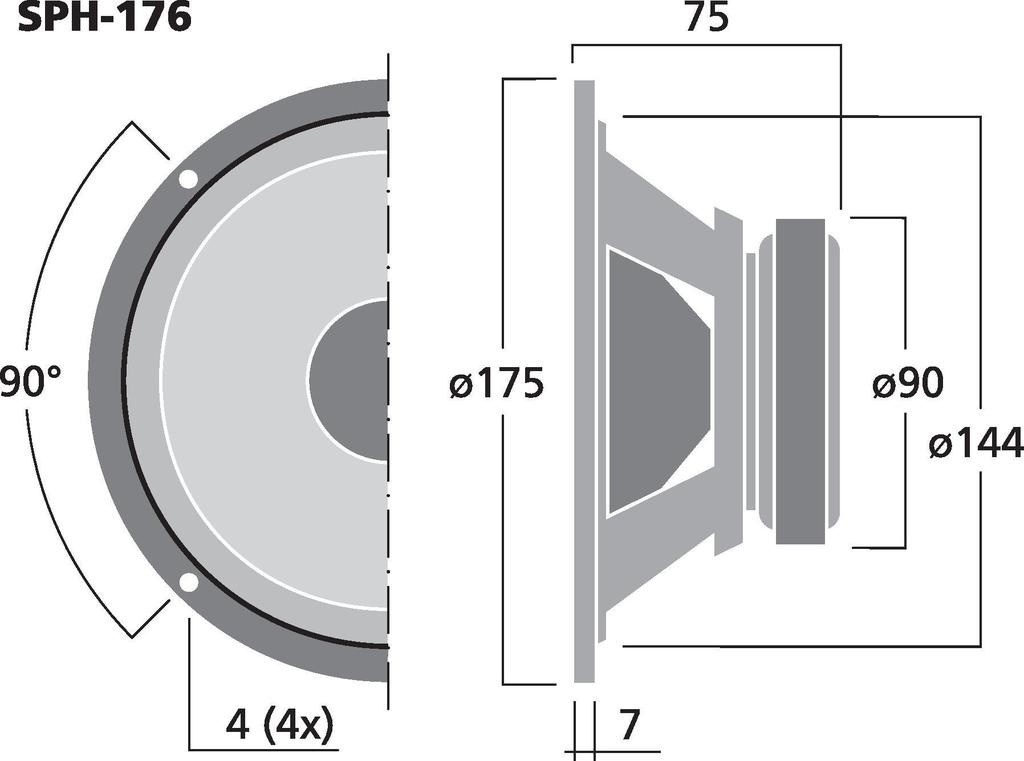

      Overall Outside Diameter
      175 mm
      Overall Depth
      75 mm
      Baffle Cutout Diameter
      144 mm
      # Mounting Holes
      4

      Show more
