        SP-8/150PRO Bass-midwoofer

        SP-8/150PRO Bass-midwoofer

        €84,95

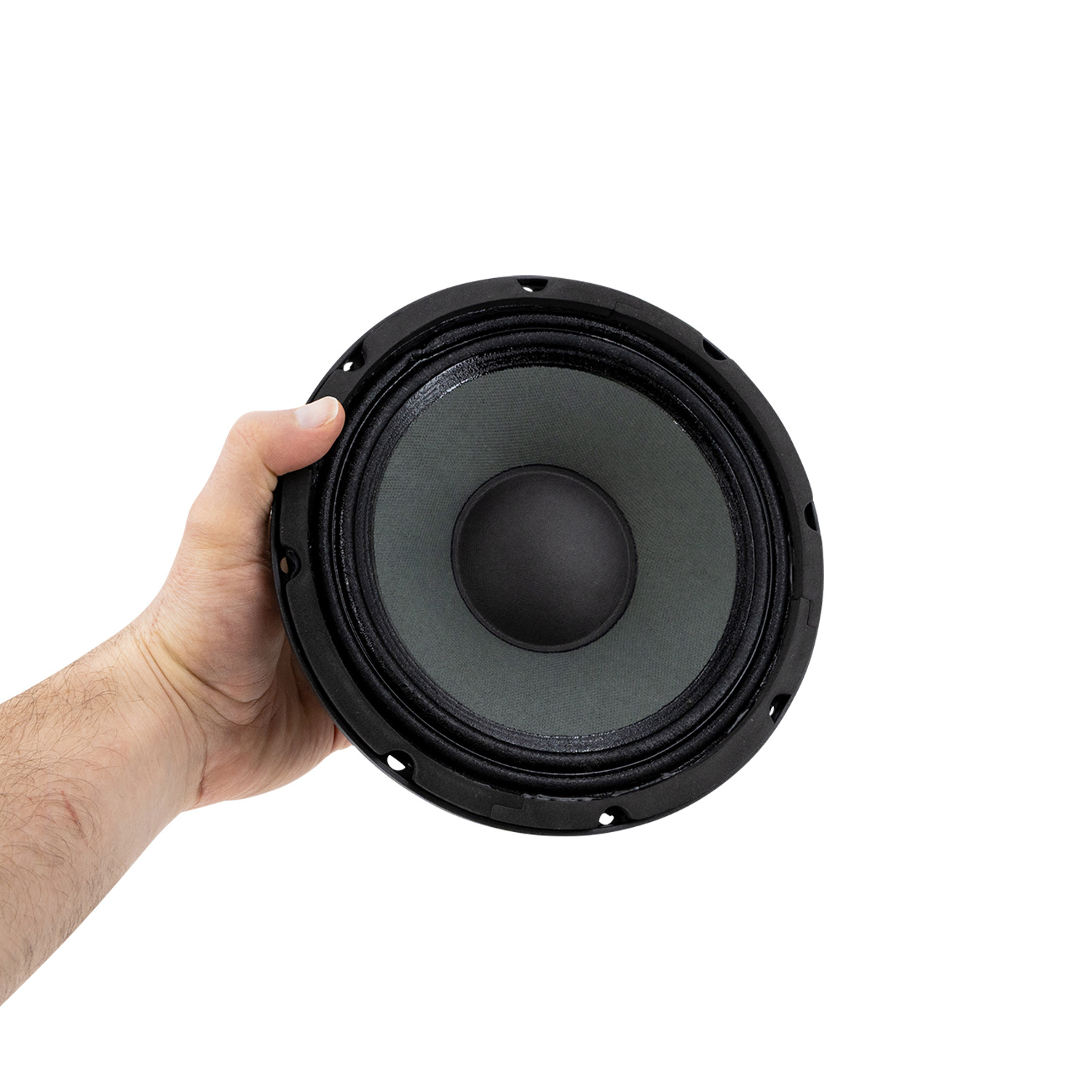

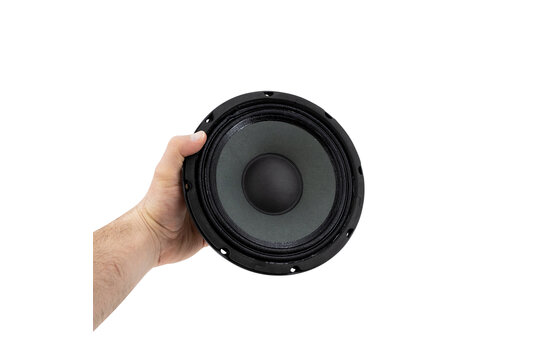

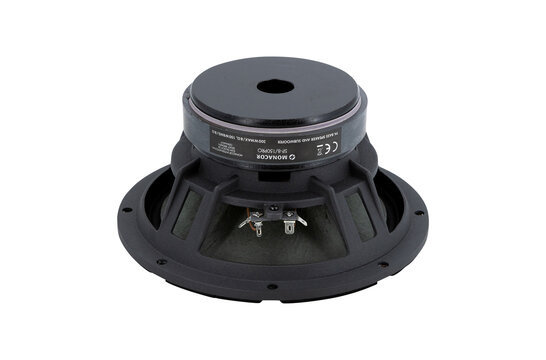

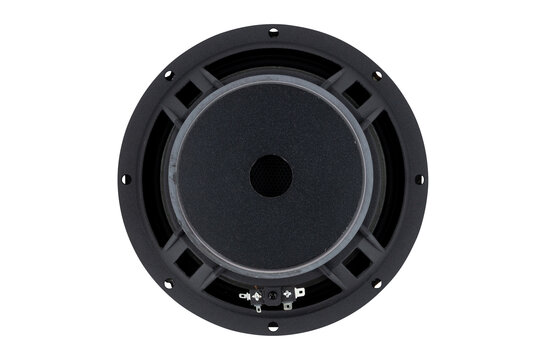

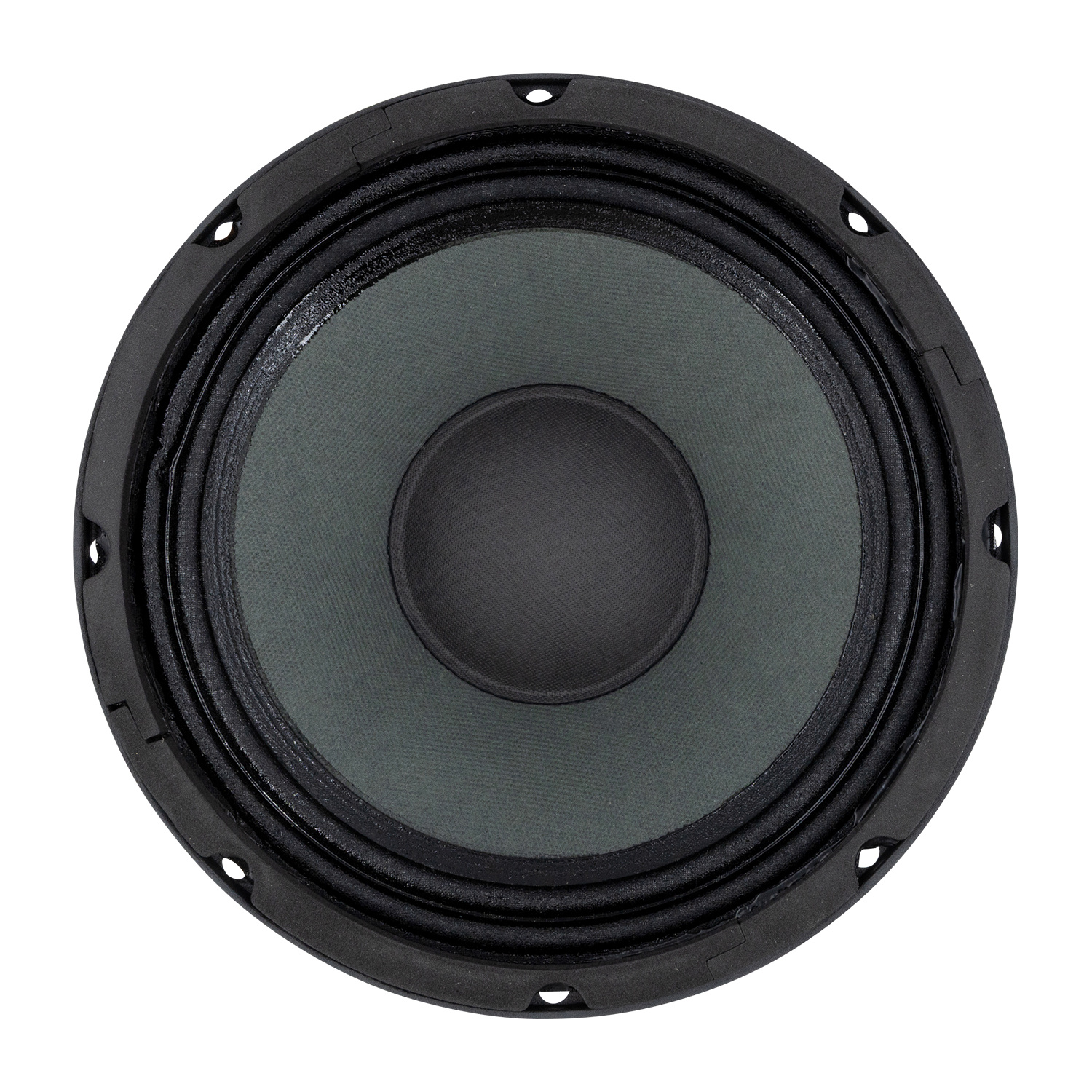

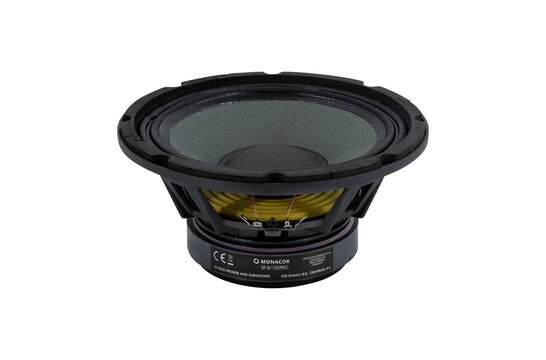

        Monacor SP-8/150PRO Bass-midwoofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Monacor
        € 70,21€ 84,95 3 In stock
        • -5% Purchase 4 for only € 80,70 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        8’’ PA Midbass woofer, ideally suited as a Midbass or PA subwoofer in small to medium sized vented enclosures.



        Highlights

        • Extra-long excursion for a deep bass reproduction of high volumes
        • Progressive cone suspension for a high operating reliability
        • Ideally suited for 2-way systems and compact subwoofers



        Product details

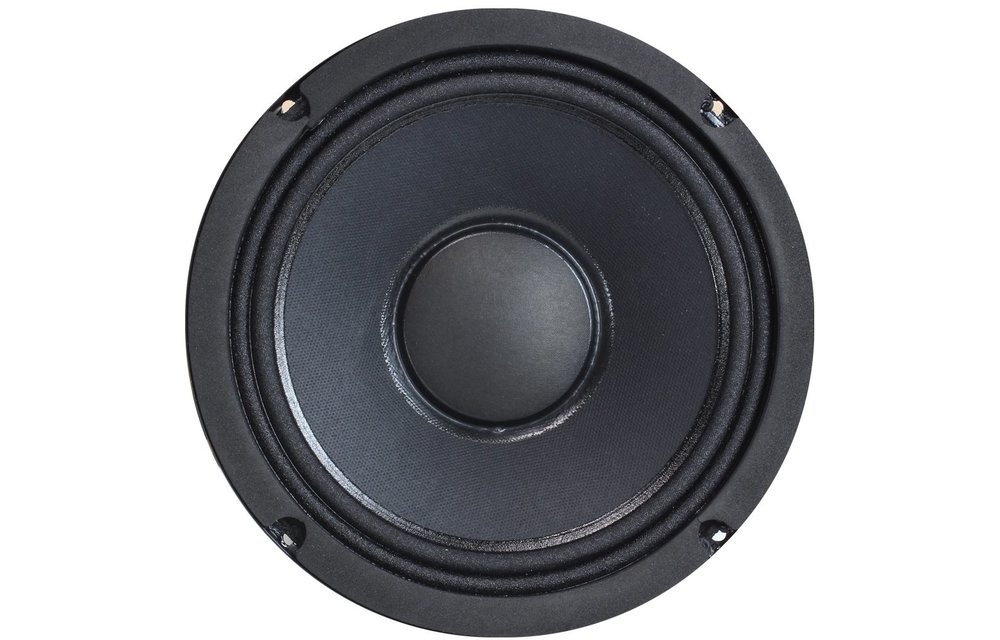

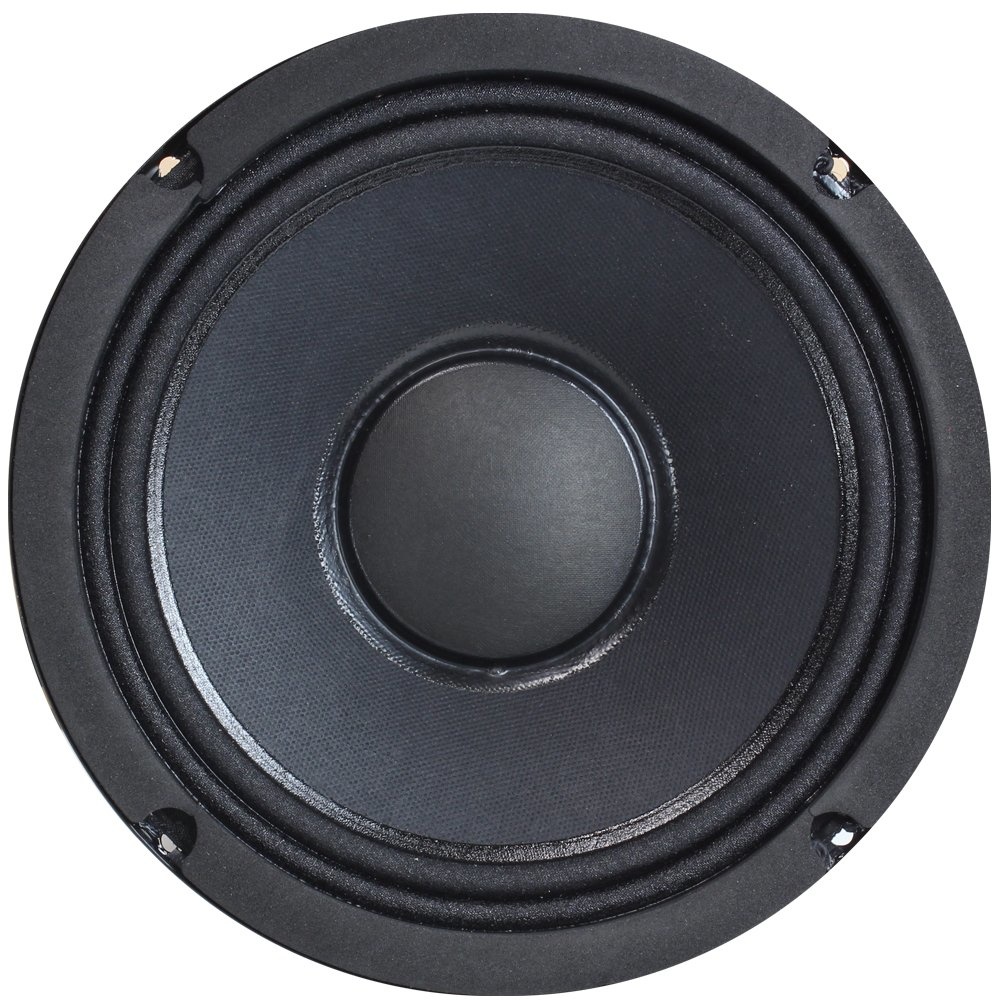

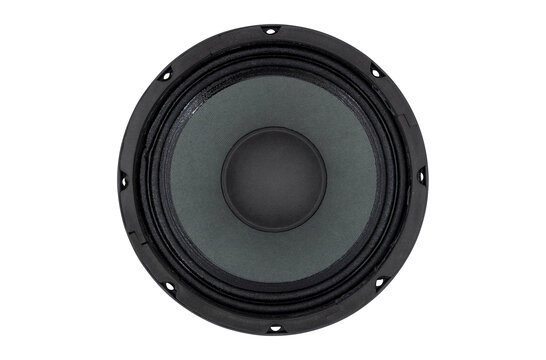

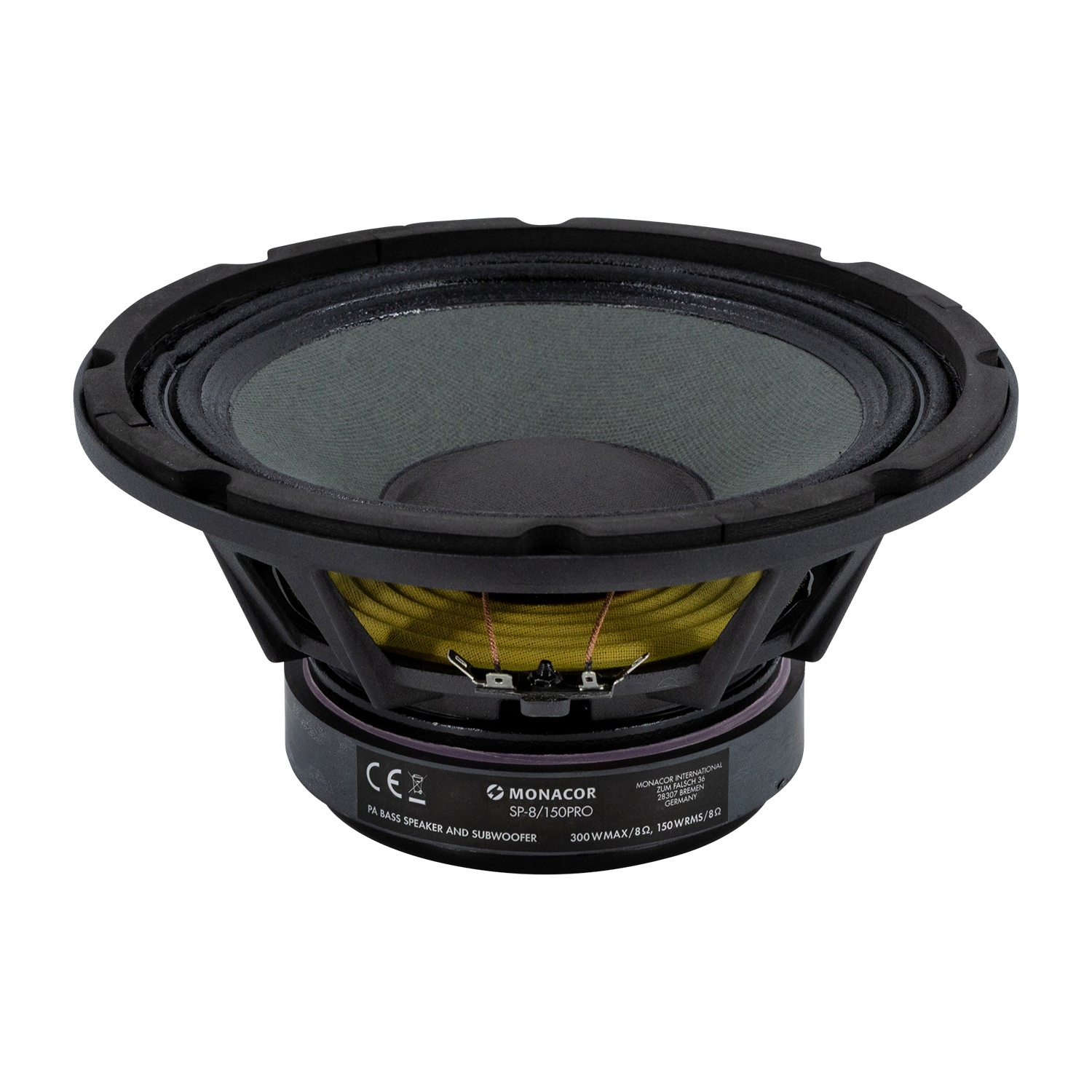

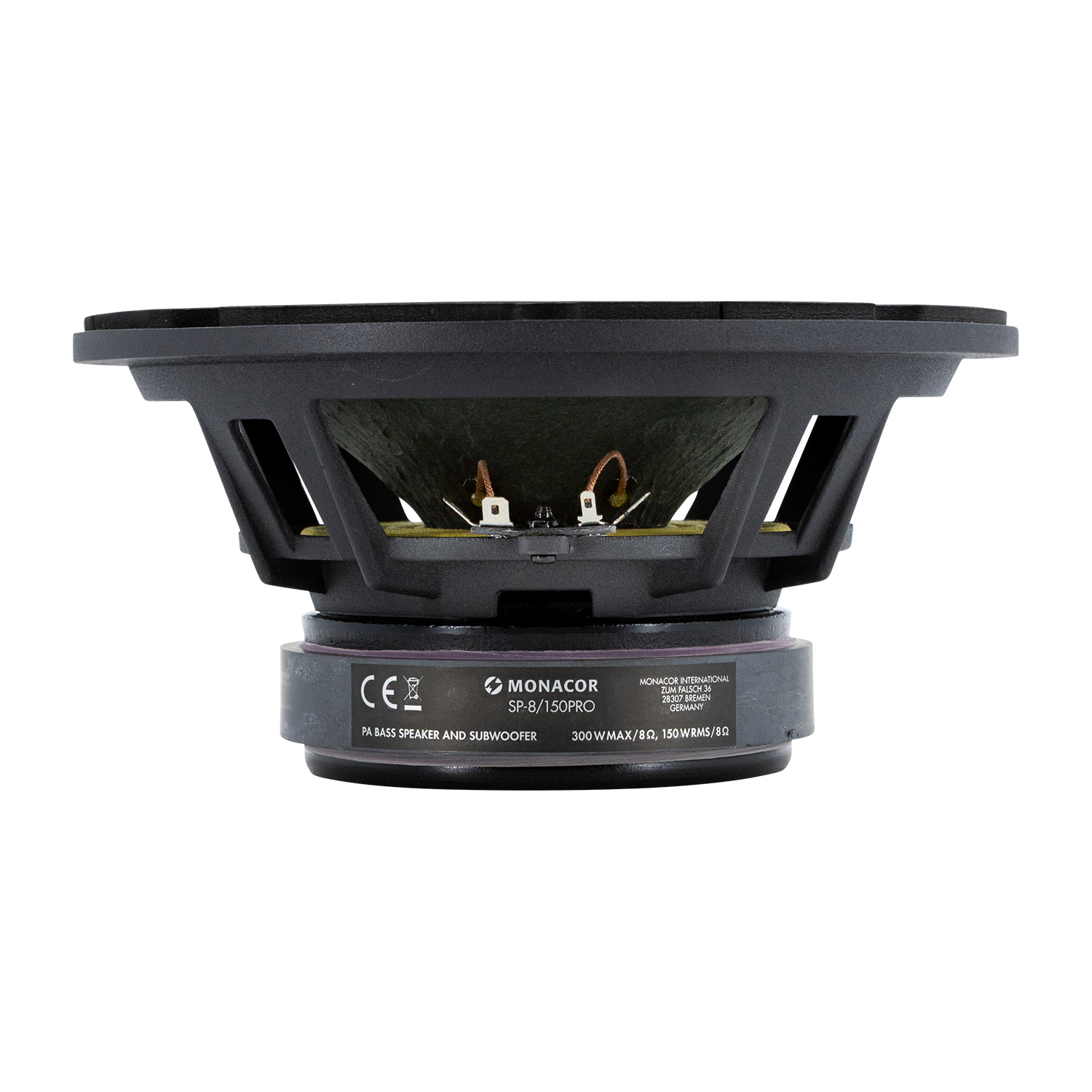

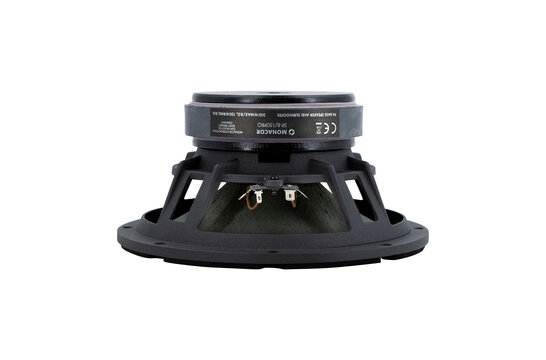

        Monacor SP-8/150PRO PA Midbass Woofer

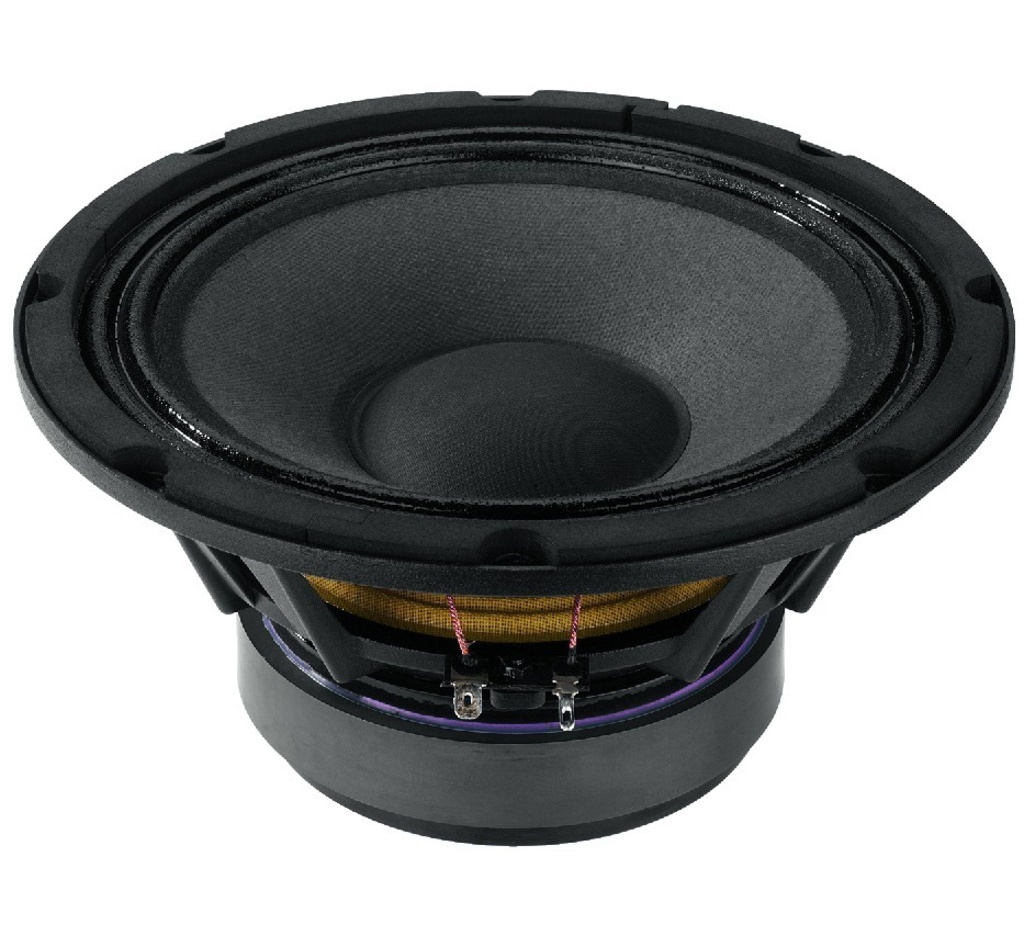

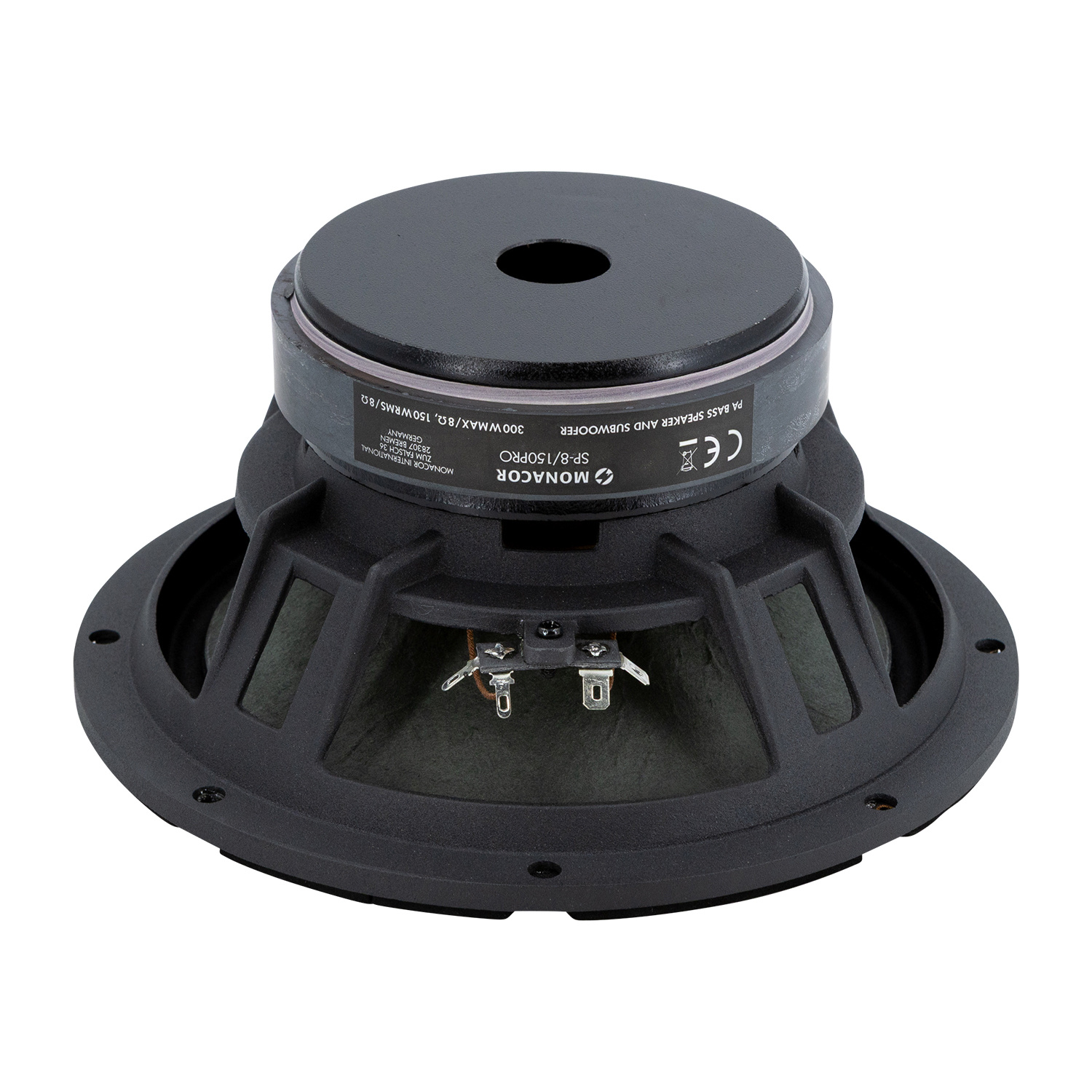

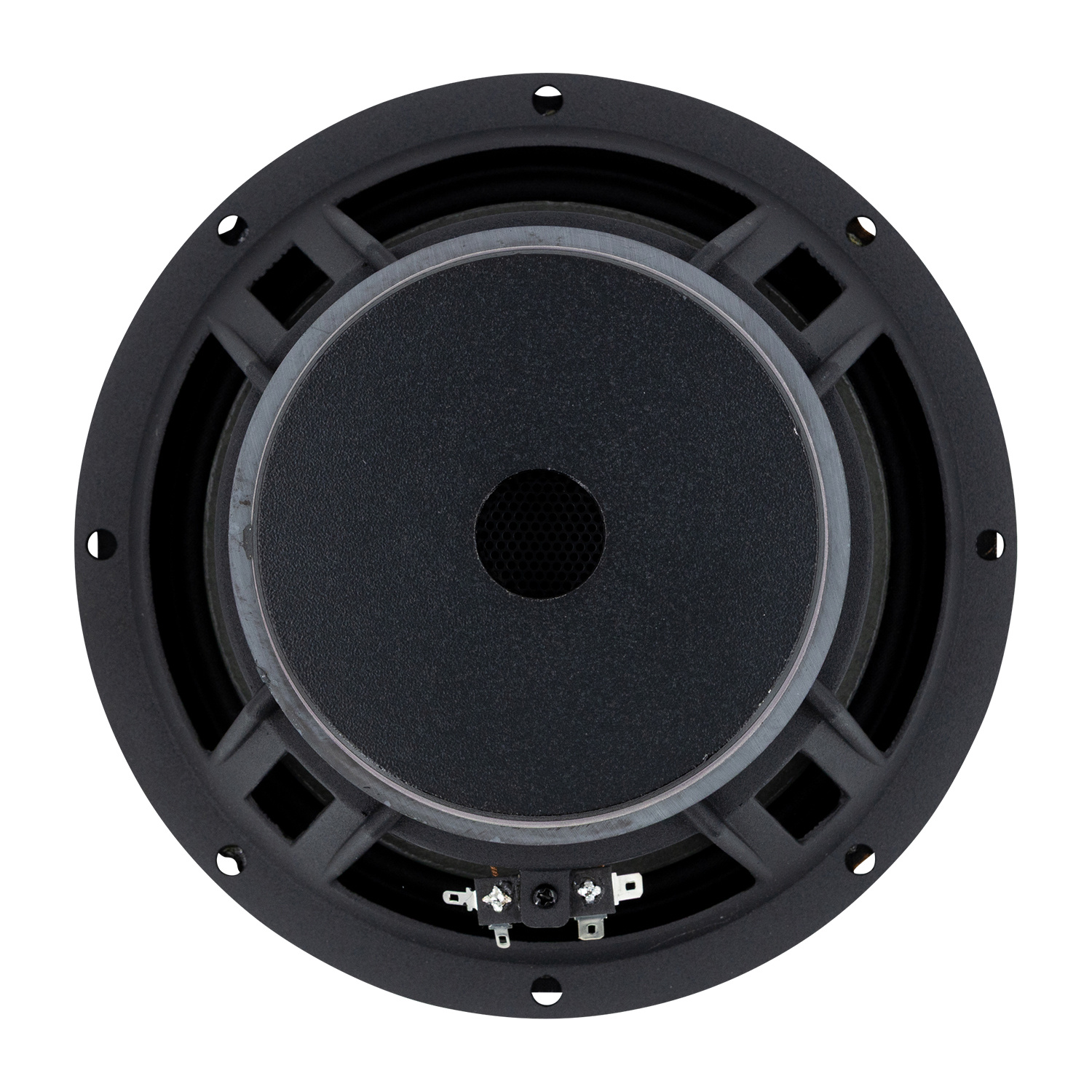

        For the ultimate high-output 2-way systems and compact PA subwoofers, the Monacor SP-8/150PRO PA Bass-Midrange Woofer is one of the best contestants. The 8" bass speaker features a robust diecast aluminum basket, progressive cone suspension for a high operating reliability, a heat-resistant voice coil and ventilated drive system. Making it a very potent Midbass Woofer and subwoofer with high output capability,



        Show more

        Specifications

        Article number
        SP-8/150PRO
        Woofer Type
        Midwoofer
        Nominal Diameter
        8''
        Power Handling (RMS)
        150 Watts
        Power Handling (max)
        300 Watts
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        56-3,000Hz
        Voice Coil Diameter
        50 mm
        Magnet Weight
        850 g
        DC Resistance (Re)
        7.2 Ohms
        Voice Coil Inductance (Le)
        2.0 mH
        Resonant Frequency (Fs)
        56 Hz
        Mechanical Q (Qms)
        1.52
        Electromagnetic Q (Qes)
        0.41
        Total Q (Qts)
        0.32
        Diaphragm Mass Inc. Airload (Mms)
        22.8 g
        Mechanical Compliance of Suspension (Cms)
        0.35 mm/N
        Surface Area of Cone (Sd)
        213 cm2
        BL Product (BL)
        11.96 Tm
        Compliance Equivalent Volume (Vas)
        22 l
        Maximum Linear Excursion (Xmax)
        6 mm
        Cone / Diaphragm Material
        Paper
        Surround Material
        Cloth
        Voice Coil Wire Material
        Copper
        Voice Coil Former
        Aluminum
        Basket / Frame Material
        Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        210 mm
        Overall Depth
        100 mm
        Baffle Cutout Diameter
        185 mm
        # Mounting Holes
        8
