        SP-382PA 15'' Woofer 150 W  8 Ω

        SP-382PA 15'' Woofer 150 W 8 Ω

        €129,95

        Monacor SP-382PA 15'' Woofer 150 W 8 Ω

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Monacor
        € 107,40€ 129,95 Out of stock
        • -5% Purchase 4 for only € 123,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        For bass applications, also in power speaker systems.



        Highlights

        • Strong, impregnated paper cone
        • Sturdy steel frame
        • Powerful 1.2kg ferrite magnet
        • Double roll surround



        Product details

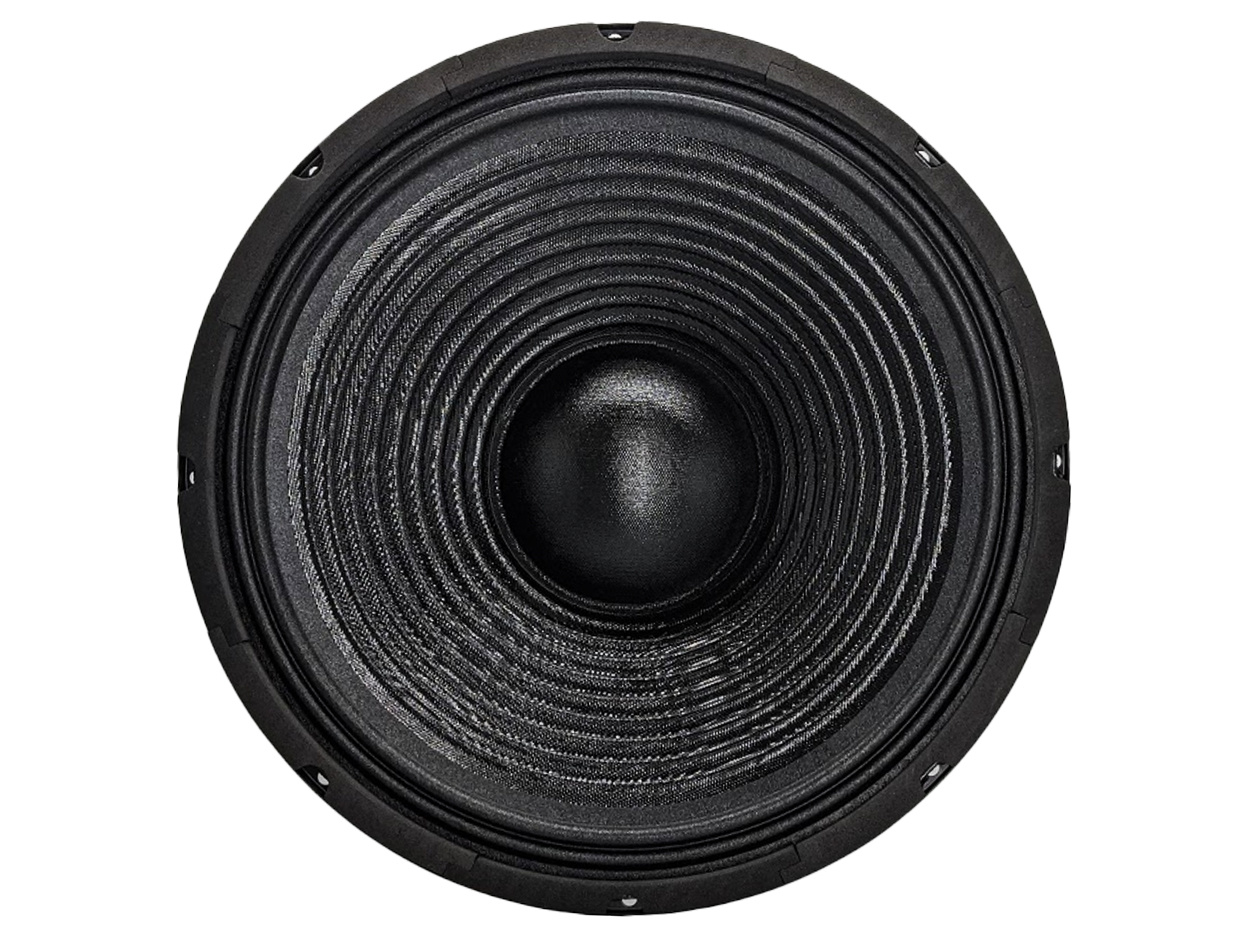

        Monacor SP-382PA 15'' Woofer 8 Ohm



        The Monacor SP-382PA 15" PA Woofer is a powerful bass woofer for bass guitar or sound reinforcement cabinets. The SP-382PA can also be used in custom-built speaker system cabinets. The free air Qts of 0.75 allows it to be used as bass driver in open baffle systems.

        Show more

        Specifications

        Article number
        SP-382PA
        Woofer Type
        Woofer
        Nominal Diameter
        15"
        Power Handling (RMS)
        150 Watts
        Power Handling (max)
        300 W
        Impedance (Z)
        8 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Voice Coil Diameter
        50 mm
        Magnet Weight
        1.2 kg
        DC Resistance (Re)
        7.0 ohms
        Voice Coil Inductance (Le)
        0.8 mH
        Resonant Frequency (Fs)
        25 Hz
        Mechanical Q (Qms)
        3.03
        Electromagnetic Q (Qes)
        0.99
        Total Q (Qts)
        0.75
        Diaphragm Mass Inc. Airload (Mms)
        73 g
        Mechanical Compliance of Suspension (Cms)
        0.26 mm/N
        Surface Area of Cone (Sd)
        825 cm2
        Compliance Equivalent Volume (Vas)
        270 l
        Maximum Linear Excursion (Xmax)
        3.5 mm
        Voice Coil Former
        aluminum

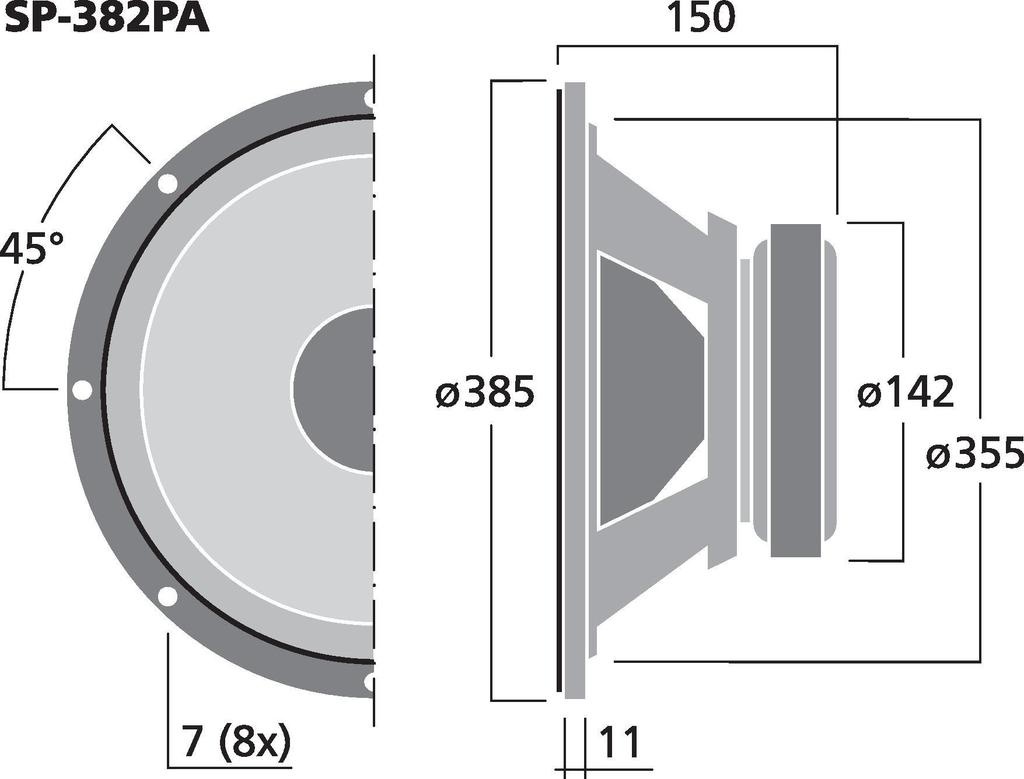

        Overall Outside Diameter
        385 mm
        Overall Depth
        150 mm
        # Mounting Holes
        8

        Show more

        4 of 5
        Driver di buon livello, con prestazioni in linea con il suo prezzo.
        By Luigi V. on 15 May 2021
