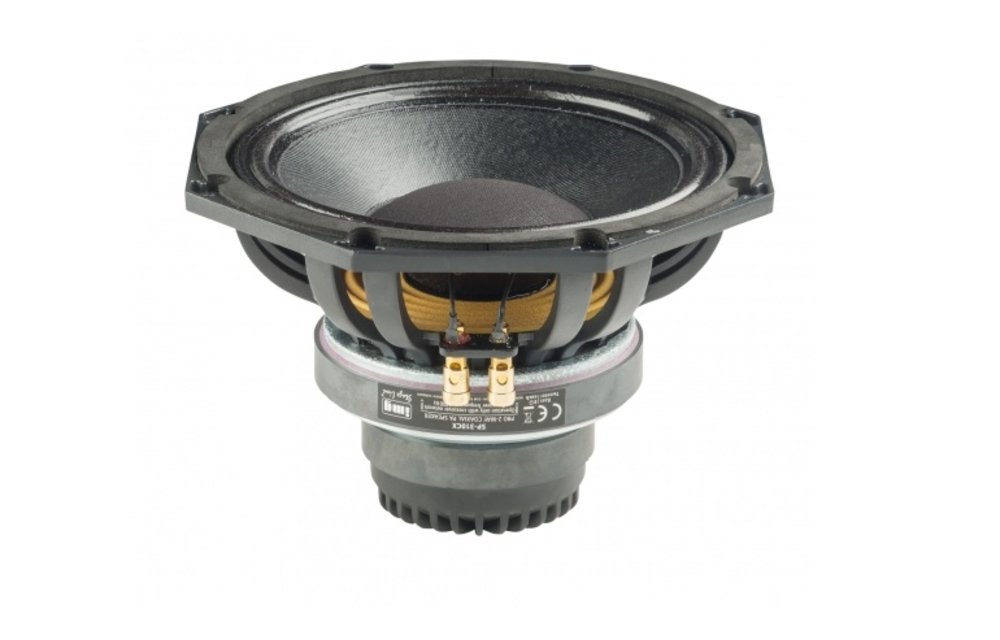

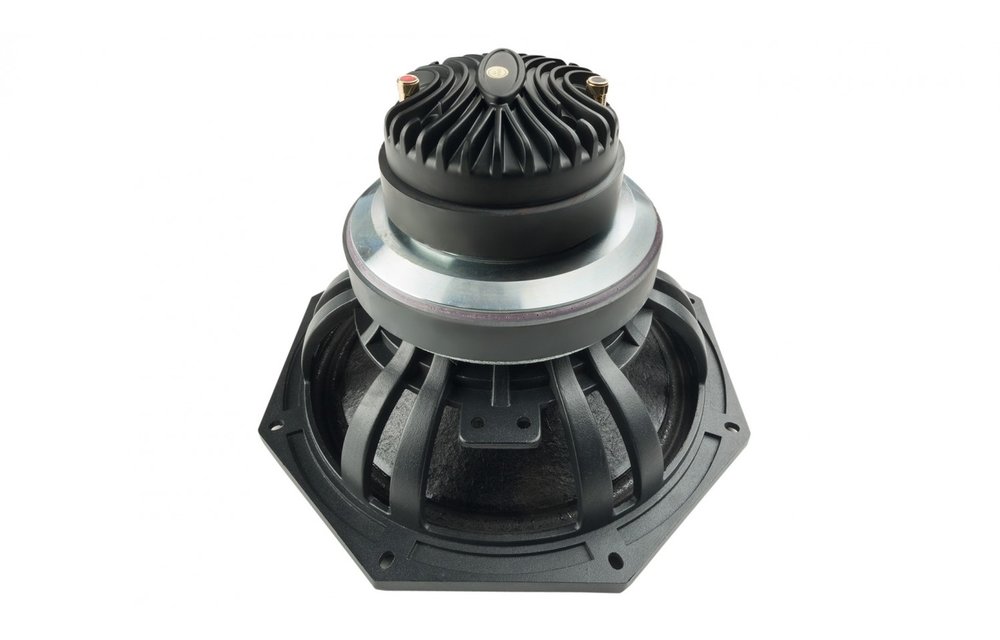

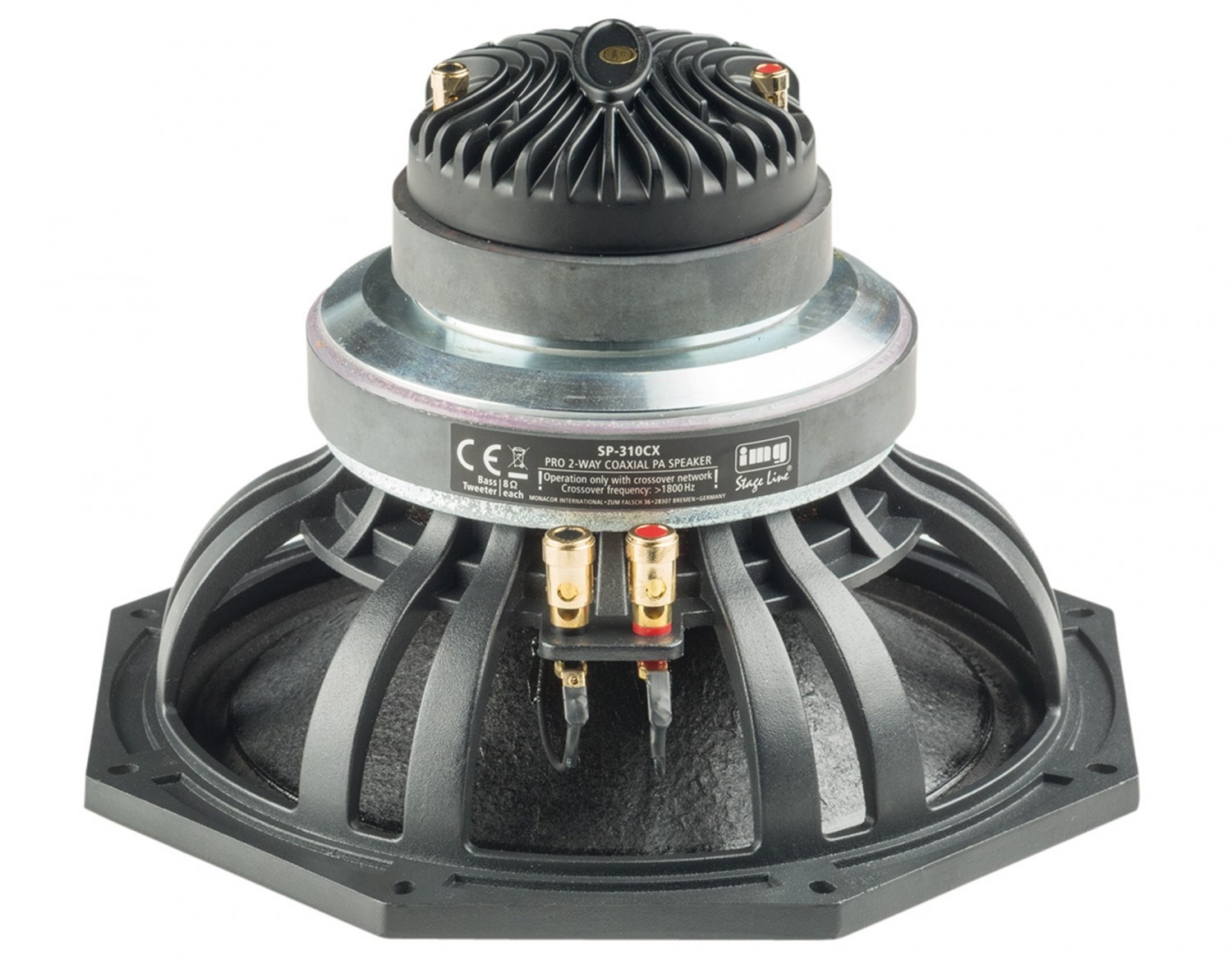

      Monacor SP-310CX 2-Way Coaxial PA Speaker with Integrated Horn Tweeter

      € 227,23€ 274,95 2 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 261,20 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The SP-310CX coaxial woofer is a PA bass speaker of high power capability and high efficiency. Featuring a coaxially arranged horn tweeter it has excellent sound characteristics.



      Highlights

      • 25 cm (10") PA bass speaker of high power capability and high efficiency

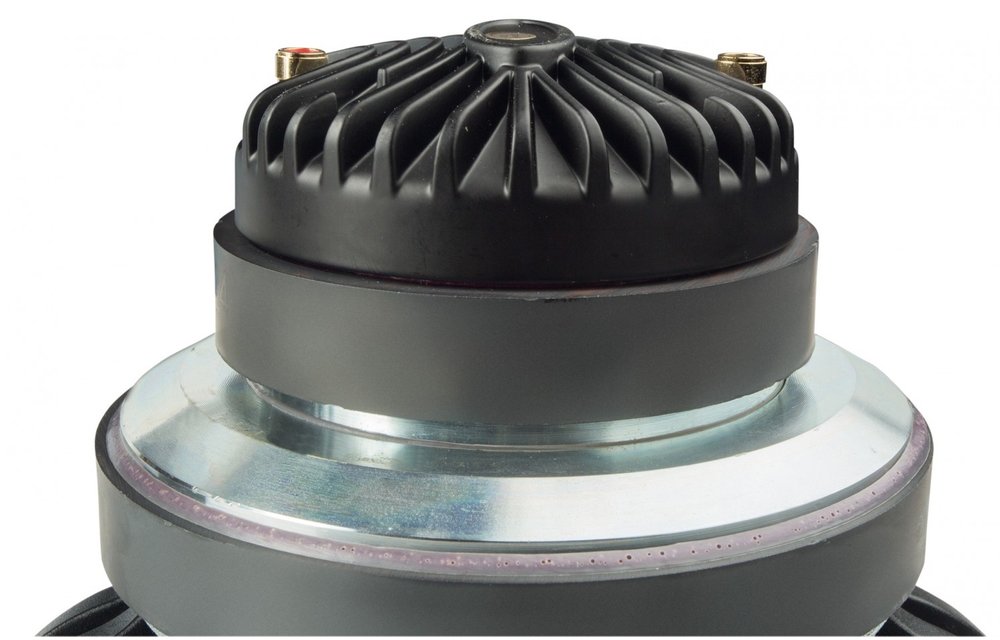

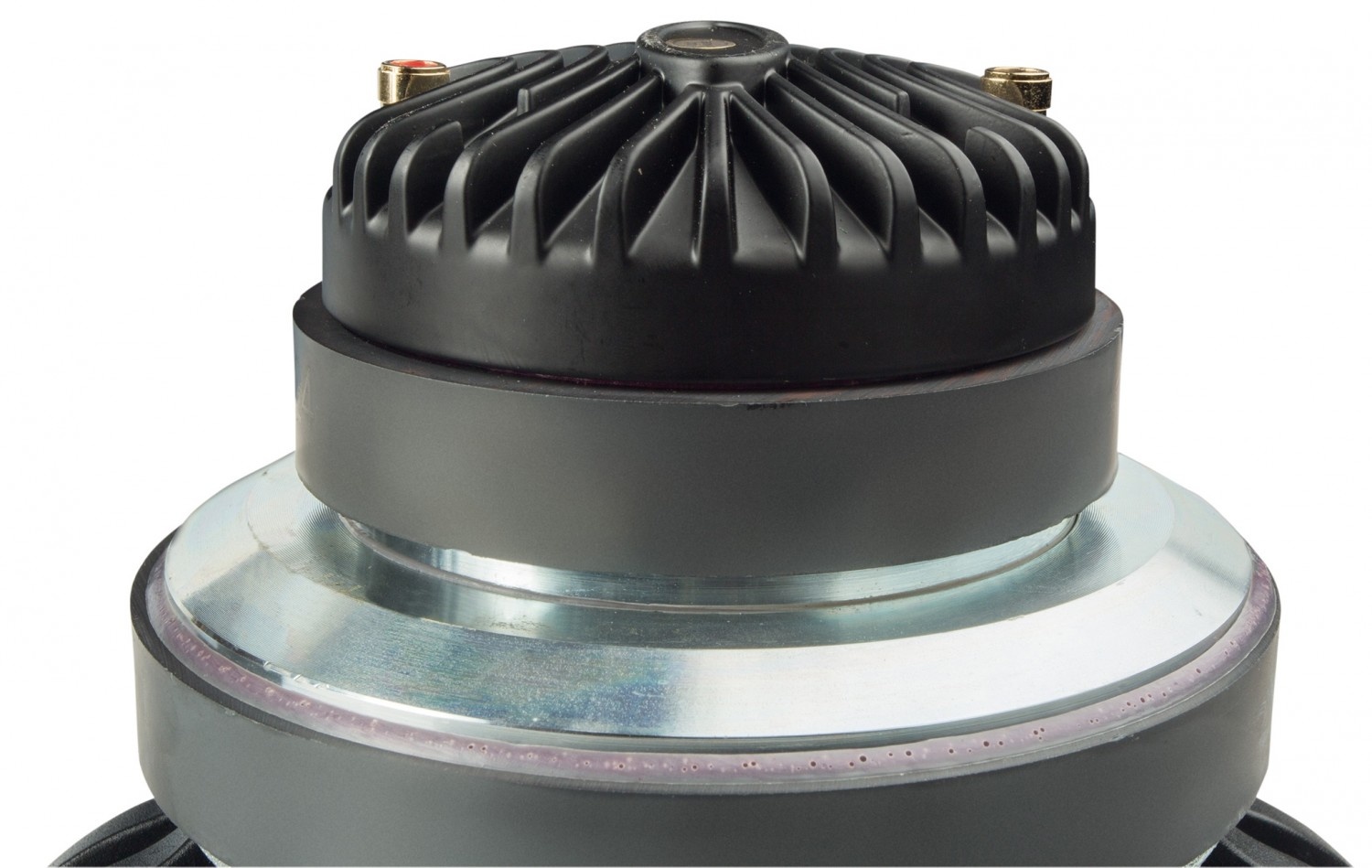

      • Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
      • Robust diecast basket with rear-ventilated centering spider
      • 64 mm (2½") heat-resistant voice coil on a polyamide voice coil former (TIL)
      • Excellent and consistent radiation pattern





      Product Details

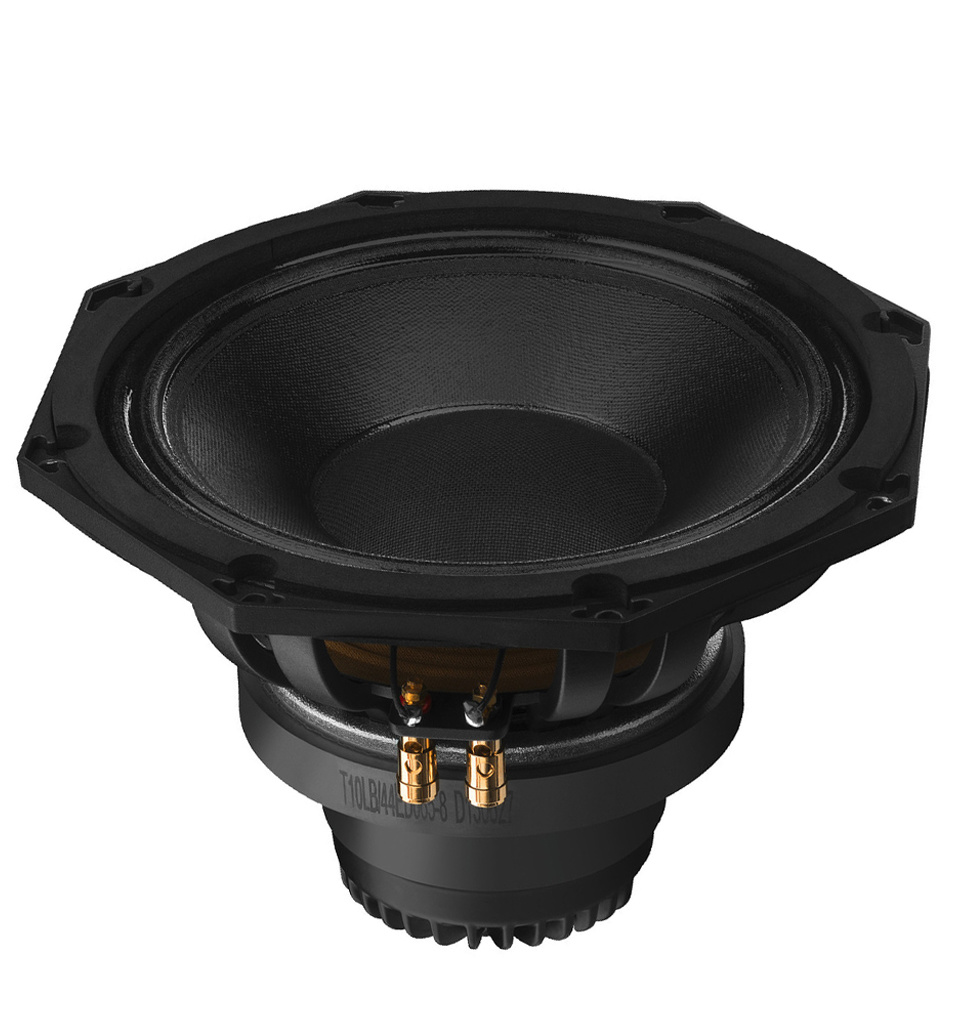

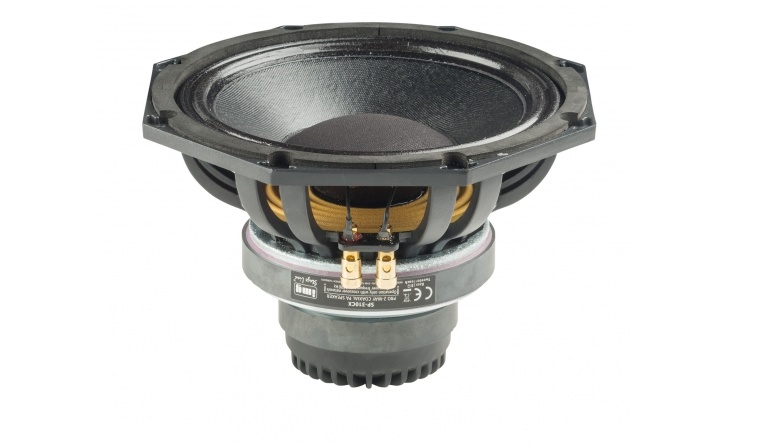

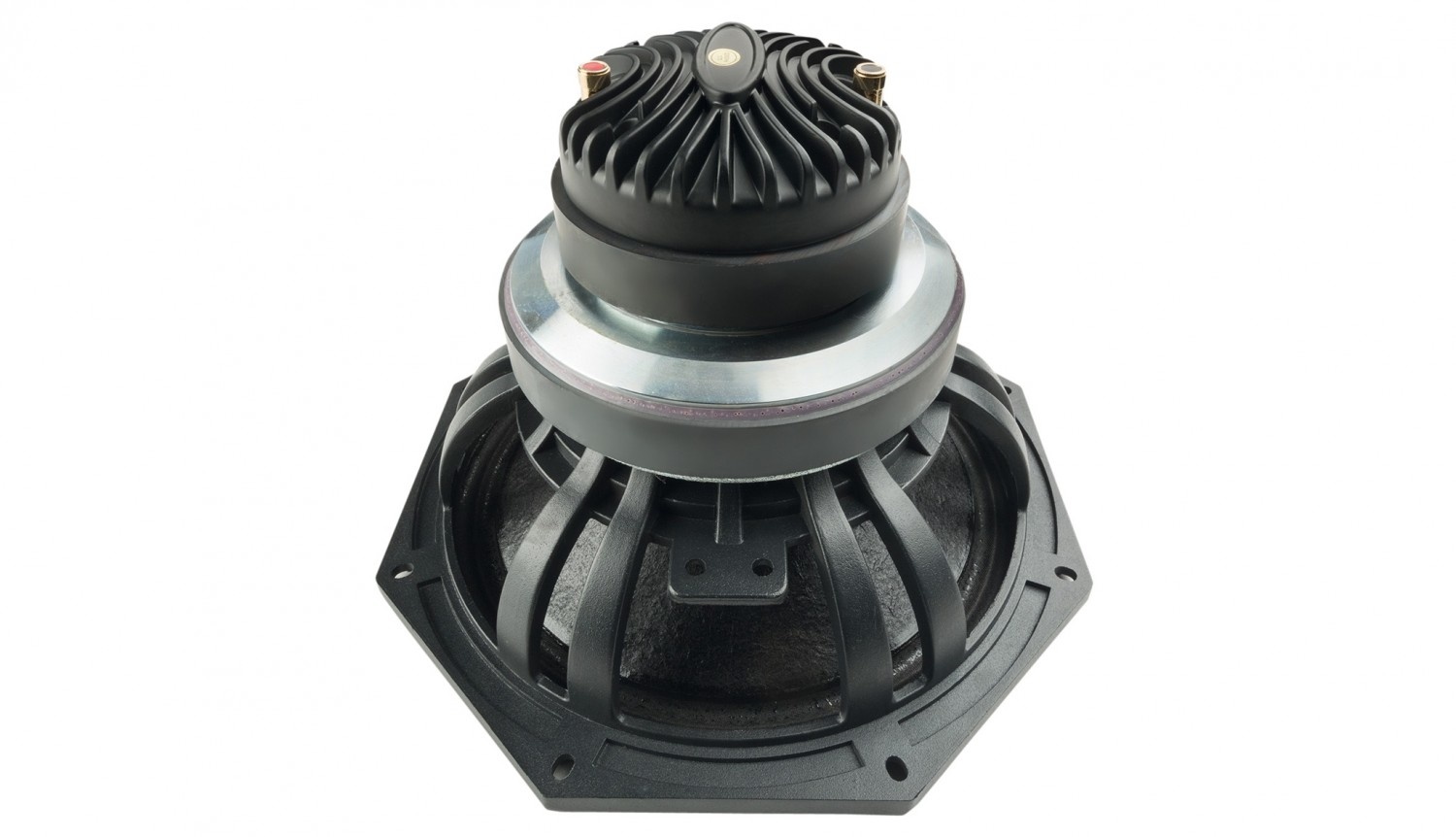

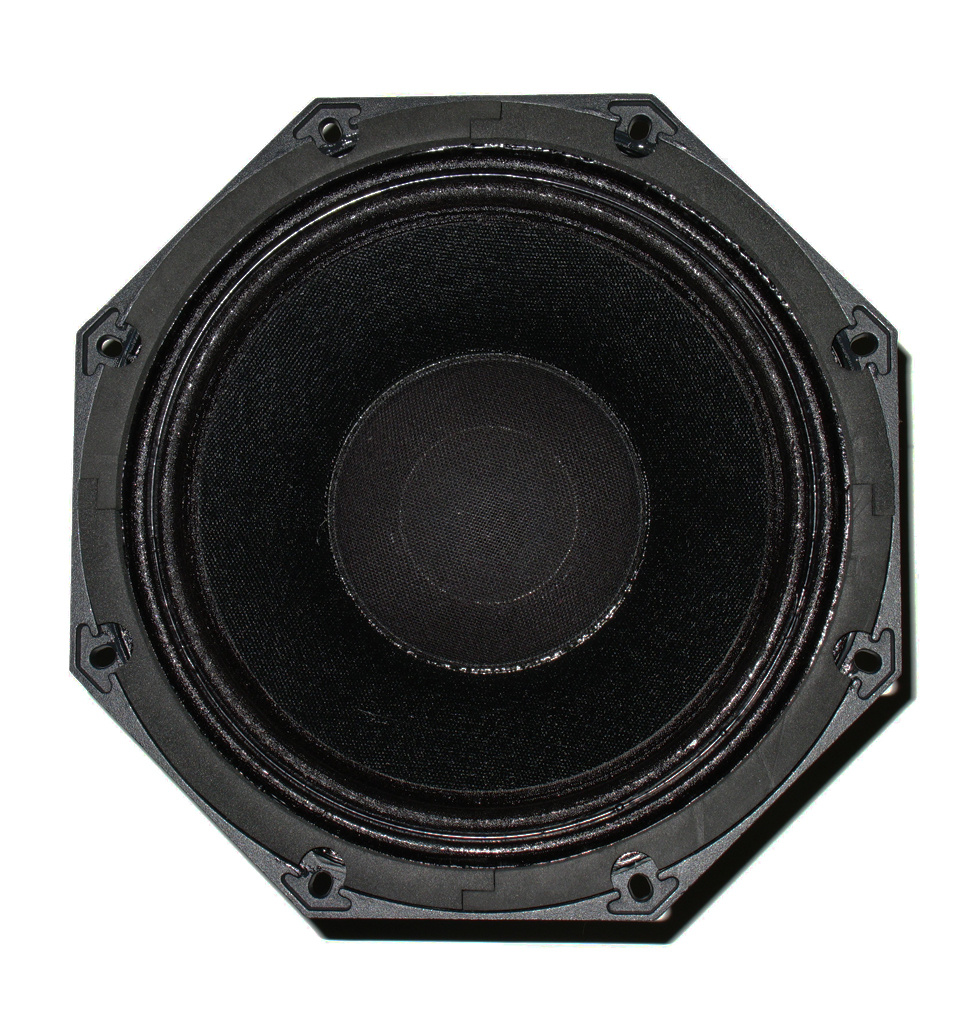

      SP-310CX 2-Way Coaxial PA Speaker with Integrated Horn Tweeter



      The SP-310CX features an excellent and consistent radiation pattern. Due to its robust diecast basket and a heat-resistant voice coil it is shock and heat protected. It furthermore features an excellent and consistent radiation pattern. The result is a powerful speaker that is ideally suited for stage monitors or very compact full range speaker systems.



      Note: Operation only allowed with crossover network (recommended crossover frequency: >1,800 Hz)



      Klang+Ton 02/2016

      “The speaker system Studio 10 features a very neutral sound with great power reserves. Suitable as a studio monitor as well as for hi-fi applications of high requirements. The Studio 10 provides a well-balanced and neutral sound which achieves top results.” (SP-310CX in a project from K+T)

      Specifications

      Article number
      SP-310CX
      Woofer Type
      Coaxial
      Nominal Diameter
      10"
      Power Handling (RMS)
      200 W (bass) / 50 W (tweeter)
      Power Handling (max)
      400 W (bass) / 100 W (tweeter)
      Impedance (Z)
      2 x 8 Ω
      Sensitivity
      96 dB (bass) / 105 dB (tweeter)
      Frequency Response
      f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter)
      Voice Coil Diameter
      64 mm (bass) / 44 mm (tweeter)
      Magnet Weight
      1.6 kg
      DC Resistance (Re)
      5.6 ohms
      Voice Coil Inductance (Le)
      0.65 mH
      Resonant Frequency (Fs)
      60 Hz (bass), 700 Hz (tweeter)
      Mechanical Q (Qms)
      3.24
      Electromagnetic Q (Qes)
      0.36
      Total Q (Qts)
      0.32
      Diaphragm Mass Inc. Airload (Mms)
      32 g
      Mechanical Compliance of Suspension (Cms)
      0.24 mm/N
      Surface Area of Cone (Sd)
      346 cm2
      BL Product (BL)
      13.30 Tm
      Compliance Equivalent Volume (Vas)
      41 l
      Maximum Linear Excursion (Xmax)
      ± 2.5 mm
      Voice Coil Former
      polyamide (TIL)
      Overall Depth
      188 mm
      Baffle Cutout Diameter
      232 mm
      # Mounting Holes
      8
