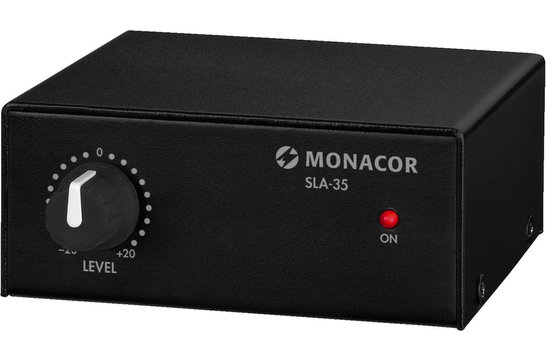

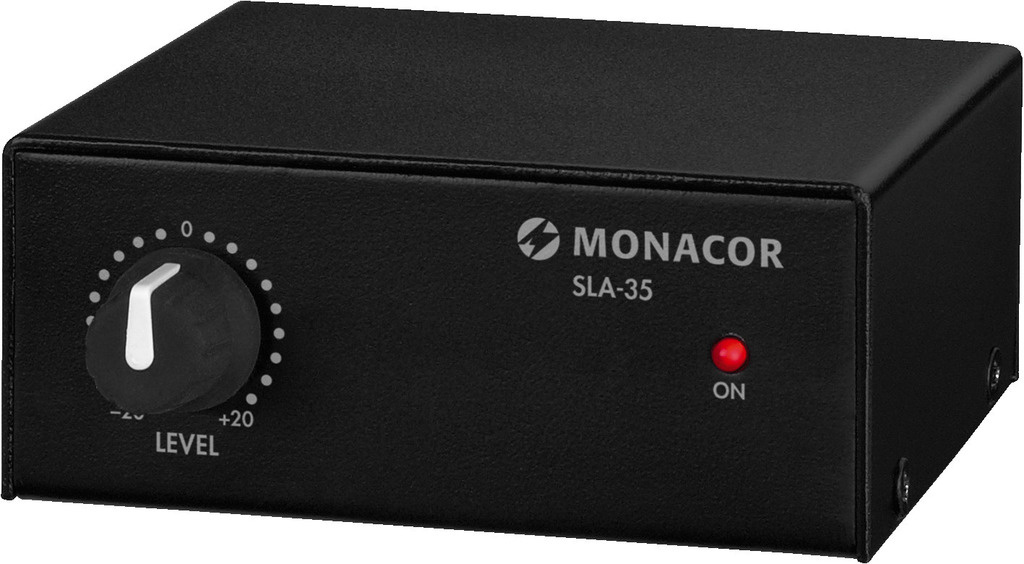

Monacor SLA-35 pre-amplifier

Name: Monacor SLA-35 pre-amplifier
Brand: Monacor
SKU: SLA-35
Price: 79.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Brand: Monacor

Show all Pre-amplifiers

Compare

Pre-amp

€ 66,07€ 79,95 2 In stock

24h express shipping available
Ordered now, shipped on Monday
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Silent operation due to fanless cooling concept
Additional 3.5 mm connection with switchable sensitivity on the front panel
Audio source selector switch
Controls for volume, bass and treble
3 mm headphone output
Robust metal housing

Product details

Monacor SLA-35 | Pre-Amp | Level & Impedance Matching

Volume distortions or volume losses may occur when connecting smartphones, mobile phones, tablet PCs and MP3 players to an amplifier or a mixer. Due to the correct setting of impedance and gain, the SLA-35 is able to provide a better sound.

Gain: 0.1-10 (±20 dB) continuously adjustable, additionally -5.6 dB, switchable

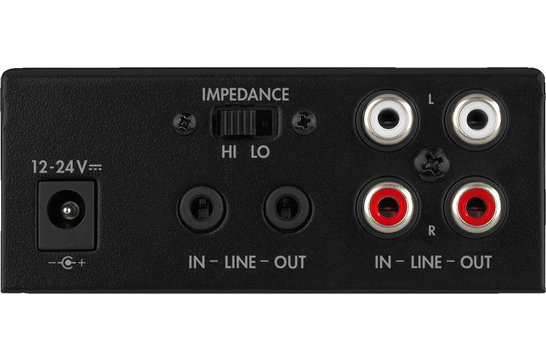

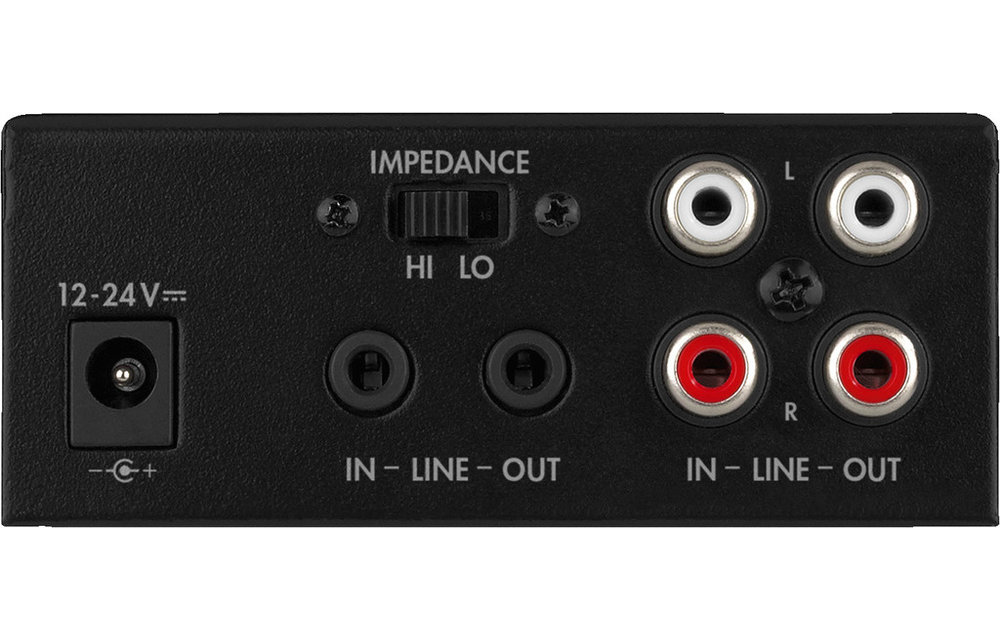

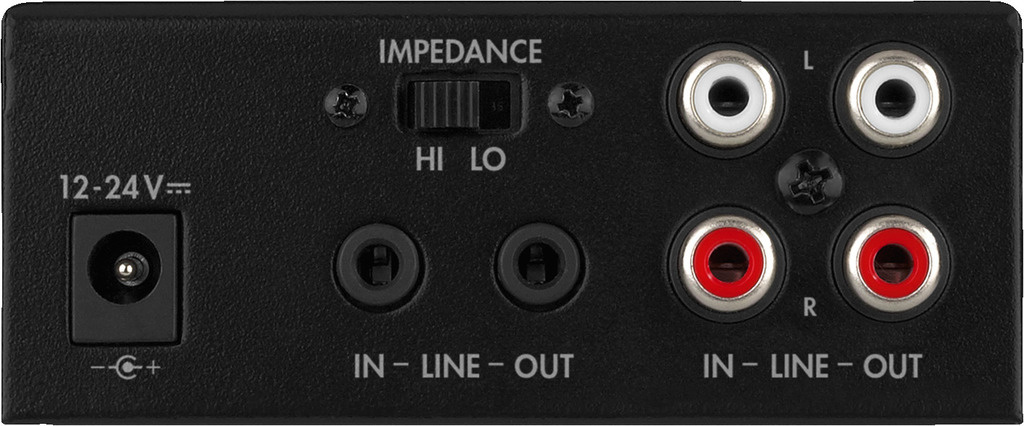

Inputs: 1 x RCA L/R, 1 x 3.5 mm jack

Outputs: 1 x RCA L/R, 1 x 3.5 mm jack

Specifications

Article number: SLA-35
Rated power output (RMS): -
Bridged power output (RMS): -
Minimum load: -
Signal-to-noise ratio (SNR): >83 dB
Distortion: <0,035 THD
Distortion bridged: -
Efficiency: -
Frequency response: 5 – 50000 Hz, –1dB
Input impedance: 35k ohms (HI) / 8,1k ohms (LO) (switchable)
Input sensitivity: -
Auto turn-on sensitivity: -
DSP: -
DAC: -
Maximum sampling rate: -
Circuit Topology: -
Amplifier classification: Class B
Speaker output channels: -
Subwoofer output channel: -
Analog in/out: -/-
Optical S/PDIF in/out: -/-
Coaxial in/out: -/-
RCA in/out: 1/1
AUX in/out: 1/1
Bus in/out: -/-
XLR in/out: -/-
USB: -
Memory card slot: -
Network connection: -
Headphone jack: -
Subwoofer pre-out: -
Bluetooth: -
NFC: -
Wi-Fi: -
Banana plug compatible: -
Remote control: -
App control: -
Auto turn-on: -
Accepted file formats: -
Equalizer (EQ) adjustment: -
Equalizer (EQ) profiles: -
Multi zone/room: -
Crossover frequency adjustment: -
Bridge mode: -

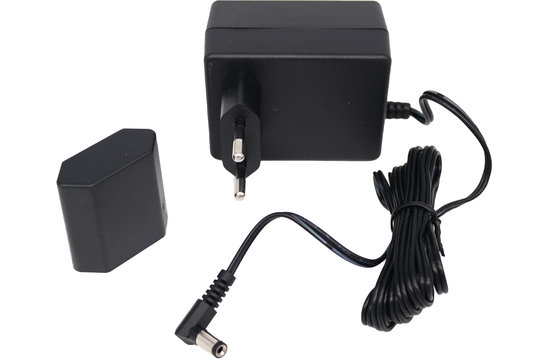

Power requirements: 12 - 24 VDC
Power inlet connector: DC jack
Power consumption: -
Stand-by power consumption: -
Dimensions (D x W x H): 103 x 88 x 37 mm
Case material: Metal

Reviews

1 reviews

5 from 5Based on 1 reviews

Review this product

5 of 5

Does what it needs to do, I use it for matching the volume of my turntable and don´t notice it being in the chain(other than volume increase) so it´s great.

By Jaakko T. on 21 January 2021
