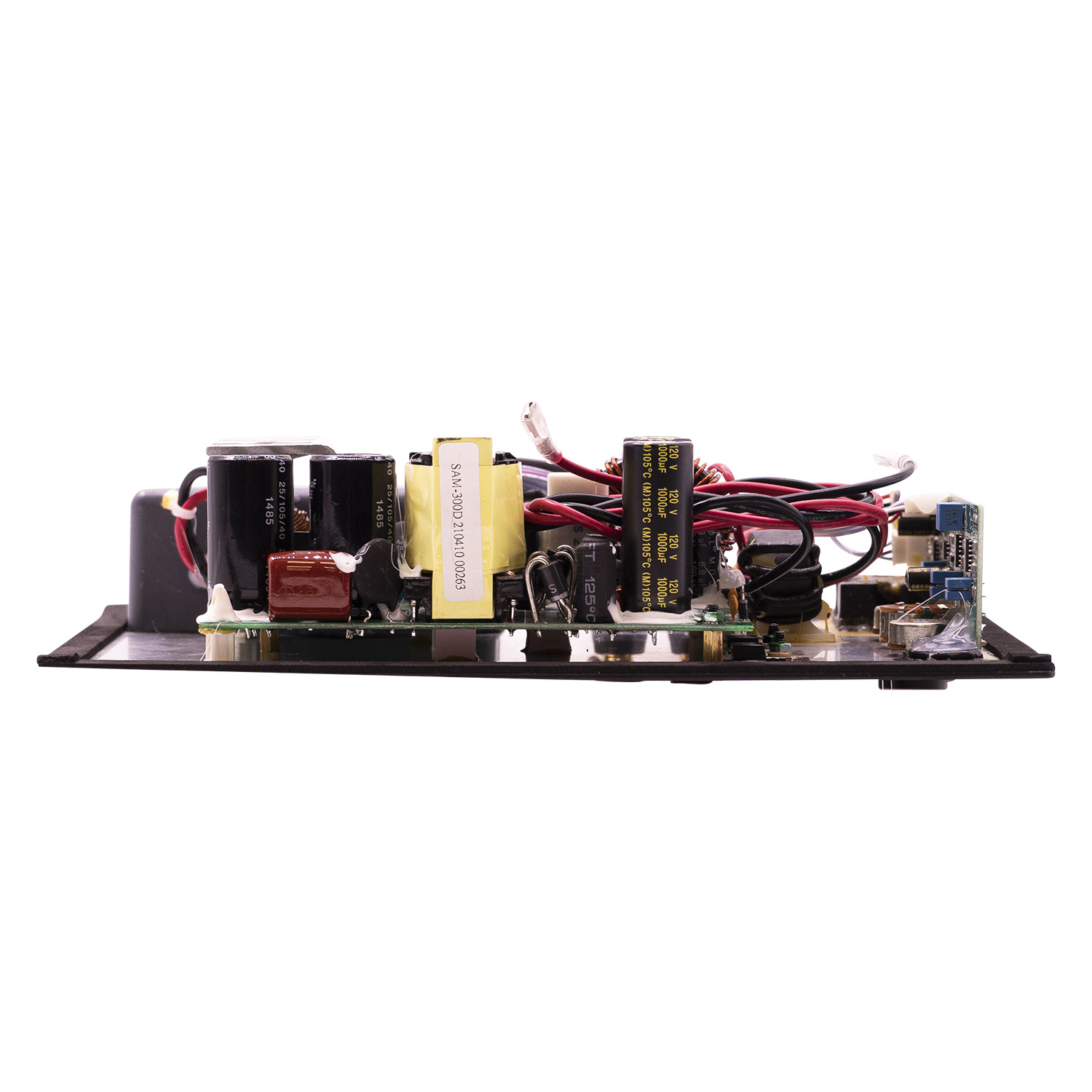

Monacor SAM-300D Class D 300W Active Subwoofer Module

In stock

  • Article code: SAM-300D
  • Stock: 7 In stock

Class D active subwoofer module, 300 W at 4 Ω. Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG STAGELINE provide a powerful bass reproduction in self-built subwoofer systems.

€ 149,95 Incl. 21% VAT

  • Buy 4 for €142,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Monacor SAM-300D Class D 300W Active Subwoofer Module

Highlights

  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High-level inputs for parallel connection to the speaker cables
  • High power reserves
  • Connections: 1 x RCA (line in), 1 x speaker terminal (high power in), 1 x RCA (line out)



Product details

Monacor SAM-300D Class D 300W Active Subwoofer Module



Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG STAGELINE provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high-power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

Specifications

Specifications for: SAM-300D Class D 300W Active Subwoofer Module

  • Rated power output (RMS) The electrical power measured in watts (W) that an amplifier can output per channel, without damaging the amplifier or the output signal is çlipped'. RMS = Root Mean Square.

    1 x 300 watts at 4 ohms
    1 x 150 watts at 8 ohms

  • Bridged rated power output (RMS) SPEC Bridged rated power output (RMS) -
  • Minimum load Shows the minimum load that an amplifier can control in ohms. A lower impedance of a speaker is not recommended if it is lower than the minimum impedance of an amplifier. An amplifier works best when the impedance of the speaker falss within the impedance range that the amplifier prescribes (for example, 4 to 8 ohms). 4 ohms
  • Signal-to-noise ratio (SNR) Shows the strength level of signal power compares to a level of noise power. Generally, higher values ​​means better specification. >70 dB
  • Distortion Measured in Total Harmonic Distortion + Noise (THD+N). The lower this figure, the closer the output of the amplifier will sound to the original recording. < 0.1% THD
  • View all specifications
  • Distortion bridged -
  • Amplifier classification Class D
  • Circuit topology -
  • Efficiency -
  • Frequency response 20 - 200 Hz
  • Input impedance

    22k ohms (line level input)
    270 ohms (high level input)

  • Input sensitivity

    170 mV (line level input)
    1 V (high level input)

  • Auto turn-on sensitivity -
  • DSP -
  • DAC -
  • Maximum sampling rate -
  • Speaker output channels 1
  • Analog in/out 1/1
  • S/PDIF in/out -/-
  • AES/EBU in/out -/-
  • Coaxial in/out -/-
  • RCA in/out 1/1
  • XLR in/out -/-
  • Jack in/out -/-
  • USB connection -
  • Network connection -
  • Bluetooth -
  • Subwoofer pre-out -
  • Auto on/off -
  • Remote control -
  • App control -
  • Equalizer (EQ) adjustment -
  • Equalizer (EQ) profiles -
  • Phase control
  • Crossover frequency adjustment
  • Presets -
  • Control software -
  • Windows/Mac compatible -/-
  • Power requirements 230 VAC
  • Power inlet connector IEC C18
  • Standby power consumption <0.5 watts
  • Current limit -
  • Under/over voltage protection -

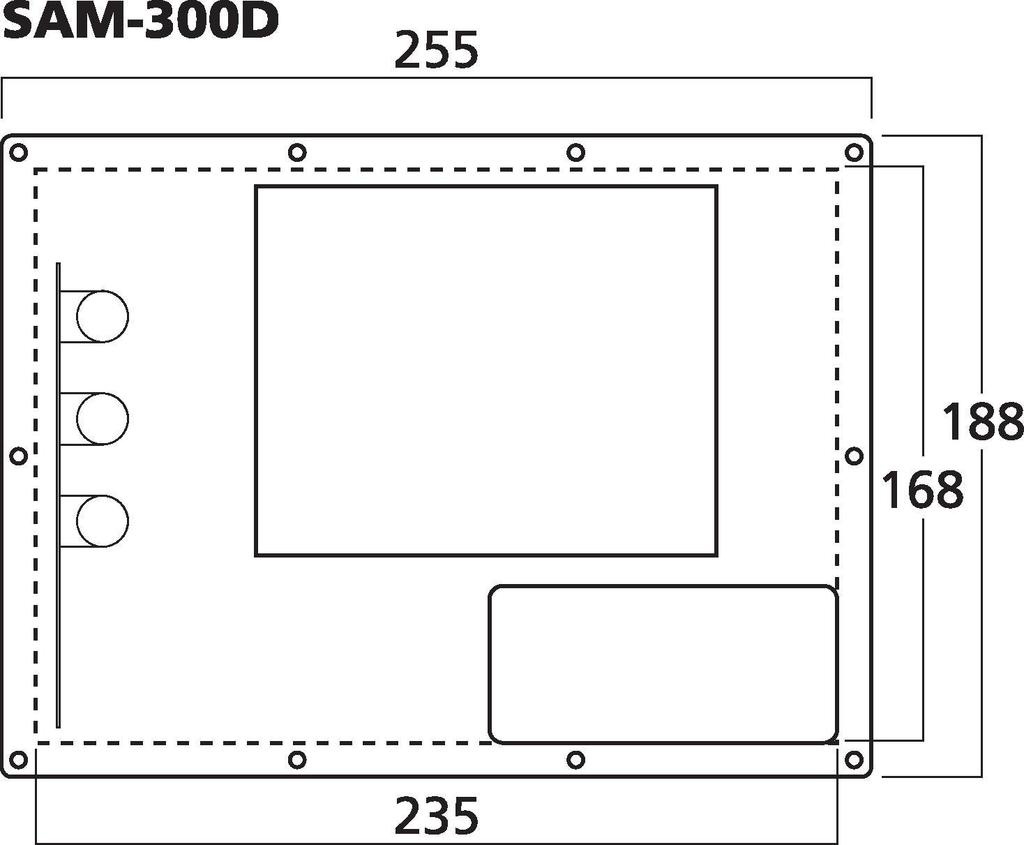

  • Dimensions (H x W x D) 188 x 255 x 90 mm
  • Cutout dimensions 168 x 235 mm
