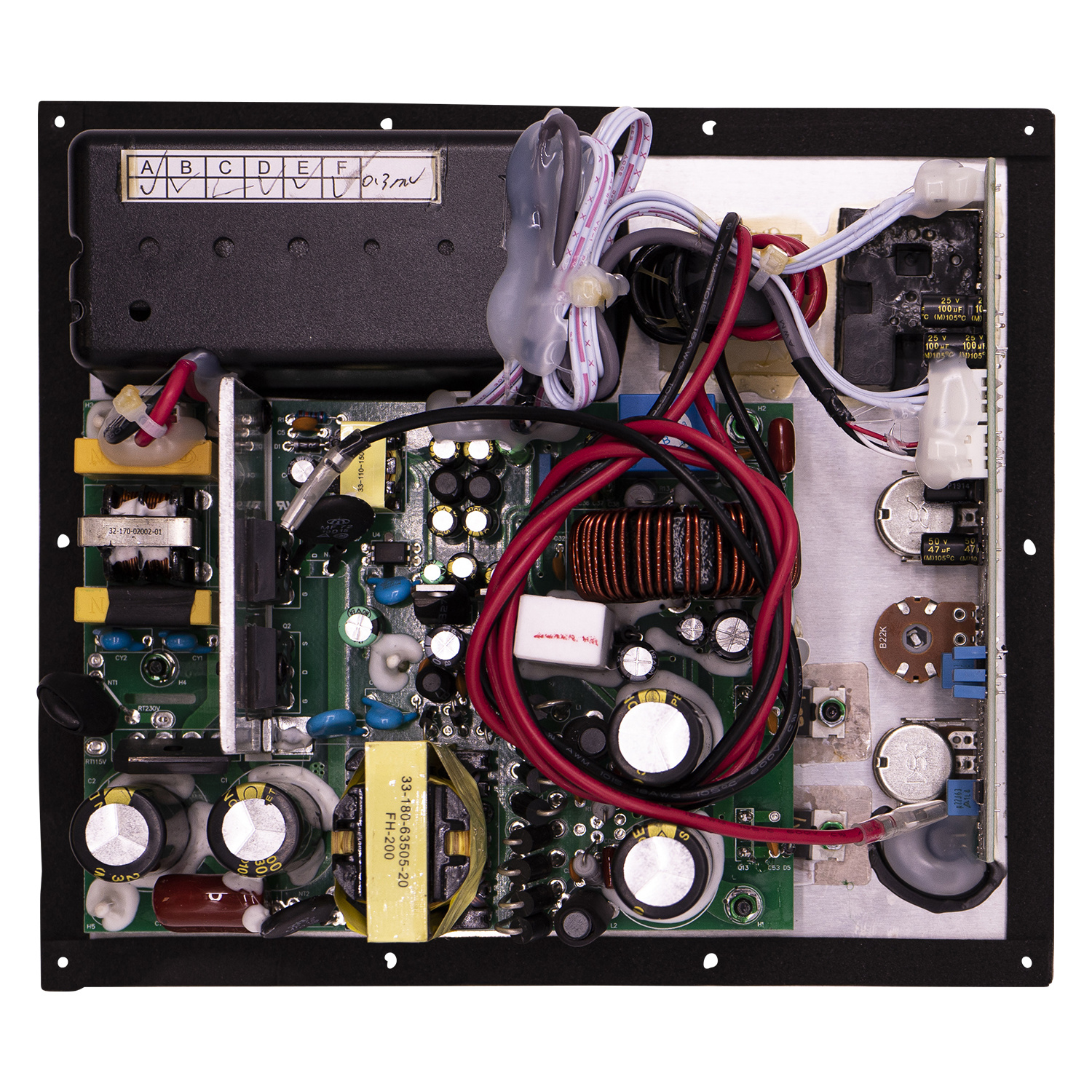

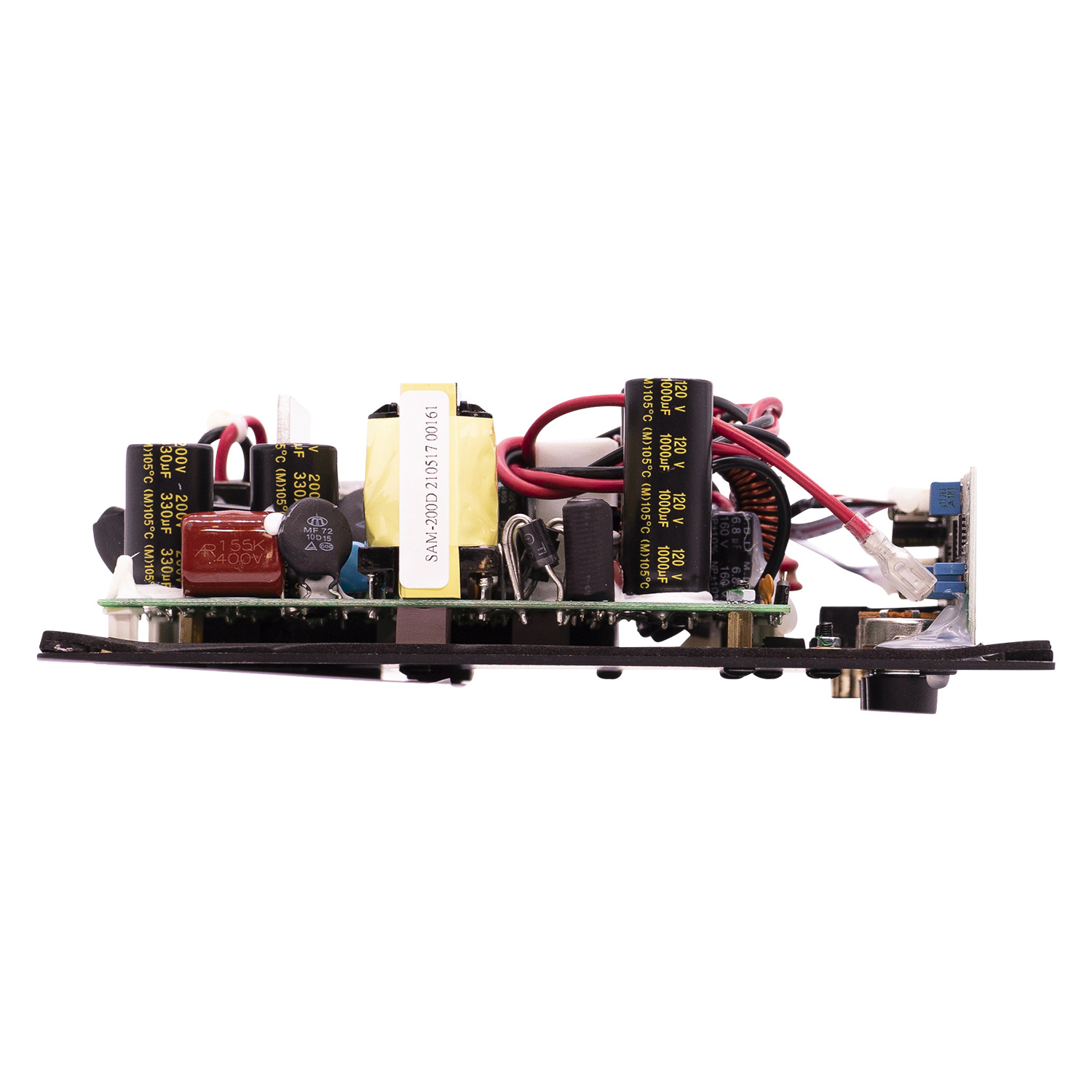

        SAM-200D Subwoofer Plate Amplifier

        SAM-200D Subwoofer Plate Amplifier

        €159,95

        Monacor SAM-200D Subwoofer Plate Amplifier

        24 reviews
        5 from 5
        24 reviews
        5 stars
        79%
        4 stars
        21%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Monacor
        € 132,19€ 159,95 10+ In stock

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • High-performance active module in class D technology
        • Variable low-pass filter: 40-200 Hz (18 dB)
        • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
        • Line input, par. line output
        • Integrated bass boost of approx. 3 dB at 40 Hz
        • High power reserves
        • Connections: 1 x RCA (line in), 1 x RCA (line out)



        Product details

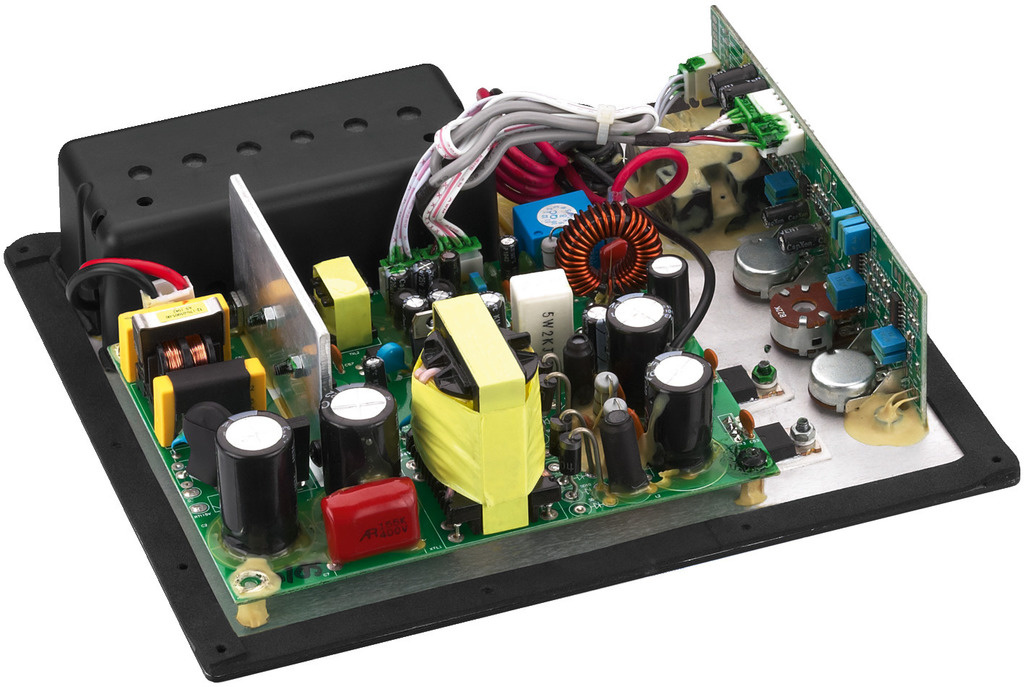

        Monacor SAM-200D Class D 200W Active Subwoofer Module



        Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG STAGELINE provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high-power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

        Show more

        Specifications

        Article number
        SAM-200D
        Rated power output

        1 x 200 watts at 4 ohms
        1 x 100 watts at 8 ohms

        Rated power output bridged
        -
        Minimum load
        4 ohms
        Signal-to-noise ratio (SNR)
        >70 dB
        Distortion
        <0.1%
        Distortion bridged
        -
        Amplifier classification
        Class D
        Circuit topology
        -
        Efficiency
        -
        Frequency response
        20 - 200 Hz
        Input impedance

        22k ohms (line level input)
        270 ohms (high level input)

        Input sensitivity

        170 mV (line level input)
        1 V (high level input)

        Auto turn-on sensitivity
        -
        DSP
        -
        DAC
        -
        Maximum sampling rate
        -
        Speaker output channels
        1
        Analog in/out
        1/1
        S/PDIF in/out
        -/-
        AES/EBU in/out
        -/-
        Coaxial in/out
        -/-
        RCA in/out
        1/1
        XLR in/out
        -/-
        Jack in/out
        -/-
        USB connection
        -
        Network connection
        -
        Bluetooth
        -
        Subwoofer pre-out
        -
        Auto on/off
        -
        Remote control
        -
        App control
        -
        Equalizer (EQ) adjustment
        -
        Equalizer (EQ) profiles
        -
        Phase control
        Crossover frequency adjustment
        Presets
        -
        Control software
        -
        Windows/Mac compatible
        -/-
        Power requirements
        230 VAC
        Power inlet connector
        IEC C18
        Standby power consumption
        <0.5 watts
        Current limit
        -
        Under/over voltage protection
        -

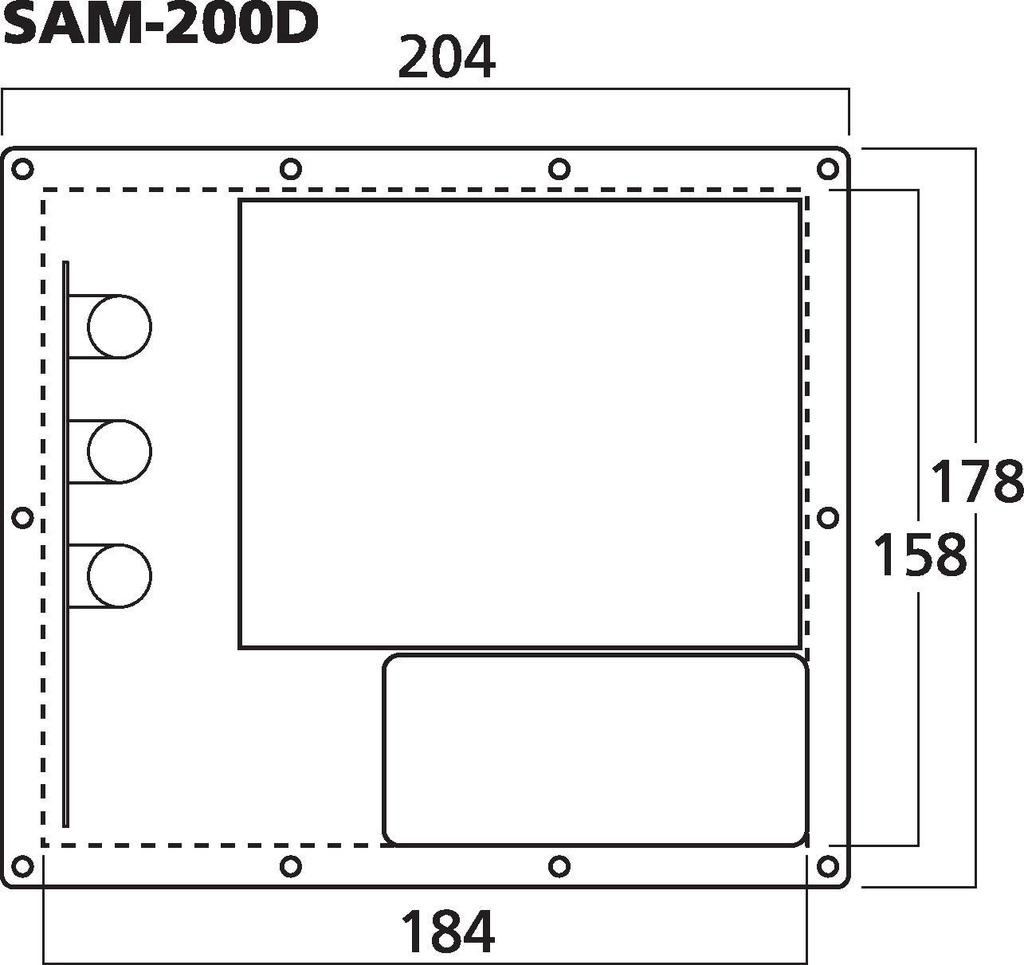

        Dimensions (H x W x D)
        178 x 204 x 80 mm
        Cutout dimensions
        158 x 184 mm

        Show more

        5 of 5
        The SAM-200D module replaces the amplifier in a Jamo SUB-650 subwoofer 100% and performs completely as expected. I mounted a self-adhesive rubber strip between the module and the cabinet to avoid vibrations and resonances.
        By Luc on 10 January 2024
        5 of 5
        plate amp revived an old broken Sub ( Mordaunt Short Genie) sub is fine ...again its not going to be hi-fi... but it will do for a movie and a party ;o)
        By D. on 4 December 2023
