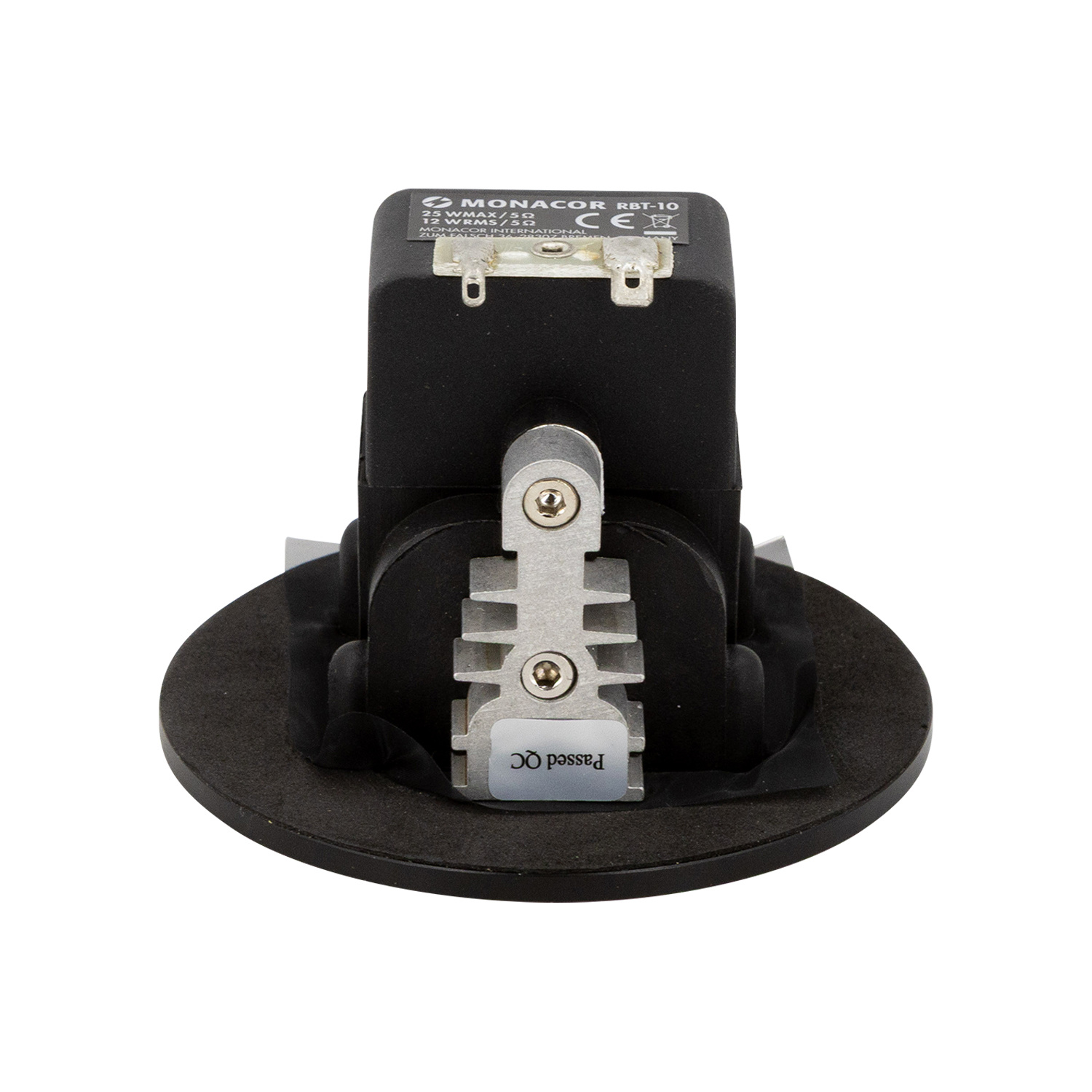

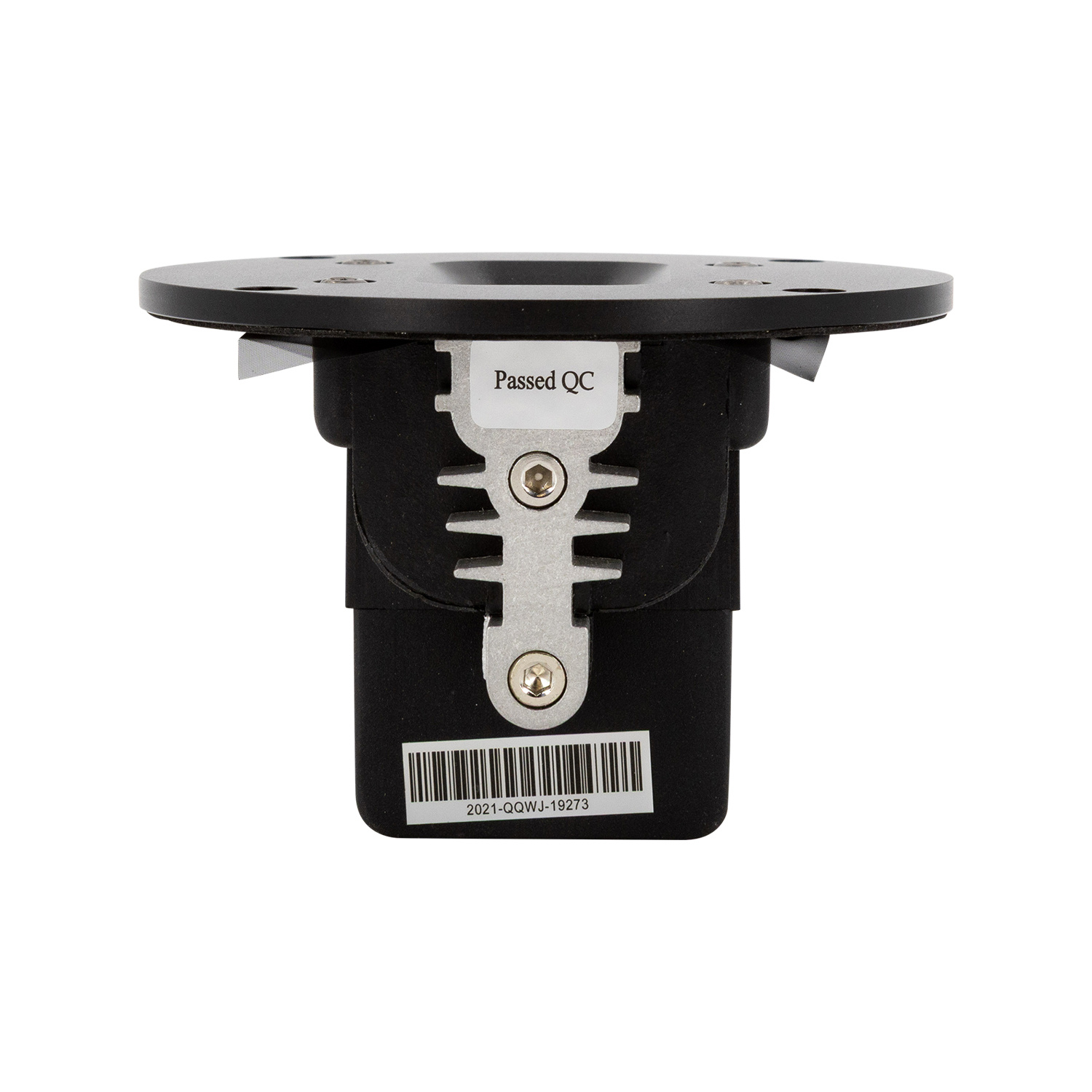

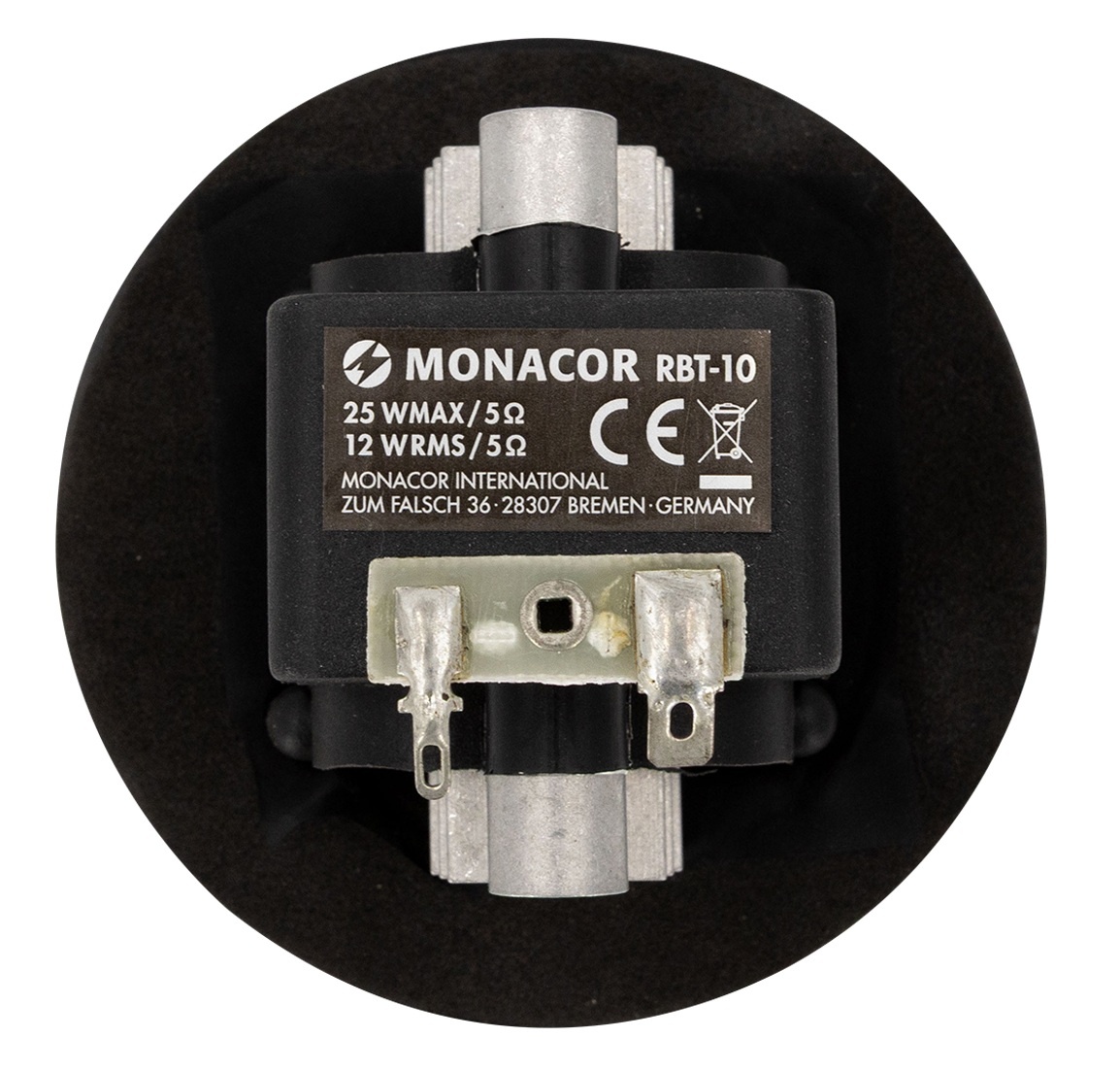

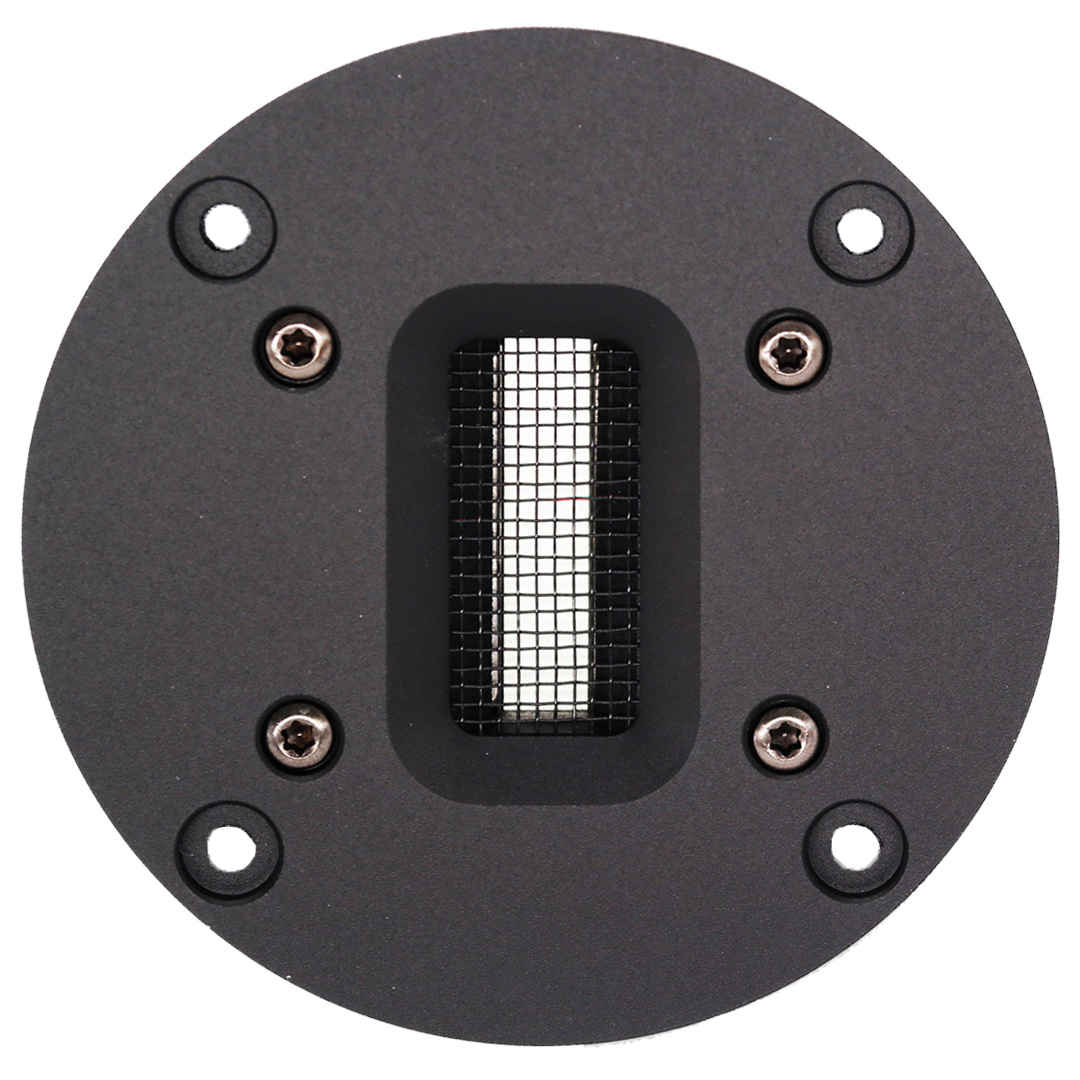

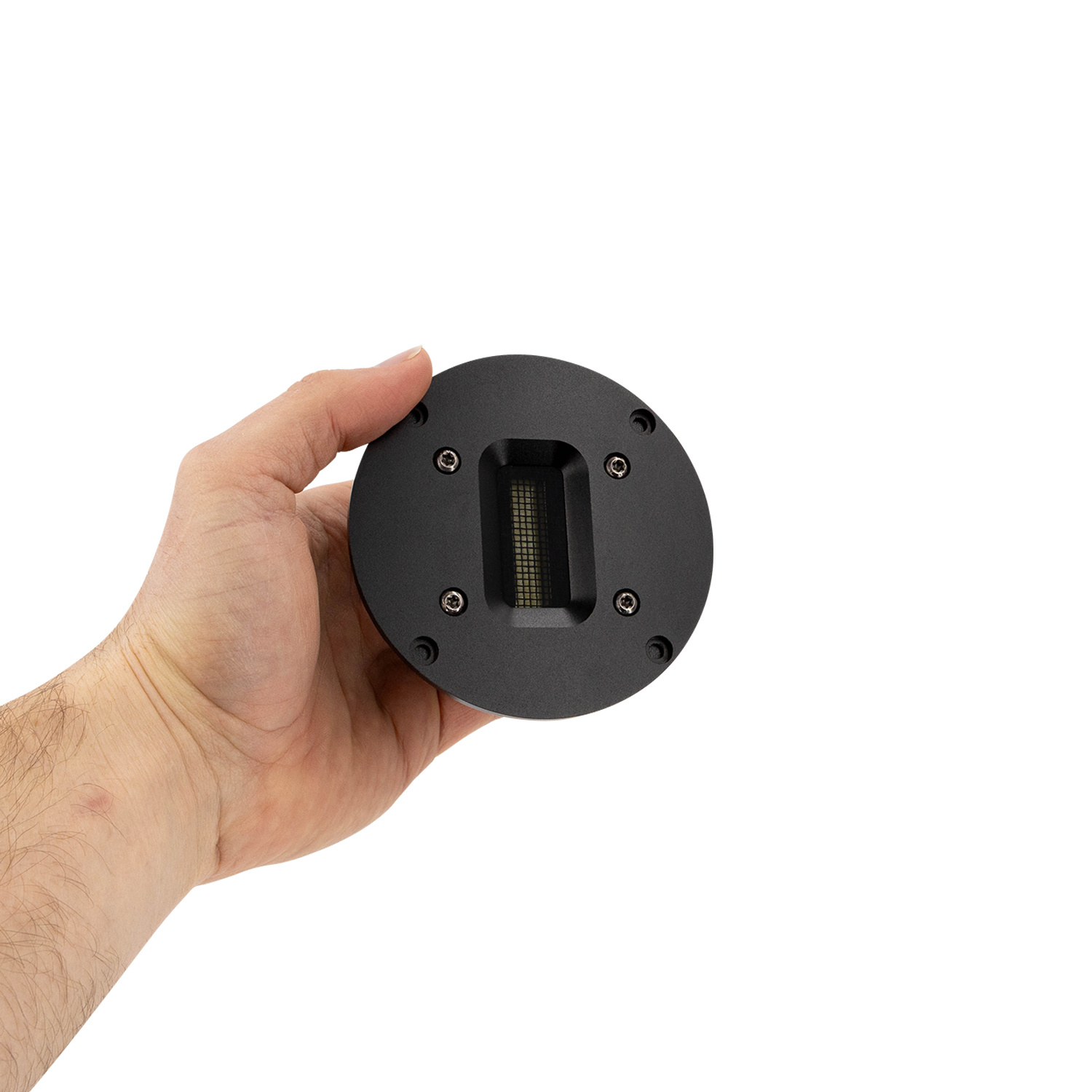

        RBT-10 Ribbon Tweeter Matched Pair

        RBT-10 Ribbon Tweeter Matched Pair

        €289,95

        Monacor RBT-10 Ribbon Tweeter Matched Pair

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Monacor
        € 239,63€ 289,95 3 In stock
        • -5% Purchase 4 for only € 275,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The new high-end tweeters RBT-10, RBT-20 and RBT-35SR are part of the so-called real ribbon tweeters. This makes them a top choice whenever hi-fi speakers or studio monitors of the highest quality are required



        Highlights

        • Real ribbon tweeter with neodymium magnet system and transformer
        • Fine and brilliant reproduction of the high range
        • Smooth, unembossed aluminium sandwich cone: 8 x 38 x 0.015 mm
        • For use from 3,500 Hz on via 18 dB filter
        • Robust aluminium front panel with waveguide and protective grille



        Product details

        Monacor RBT-10 Ribbon Tweeter Matched Pair



        The new high-end tweeters RBT-10, RBT-20 and RBT-35SR are part of the so-called real ribbon tweeters. The audio signal flows through the entire cone which is of extra low weight and consists of an aluminium film. A built-in high-quality transformer converts the low impedance of this cone into 5-8 Ω which is non-critical for the amplifier. Ribbon tweeters impress by an extra fine and brilliant reproduction of the high frequency range. Due to continuous further development, it is already possible to use these ribbon tweeters with crossover frequencies from 2,500 Hz on, depending on the type. This makes them a top choice whenever hi-fi speakers or studio monitors of the highest quality are required. Ribbon tweeters require a crossover network for operation!

        Show more

        Specifications

        Article number
        RBT-10
        Tweeter Type
        Ribbon
        Cone / Dome Diameter
        8 x 38 mm
        Power Handling (RMS)
        12 Watts
        Power Handling (max)
        25 Watts
        Impedance (Z)
        5 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Frequency Response
        2,000-40,000 Hz
        Resonant Frequency (Fs)
        680 Hz
        Overall Outside Diameter
        100 mm
        Cutout Diameter
        66 x 55 mm
        Depth
        72 mm
        Recommended cut frequency
        > 4,000 Hz (12 dB/oct.)

        Show more
