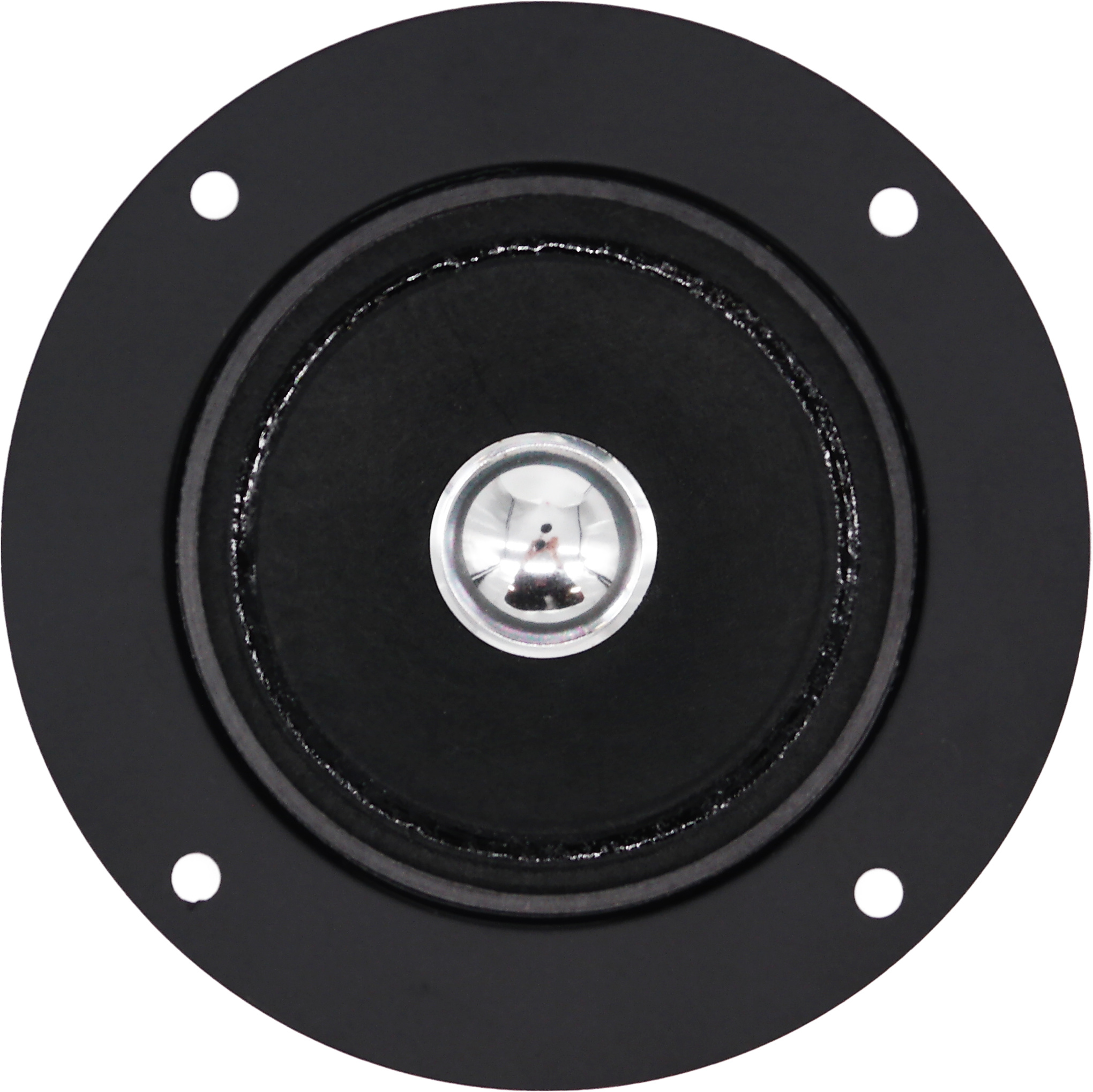

Monacor HT-22/8 2'' Replacement Cone Tweeter

Delivery time: 1-4 business days

  • Article code: HT-22/8
  • Stock: 6 In stock

The Monacor HT-22/8 is a very respectable tweeter ir its price with some nice retro looks. Ideal for retro DIY speakers or replacing vintage tweeters.

€ 9,95 Incl. 21% VAT

  • Buy 4 for €9,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Monacor HT-22/8 2'' Replacement Cone Tweeter

The Monacor HT-22/8 is a very respectable tweeter ir its price with some nice retro looks. Ideal for retro DIY speakers or replacing vintage tweeters.



Highlights

  • Very balanced and natural sounding
  • Classic aesthetics
  • Suitable for retro hi-fi, car audio and replacement purposes



Product Details

Monacor HT-22/8 2'' Replacement Cone Tweeter



A surprising tweeter, considering the modest use of material. It has been said to be the most balanced measuring and sounding tweeter in this price range with the best measured values. The tweeter has therefore been used in multiple well-known designs such as the Cheap Trick 296 by Klang+Ton and the Twenty Five by Humble Homemade Hifi. Once again showing that a proper design often outperforms poor use of fancy materials.

Specifications

Specifications for: HT-22/8 2'' Replacement Cone Tweeter

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Cone tweeter
  • Tweeter Series Specific tweeter production line of the manufacturer.
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches. 2''
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 10 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 20 Watts
  • View all specifications
  • Impedance 8 Ohms
  • Sensitivity 91 dB/W/m
  • Frequency Response 2,500 - 19,000 Hz
  • Resonant Frequency (Fs) 1,500 Hz
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms)
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Overall Outside Diameter 90 mm
  • Cutout Diameter 80 mm
  • Depth 28 mm
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency 2,500 Hz (12 dB/oct.)
