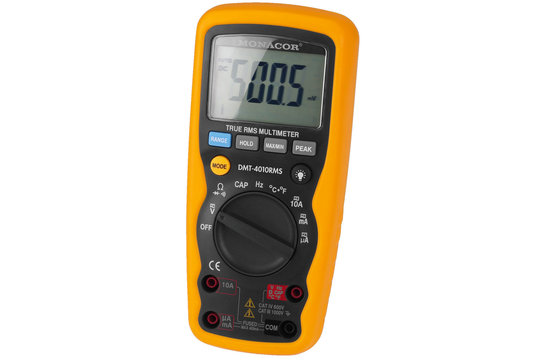

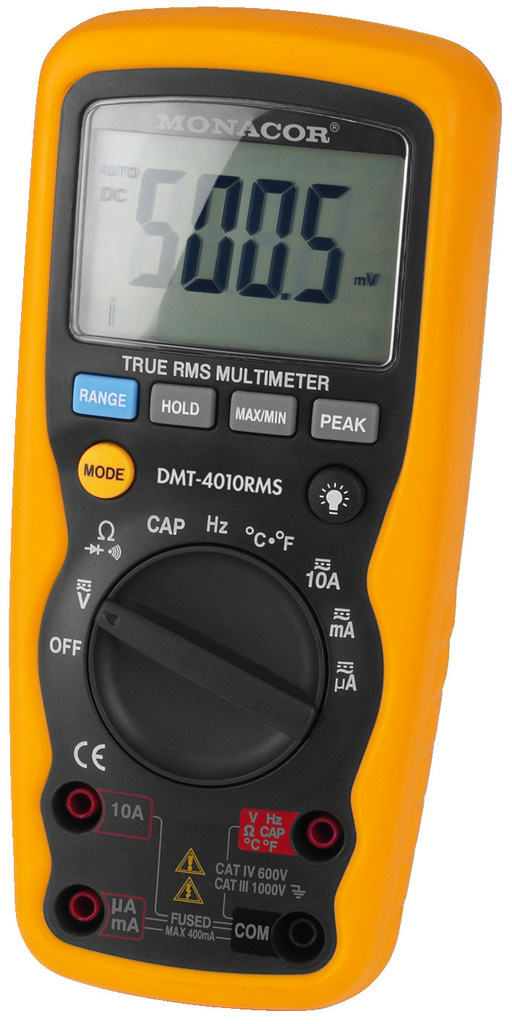

Monacor DMT-4010RMS true RMS multimeter

Name: Monacor DMT-4010RMS true RMS multimeter
Brand: Monacor
SKU: DMT-4010RMS
Price: 159.95 EUR
Availability: InStock

0 reviews

Brand: Monacor

Show all Multimeters

Compare

Pro

€ 132,19€ 159,95 2 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

True RMS measuring method
Protected against dust and water according to IP67 when test jacks are covered
Autoranging for faster measurements
Resolution: 4,000 digits
Additional bar graph display
Voltage measurement: up to DC/˜ 1,000 V
Current measurement: up to DC/˜ 10 A
Frequency measurement: up to 10 MHz
Resistance measurement: up to 40 MΩ
Capacitance measurement: up to 40 mF
Temperature measurement: -20 °C to +760 °C
Acoustic continuity test
Diode test
Data hold (storage of measured value)
Peak hold
Recording of max. value and min. value
LCD with selectable backlight
Automatic switch-off
Overload protection
Supplied with test leads and protective bag

Product details

Monacor DMT-4010RMS True RMS & Digital Multimeter For Pro Applications

Measuring ranges:

Temperature:	1 range	-20 °C to +760 °C /-4 °F to +1400 °F - type K sensor
Capacitance:	8 ranges	4 nF-40 mF
Frequency:	4 ranges	4 kHz-10 MHz
Resistance:	6 ranges	400 Ω-40 MΩ
Current:	5 ranges	DC 400 µA-10 A ˜ 400 µA-10 A
Voltage:	5 ranges	DC 400 mV-1,000 V ˜ 400 mV-1,000 V

Special features: peak, min/max, hold, IP67

Specifications: Weight: 430 g • Power supply: 9 V battery (not supplied) • Dimensions: 83 x 180 x 54 mm incl. rubber holster • Admiss. ambient temp.: -10 °C to +50 °C • Display: 21 mm LCD, 3¾ digits, bar graph display • Range selection automatic/manual
