Monacor AH-63 Utility Case | Silver | 65 x 36,5 x 207 mm

Name: Monacor AH-63 Utility Case | Silver | 65 x 36,5 x 207 mm
Brand: Monacor
SKU: AH-63
Price: 15.95 EUR
Availability: InStock

0 reviews

Brand: Monacor

Show all Mounting & enclosures

Compare

AH-63 Utility Case | Silver | 65 x 36,5 x 207 mm

€ 13,18€ 15,95 2 In stock

24h express shipping available
Same day shipping
In-house technical support
45-day cooling-off period to return

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

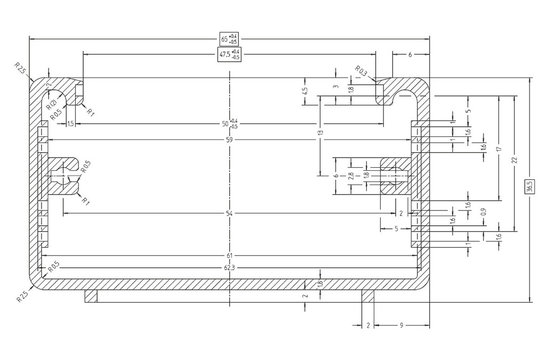

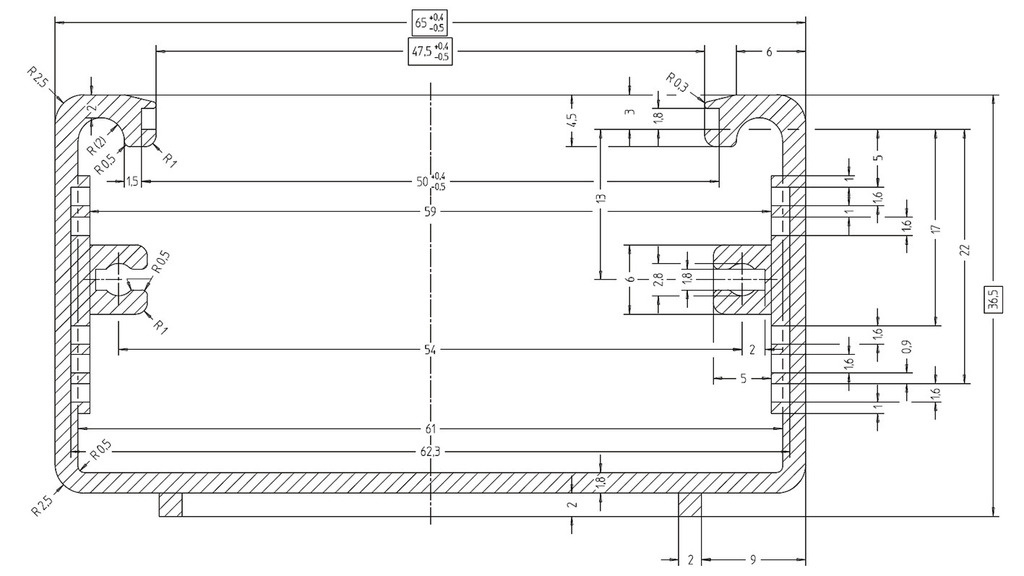

Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22 mm distance to the front panel)
Exchangeable front panel with protective foil of 1.5 mm aluminum plate
Mat black ABS plastic side covers
Material surface is anodized, and mat etched or black (SW)
Total height: 36.5 mm

Product details

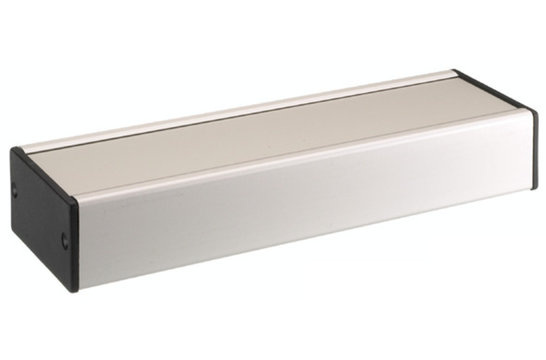

Monacor AH-63 Utility Case | Silver | 65 x 36,5 x 207 mm

Made of extruded profile with insertion grooves for printed circuits in different heights (12/17/22mm distance to the front panel). Exchangeable front panel with protective foil of standard 1.5 mm aluminium plate. Mat black ABS plastic side cover. The material surface is anodised, and mat etched or black (SW).

Specifications: Width: 65 mm • Length: 207 mm • Total height: 36.5 mm • PCB dimensions: 62 x 200 mm • Weight: 231 g
