        MAOP-5 3" Full-range Woofer

        MAOP-5 3" Full-range Woofer

        €109,95

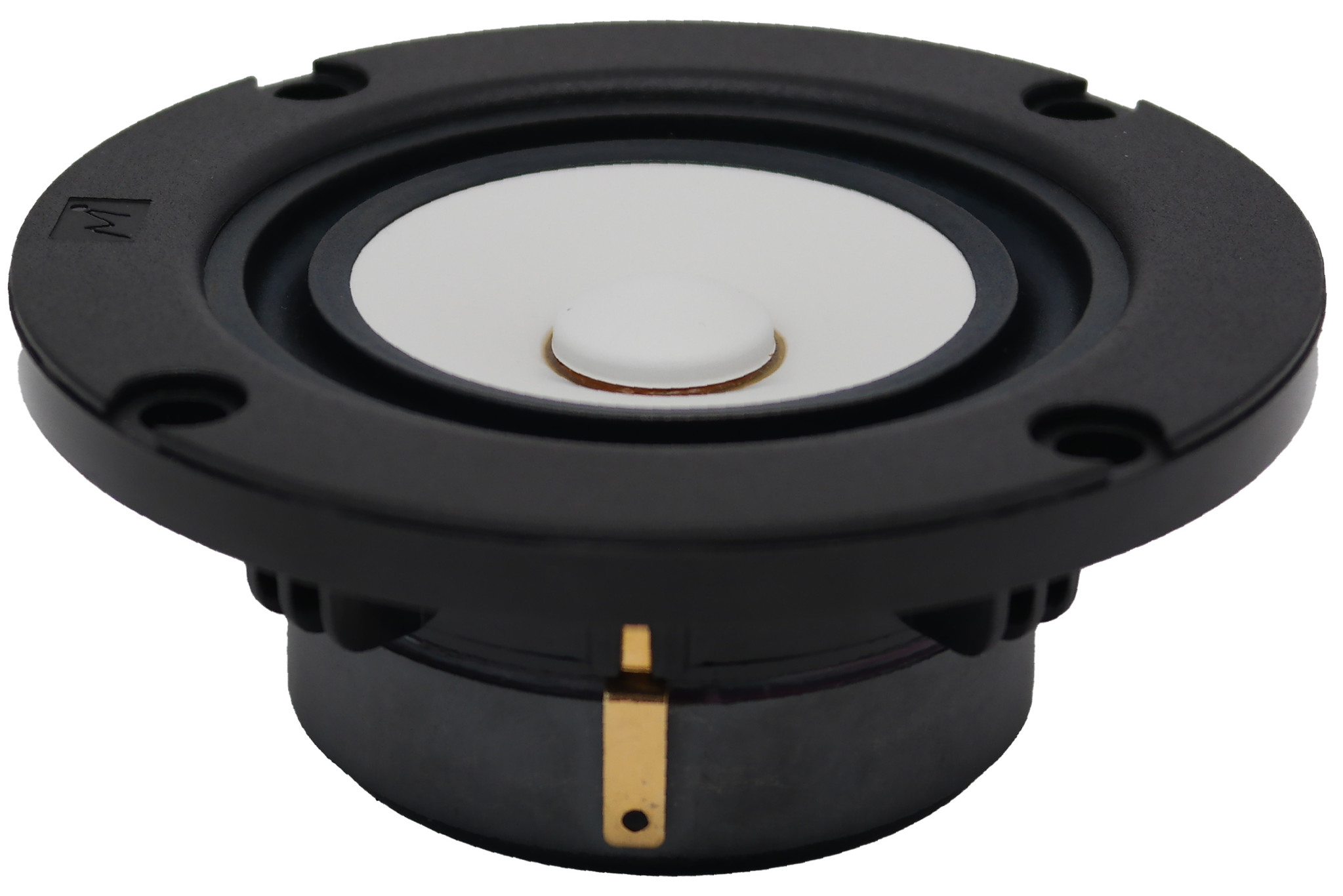

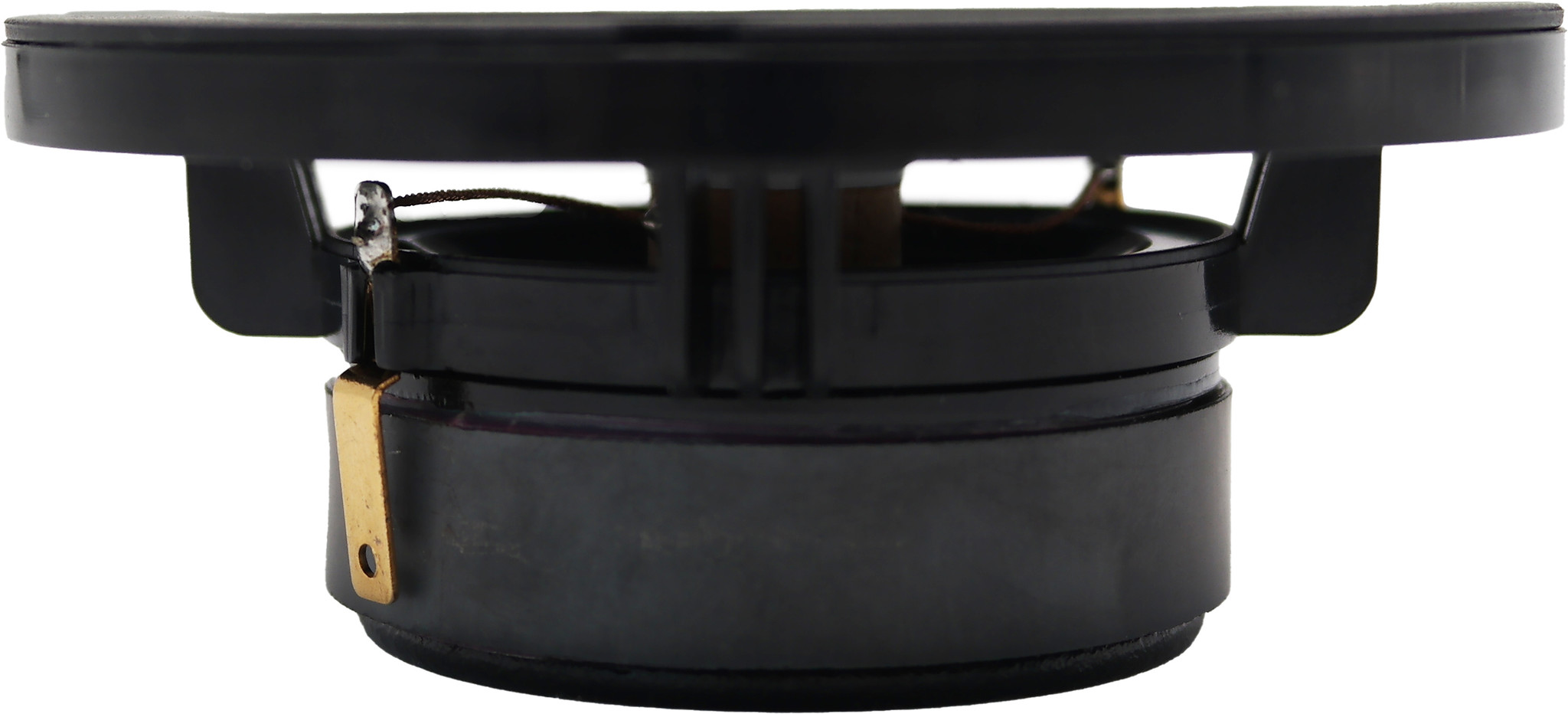

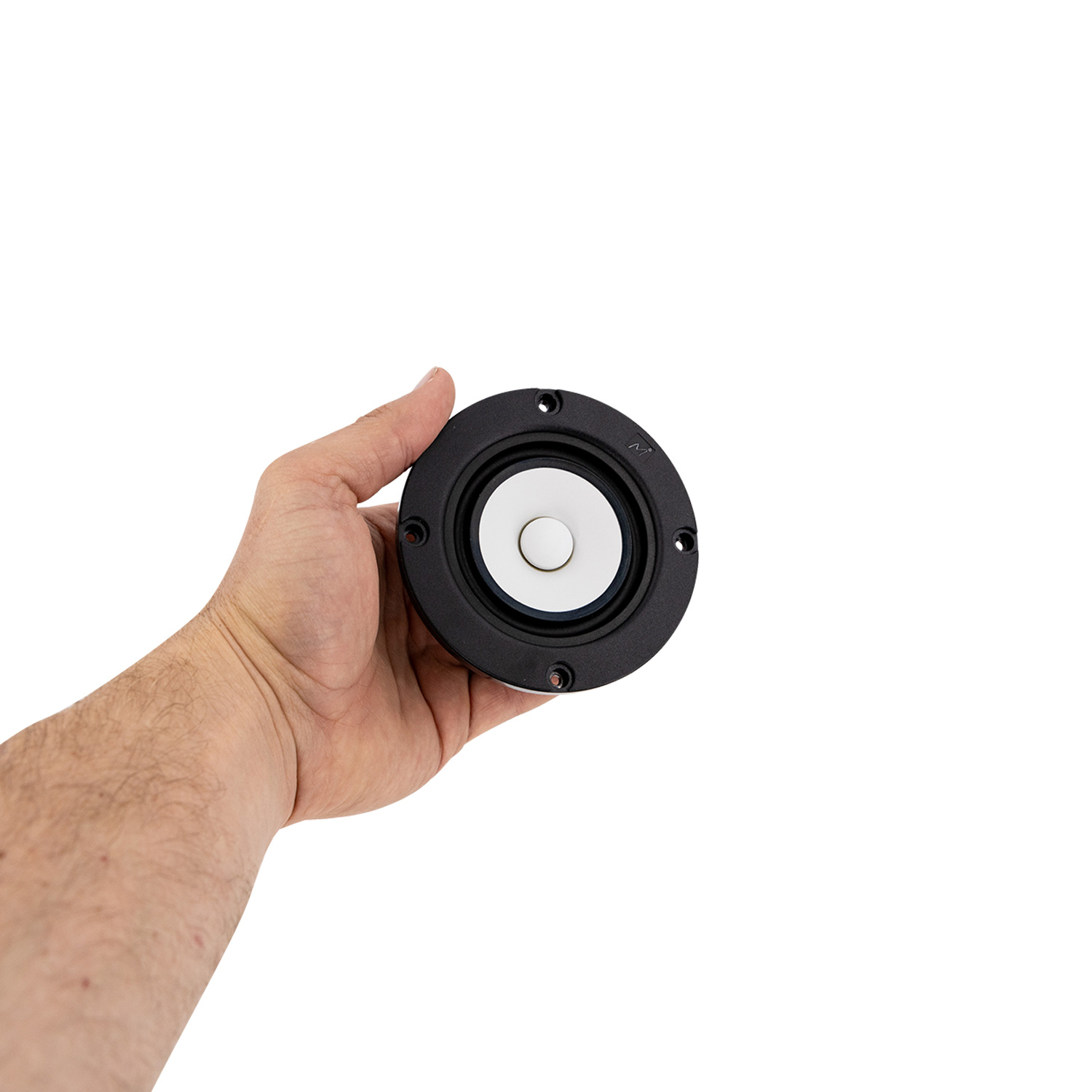

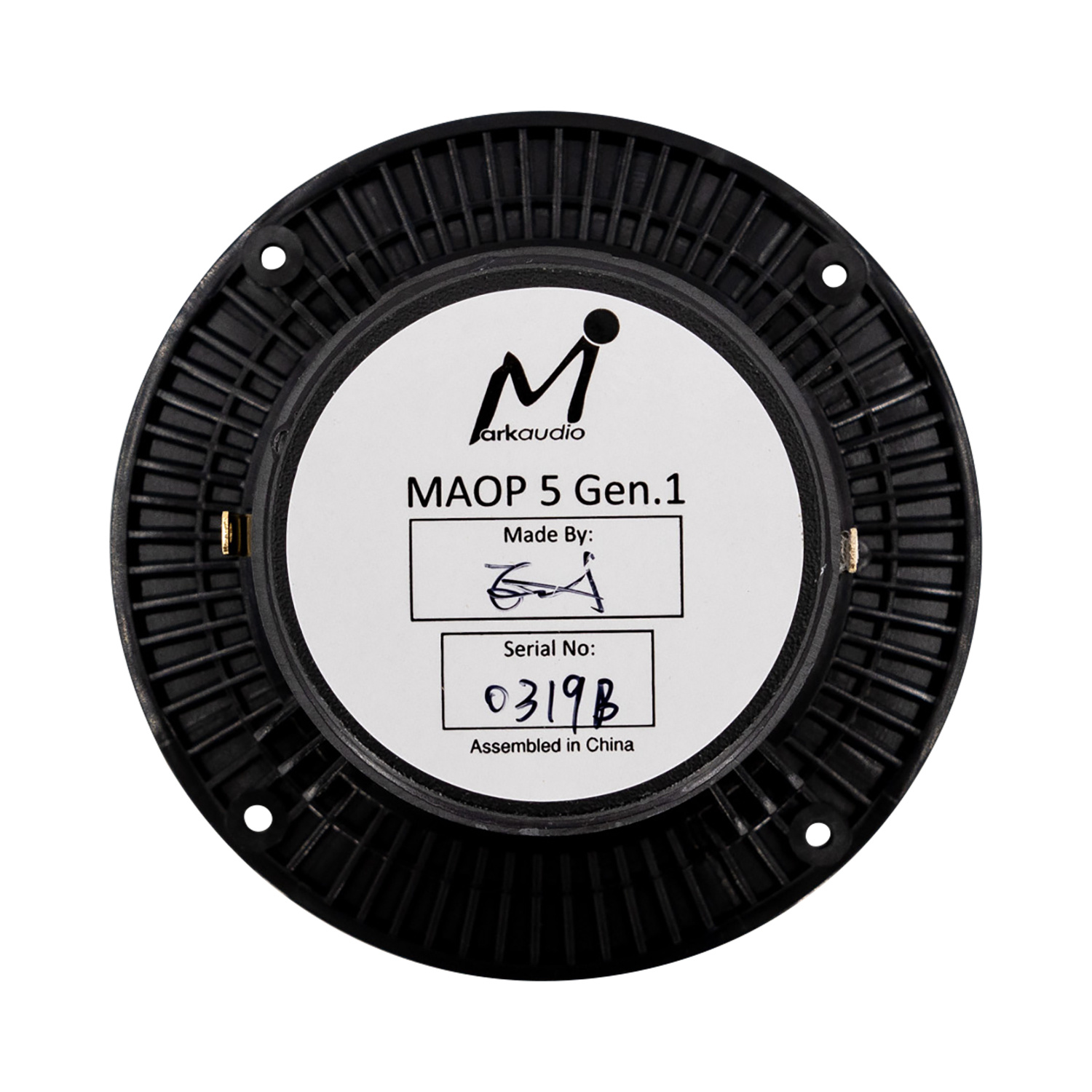

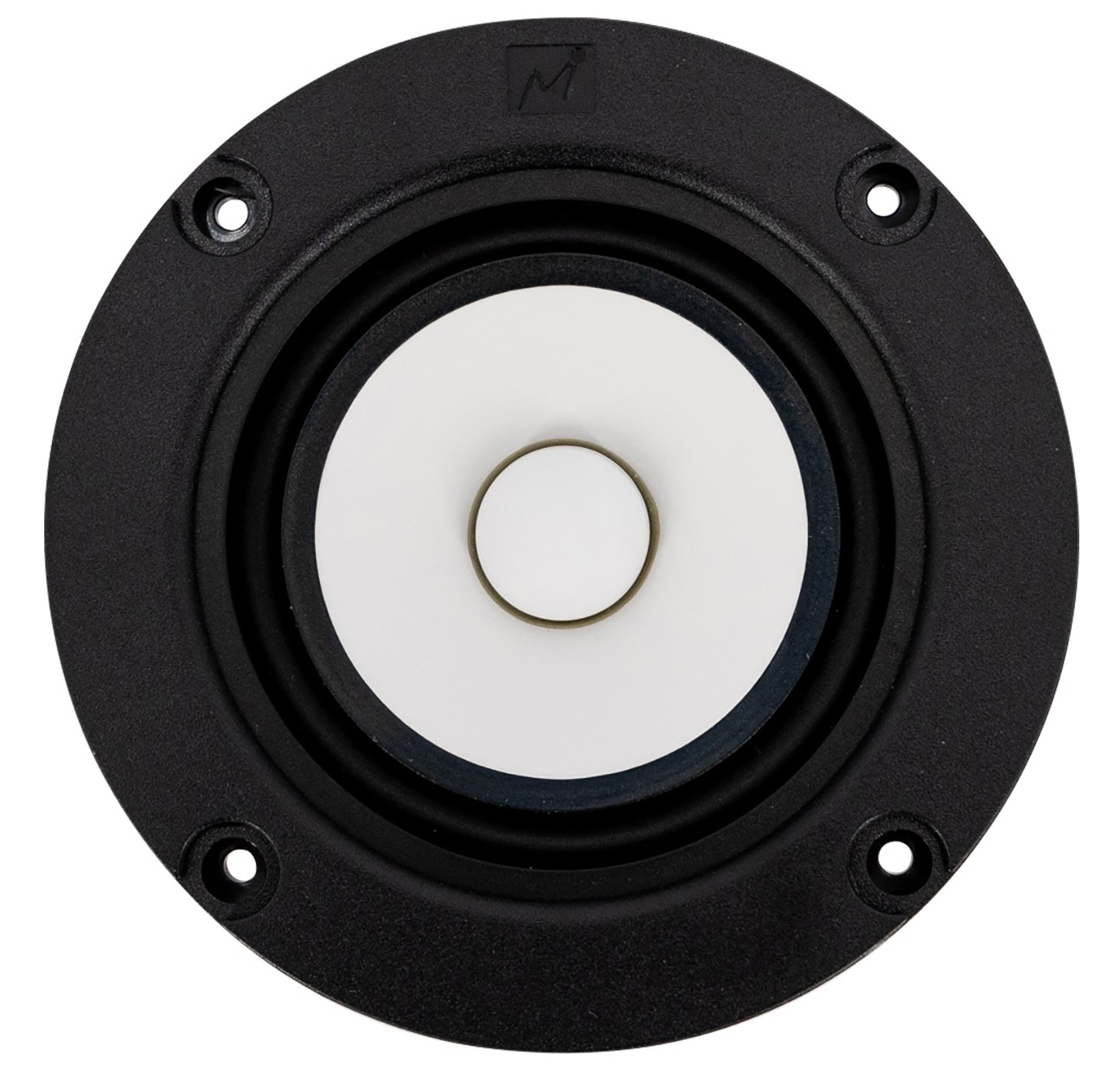

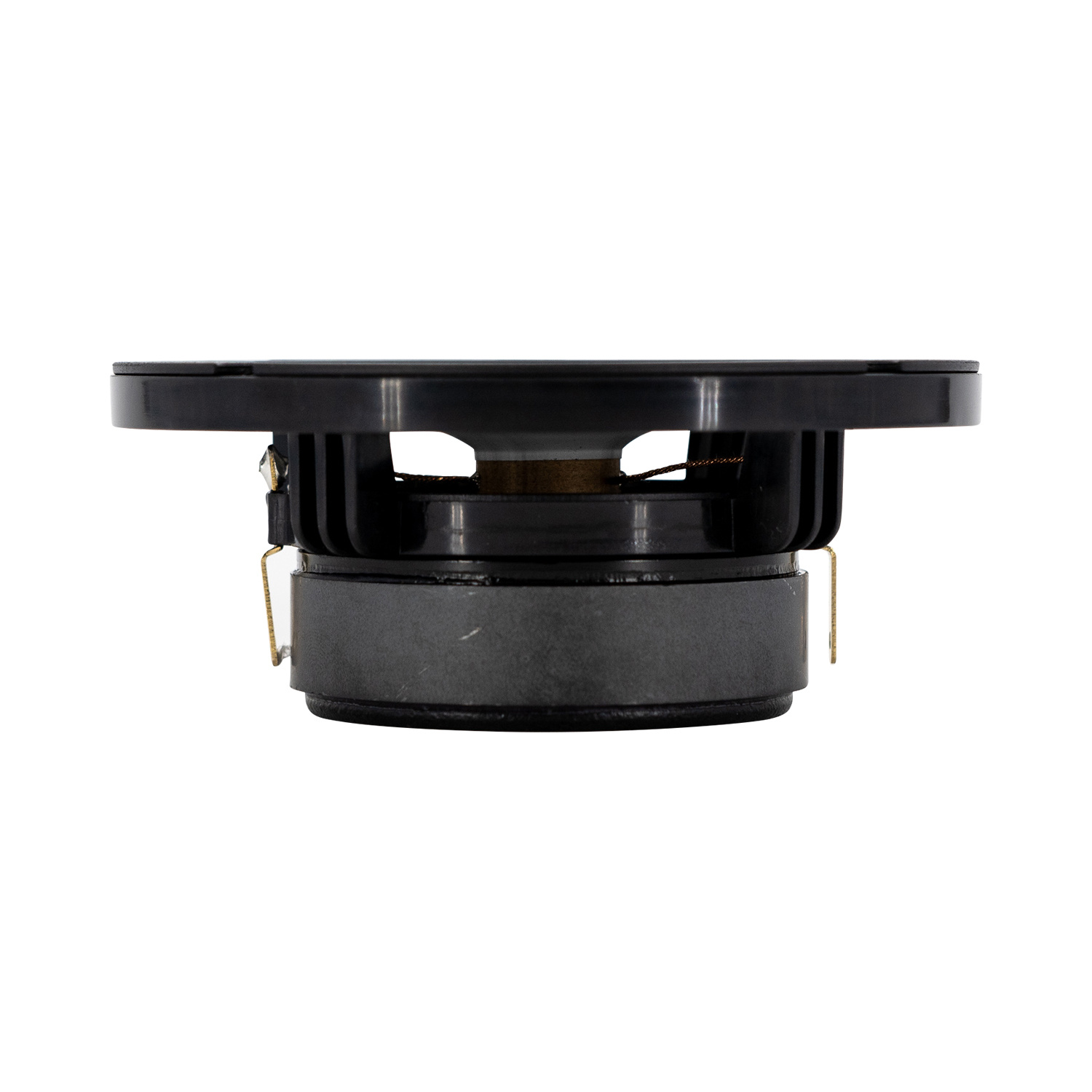

        Markaudio MAOP-5 3" Full-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        € 90,87€ 109,95 Out of stock10+ expected on 08-12-2023
        • -5% Purchase 4 for only € 104,45 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        The Mark Audio wide band drivers MAOP (Micro Arc Oxidation Process or Plasma Electrolytic Oxidization) have been made in extremely small production runs and are extremely collectable by the local customers.



        Highlights

        • Every pair is matched
        • Micro Arc Oxidation Process
        • Crystalline oxide cone
        • Wide band driver



        Product details

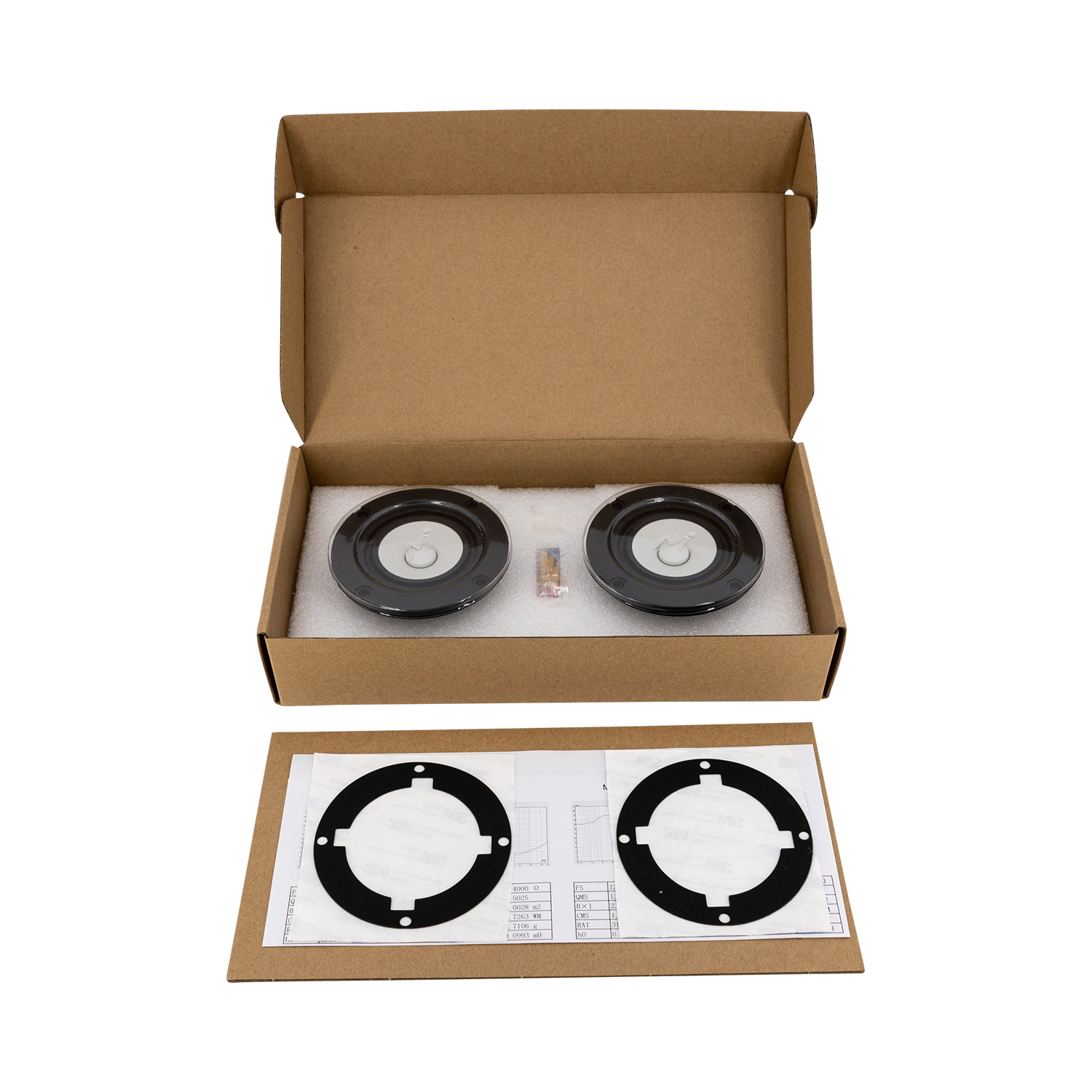

        Markaudio MAOP-5 3" Full-range Woofer | Each two drivers are sold as a matched pair.



        The uniqueness of Markaudio lays on their matching pairs of drivers. Each driver is tested and paired with another driver that shows the closest matching frequency response measurement. In order to respect this philosophy and added value to these great products, we at SoundImports, recomend you to purchase them as pairs.



        The Magnetic Arc Oxidisation Process is done at extremely high temperature in a flux bath that is prone to differential temperatures (hot/cold spots) which can warp the cones. The process is 10 times the cost of normal cone production, at least half are scrapped as it does render cones unusable if they are warped even slightly. The MAOP process involves a chemical conversion where the cone material is converted into its crystalline oxide. The crystal grows both inward into the substrate and outward. As such the new coating is not a deposited coating it is part of the original structure which gives excellent adhesion. The large crystal structure provides excellent stiffness and resistance to damage. The crystalline structure also encapsulates microscopic voids. It is supposed that it is the blend of microscopic voids and stiff structure that lend the cone the audio properties of both the metal cone and the paper cone, accuracy and a listen all day quality.



        After construction, each driver is individually measured in the anechoic chamber at the Markaudio factory and pair matched based on that data to within, 0.5% tolerance.  Each pair is supplied with individual electrical and acoustic measurements.

        Show more

        Specifications

        Article number
        MAOP-5
        Woofer Series
        MAOP Series
        Woofer Type
        Full-range Woofer
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        90.1 dB
        Resonant Frequency (Fs)
        114.4 Hz
        Total Q (Qts)
        0.49

        Show more
