        CHR-120 6.5" Grey Full Range Magnesium Woofer

        CHR-120 6.5" Grey Full Range Magnesium Woofer

        €99,95

        Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        € 82,60€ 99,95 1 In stock
        • -5% Purchase 4 for only € 94,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

        Highlights

        • Latest-model
        • Aerospace-grade magnesium-alloy
        • Wide dispersion multiform cone concept
        • Optimized for use in larger enclosures



        Product details

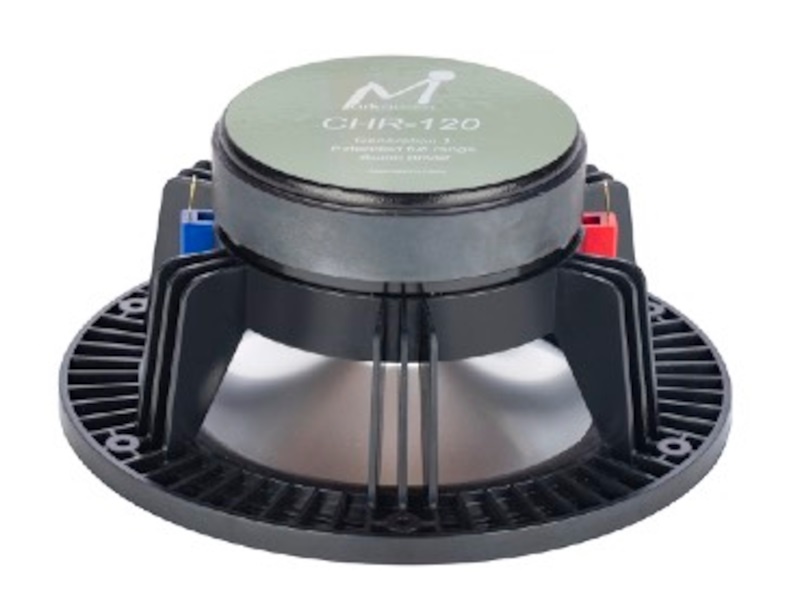

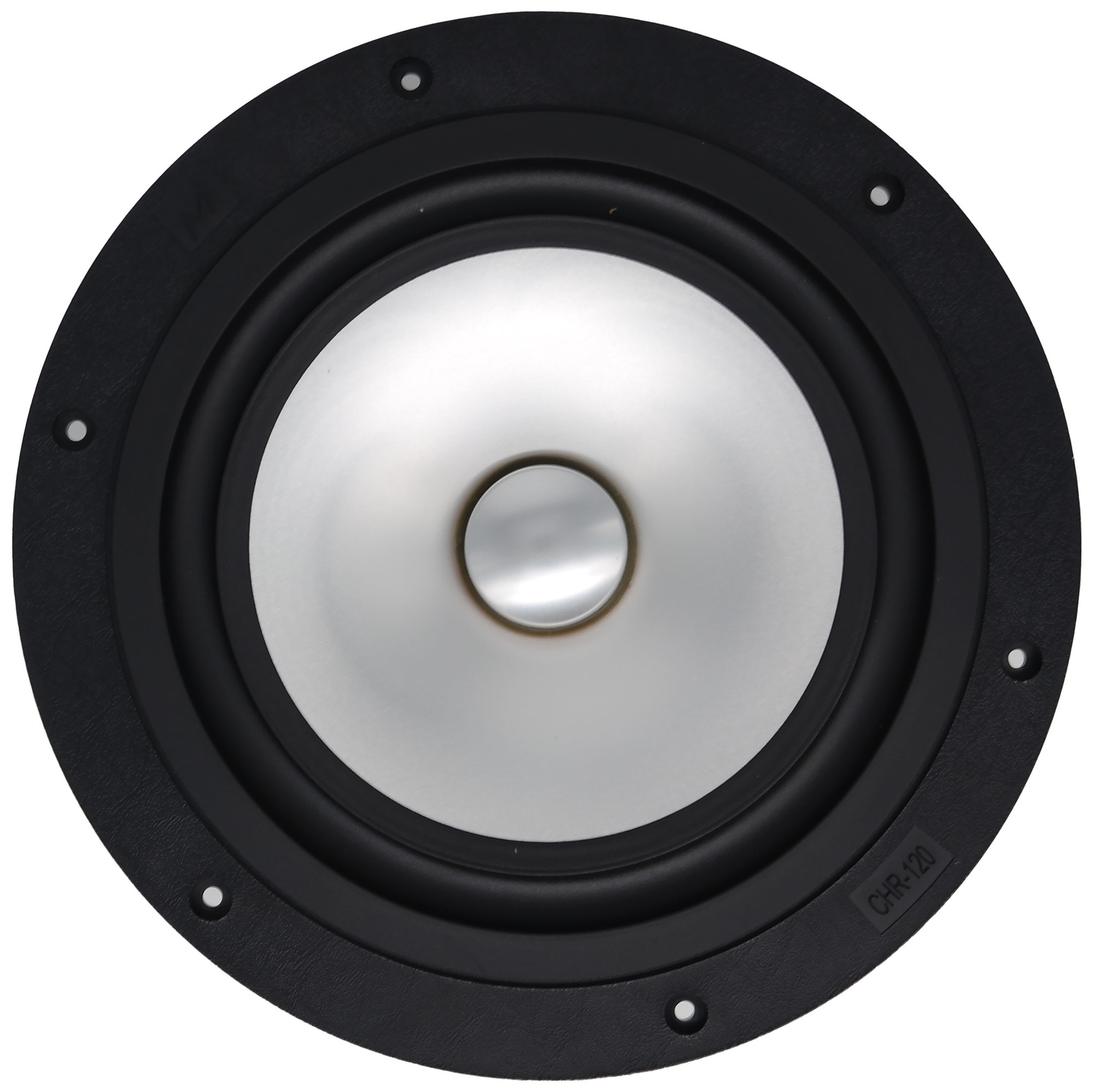

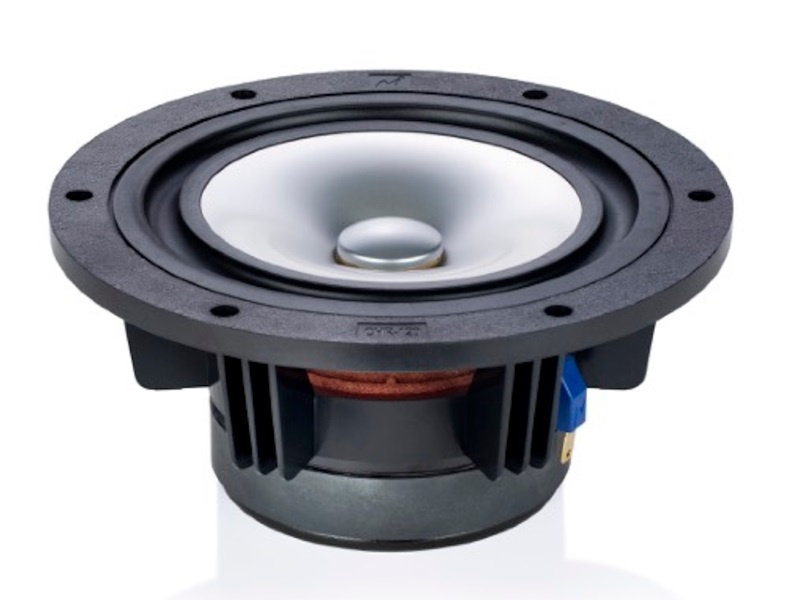

        Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer


        The CHR-120 is a brand-new 6.5-inch high fidelity multi-purpose high-volume driver design from Markaudio. This new driver has been purpose developed to provide significant bass extension beyond what many similar-sized midbass units can deliver, combined with full-range frequency output.



        The CHR-120 cone is made from a high-strength, aerospace-grade magnesium-alloy designed to cope with high bending stress loads. Based upon our renowned shallow profile, wide dispersion multiform cone concept, the material thickness is carefully balanced to maximize low-frequency load capacity while retaining excellent performance at higher frequencies. The long-stroke suspension and low-distortion motor are designed to provide a low resonant frequency, medium Q, and an air volume compliance of around 59 liters. Optimized for use in larger enclosures, the CHR-120 can provide output to some 30Hz and smooth high-frequency range extending above 20KHz in a suitable design. Other key features include an “easy install” reinforced polymer frame for both surface and recessed mounting.



        The CHR-120 provides custom builders with wide operational flexibility at a surprisingly affordable price and can be used as a high-performance full-range driver, or as a wide-range midbass. It is ideal for use in high-fidelity, home-theatre, commercial A/V applications, and by suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

        Show more

        Specifications

        Article number
        CHR-120 Grey
        Woofer Series
        Markaudio CHR
        Woofer Type
        Full-range Woofer
        Nominal Diameter
        6.5"
        Power Handling (RMS)
        50 Watts (Nom)
        Sensitivity (SPL at 1m / 2.83V)
        89.3 dB
        DC Resistance (Re)
        7.2000 Ω
        Resonant Frequency (Fs)
        34.2 Hz
        Mechanical Q (Qms)
        2.3823
        Electromagnetic Q (Qes)
        0.4411
        Total Q (Qts)
        0.37
        Diaphragm Mass Inc. Airload (Mms)
        11.1310 g
        Moving Mass Of Diaphragm (Mmd)
        10.1179 g
        Mechanical Compliance of Suspension (Cms)
        1.9409 mm/N
        Surface Area of Cone (Sd)
        0.0147 m2
        Compliance Equivalent Volume (Vas)
        58.8923 L
        Maximum Linear Excursion (Xmax)
        9 mm
        Driver's Mechanical Losses (Rms)
        1.0052 WM

        Show more
