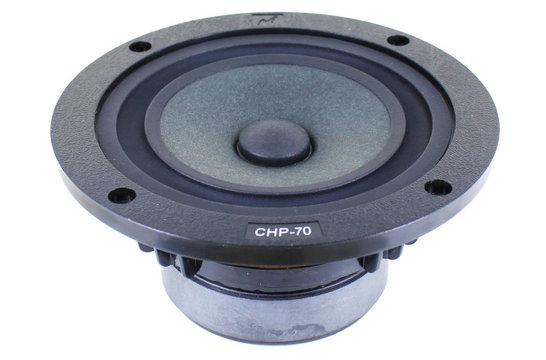

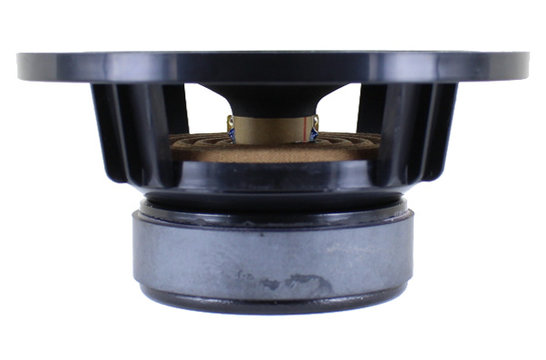

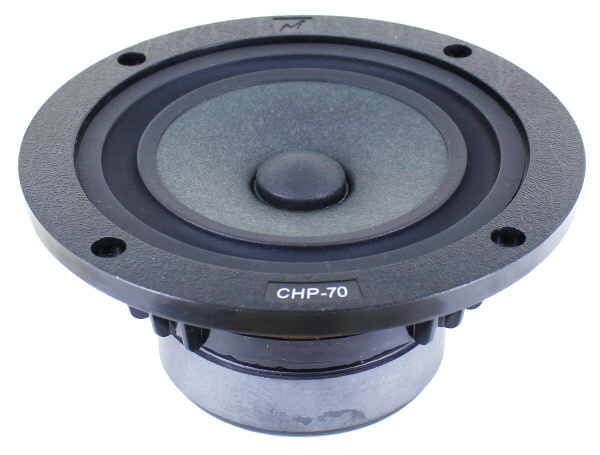

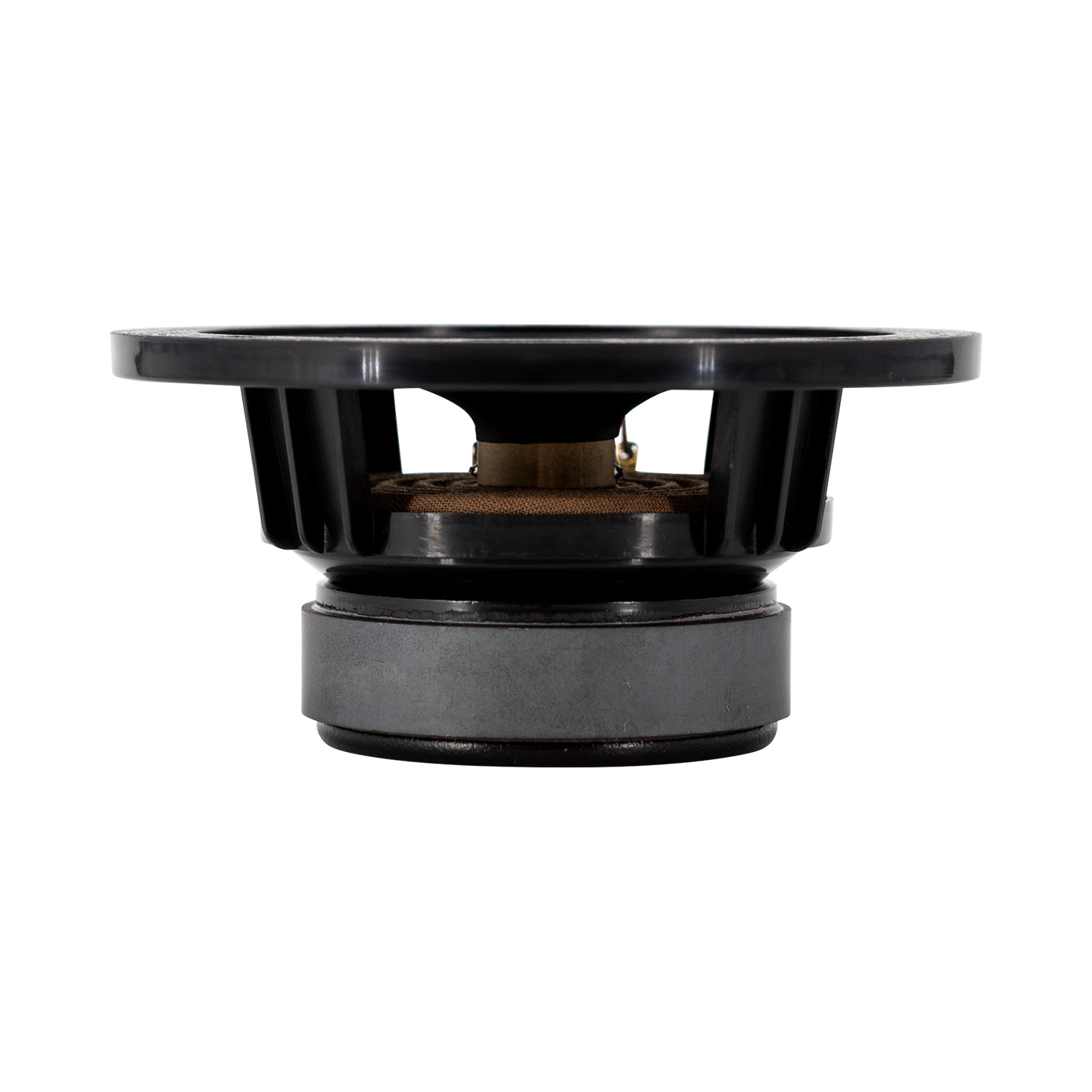

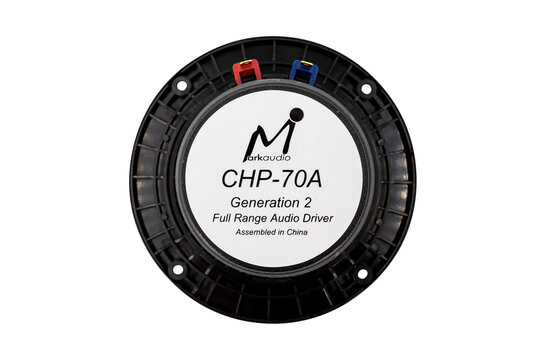

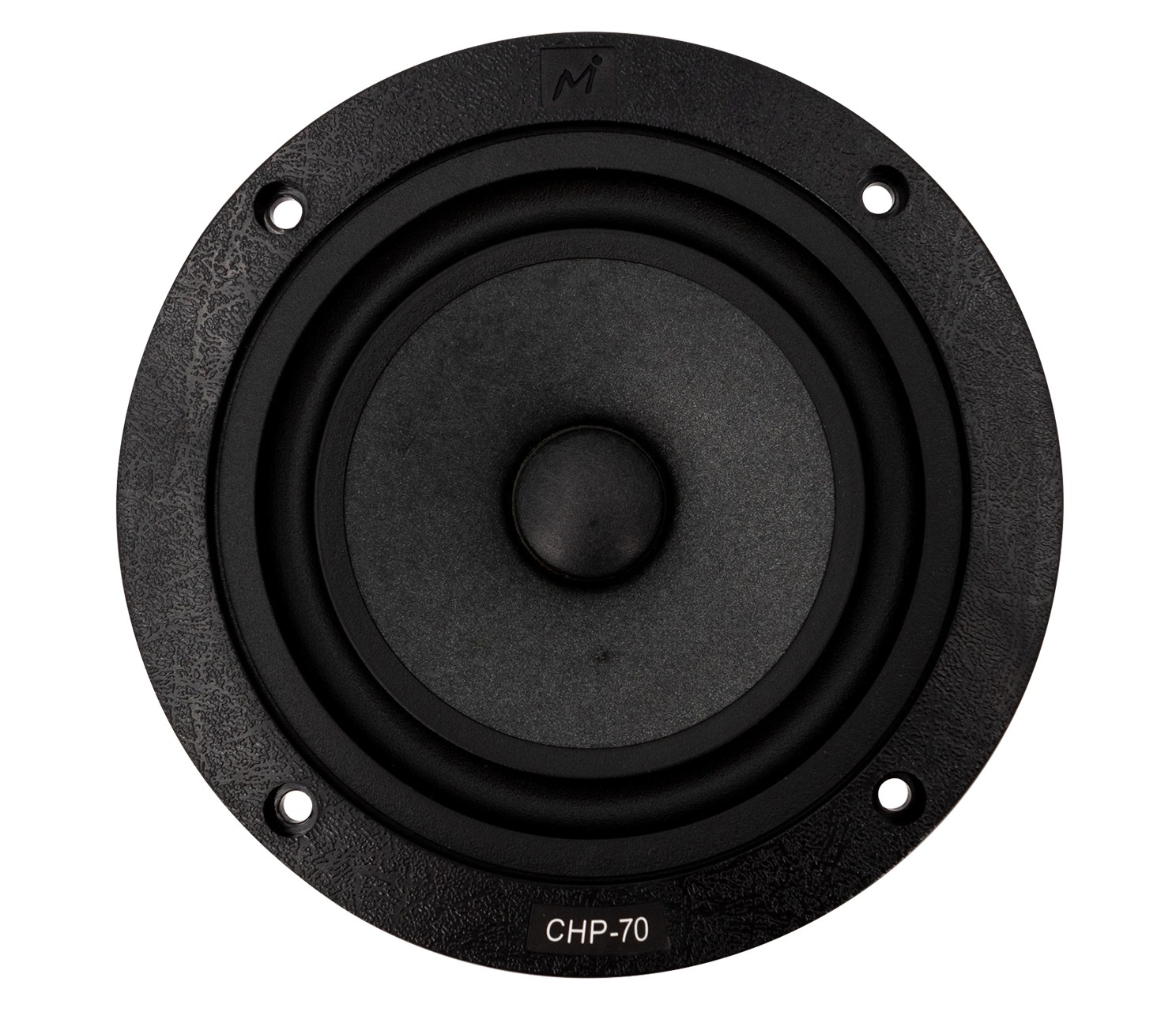

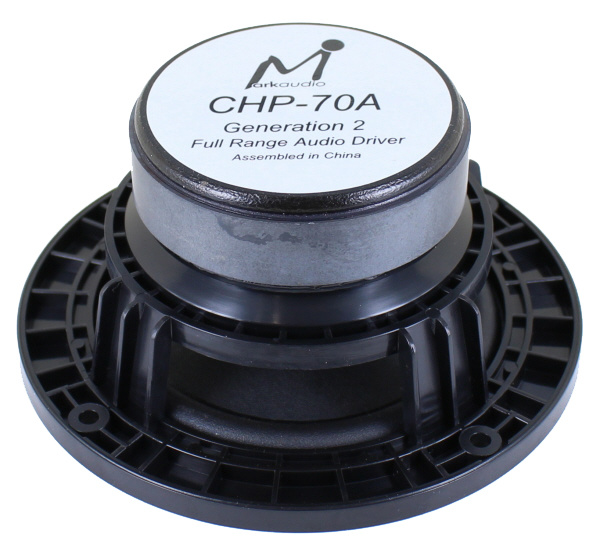

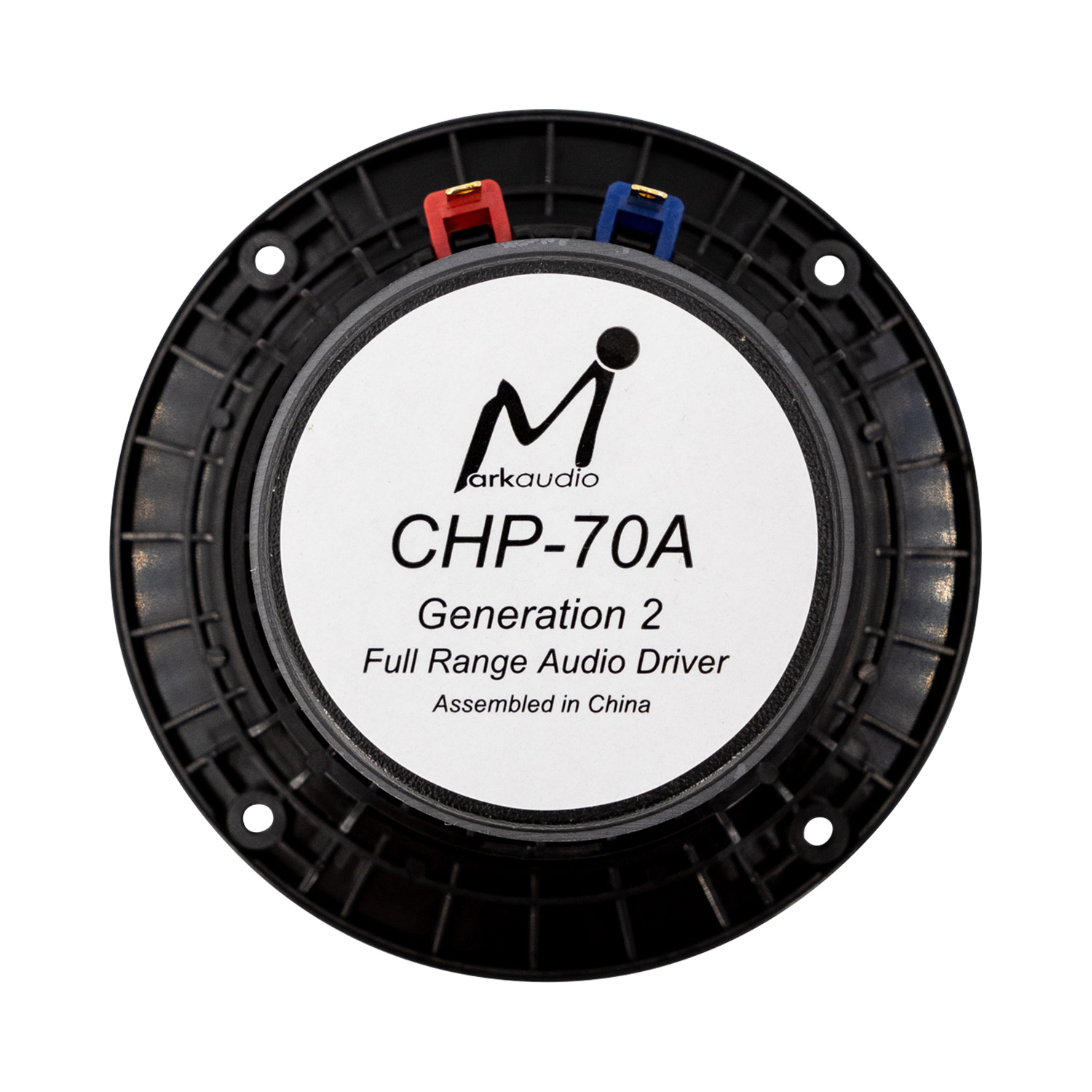

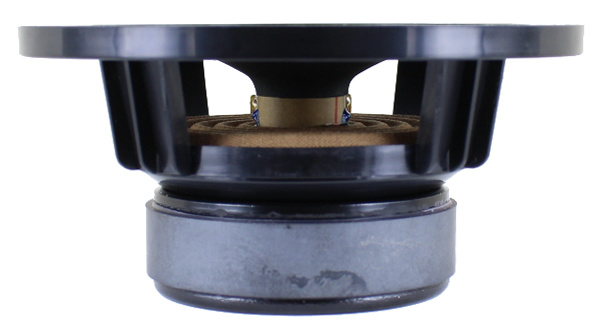

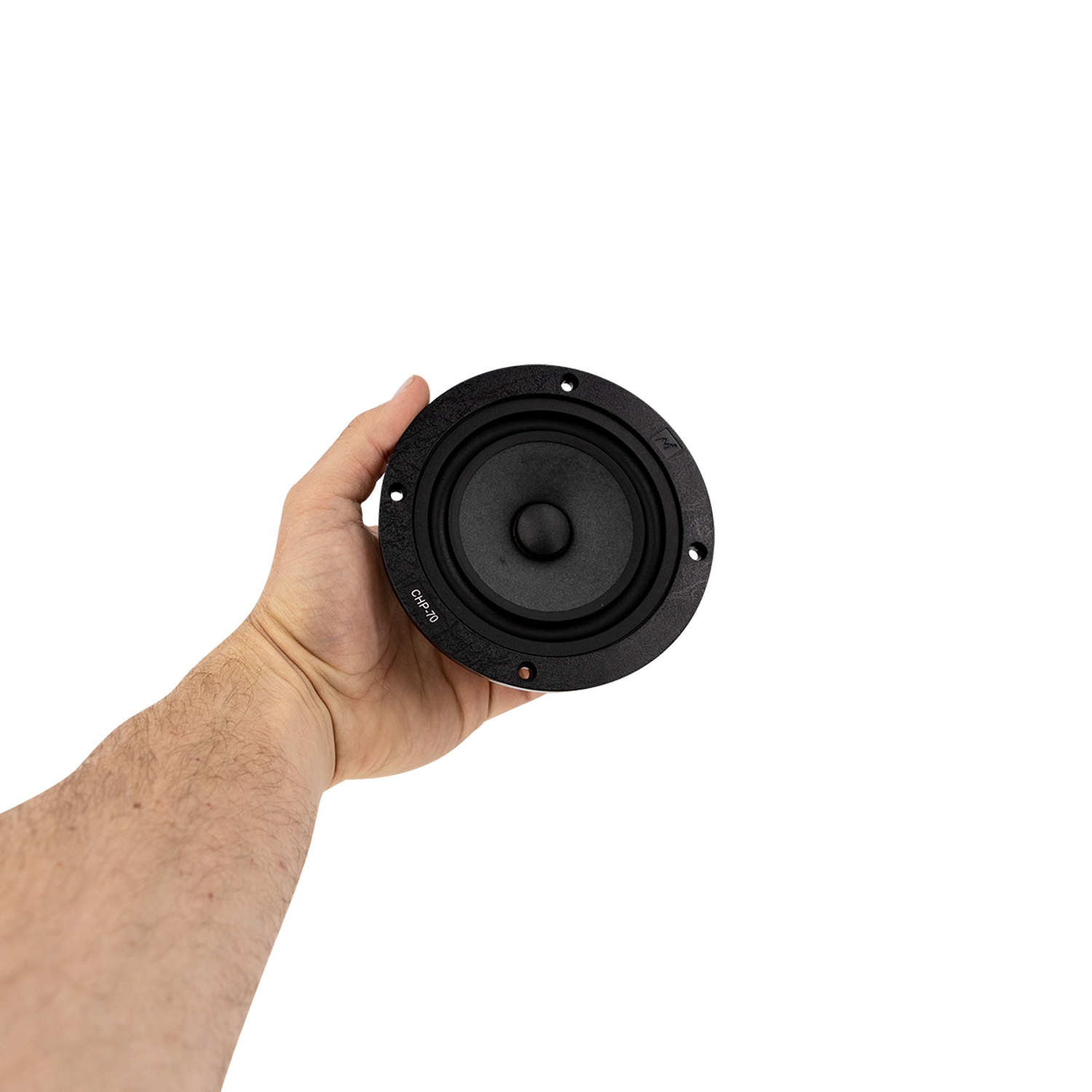

Markaudio CHP-70 Black 4" Full Range Paper Woofer

Delivery time: 1-4 business days

  • Article code: CHP-70 Black
  • Stock: >10 In stock

The MarkAudio CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full-range driver designs from the 1950ʼs.

44,95 € 38,21 Incl. 21% VAT

  • Buy 4 for €42,70 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Markaudio CHP-70 Black 4" Full Range Paper Woofer

The MarkAudio CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full range driver designs from the 1950ʼs. Its middle-high range output has been made to "roll-off" from 7-kHz up.



Highlights

  • Synthetic rubber surround
  • Nomex spider
  • Improved voice coil former



Product Details

Markaudio CHP-70 Black 4" Full Range Paper Woofer



This updated (Gen. 2) CHP-70 driver is designed to make a semi-vintage classic sound similar to the smaller full-range driver designs from the 1950ʼs. Its middle-high range output has been made to "roll-off" from 7-kHz up. This helps to keep the high range sounding smooth and warm. This driver makes the singer's voice sound very natural, a little warm, pleasing for many hours of listening.



The CHP-70 Gen. 2 will assist in the control of sharp or hard sounding compressed music (digital). This CHP delivers a tone that appeals to classic music enthusiasts using smaller amplifiers. The off-axis and sound-spread of the CHP-70 are excellent. This driver can fill a room environment with an "easy listening" experience, especially for the human voice. The bass response from the CHP-70 Gen. 2 in a properly tuned box is excellent for this smaller sized driver. Typically, in a Bass-Reflex or Vented box, lower responses close to 40Hz can be obtained.



Several technical improvements have been done, such as 1 - Improved stiffer frame. 2 - New cap design with a new improved fitting method. 3 - New Japanese designed coil. 4 - New spider for improved bass. The CHP-70 Gen. 2 is an excellent "classic" and "natural" sound driver. The CHP-70 Excursion Arrestor will make a sound when exceeding the driver’s excursion limits.

Specifications

Specifications for: CHP-70 Black 4" Full Range Paper Woofer

  • Woofer Series Specific woofer production line of the manufacturer. CH Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 4"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 20 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 86.5 dB 2.83V/1m
  • Frequency Response
  • Voice Coil Diameter 0.78"
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 50.2 Hz
  • Mechanical Q (Qms) 2.3
  • Electromagnetic Q (Qes) 0.76
  • Total Q (Qts) 0.52
  • Diaphragm Mass Inc. Airload (Mms) 3.7g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 1.31 mm/N
  • Surface Area of Cone (Sd) 50.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 4.2 Tm
  • Compliance Equivalent Volume (Vas) 0.16 ft.³
  • Maximum Linear Excursion (Xmax) 4 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 4.88"
  • Overall Depth 2.2"
  • Baffle Cutout Diameter 4.41"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
