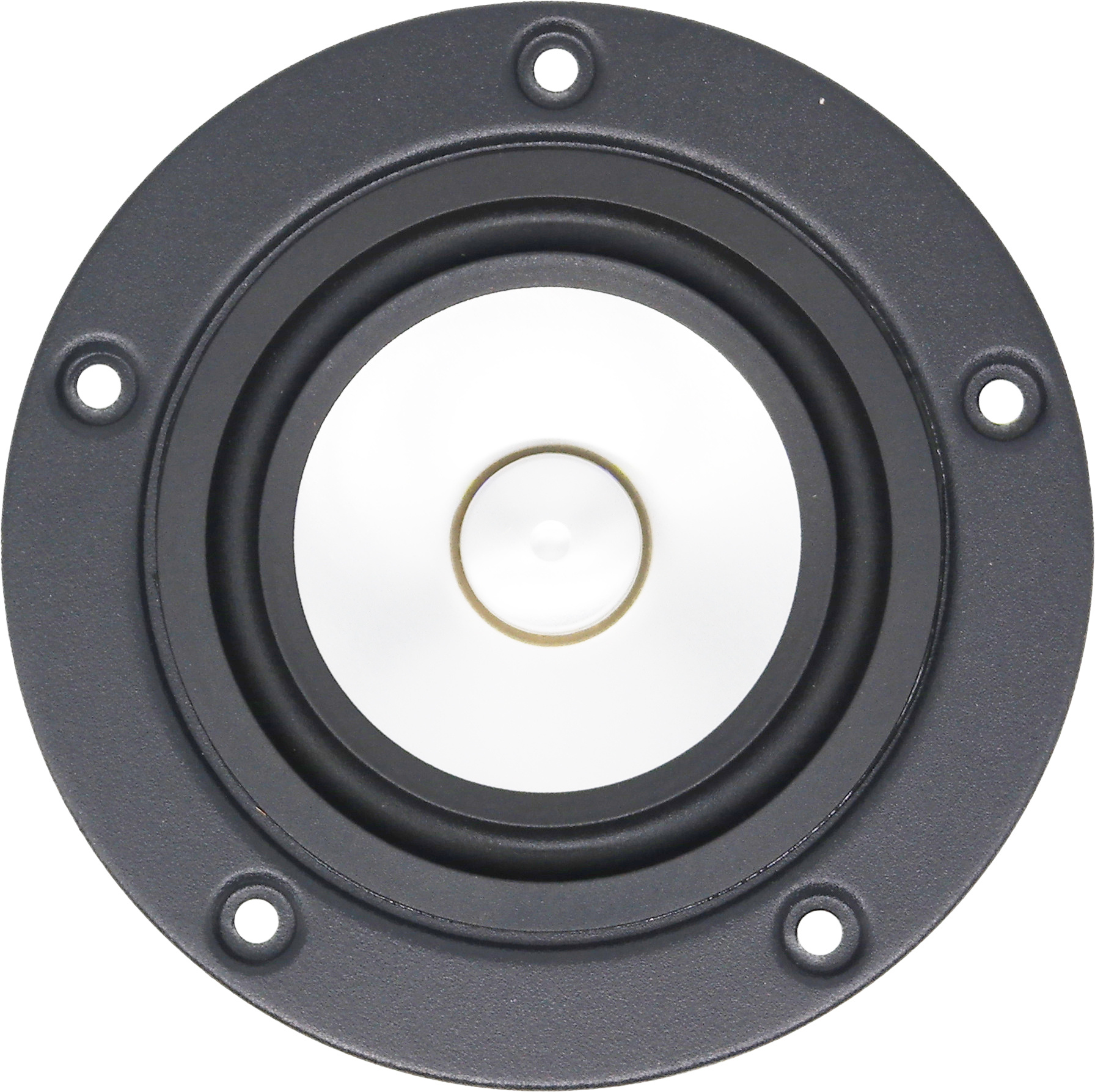

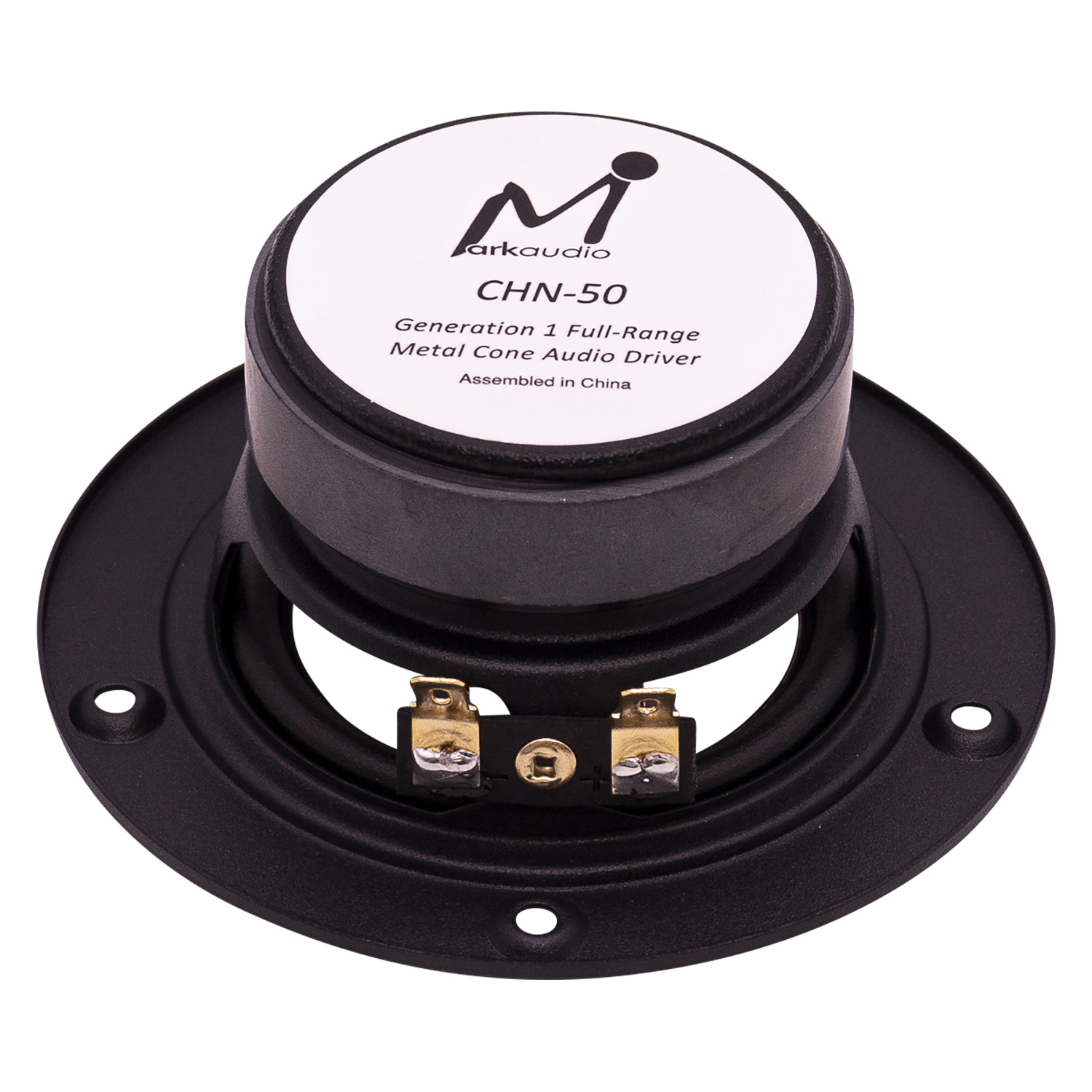

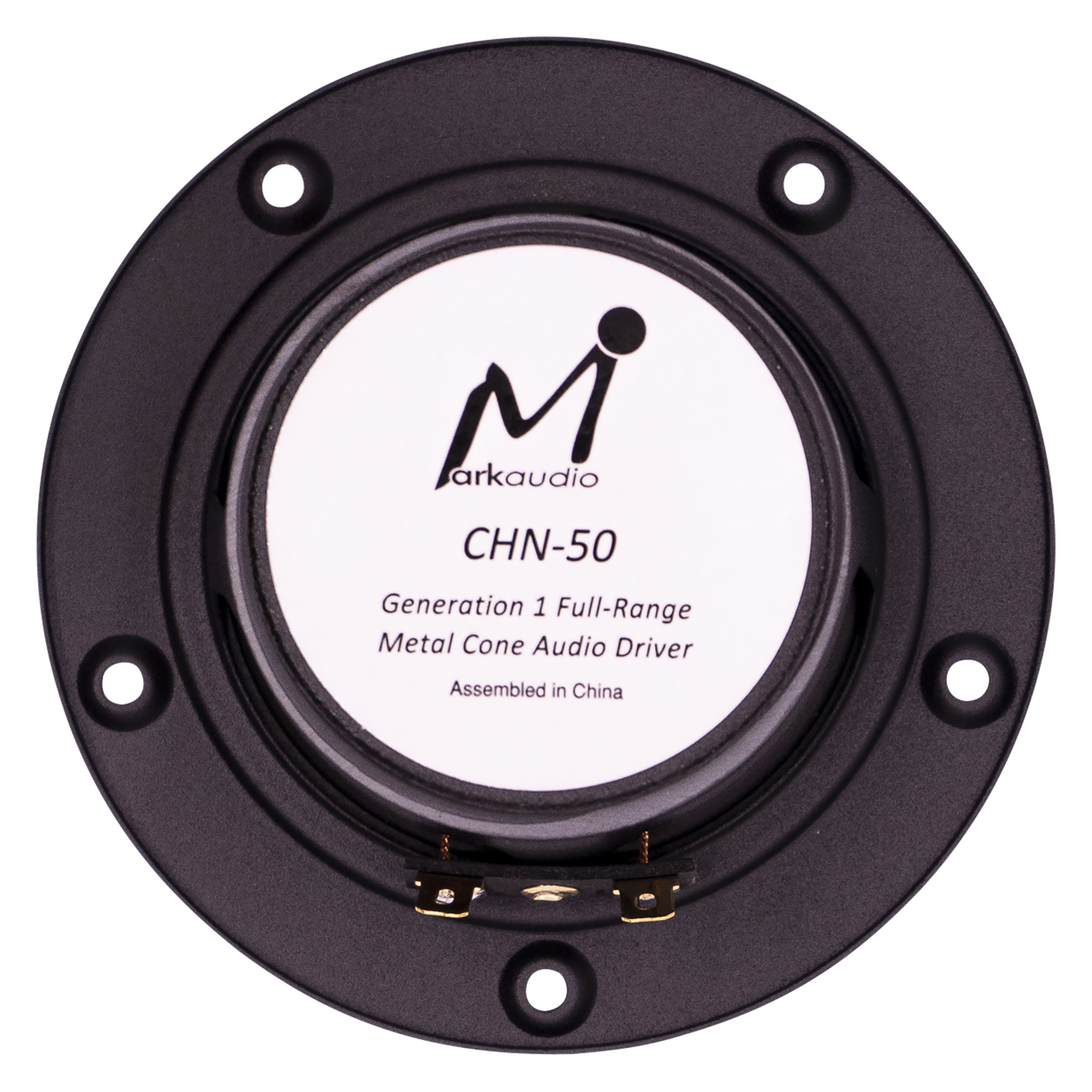

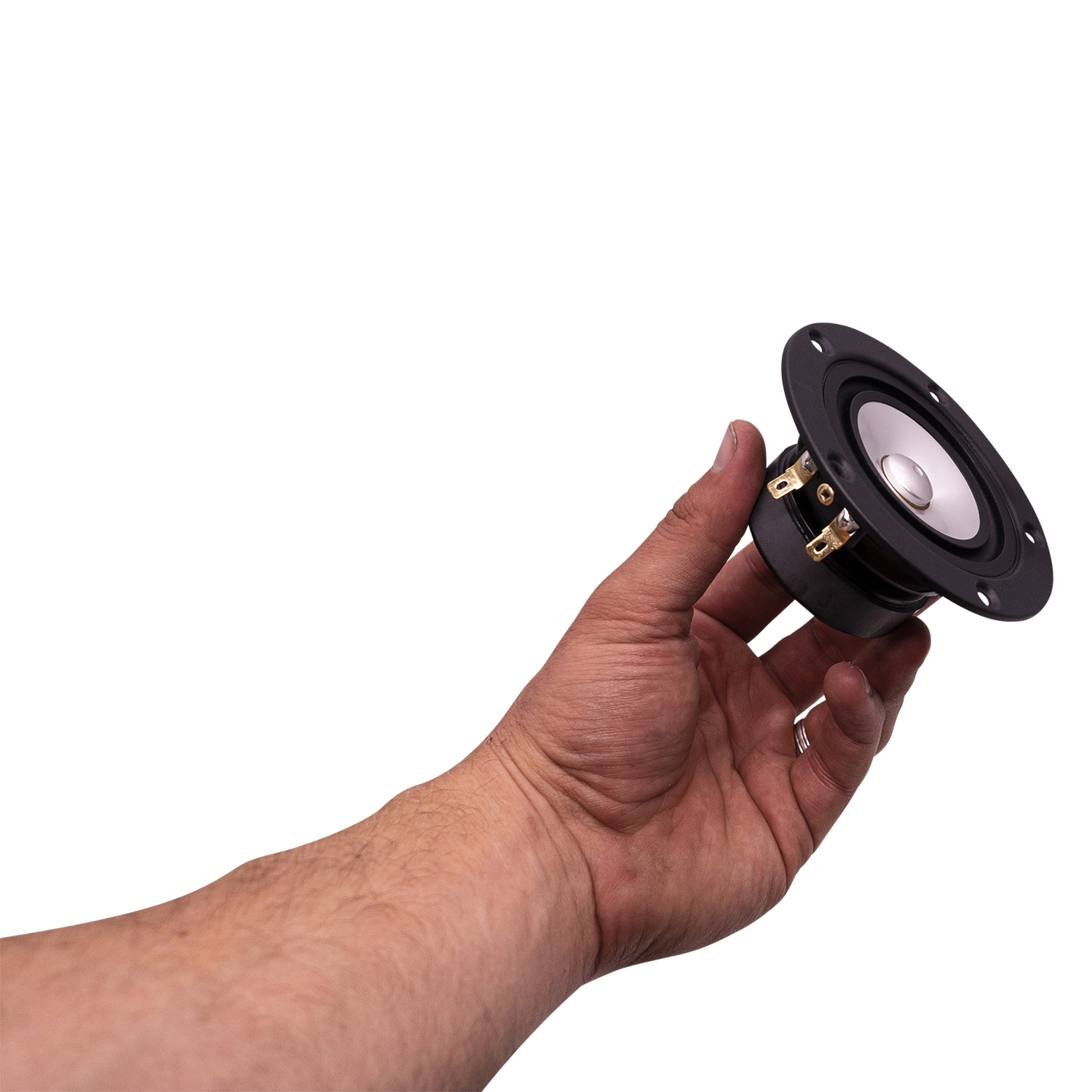

      Markaudio CHN-50 3" Full-range Woofer

      € 16,49€ 19,95 10+ In stock: In stock
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 18,95 per piece
      • 24h express shipping available
      • Same day shipping
      • In-house techniscal support
      • 45 days worry-free returns
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The CHN-50 full-range speaker is a new compact 3-inch full range driver suitable for use in small near field loudspeakers, as a high-quality mid-range driver for low-crossover multi-way designs, and for line array speakers.



      Highlights

      • 3’’ magnesium alloy cone
      • Very linear response up to 25KHz
      • Broad directivity pattern thanks to the low-profile multiform cone
      • Long-stroke suspension with progressive-rate spider
      • Low profile surface-mount polymer basket



      Product details

      Markaudio CHN-50 3" Full-range Woofer



      The CHN-50 is a very affordable compact 3-inch full-range driver suitable for use in small near field loudspeakers, as a quality mid-tweeter for low-crossover multi-way designs, and for line array speakers.



      Markaudio has built a gentle rise into the low and high-frequency response, as seen in some of their premium drive units, to enhance positioning flexibility. The sound presentation is forgiving, without glare, and the Thiele / Small parameters, with a generous 3.5mm (1-way) Xmax, are balanced for ease of use.



      The low-mass voice coil, suspension, and shallow profile magnesium alloy cone are unique to the CHN 50. The pressed steel frame is designed to be very open and allow airflow to be as free as possible to the rear of the cone. Response extends from resonance to beyond 20KHz, and the impedance rise at higher frequencies is only modest, due to the careful motor design.

      Specifications

      Article number
      CHN-50
      Woofer Type
      Full-Range Woofer
      Nominal Diameter
      3''
      Power Handling (RMS)
      7 Watts
      Impedance (Z)
      4 Ohms
      Sensitivity
      85.74 dB 1W/m
      Frequency Response
      80-25,000 Hz
      DC Resistance (Re)
      3.4 Ohms
      Voice Coil Inductance (Le)
      0.06 mH
      Mechanical Q (Qms)
      2.8318
      Electromagnetic Q (Qes)
      0.6865
      Total Q (Qts)
      0.5526
      Diaphragm Mass Inc. Airload (Mms)
      2.0871
      Mechanical Compliance of Suspension (Cms)
      0.982
      Surface Area of Cone (Sd)
      28 cm2
      BL Product (BL)
      2.6869
      Compliance Equivalent Volume (Vas)
      1.0965
      Maximum Linear Excursion (Xmax)
      3.5 mm (mechanical)
      Cone / Diaphragm Material
      Magnesium Alloy
      Surround Material
      Rubber
      Basket / Frame Material
      Stamped Steel
      Magnet Material
      Ferrite
      Overall Outside Diameter
      102.9 mm
      Overall Depth
      45.6 mm
      Baffle Cutout Diameter
      70.0 mm
      # Mounting Holes
      5

      Show more

      Reviews

      5 from 5Based on 1 reviews
      Review this product
      5 of 5

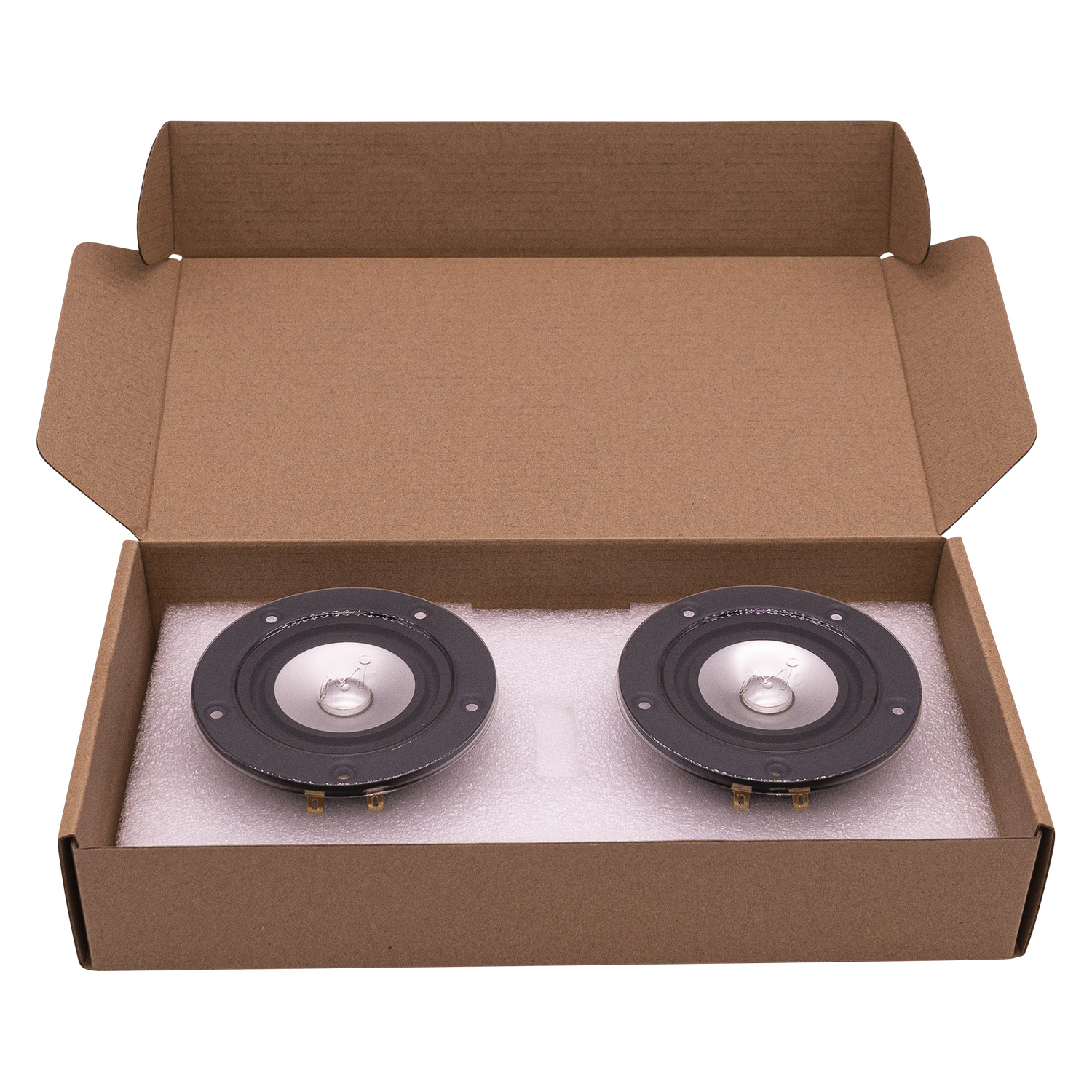

      Ik heb de chn-50 gebruikt in klang+ton ontwerp cheaptrick 307. Mooi helder en natuur getrouw geluid. Voor deze toepassing van actieve pc luisprekers is het meer dan voldoende volume. wordt compleet met schroefjes en afdichting geleverd. Goede prijs kwaliteit verhouding.
      By Pascal v. on 3 December 2020
