        CHN-40 Full-range Woofer

        CHN-40 Full-range Woofer

        €18,45

        Add to cart

        Markaudio CHN-40 Full-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        Show all Full-range woofer
        2.5" | 8 Ω
        CHN-40 Full-range Woofer
        € 15,25€ 18,45 10+ In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

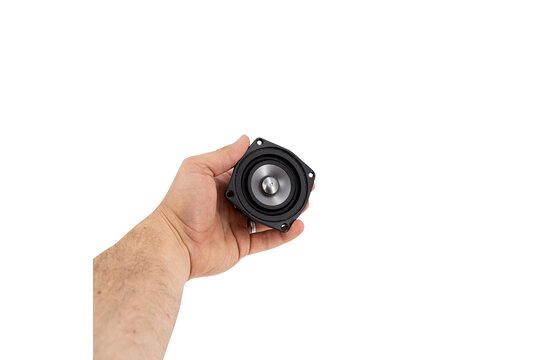

        CHN-40 Full-range Woofer

        Product description

        The MarkAudio CHN-40 is Markaudio’s smallest driver in its entry level line up after the CHN-50 and CHN-70, the compact 2.5 inch unit suitable for use in smaller full range or nearfield loudspeaker systems, as a quality mid-tweeter for low-crossover multiway designs, and for array applications.



        Highlights

        • 40mm Fullrange drive unit
        • 8ohm single ferrite magnet
        • 2.5inch silver colour magnesium alloy cone
        • Operating range to 25KHz –very linear response
        • Low-profile multiform cone –broad directivity pattern
        • Long stroke suspension with progressive-rate spider
        • Low profile surface-mount metal basket



        Product details

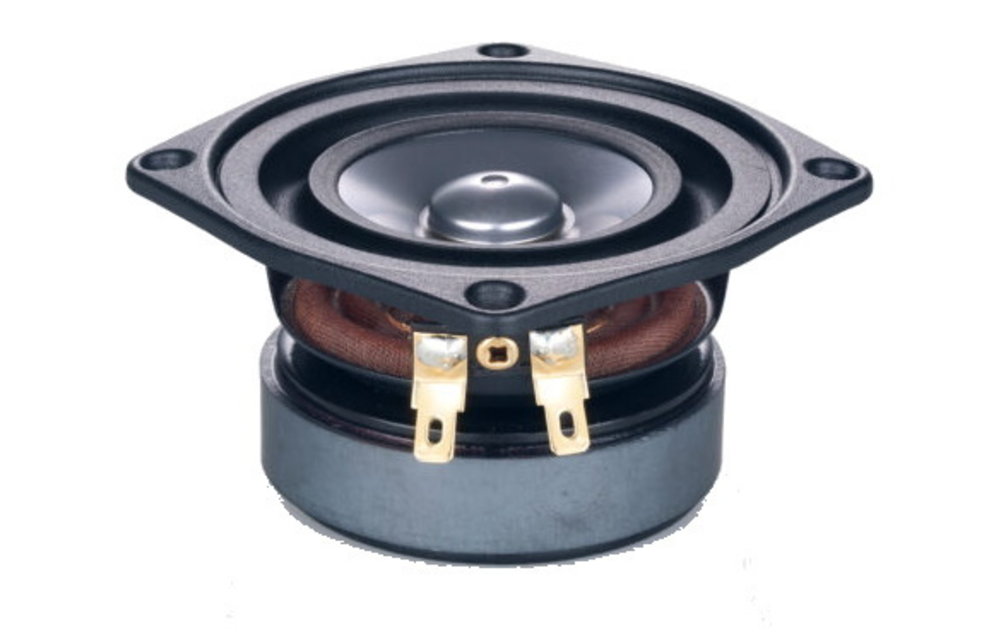

        Markaudio CHN-40 2.5" Full-range Woofer 8 Ohm


        The CHN40 has a gentle rise into the low and high frequency response, as seen in some of our more expensive drive units, to enhance speaker box off-axis positioning flexibility. The sound presentation is forgiving, without glare, and the Thiele / Small parameters, with a generous 3.5mm (1-way) Xmax are balanced for ease of use.The low-mass voice coil, suspension and shallow profile magnesium alloy cone are custom designs for the CHN40. The pressed steel frame is designed to be very open and allow airflow to be as free as possible to the rear of the cone. Response extends from resonance to beyond 25KHz, and the impedance rise at higher frequencies is only modest, due to the careful motor design.


        The CHN40, like the larger driver in this series is versatile, easy to install, making it suitable for a wide variety of applications.

        Show more

        Specifications

        Article number
        CHN-40
        Woofer Series
        CH-Serie
        Woofer Type
        Full-range
        Nominal Diameter
        2.5"
        Power Handling (RMS)
        7 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        83.41 dB
        DC Resistance (Re)
        6.8 Ohms
        Resonant Frequency (Fs)
        97.5 Hz
        Total Q (Qts)
        0.64

        Show more
