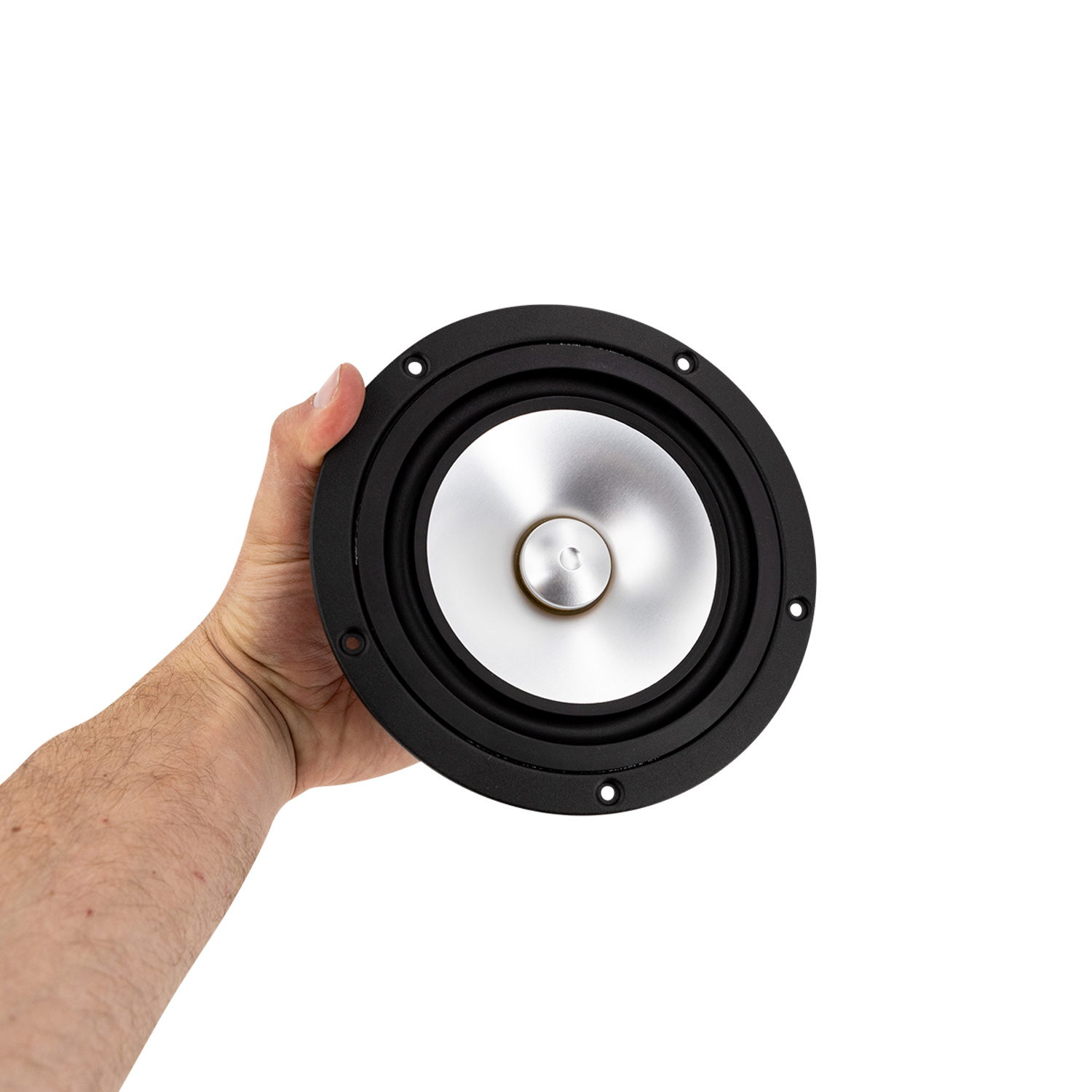

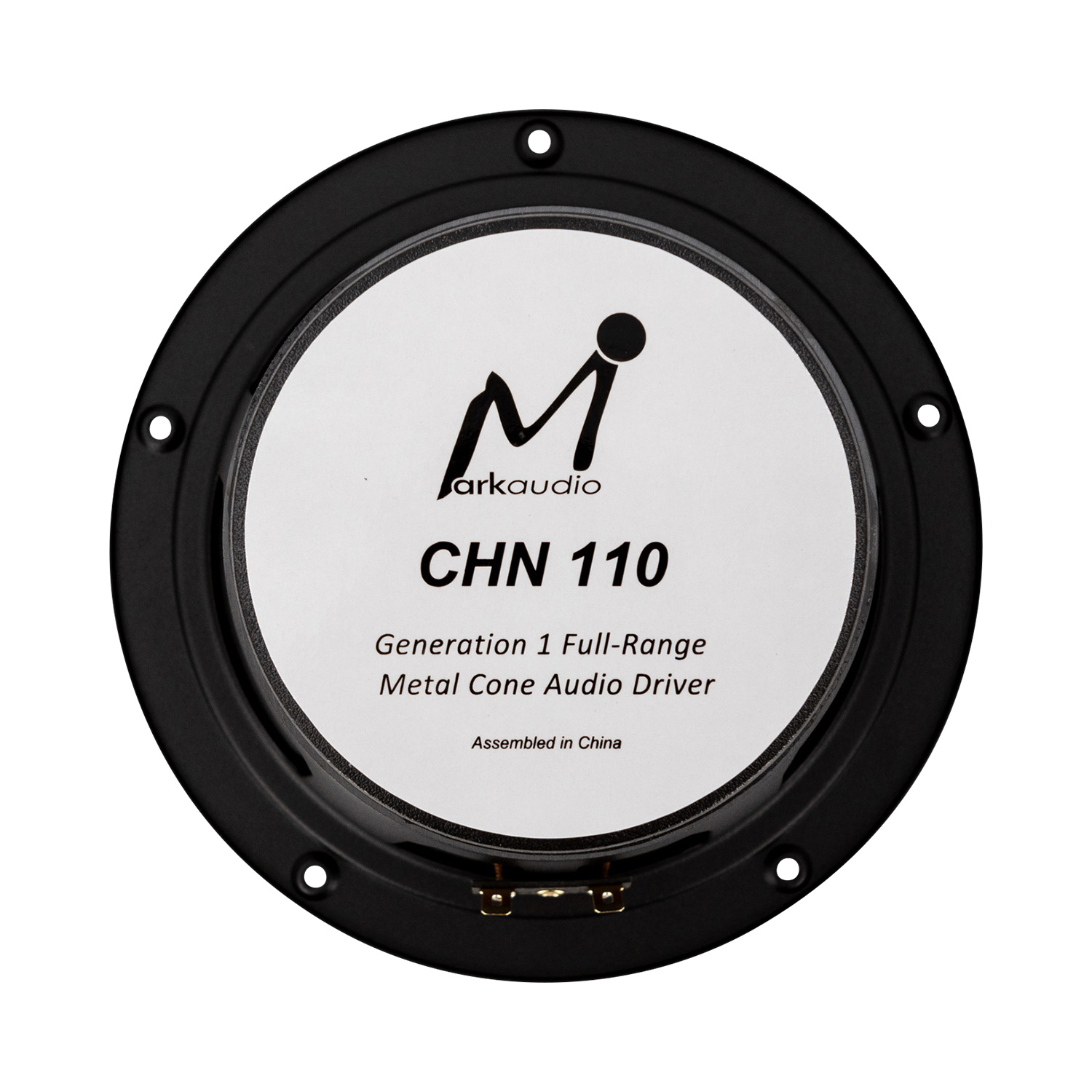

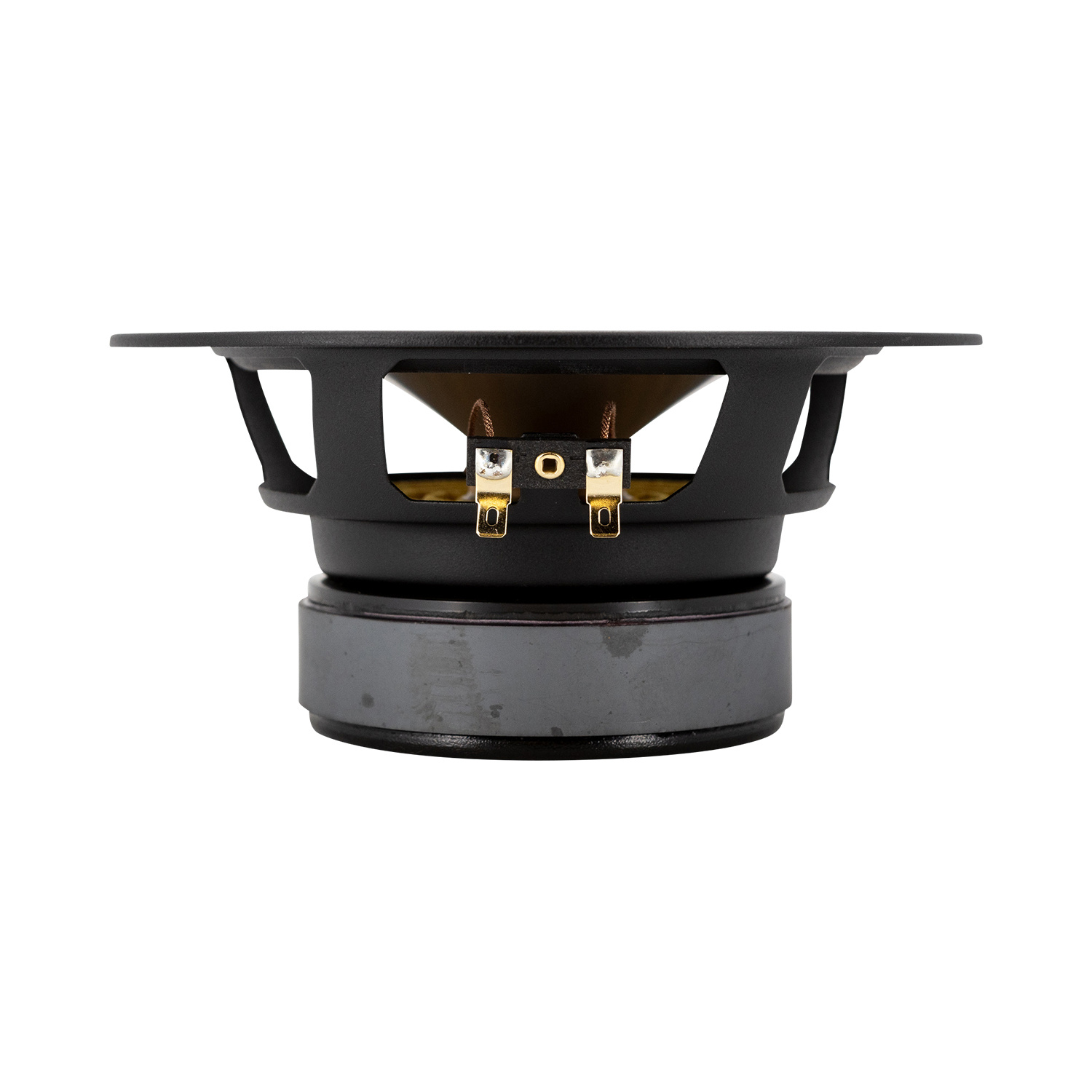

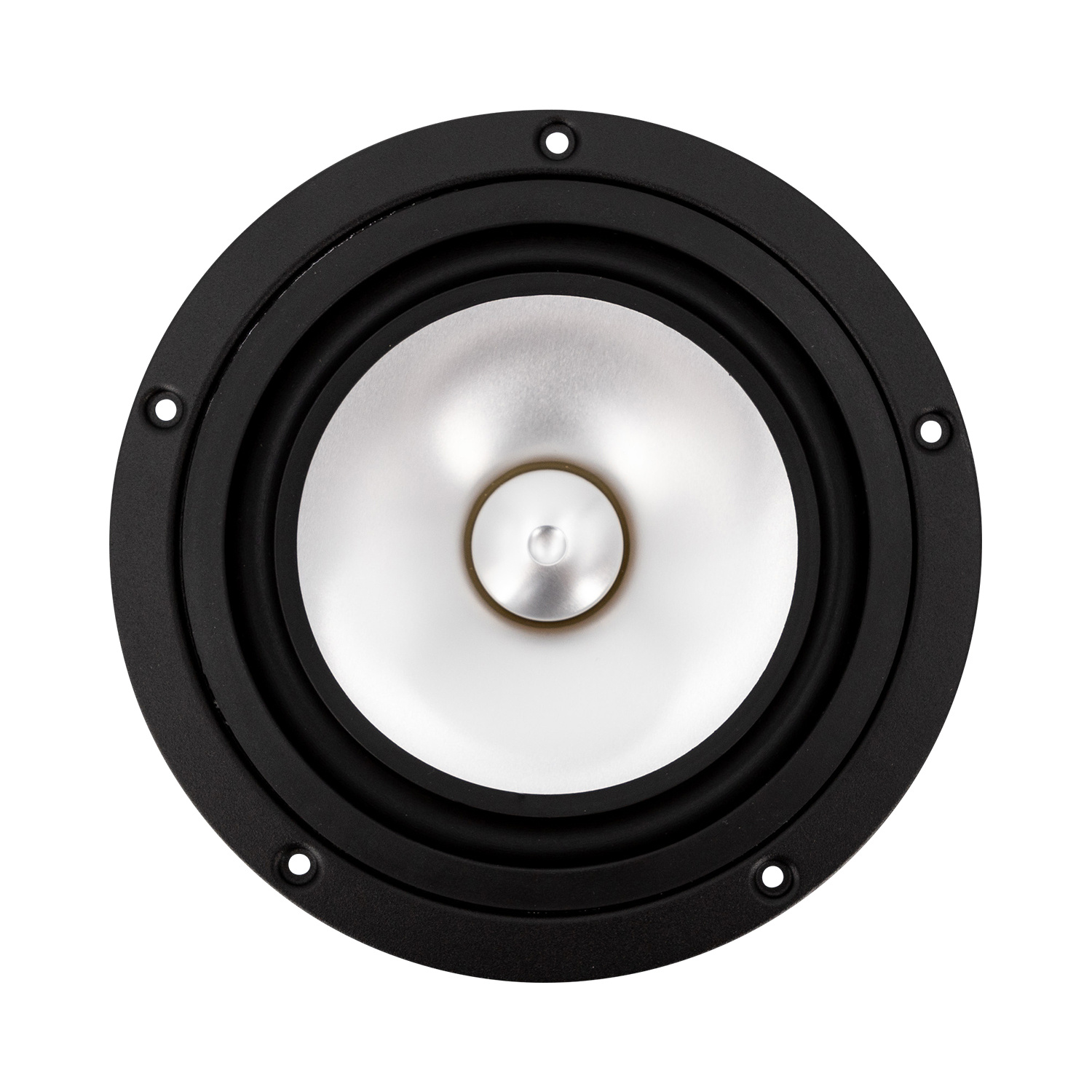

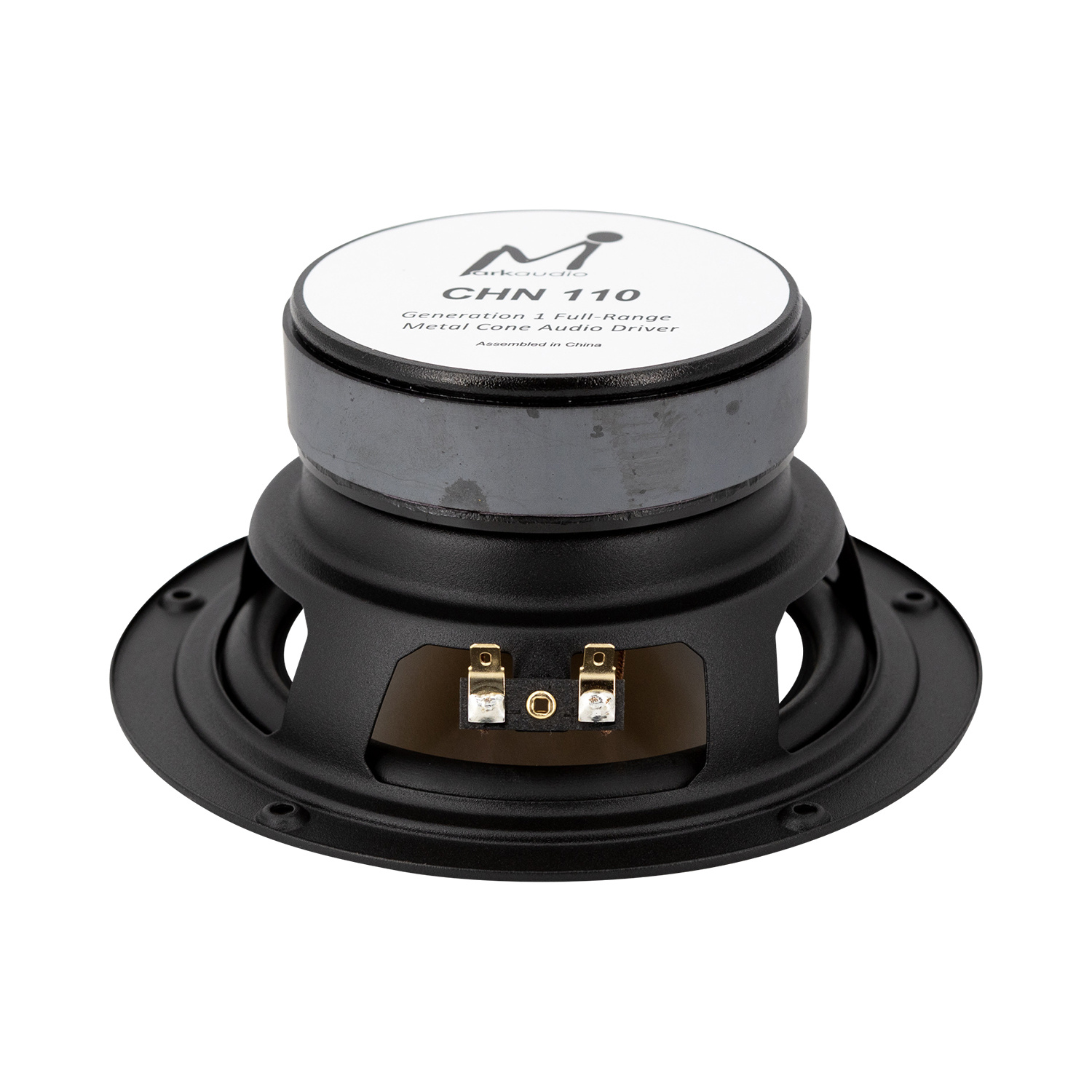

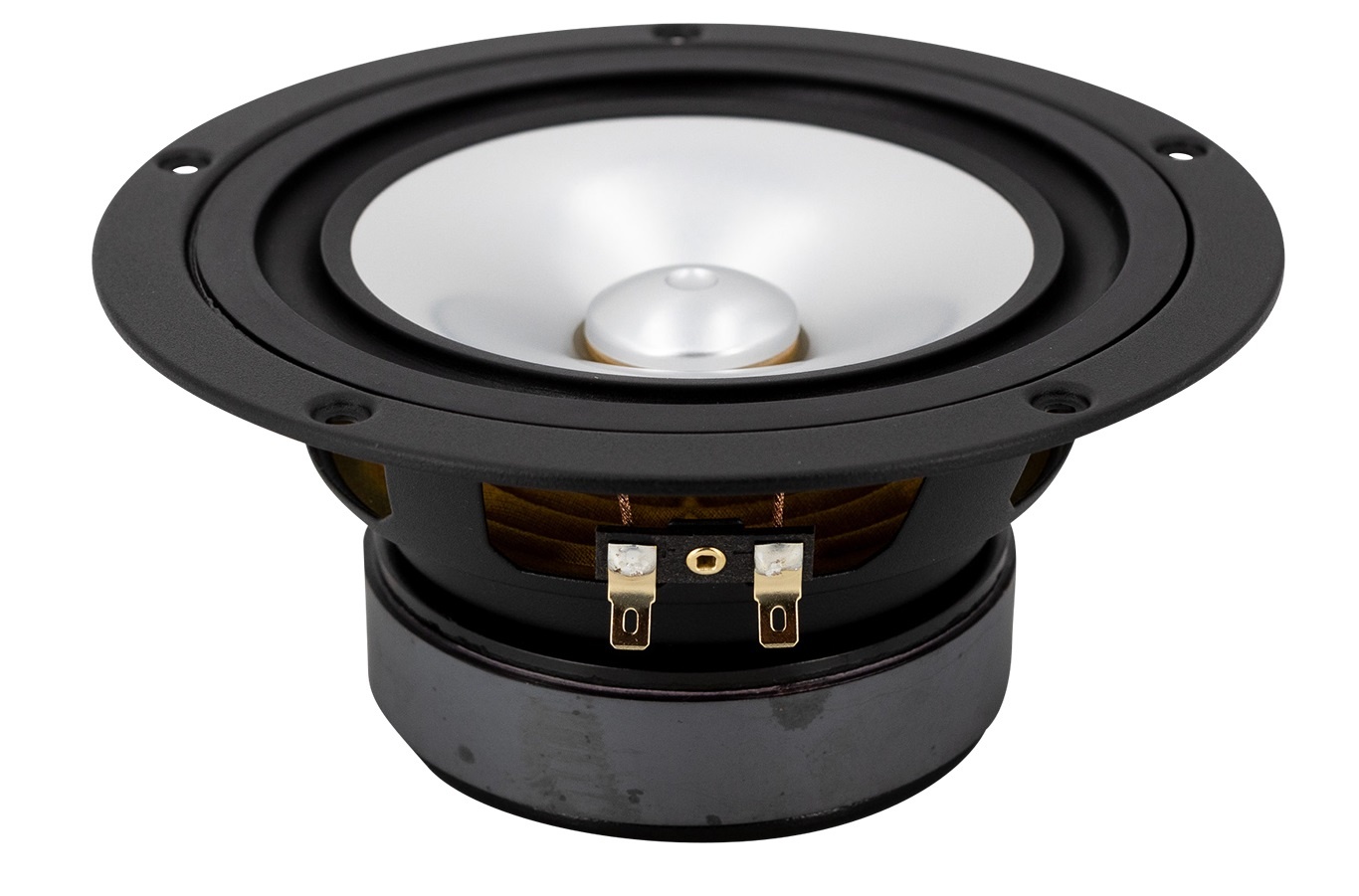

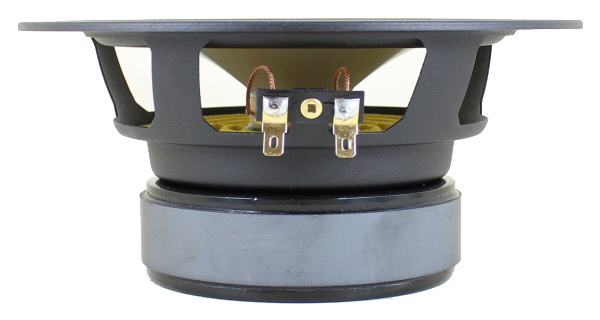

Markaudio CHN-110 Silver 6,75" Full Range Woofer

Currently not in stock, delivery time is 4-6 weeks

  • Article code: CHN-110
  • Out of stock

The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyo

59,95 € 50,96 Incl. 21% VAT

  • Buy 4 for €56,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Markaudio CHN-110 Silver 6,75" Full Range Woofer

The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output.



Highlights

  • New low-distortion motor
  • Exceptional bass extension
  • Improved voice coil former



Product Details

Markaudio CHN-110  Silver  6,75" Full Range Woofer



The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output. The CHN-110 cone exploits a high-strength series aerospace grade alloy designed to cope with high bending stress loads. Based upon the shallow, wide-dispersion multiform cone concept, the material thickness has been increased to allow greater operational low frequency load capacity. The all-new long-stroke suspension has been optimised to enhance and support the remarkable low-frequency load capacity, and has an air volume compliance of almost 25 litres. With a new low-distortion motor designed to provide a medium Q, the CHN-110 is intended for use in larger enclosures where it can produce significant bass extension for a driver of its size, while providing a sensitivity of over 88dB 1m/w, and a smooth high frequency range extending to 25KHz at +80dB. Other features include an “easy install” heavy duty steel frame for both surface and recessed mounting.



The CHN-110 provides custom builders with wide operational flexibility at an affordable price, allowing use either as a genuine, high-performance full-range driver, or as a wide-range mid-bass with simple filtering. Ideal for use in high-fidelity, home-theatre, commercial A/V applications, and suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

Specifications

Specifications for: CHN-110 Silver 6,75" Full Range Woofer

  • Woofer Series Specific woofer production line of the manufacturer. CH Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches.
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 45watts Nom
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity
  • Frequency Response
  • Voice Coil Diameter
  • Magnet Weight
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs)
  • Mechanical Q (Qms) 2.86
  • Electromagnetic Q (Qes) 0.4884
  • Total Q (Qts) 0.4172
  • Diaphragm Mass Inc. Airload (Mms) 8.7700 g
  • Moving Mass Of Diaphragm (Mmd) 8.1228 g
  • Mechanical Compliance of Suspension (Cms) 1.4811
  • Surface Area of Cone (Sd) 0.0109 m2
  • Volume of Displacement (Vd)
  • BL Product (BL) 5.8206 TM
  • Compliance Equivalent Volume (Vas) 24.7335 L
  • Maximum Linear Excursion (Xmax) 8mm 1 way
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminium
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter
  • Overall Depth
  • Baffle Cutout Diameter
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
