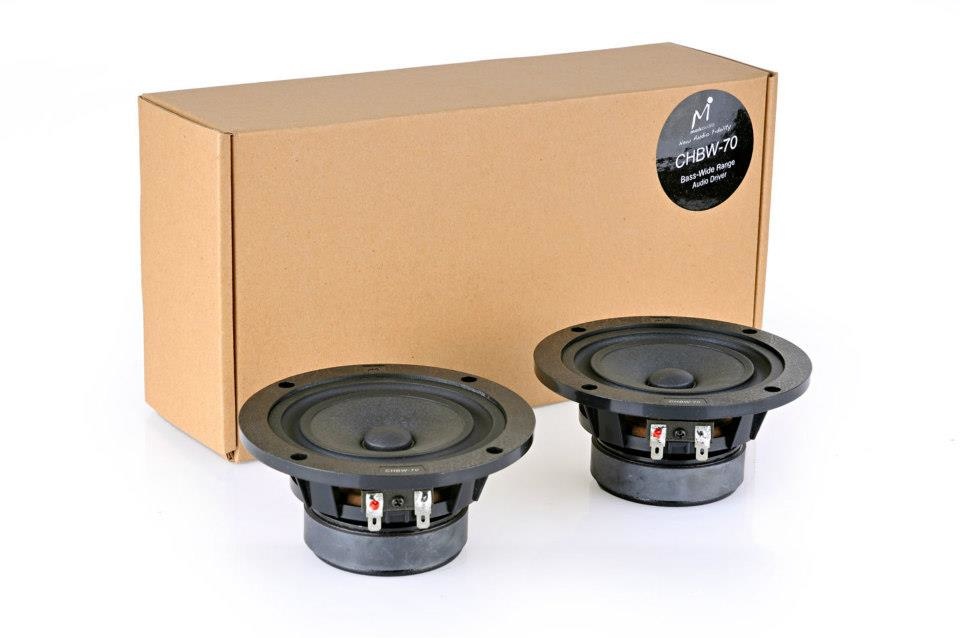

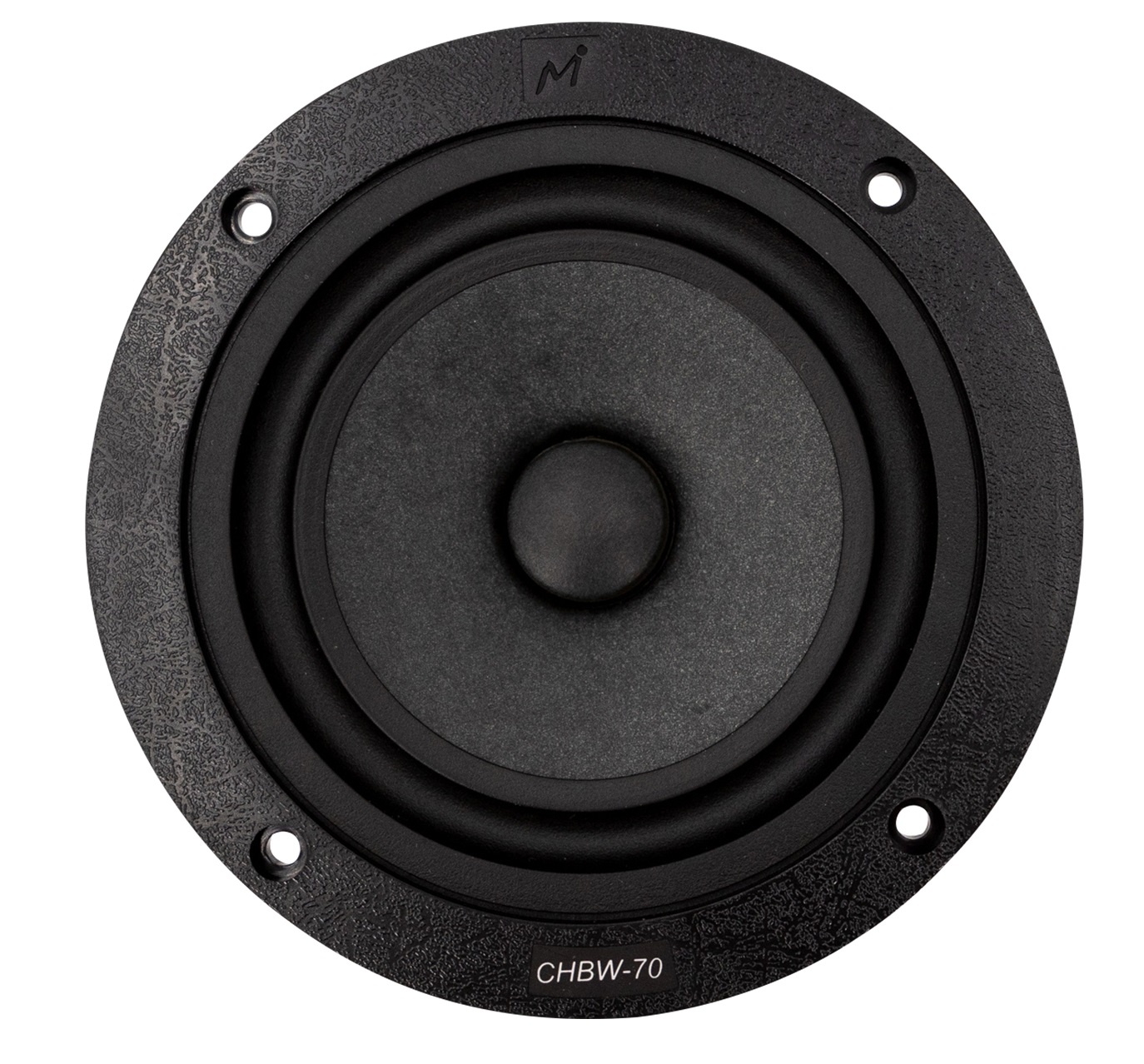

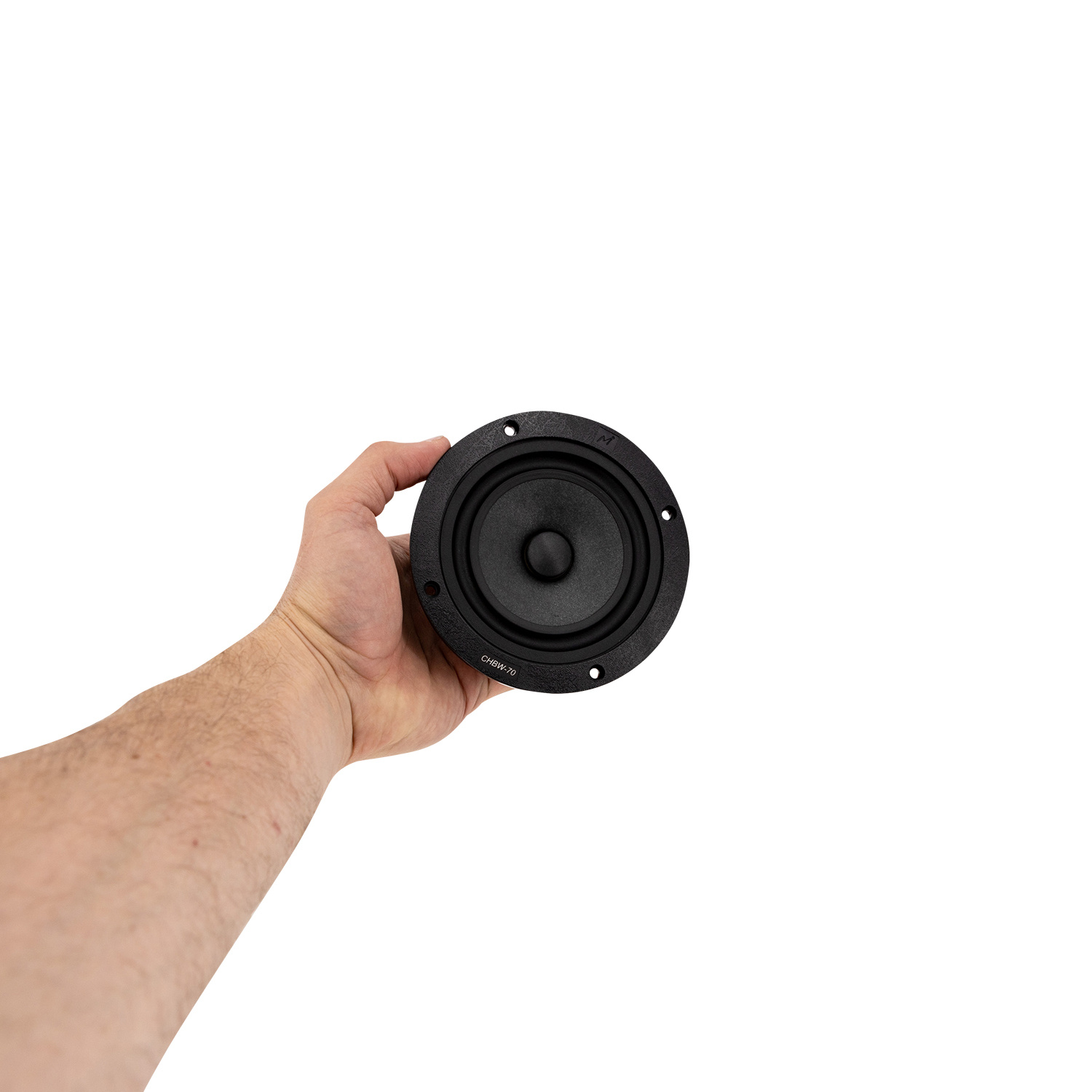

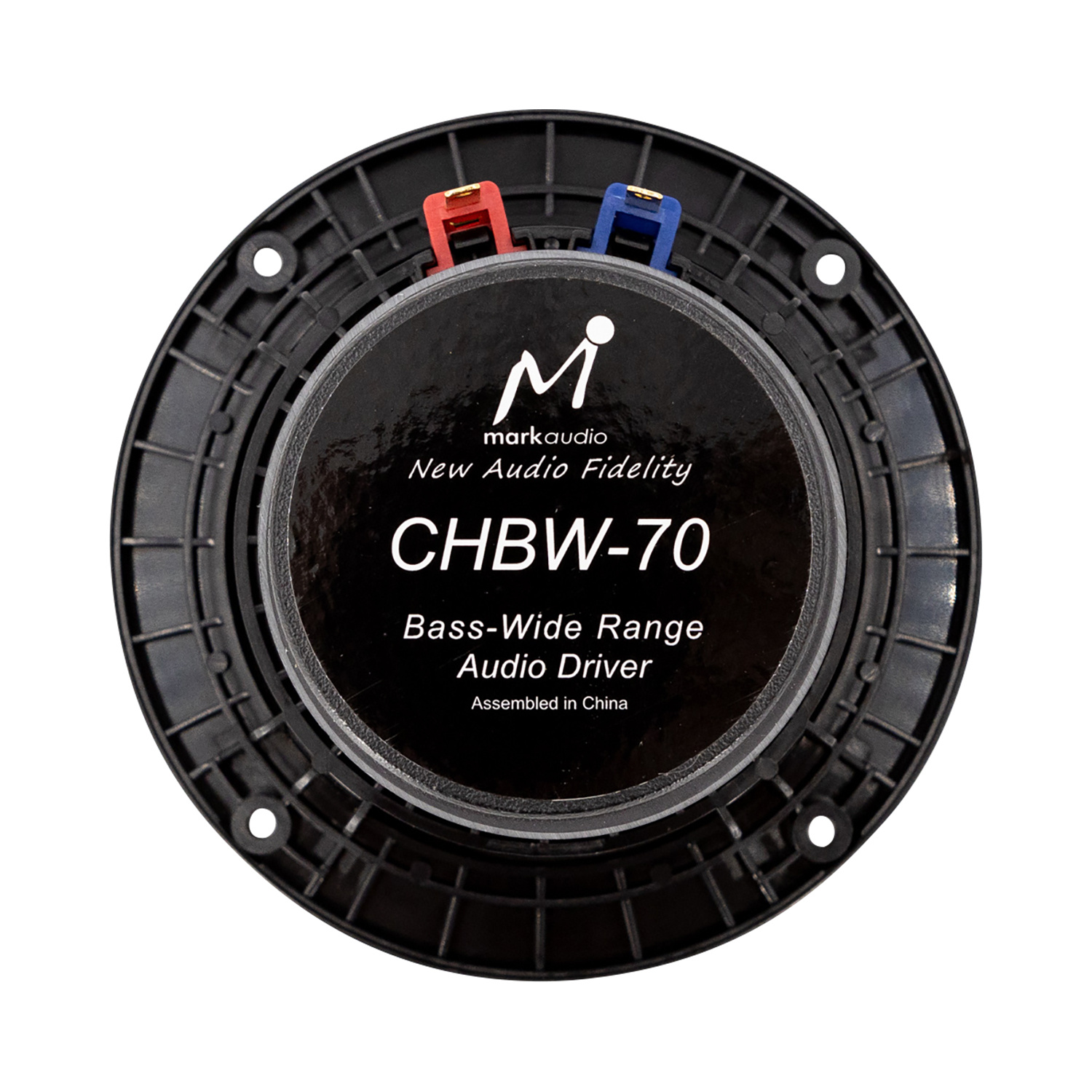

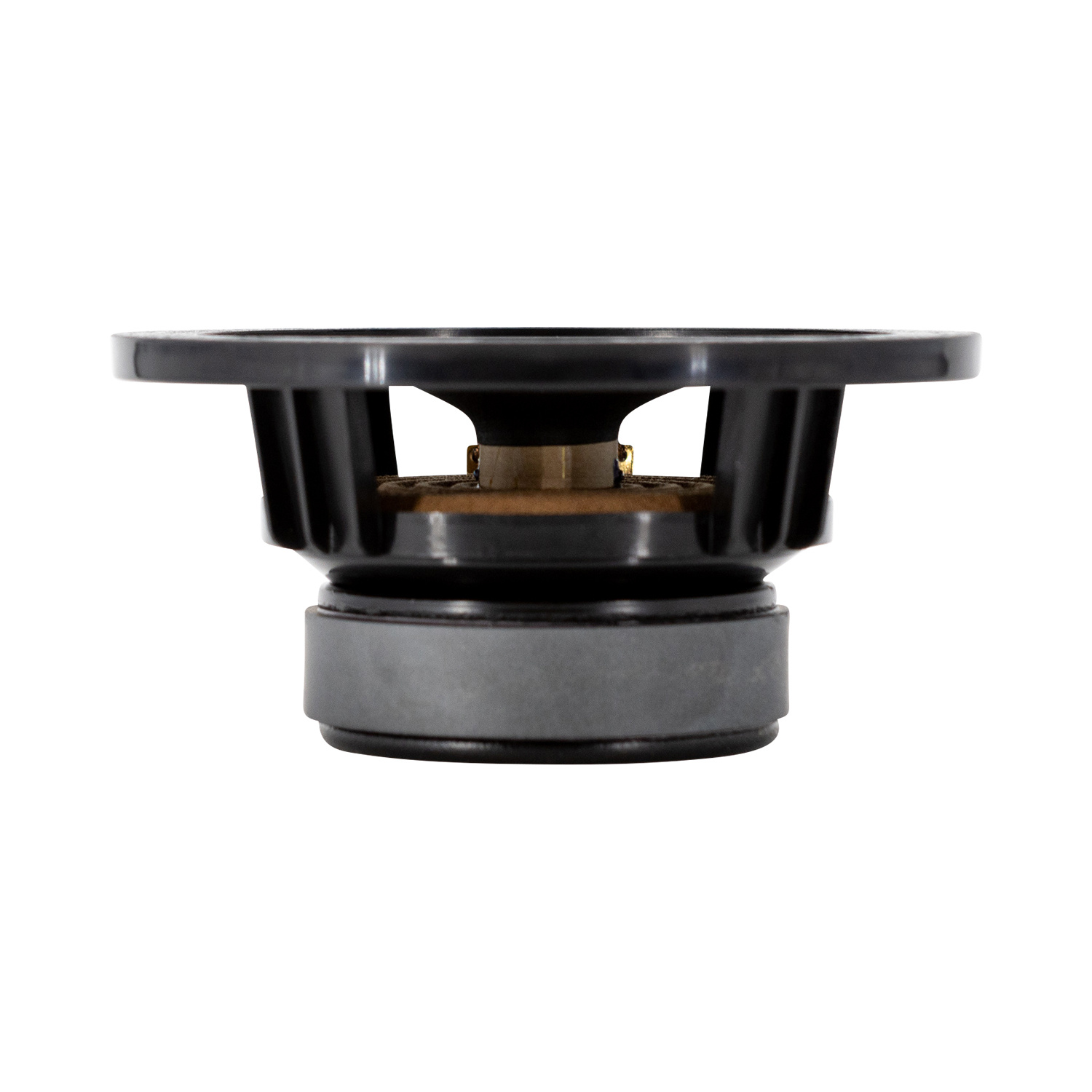

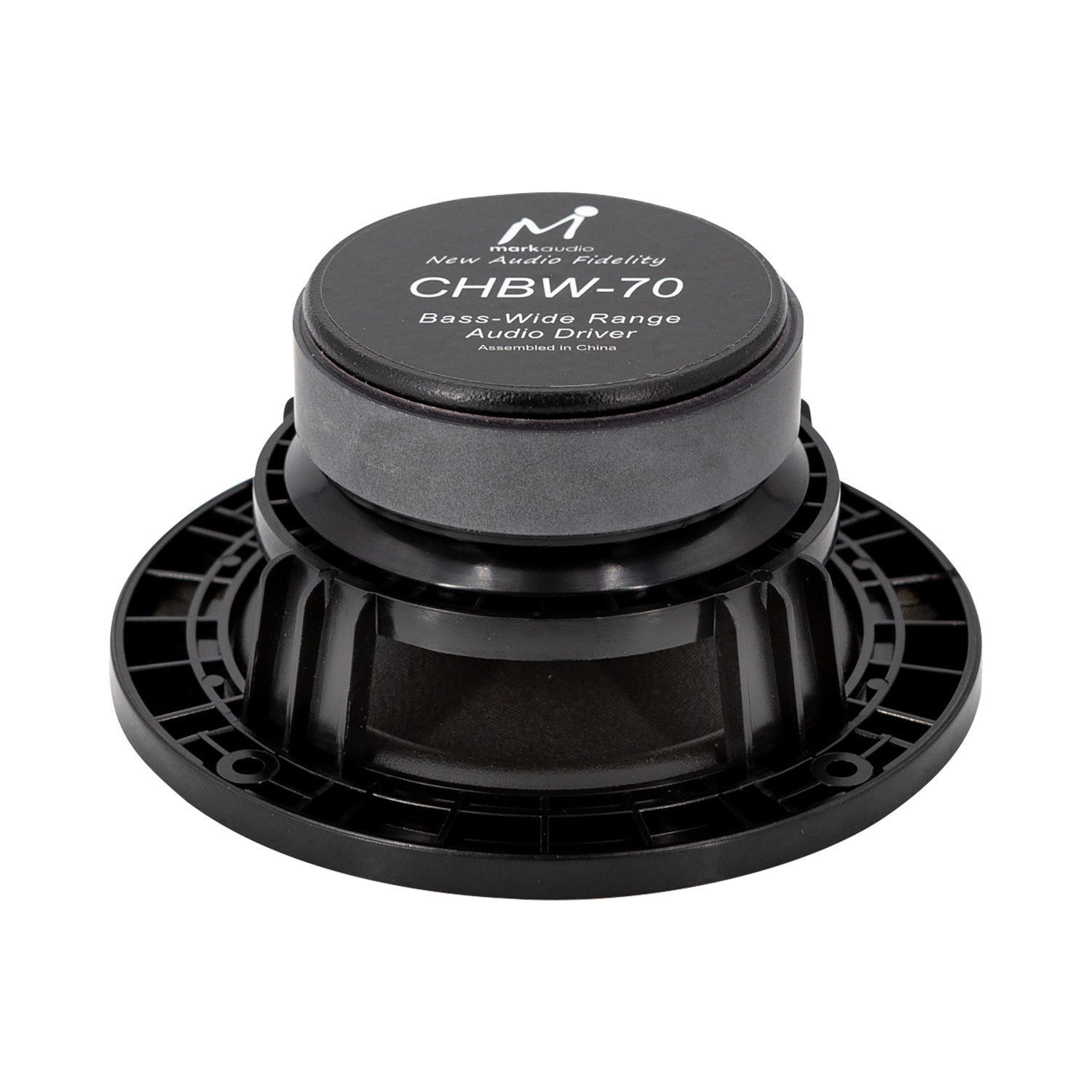

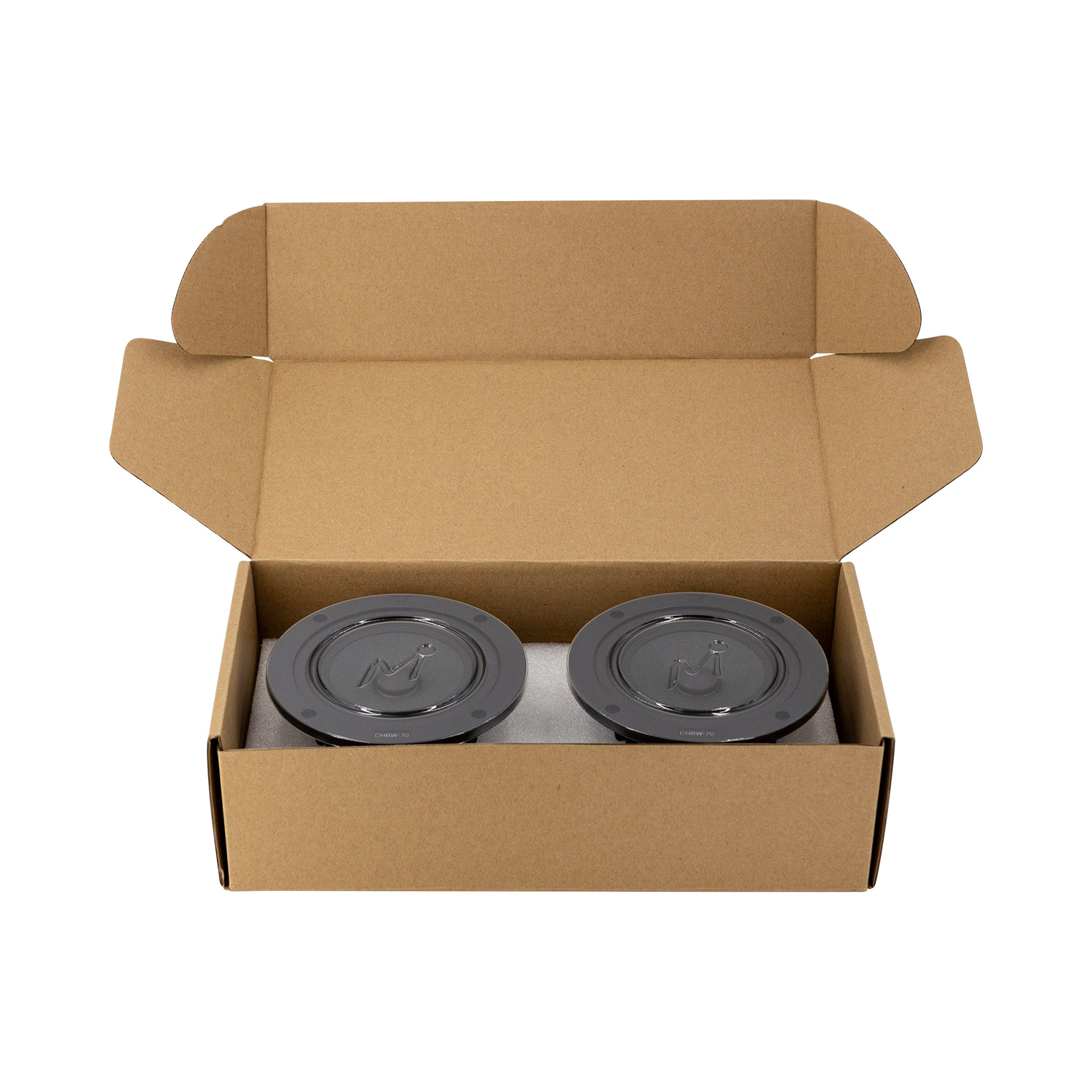

Markaudio CHBW-70 Black 5" Full Range Woofer

Specifications for: CHBW-70 Black 5" Full Range Woofer

• Woofer SeriesSpecific woofer production line of the manufacturer. CH Series
• Woofer TypeThe driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
• Nominal DiameterThe approximate diameter of the driver, measured in inches. 5"
• Power Handling (RMS)The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 20w Nom.
• Power Handling (max)The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
• View all specifications
• Continuous Program Power
• Impedance 8 ohms
• Sensitivity 84.80 dB
• Frequency Response
• Voice Coil Diameter 20-mm
• Magnet Weight
• DC Resistance (Re)
• Voice Coil Inductance (Le)
• Resonant Frequency (Fs)
• Mechanical Q (Qms) 1.78
• Electromagnetic Q (Qes) 0.69
• Total Q (Qts) 0.49
• Diaphragm Mass Inc. Airload (Mms) 4.50 g
• Moving Mass Of Diaphragm (Mmd) 4.30 g
• Mechanical Compliance of Suspension (Cms) 1.26 uM/N
• Surface Area of Cone (Sd) 5.02 K mm/2
• Volume of Displacement (Vd)
• BL Product (BL) 4.43 T*M
• Compliance Equivalent Volume (Vas) 4.60 Ltrs
• Maximum Linear Excursion (Xmax) 4.2-mm 1 way
• Driver's Mechanical Losses (Rms)
• Cone / Diaphragm Material
• Surround Material
• Voice Coil Wire Material
• Voice Coil Former
• Dual Voice Coil
• Basket / Frame Material
• Magnet Material
• Shielded
• Overall Outside Diameter
• Overall Depth
• Baffle Cutout Diameter
• Bolt Circle Diameter
• # Mounting Holes
• Mounting Hole Diameter
• Sealed Volume
• Sealed F3
• Vented Volume
• Vented F3
