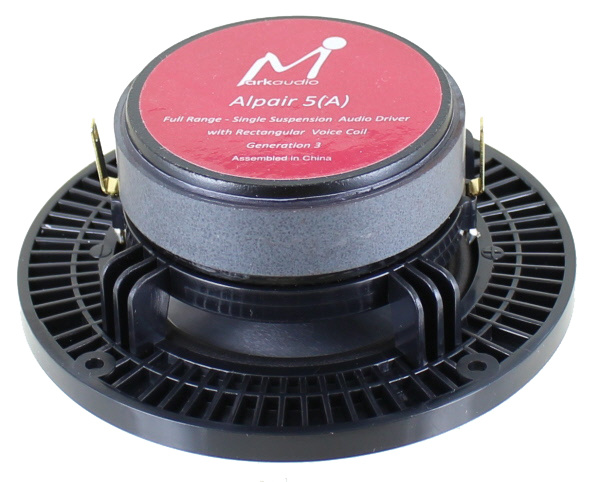

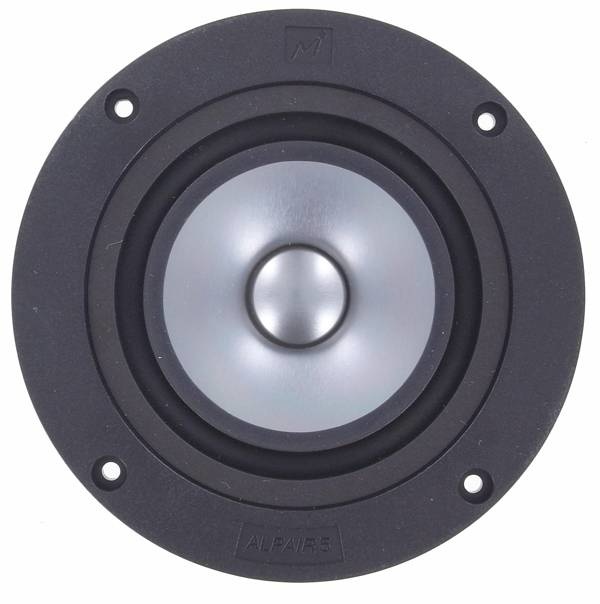

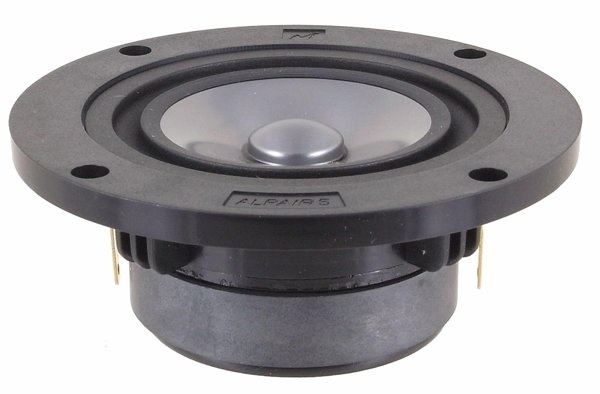

Markaudio Alpair-5 Grey 3" Full Range Aluminium Woofer

Delivery time: 1-4 business days

  • Article code: Alpair-5 Grey
  • Stock: >10 In stock

The Alpair 5 Generation 3 is a pure Free-to-air Single Suspension Full-Range audio driver. The new 5 operates only using its all-new single front suspension.

49,95 € 42,46 Incl. 21% VAT

  • Buy 4 for €47,45 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Markaudio Alpair-5 Grey 3" Full Range Aluminium Woofer

The Alpair 5 Generation 3 is a pure Free-to-air Single Suspension Full-Range audio driver. This new Alpair 5 is more advanced than its first generation version. The new 5 operates only using its all-new single front suspension.



Highlights

  • The latest model, 3rd generation
  • Natural Sound
  • Single suspension
  • Extreme frequency response(90 to 25,000Hz)



Product Details

Markaudio Alpair-5 Grey 3" Full Range Aluminium Woofer



This design retains designer Mark Fenlon’s classical mechanical engineering approach to reduce mass and extend long-throw operating capacity. Mark, along with Evan Yu and the engineering team spent several months of research removing mechanical restriction from the ultra-thin coil body. Traditional driver designs use a “spider”, a suspension device located behind the driver’s cone. Bonded to the coil, it physically restricts a coil's ability to transfer mechanical-acoustic signals to the cone. Some other drivers use damping fluid, springs, or other devices, all of which produce losses. This new Alpair 5 design completely removes all these restrictions. Its coil locates cleanly between the driver’s cone and motor sub-assembly, making the new 5 a pure free-to-air mechanical design.



The accuracy requirement for this new Alpair 5 component design, engineering, and detailed assembly go well beyond typical commercial audio-driver manufacturing. The front suspension operating tolerance is measured in milli-newtons. Production Alpair 5 drivers are made to within +/- 2.5Hz @ F Zero. All production units are then pair-matched to with +/- 1Hz @ F Zero.



The result is a detailed balanced sound representation across an ultra-wide frequency band for this class of small driver. A typical box bass-reflex box application with an internal volume of 3 liters can be port tuned to below 80Hz while the driver retains is high range output up to 25kHz. The outcome is very easy to use versatile drivers suitable for many smaller applications where higher-end sound quality is desired from a mini-sized audio driver.

Specifications

Specifications for: Alpair-5 Grey 3" Full Range Aluminium Woofer

  • Woofer Series Specific woofer production line of the manufacturer. Alpair Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 3"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 15 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance 4 ohms
  • Sensitivity 86.7 dB 2.83V/1m
  • Frequency Response 90 to 25,000 Hz
  • Voice Coil Diameter 1"
  • Magnet Weight
  • DC Resistance (Re) 3.6 ohms
  • Voice Coil Inductance (Le) 0.39 mH
  • Resonant Frequency (Fs) 101.22 Hz
  • Mechanical Q (Qms) 1.49
  • Electromagnetic Q (Qes) 0.75
  • Total Q (Qts) 0.50
  • Diaphragm Mass Inc. Airload (Mms) 2.1 g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd) 28.270 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 2.5 Tm
  • Compliance Equivalent Volume (Vas) 0.047 ft.³
  • Maximum Linear Excursion (Xmax) 3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Paper
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Glass-Fibre
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 4.92"
  • Overall Depth
  • Baffle Cutout Diameter 3.64"
  • Bolt Circle Diameter 4.45"
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
