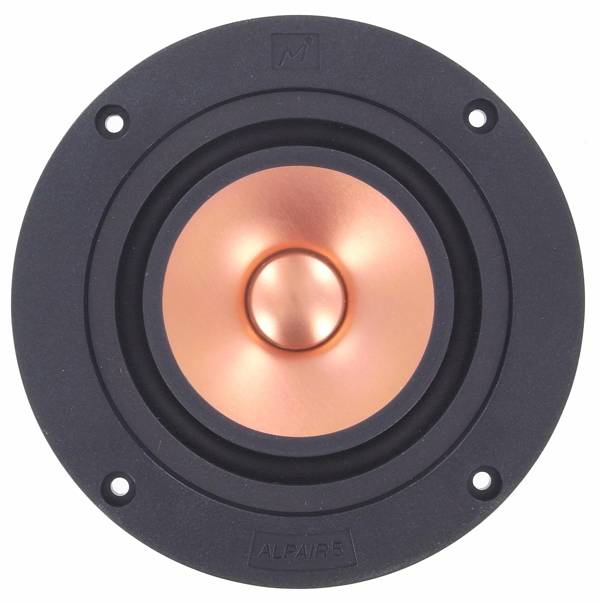

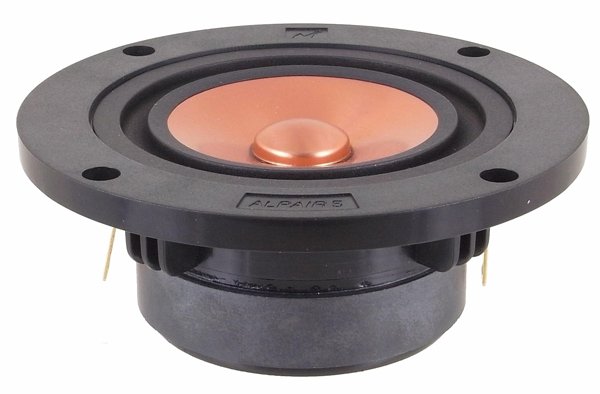

        Alpair-5 Gold 3" Full Range Aluminium Woofer

        Alpair-5 Gold 3" Full Range Aluminium Woofer

        €49,95

        Markaudio Alpair-5 Gold 3" Full Range Aluminium Woofer

        5 reviews
        5 from 5
        5 reviews
        5 stars
        80%
        4 stars
        0%
        3 stars
        20%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Markaudio
        € 41,28€ 49,95 Out of stock10+ expected on 05-06-2024

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description

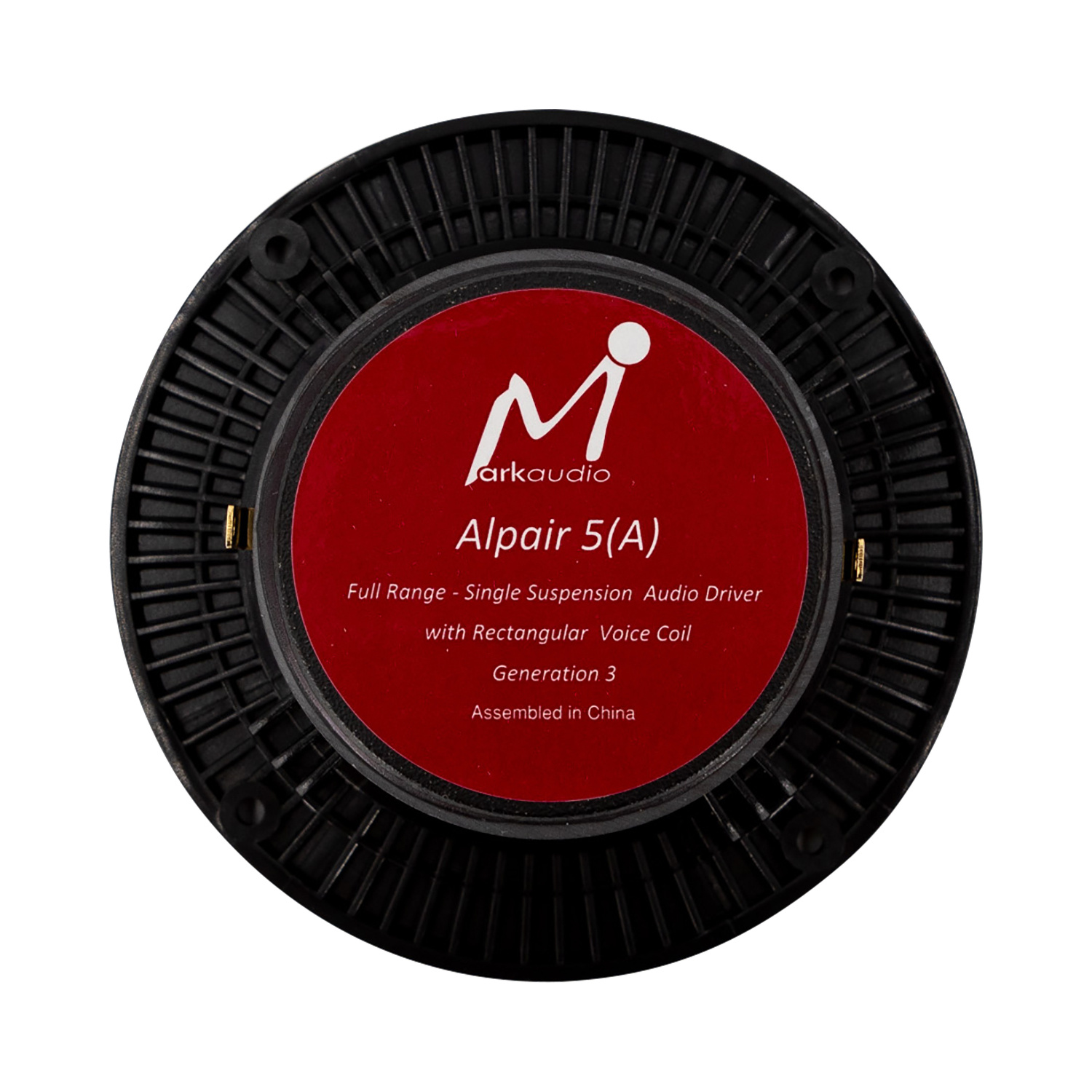

        The Alpair 5 Generation 3 is a pure Free-to-air Single Suspension Full-Range audio driver. This new Alpair 5 is more advanced than its first-generation version. The new 5 operates only using its all-new single front suspension.



        Highlights

        • The latest model, 3rd generation
        • Natural Sound
        • Single suspension
        • Extreme frequency response(90 to 25,000Hz)



        Product details

        Markaudio Alpair-5 Gold 3" Full Range Aluminium Woofer

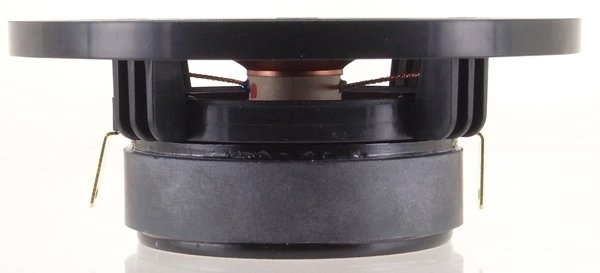

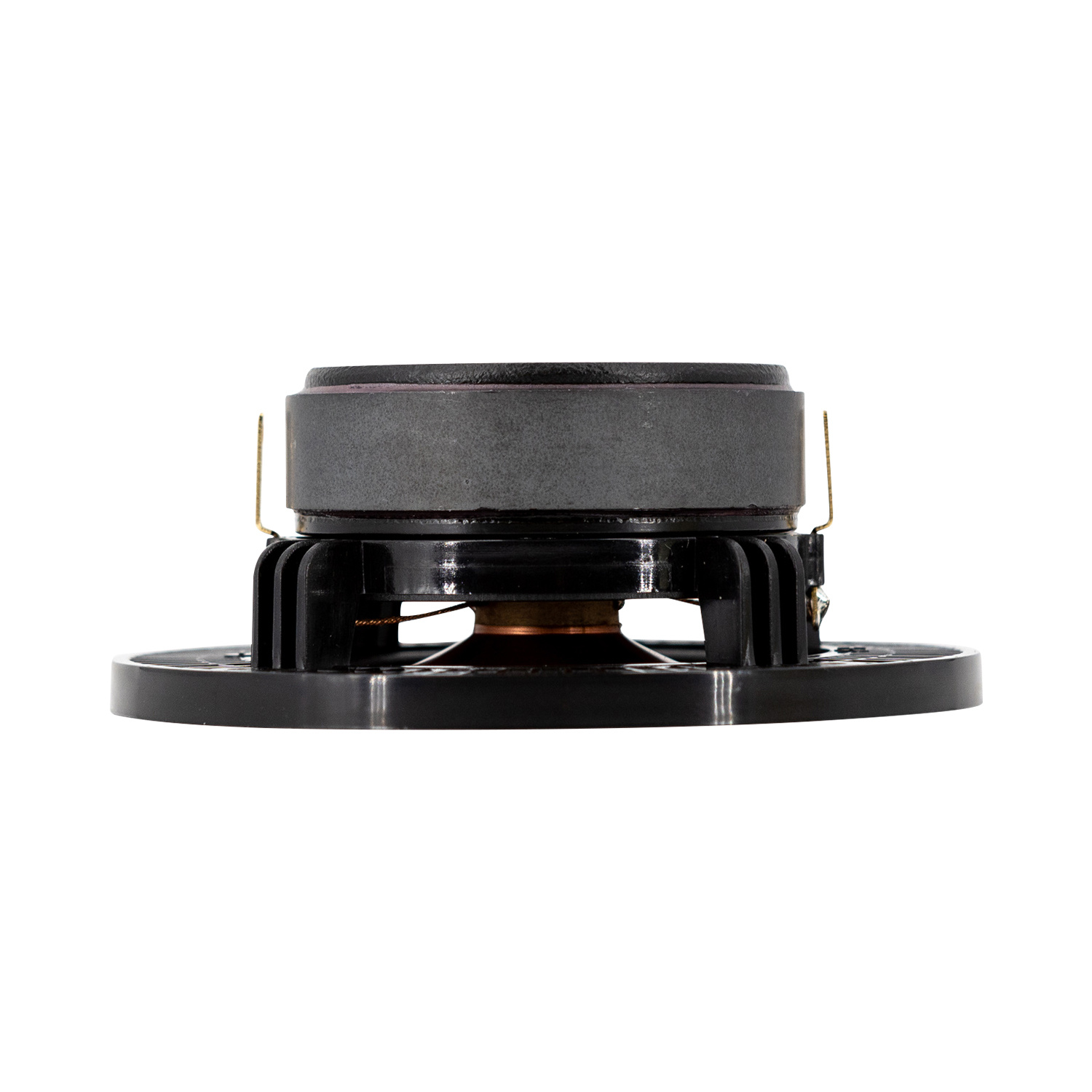

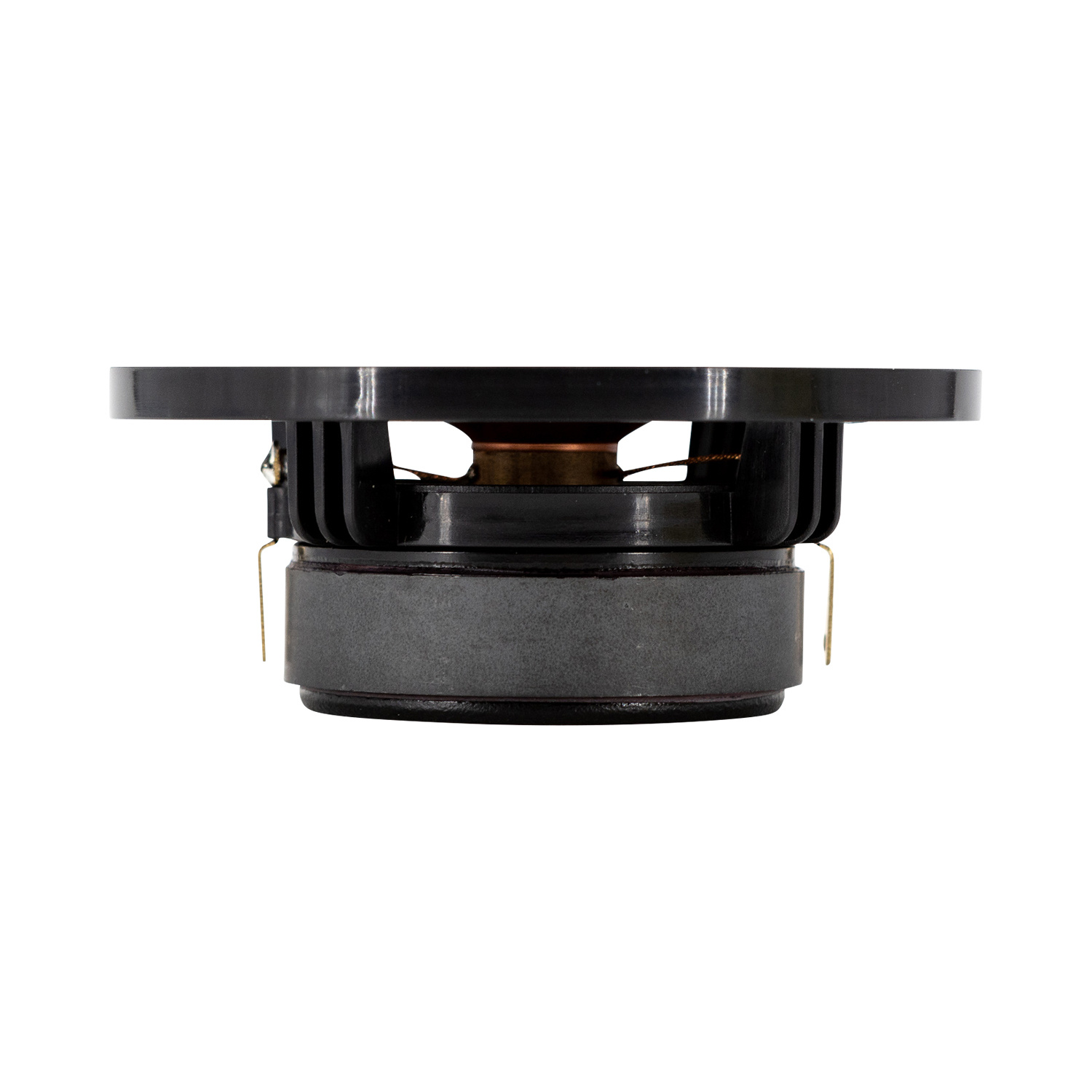

        This design retains designer Mark Fenlon’s classical mechanical engineering approach to reduce mass and extend long-throw operating capacity. Mark, along with Evan Yu and the engineering team spent several months of research removing mechanical restriction from the ultra-thin coil body. Traditional driver designs use a “spider”, a suspension device located behind the driver’s cone. Bonded to the coil, it physically restricts a coil's ability to transfer mechanical-acoustic signals to the cone. Some other drivers use damping fluid, springs, or other devices, all of which produce losses. This new Alpair 5 design completely removes all these restrictions. Its coil locates cleanly between the driver’s cone and motor sub-assembly, making the new 5 a pure free-to-air mechanical design.

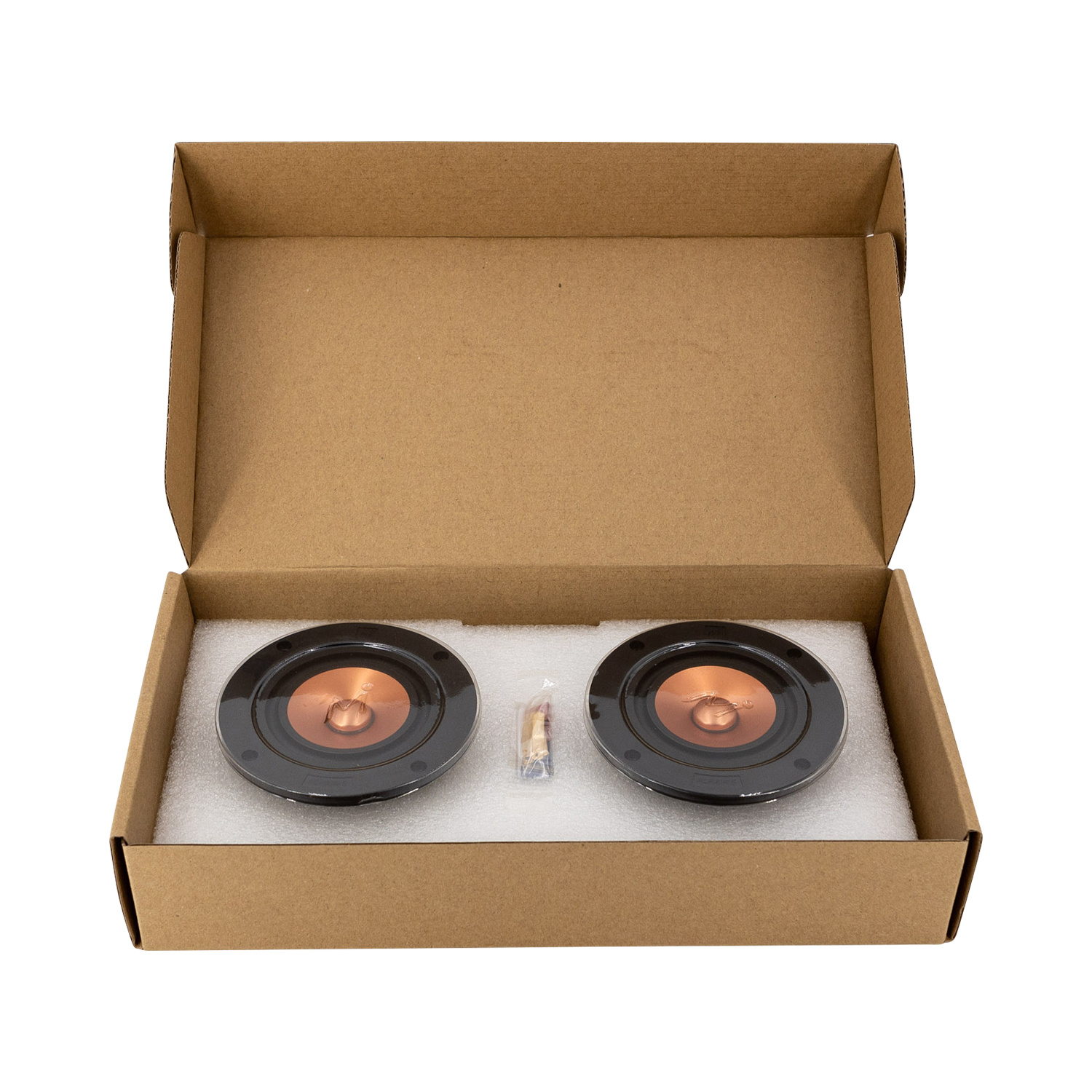

        The accuracy requirement for this new Alpair 5 component design, engineering, and detailed assembly go well beyond typical commercial audio-driver manufacturing. The front suspension operating tolerance is measured in milli-newtons. Production Alpair 5 drivers are made to within +/- 2.5Hz @ F Zero. All production units are then pair-matched to with +/- 1Hz @ F Zero.



        The result is a detailed balanced sound representation across an ultra-wide frequency band for this class of small drivers. A typical box bass-reflex box application with an internal volume of 3 liters can be port tuned to below 80Hz while the driver retains is high range output up to 25kHz. The outcome is very easy to use versatile drivers suitable for many smaller applications where higher-end sound quality is desired from a mini-sized audio driver.

        Show more

        Specifications

        Article number
        Alpair-5 Gold
        Woofer Series
        Alpair Series
        Woofer Type
        Full-range
        Nominal Diameter
        3"
        Power Handling (RMS)
        5 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.5 dB
        Voice Coil Diameter
        25.4 mm
        DC Resistance (Re)
        3.4 ohms
        Voice Coil Inductance (Le)
        0.039 mH
        Resonant Frequency (Fs)
        94.5 Hz
        Mechanical Q (Qms)
        2.3
        Electromagnetic Q (Qes)
        0.6366
        Total Q (Qts)
        0.5
        Diaphragm Mass Inc. Airload (Mms)
        1.93 g
        Mechanical Compliance of Suspension (Cms)
        1.6 mm/N
        Surface Area of Cone (Sd)
        28 cm²
        BL Product (BL)
        2.5 Tm
        Compliance Equivalent Volume (Vas)
        1.78 liters
        Maximum Linear Excursion (Xmax)
        3 mm
        Cone / Diaphragm Material
        Aluminium
        Surround Material
        Rubber
        Basket / Frame Material
        Glass-Fibre
        Magnet Material
        Ferrite
        Overall Outside Diameter
        100 mm
        Overall Depth
        39
        Baffle Cutout Diameter
        80 mm
        Bolt Circle Diameter
        4.45"
        # Mounting Holes
        4

        Show more
