        Product description ICEpower 500ASP Amplifier module

        Highlights

        • Very rugged construction for professional use
        • Amplifier with integrated power supply
        • Comprehensive protection scheme
        • Suitable for CE approved designs
        • Power output for ICEpower 250A and/or 500A
        • ±12 volt auxiliary output
        • Selectable mains 115/230Vac
        • Safety conforms to UL/IEC 60065 and others



        Product details

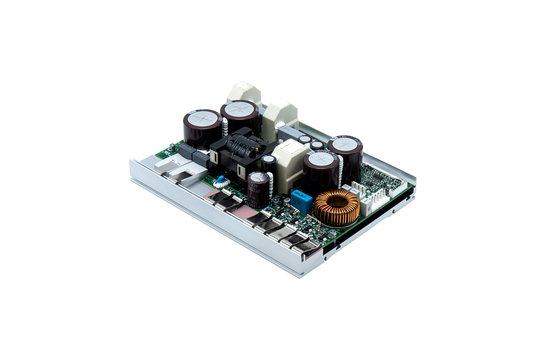

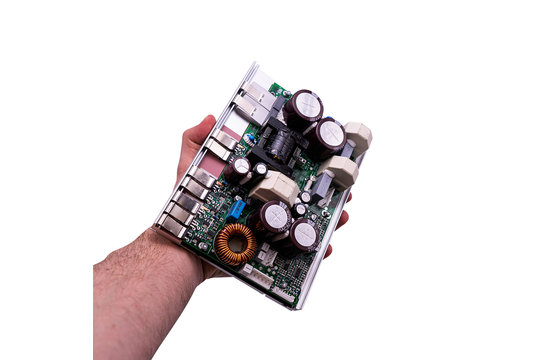

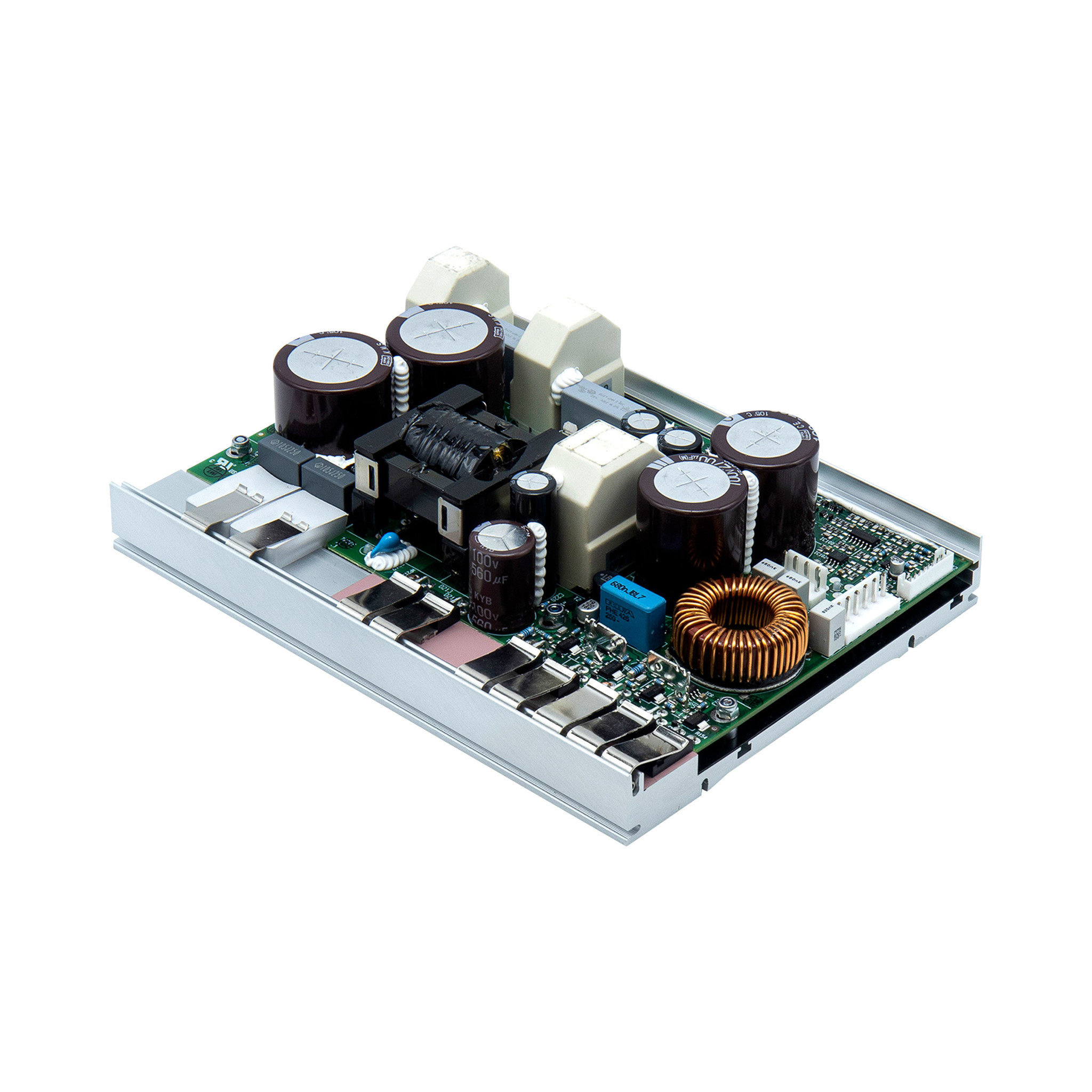

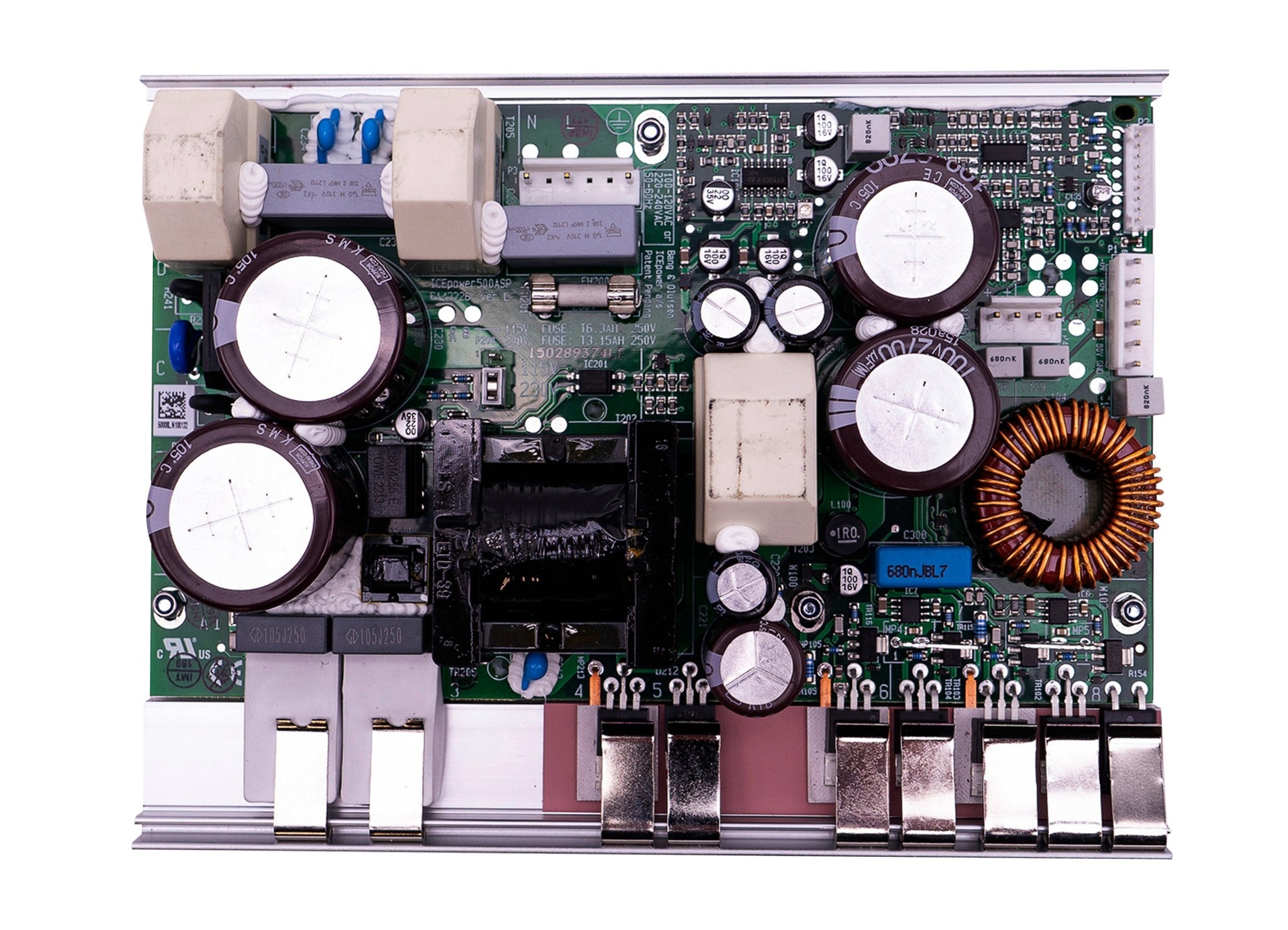

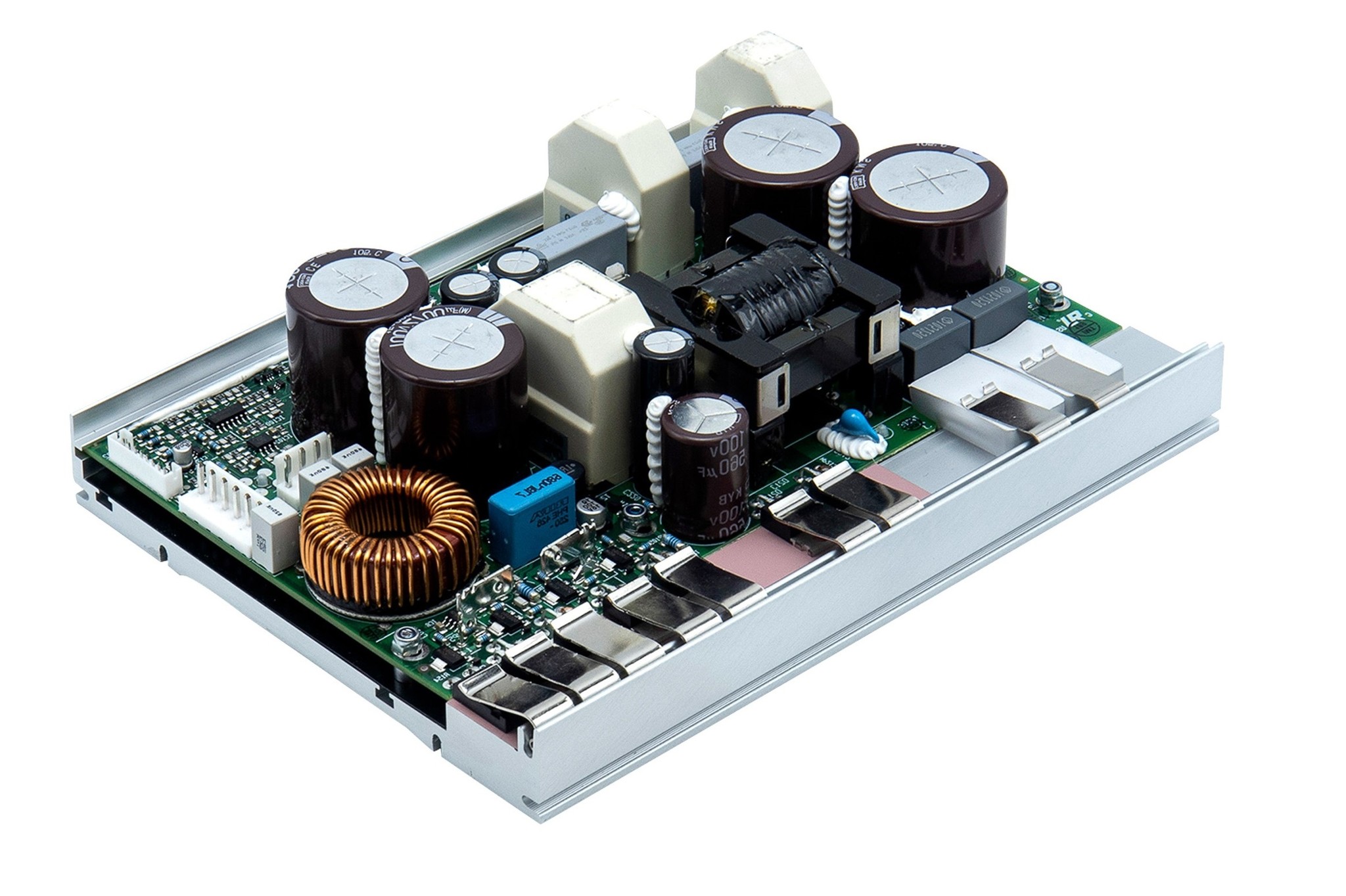

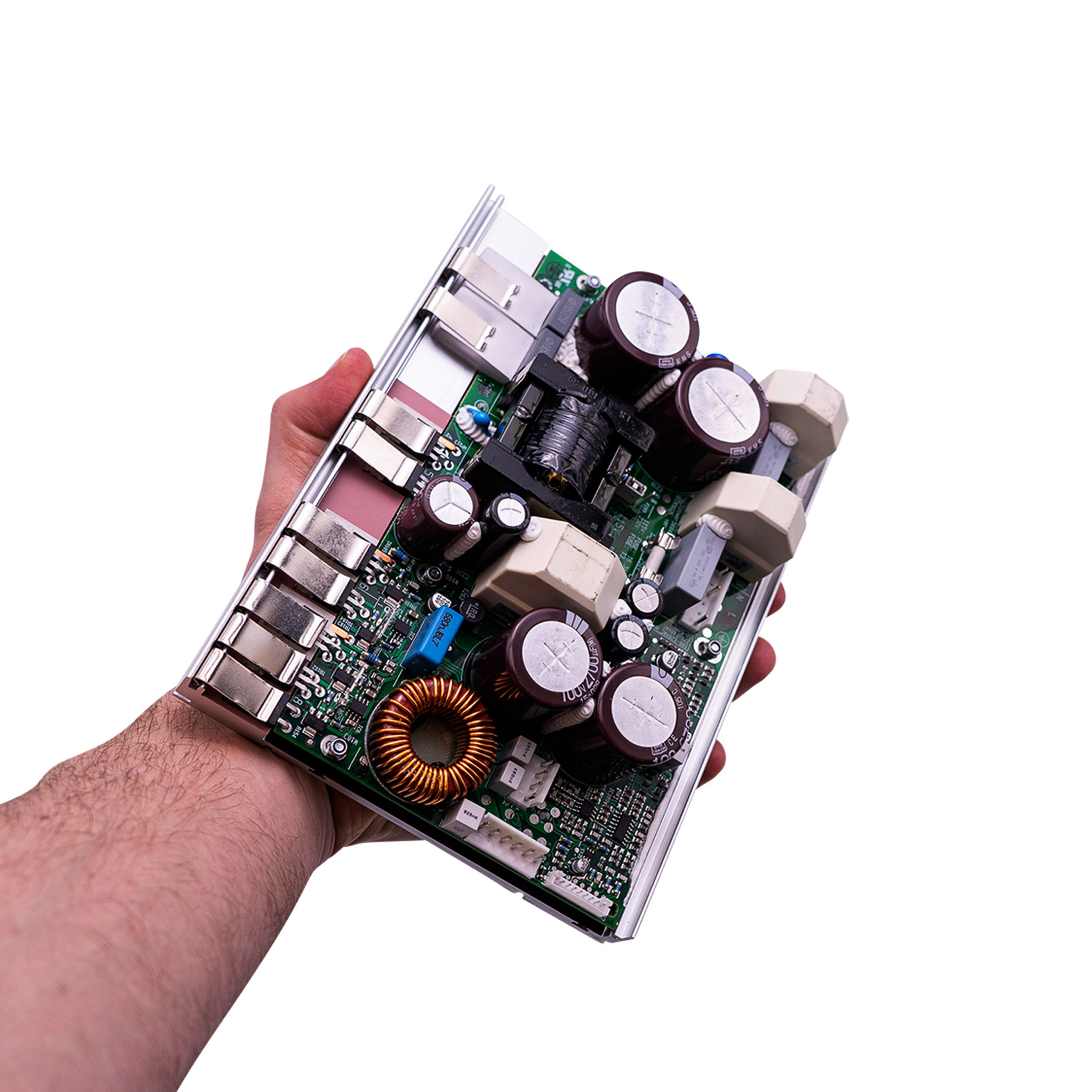

        ICEpower 500ASP Amplifier Module with Integrated Power supply



        The ICEpower 500ASP is a high-performance and extreme reliable amplifier module with an integrated power supply. The amplifier section is essentially the 500A module and is capable of 500-watts of output power. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The ASP-series is the self-contained amplification solution from our amplifier modules category, fit for your most demanding applications.



        The ICEpower 500ASP offers extreme high fidelity and lots of power from a small footprint, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors. The power supply of the 500ASP includes a DC hanger bus output, which can be used for powering additional 250A or 500A modules. This makes it very convenient to create 2 and 3 channel amplifiers, combining the 500ASP with the 250A and the 500A.



        Need more power? Check out the 1000ASP module.

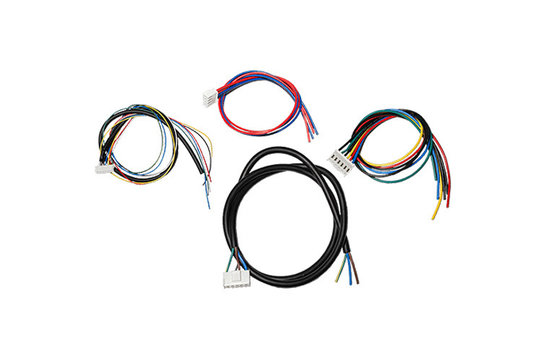

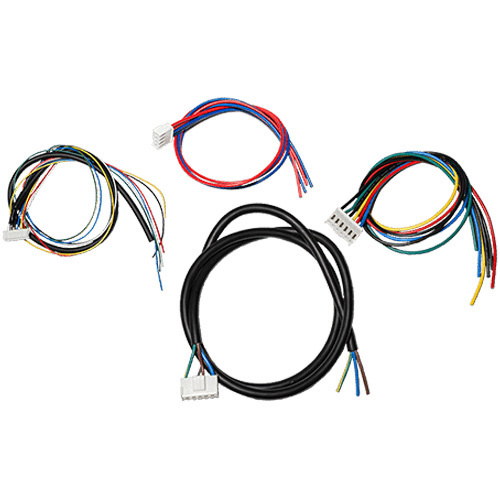

        Cable Set

        The included cable set allows access to all features of the 500ASP. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.



        What’s In The Box?

        • 1 x 500ASP Amplifier Module with Integrated Power supply
        • Cable set:
          • 1 x (D) Signal ASPseries
          • 1 x (G) SPK
          • 1 x (E) ASPseries DCbus
          • 1 x (H) Mains with Earth

        Show more

        Specifications

        Article number
        500ASP
        EAN
        8785256844166
        Rated power output
        1x 500 watts at 4 ohms
        1x 250 watts at 8 ohms
        Minimum load
        2 Ohm
        Efficiency
        83%
        Distortion
        0.006 % THD+N
        Gain
        26.8 dB
        Input impedance
        8 kOhm
        Amplifier Classification
        Class D
        Speaker output channels
        1
        Power Requirements
        115-230 VAC
        Current limit
        >45 A
        Dimensions (L x W x H)
        198 x 150 x 52
        Mounting hole diameter
        3.5 mm

        Show more
