      ICEpower 500A 500W Pro Amplifier Module

      € 95,-€ 114,95 >10 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €109,20 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Highlights

      • Very rugged design for demanding use
      • 500-watts from just 62 cm²
      • Soft mute/de-mute
      • Standby mode for low power consumption
      • Under-voltage protection
      • Monitor output
      • Balanced input and output
      • Excellent EMI performance
      • No heat sink required
      • Safety: IEC 60065 ed. 8.



      Product details

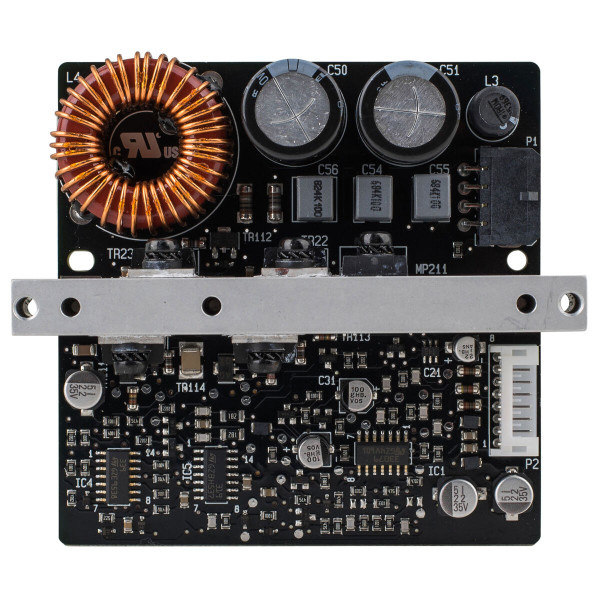

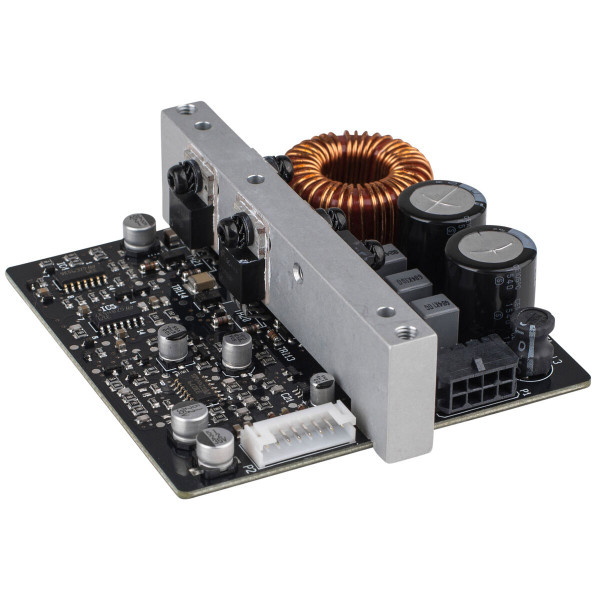

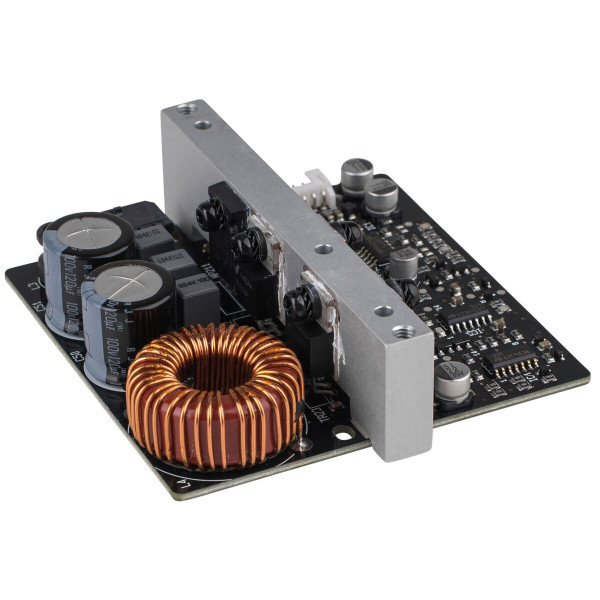

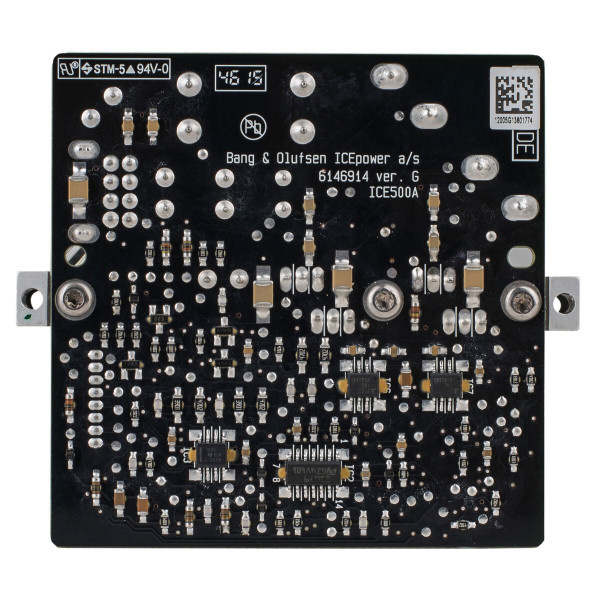

      ICEpower 500A 500W Pro Amplifier Module



      The ICEpower 500A is a high-performance, extremely reliable and versatile amplifier module with a single channel. This is the amplifier from the ICEpower 500ASP module and is capable of 500-watts of output power from just 62 cm². Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The A-series is the answer from our amplifier module category, on the most demanding applications.



      The ICEpower 500A achieves extremely high fidelity in a compact package, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry-standard Molex Micro-Fit and JST PH-series connectors.



      The ICEpower A-Series consists of three high-performance general-purpose class D amplifiers. Check out the 250A and 1000A for the 250 and 1000 watt versions. The A-series modules are essentially the amplifier sections from the ASP-modules. The ASP modules feature an intergraded power supply and have a DC-hanger output to power the A modules. This 500A may be used on its own, powered by a linear power supply, or can be powered from the 500ASP and the 1000ASP creating stereo amplifiers, 2-way and 3-way active speakers.

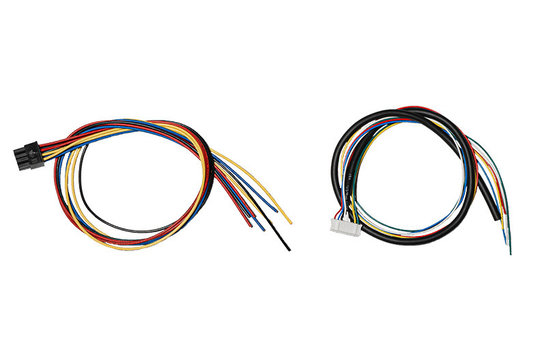

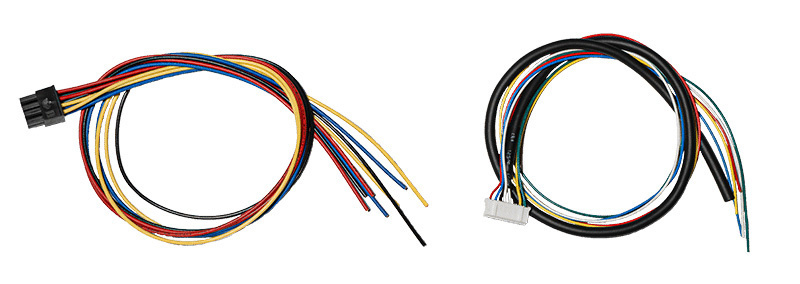

      Cable Set

      The included cable set allows access to all features of the 500A. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 500A 500W Pro Amplifier Module
      • Cable set:
        • 1 x (AA) Signal A series
        • 1 x (B) Microfit 8 pol – 4 Power/speaker

      Specifications

      Article number
      500A
      Rated power output
      600 watts at 4 ohms
      300 watts at 8 ohms
      Minimum load
      2 Ohm
      Efficiency
      93%
      Distortion
      0.006 % THD+N
      Gain
      26.8 dB
      Input impedance
      8 kOhm
      Amplifier Classification
      Class D
      Speaker output channels
      1
      Power Requirements
      115-230 VAC
      Current limit
      >55 A
      Dimensions (L x W x H)
      90 x 79 x 23.5
      Mounting hole diameter
      3.5 mm

      Show more

      Reviews

      0 from 5Based on 0 reviews
      Review this product

      There are no reviews written yet about this product..
