400A2 | Amplifier Module

€159,95

Add to cart

ICEpower 400A2 | Amplifier Module

Name: ICEpower 400A2 | Amplifier Module
Brand: ICEpower
SKU: 400A2
Price: 159.95 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

2 reviews

Brand: ICEpower

Show all Amplifier modules

2 x 400 W

€ 132,19€ 159,95 10+ In stock

We ship to
Ordered now, shipped today
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

2x 400 watt SE amplifier or a single channel 800 watt BTL amplifier
Designed for flexible mounting
Thermal, over-current and over- and under-voltage rail protection
Clip detect signals for both channels
Real-time voltage monitor output for both channels
Suitable for 1U products
Fully differential audio inputs

Product details

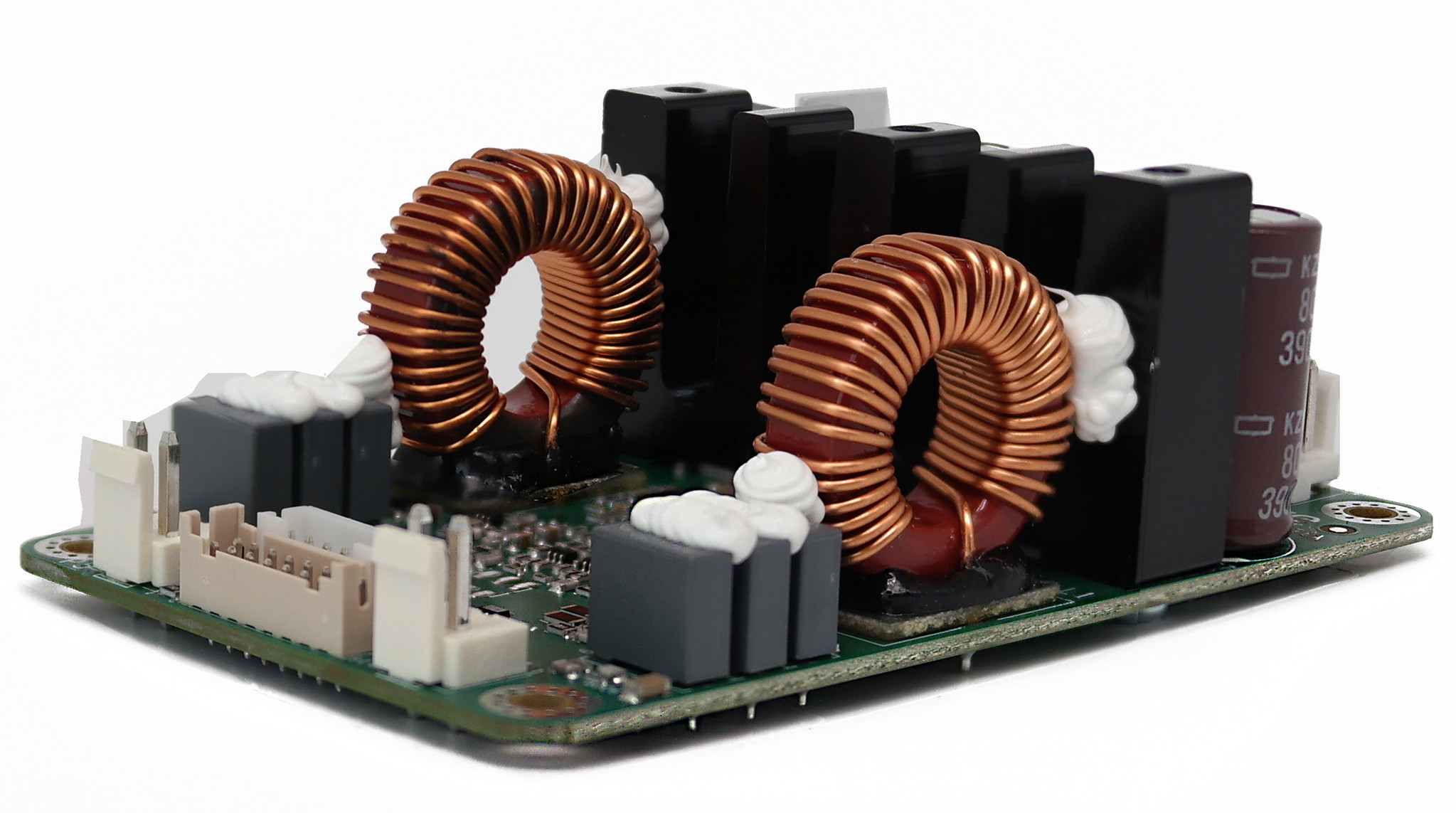

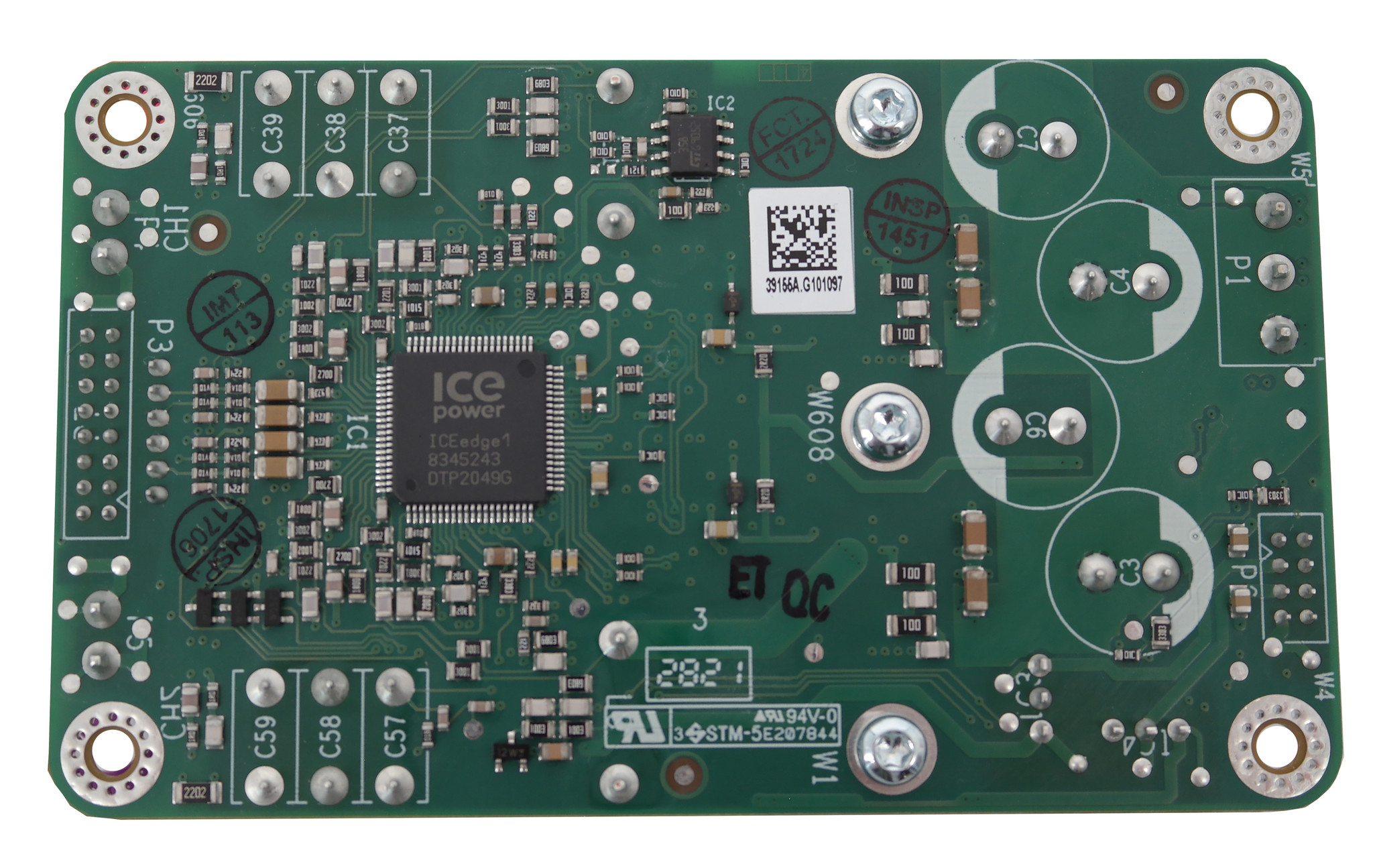

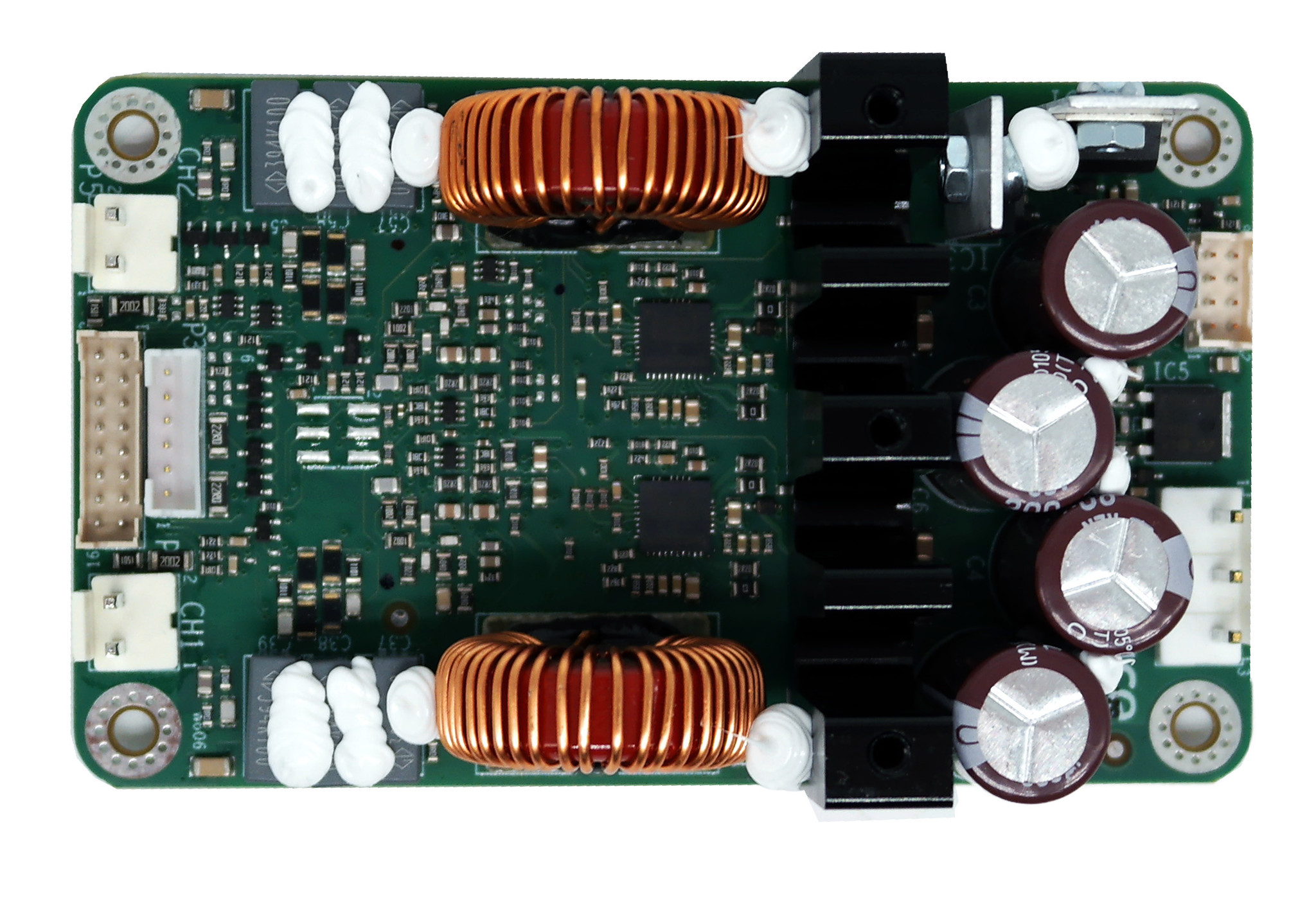

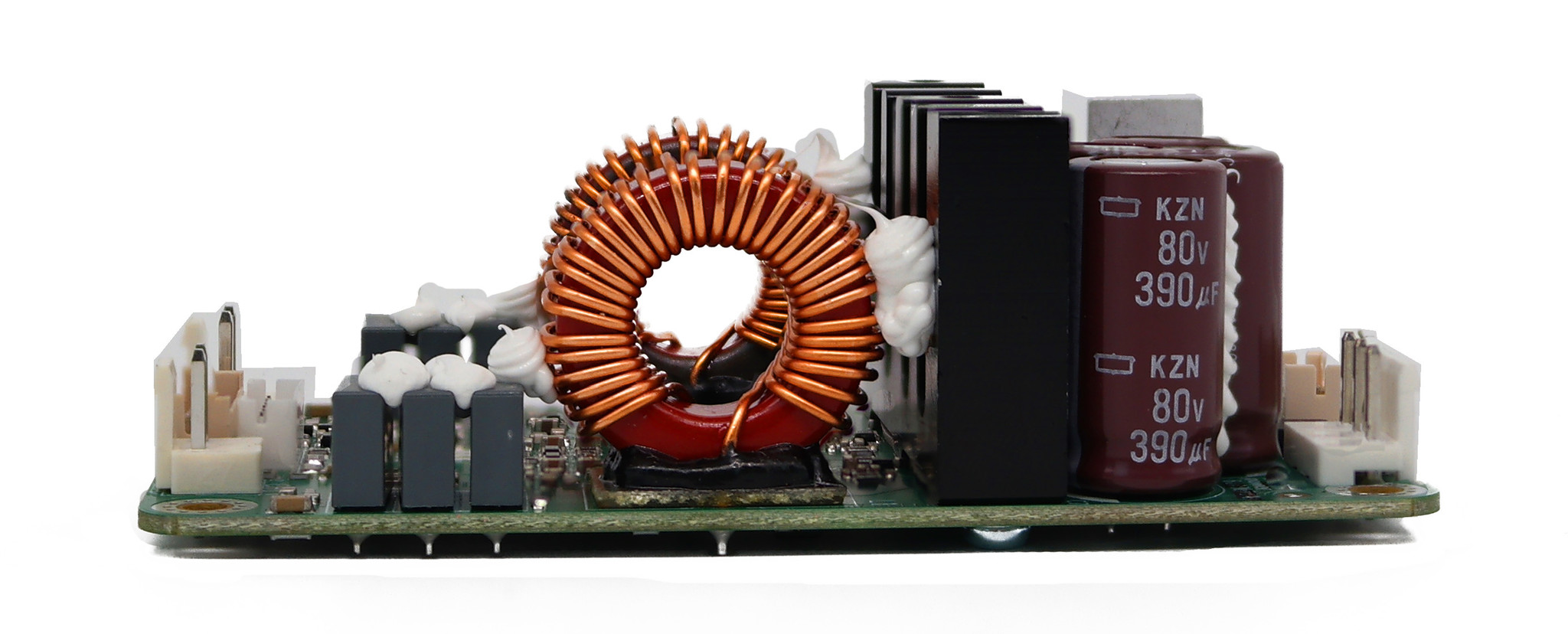

ICEpower 400A2 Amplifier Module

The 400A2 two-channel amplifier module, capable of high output power with the outstanding sound quality from a small footprint. It is the most powerful hanger module from the ICEpower AS-series in our amplifier module category. The 400A2 incorporates the latest in state of the art, custom and patented ICEedge Chipset technology. This allows for high voltage gain and superior sound quality with an ultra-low noise floor, of a typical 34 µV for a signal-to-noise ratio of 121.5 dB. This efficient audio power amplifier is intended for driving two 4Ω loudspeakers or one 8Ω speaker in BTL mode. It is specifically designed to work well with the 1500S-69V power supply module and from the DC hanger bus of the 1200AS1 or 1200AS2.

This amplifier module provides extended protection and monitoring functions with an easy-to-use control interface. Additionally, dedicated monitor outputs for loudspeaker connector output voltage enables a real-time protection system of the loudspeaker. The 400A2 is designed for high output power, making it ideal for applications requiring sustained output power and high output voltage not only for home hi-fi but also for demanding studio monitors and high-performance amplifiers for PRO audio speakers as well. The integrated aluminium heatsink can easily be extended to an external heatsink for improved long term output power.

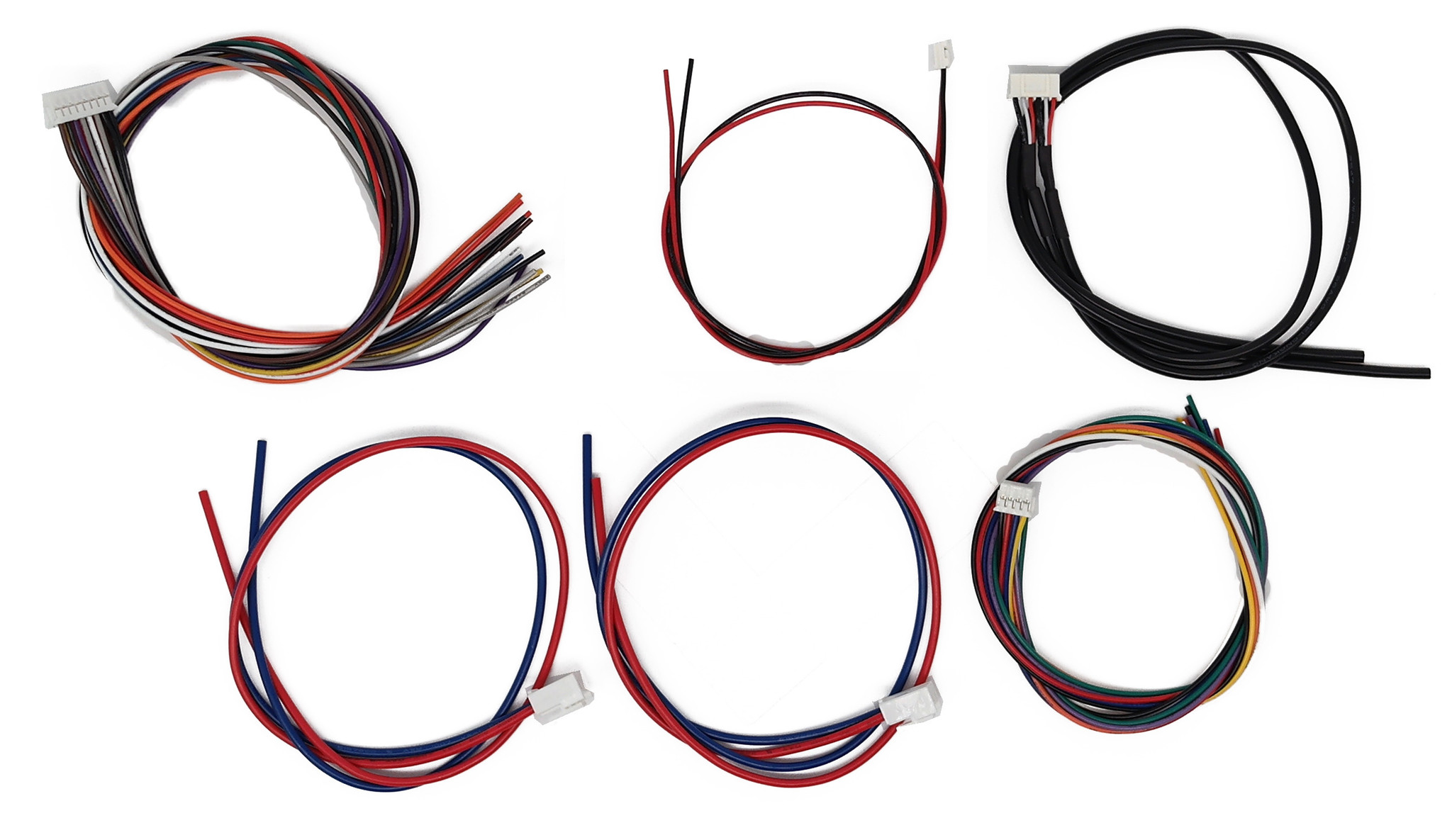

Cable set

The included cable set gives access to all the features of the 400A2 module. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

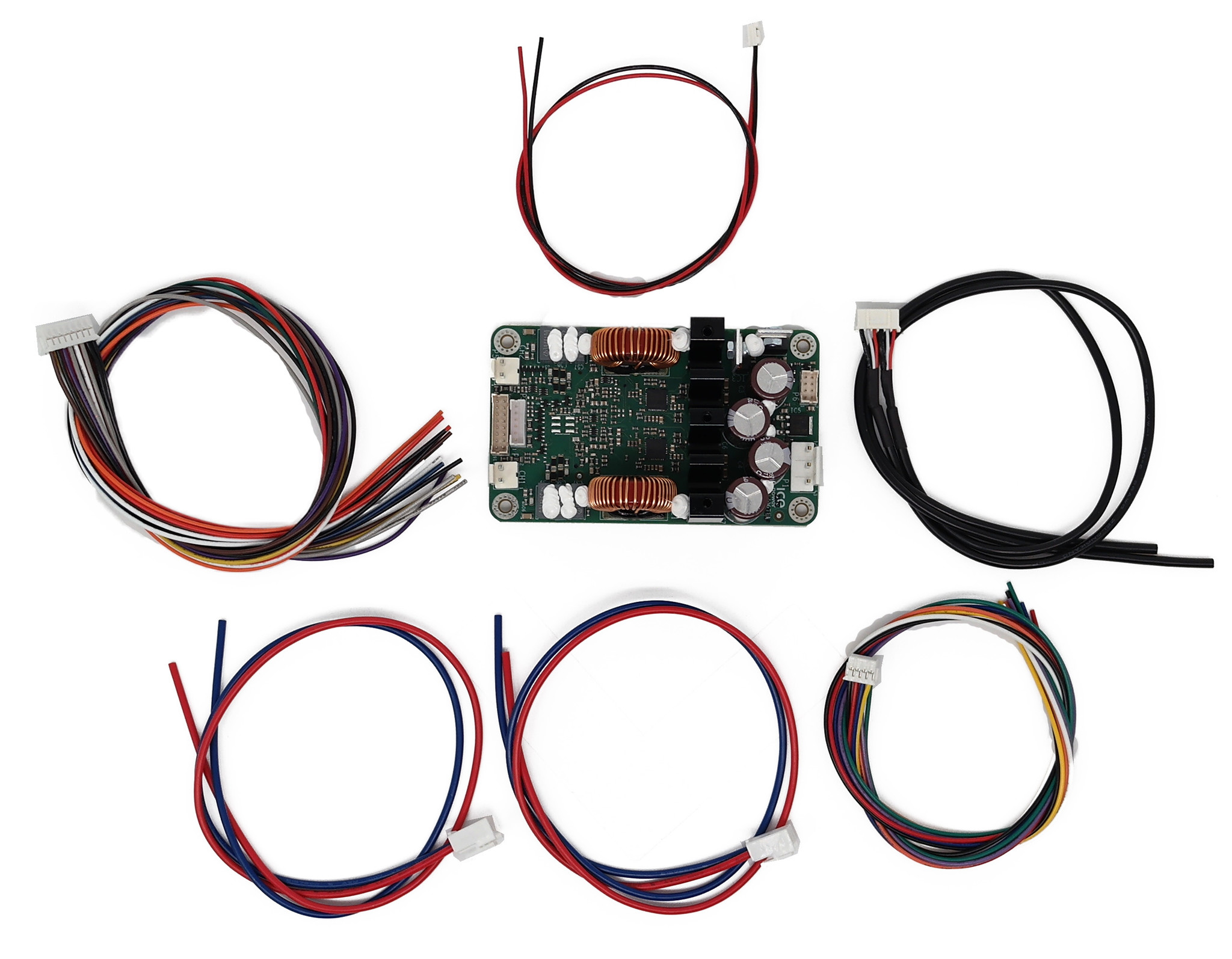

What’s In The Box?

1 x 400A2 amplifier module
Cable set:
- 1 x (NA) Audio input 2 channel
- 1 x (NH) Hanger Small Signal Supply
- 2 x (F) 2pole Universal Speaker
- 1 x (NK) Basic+ control/features (16 pins)
- 1 x (NG) Hanger Rail Supply

Specifications

Article number: 400A2
Rated power output: 2x 400 watts at SE, 4 ohms
1x 800 watts at BTL 8 ohms
Minimum load: 3.5 Ohm
Efficiency: > 90%
Distortion: 0.003 % THD+N
Gain: 29.4 dB
Input impedance: 38 kOhm
Amplifier Classification: Class D
Speaker output channels: 2
Current limit: 20 A

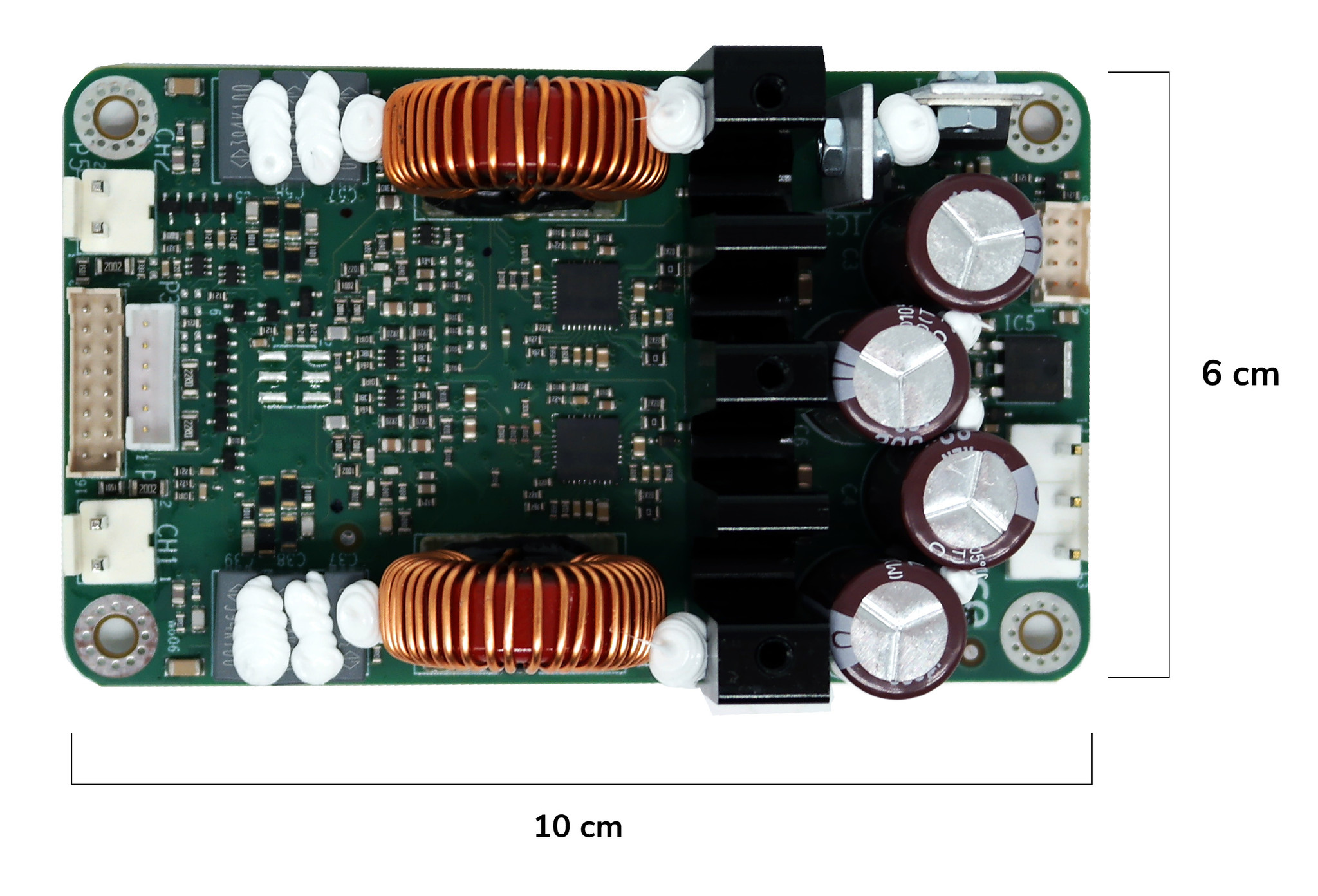

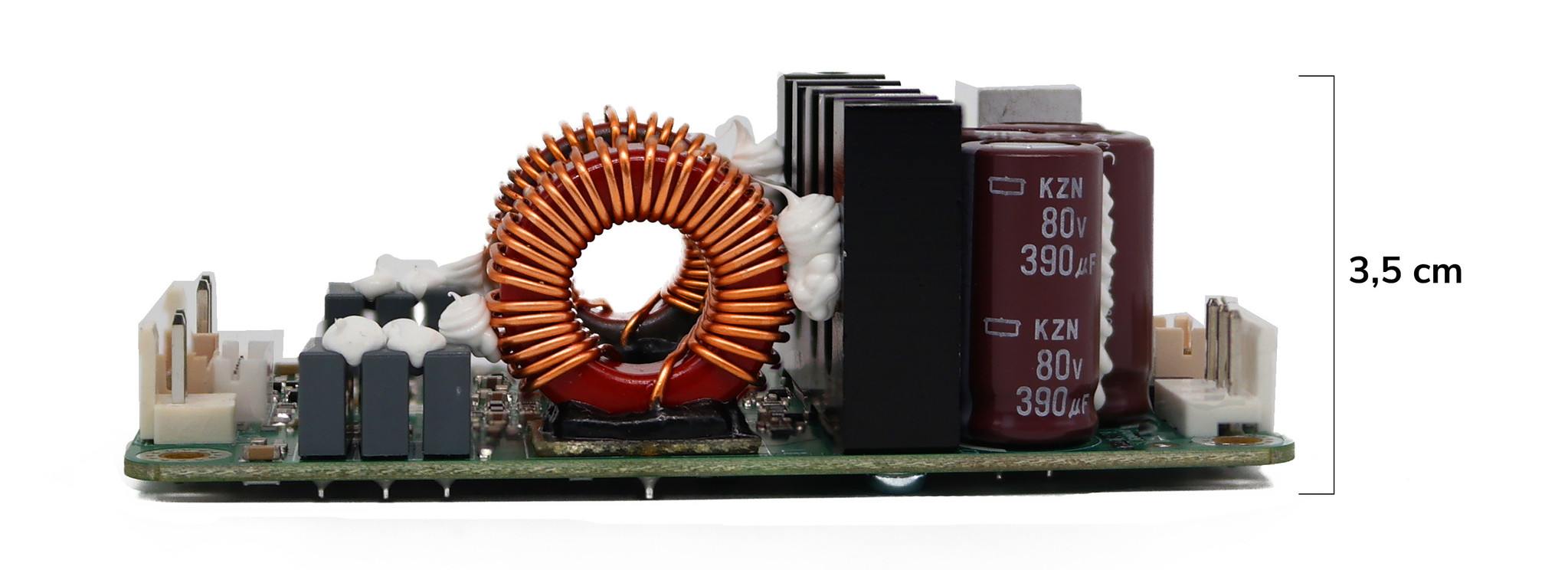

Dimensions (L x W x H): 100 x 60 x 35 mm
Mounting hole diameter: 3.5 mm

Reviews

2 reviews

Review this product

4 of 5

Het gaat zoals het zou moeten gaan. Top service!

By Gerrit on 22 December 2023

5 of 5

I have it hooked up as a "hanger module" on a 1200as2 right now and it was super easy to set up and works great. extremely quiet even with unbalanced inputs with woofers hooked up directly to output( active speakers) . Module stays cool with just a low rpm fan blowing at it . very pleased overall

By Brendan on 24 May 2023
