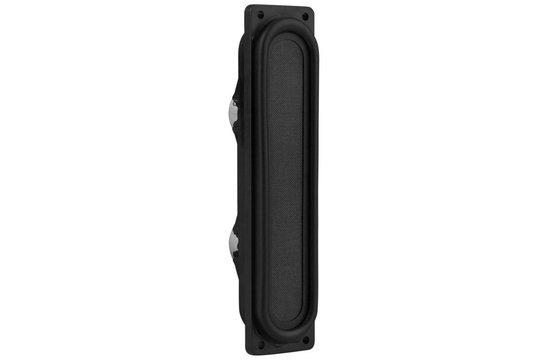

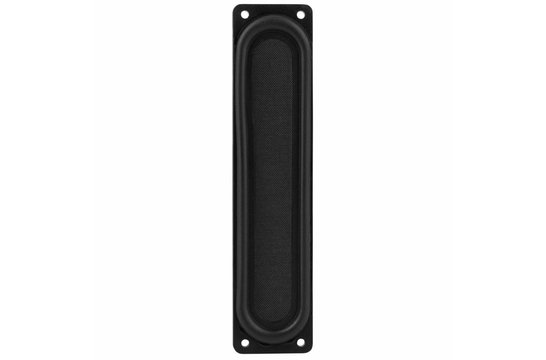

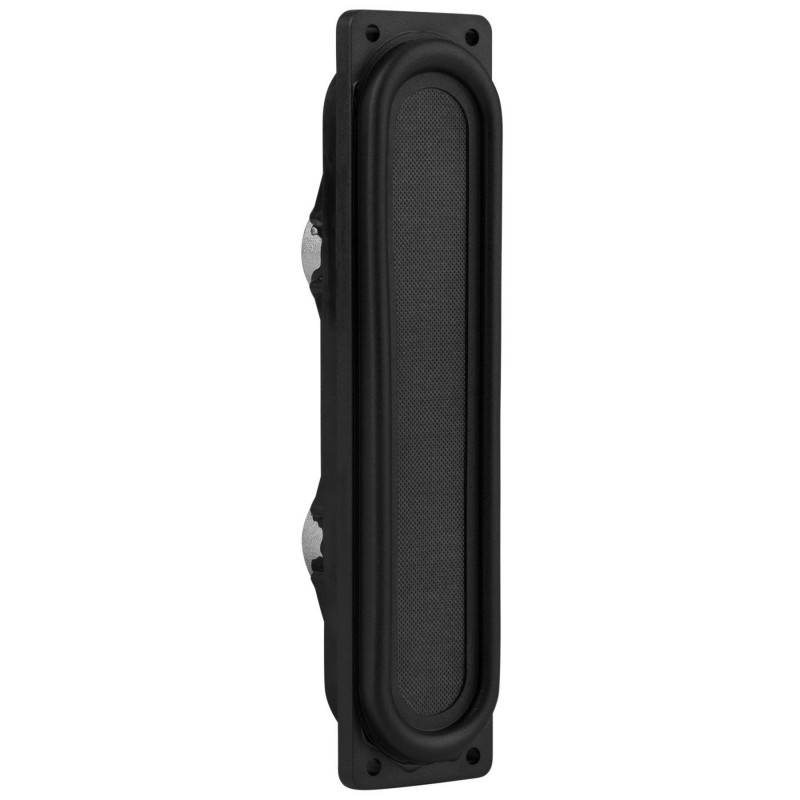

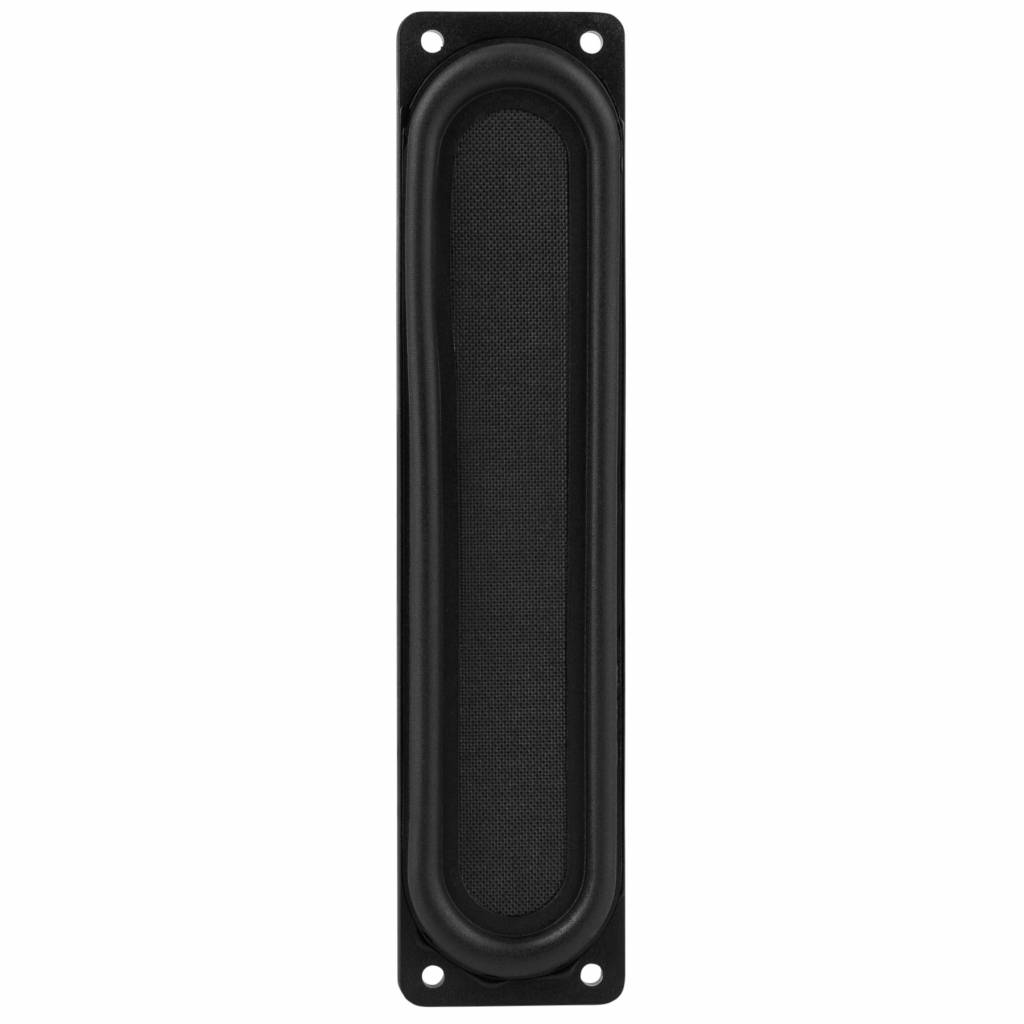

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm

Currently not in stock, delivery time is 1 week

  • Article code: HARB252-8
  • Out of stock

The Dayton Audio HARB252-8 1"x 5" full-range driver features a uniquely narrow form factor whose shape is implemented by employing tandem magnetic assemblies.

€ 17,45 Incl. 21% VAT

  • Buy 4 for €16,58 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm

The Dayton Audio HARB252-8 1"x 5" full-range driver features a uniquely narrow form factor whose shape is implemented by employing tandem magnetic assemblies.



Highlights

  • High Aspect Ratio transducer fits in unconventional enclosures

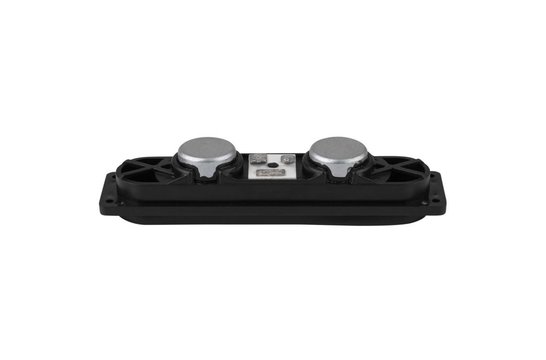

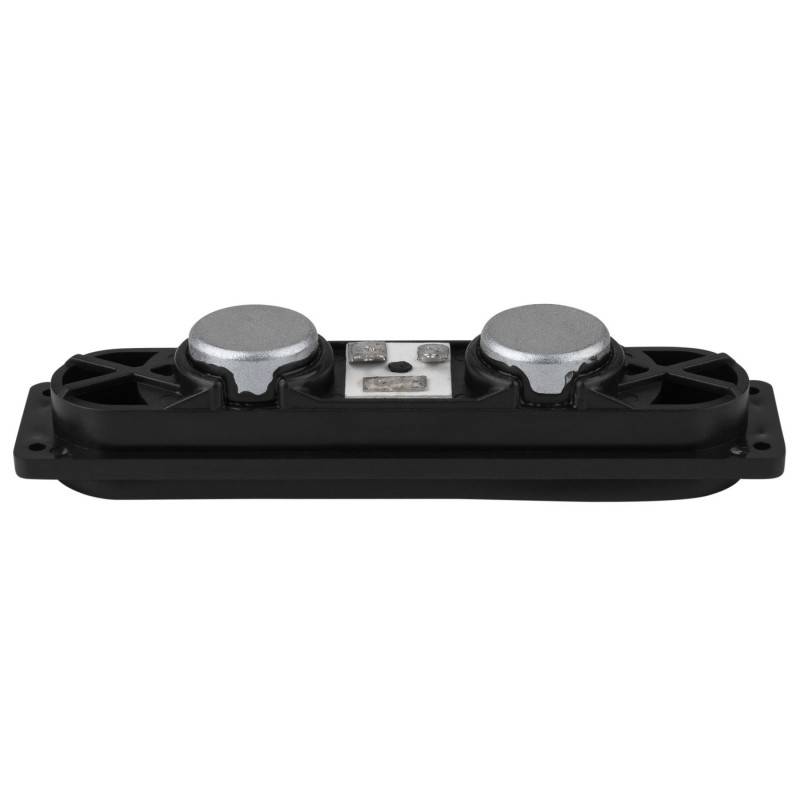

  • Dual neodymium magnet motors maintain narrow mounting profile
  • Amazing off-axis frequency response
  • Great for use in line arrays and low profile bar speakers



Product details

Dayton Audio HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm



The unique shape and full frequency range of Dayton Audio's HARB252-8 1"x 5" dual motor full-range driver permits applications where other drivers simply won’t fit. Place it horizontally as the mid or full-range driver for a center channel/monitor stand, or vertically as a desk-top/computer speaker.

Specifications

Specifications for: HARB252-8 1" x 5" Dual Motor High Aspect Ratio BMT Speaker Driver 8 Ohm

  • Woofer Series Specific woofer production line of the manufacturer.
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer.
  • Nominal Diameter The approximate diameter of the driver, measured in inches.
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 10 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 20 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 77 dB @ 2.83V/1m
  • Frequency Response 150 - 17,000 Hz
  • Voice Coil Diameter 0.63 mm
  • Magnet Weight
  • DC Resistance (Re) 7.2 ohms
  • Voice Coil Inductance (Le) 0.09 mH @ 1 kHz
  • Resonant Frequency (Fs) 172.11 Hz
  • Mechanical Q (Qms) 4.23
  • Electromagnetic Q (Qes) 2.98
  • Total Q (Qts) 1.74
  • Diaphragm Mass Inc. Airload (Mms) 3.2g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.3 mm/N
  • Surface Area of Cone (Sd) 21.2 cm²
  • Volume of Displacement (Vd) 2.6 cm³
  • BL Product (BL) 3.04 Tm
  • Compliance Equivalent Volume (Vas) 0.19 liters
  • Maximum Linear Excursion (Xmax) 1.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 5.16"
  • Overall Depth 1.14"
  • Baffle Cutout Diameter 0.82"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.026 ft.³
  • Sealed F3 128 Hz
  • Vented Volume
  • Vented F3
