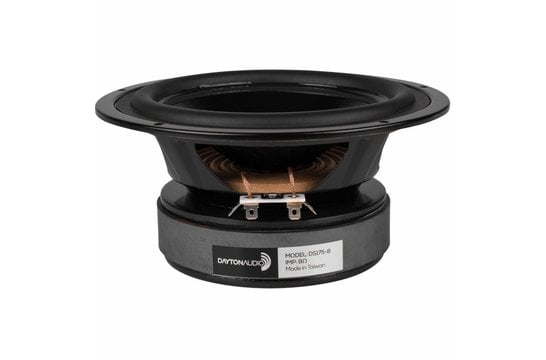

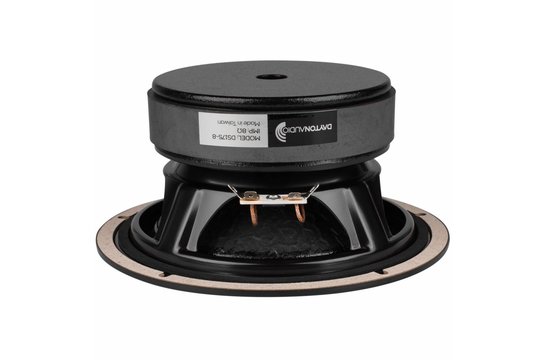

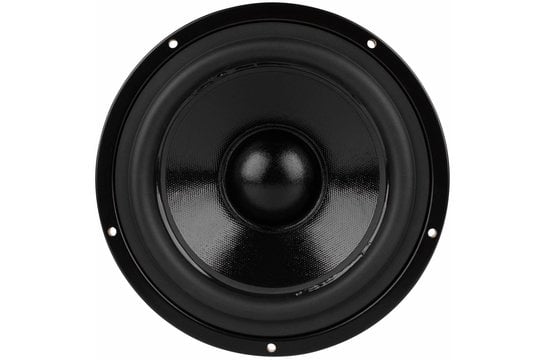

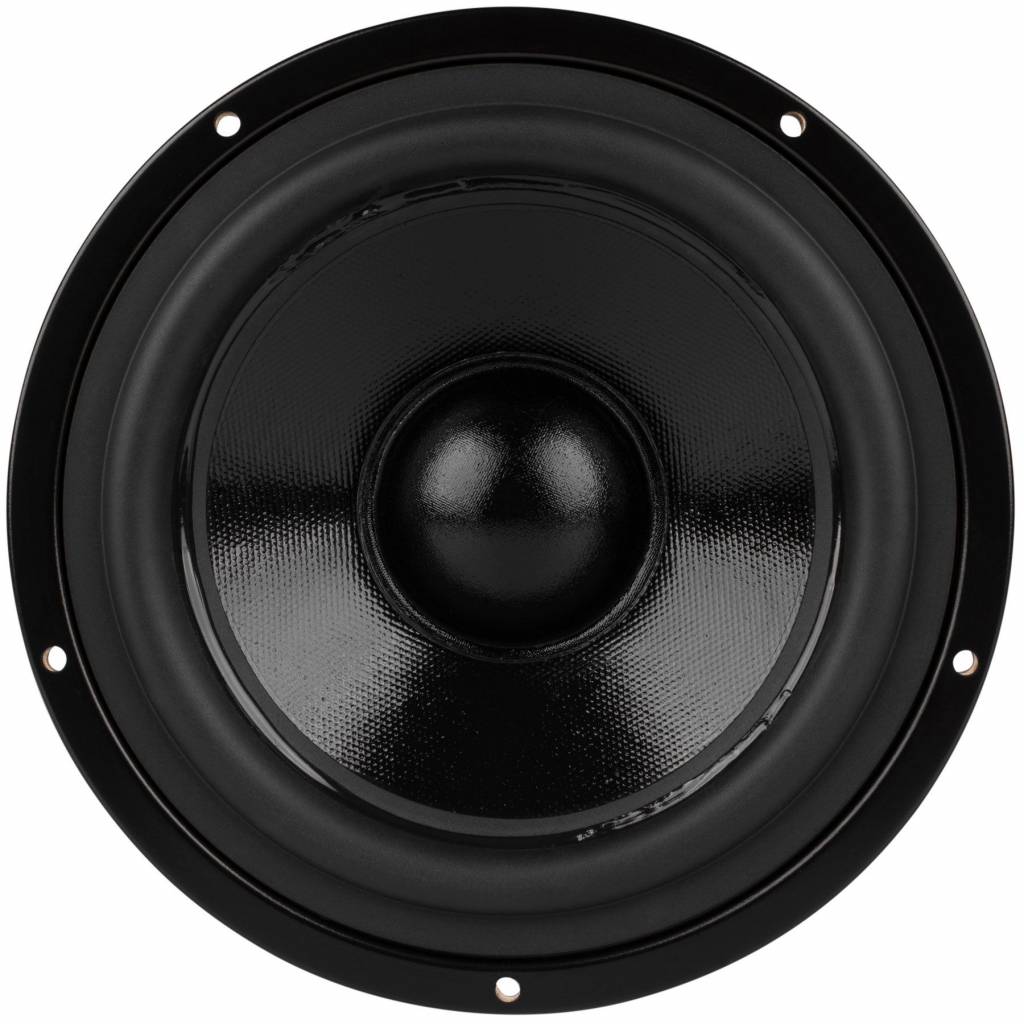

Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker

In stock

  • Article code: DS175-8
  • Stock: >10 In stock

Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 40 Hz* without exceeding Xmax is very impressive!

€ 43,25 Incl. 21% VAT

  • Buy 4 for €41,09 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker

Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 40 Hz* without exceeding Xmax is very impressive!



Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



Product details

Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker



The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.



These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



Specifications

Specifications for: DS175-8 6-1/2" Designer Series Woofer Speaker

  • Woofer Series Specific woofer production line of the manufacturer. Designer Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Midwoofer
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 6.50"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 70 watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 140 watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 87.7 dB @ 2.83V/1m
  • Frequency Response 40 - 4,500 Hz
  • Voice Coil Diameter 35.5 mm
  • Magnet Weight 33 oz.
  • DC Resistance (Re) 5.7 ohms
  • Voice Coil Inductance (Le) 1.06 mH @ 1 kHz
  • Resonant Frequency (Fs) 37 Hz
  • Mechanical Q (Qms) 1.63
  • Electromagnetic Q (Qes) 0.32
  • Total Q (Qts) 0.27
  • Diaphragm Mass Inc. Airload (Mms) 26g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.71 mm/N
  • Surface Area of Cone (Sd) 128.7 cm²
  • Volume of Displacement (Vd) 67.6 cm³
  • BL Product (BL) 10.4 Tm
  • Compliance Equivalent Volume (Vas) 17 liters
  • Maximum Linear Excursion (Xmax) 5.25 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Coated Paper
  • Surround Material Rubber
  • Voice Coil Wire Material Copper
  • Voice Coil Former Aluminum
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Shielded
  • Overall Outside Diameter 175.6 mm
  • Overall Depth 80.6 mm
  • Baffle Cutout Diameter 144 mm
  • Bolt Circle Diameter
  • # Mounting Holes 5
  • Mounting Hole Diameter
  • Sealed Volume 0.1 ft.³
  • Sealed F3 106 Hz
  • Vented Volume 0.2 ft.³
  • Vented F3 67 Hz
