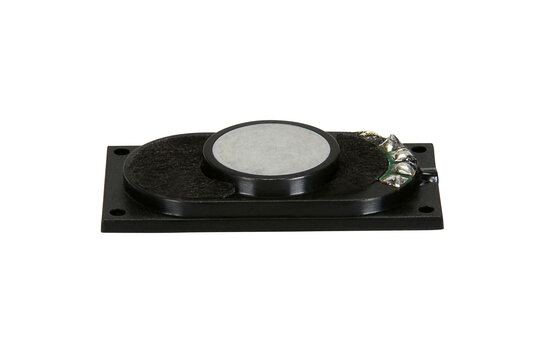

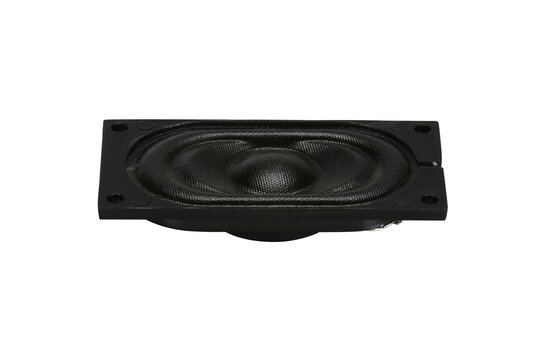

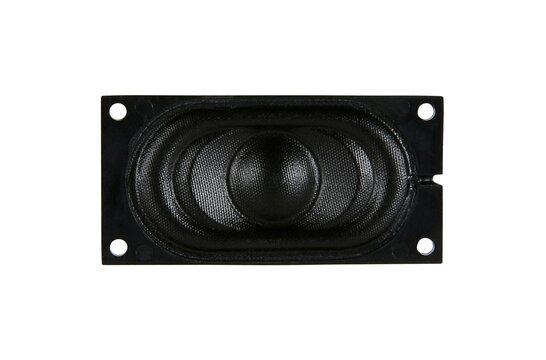

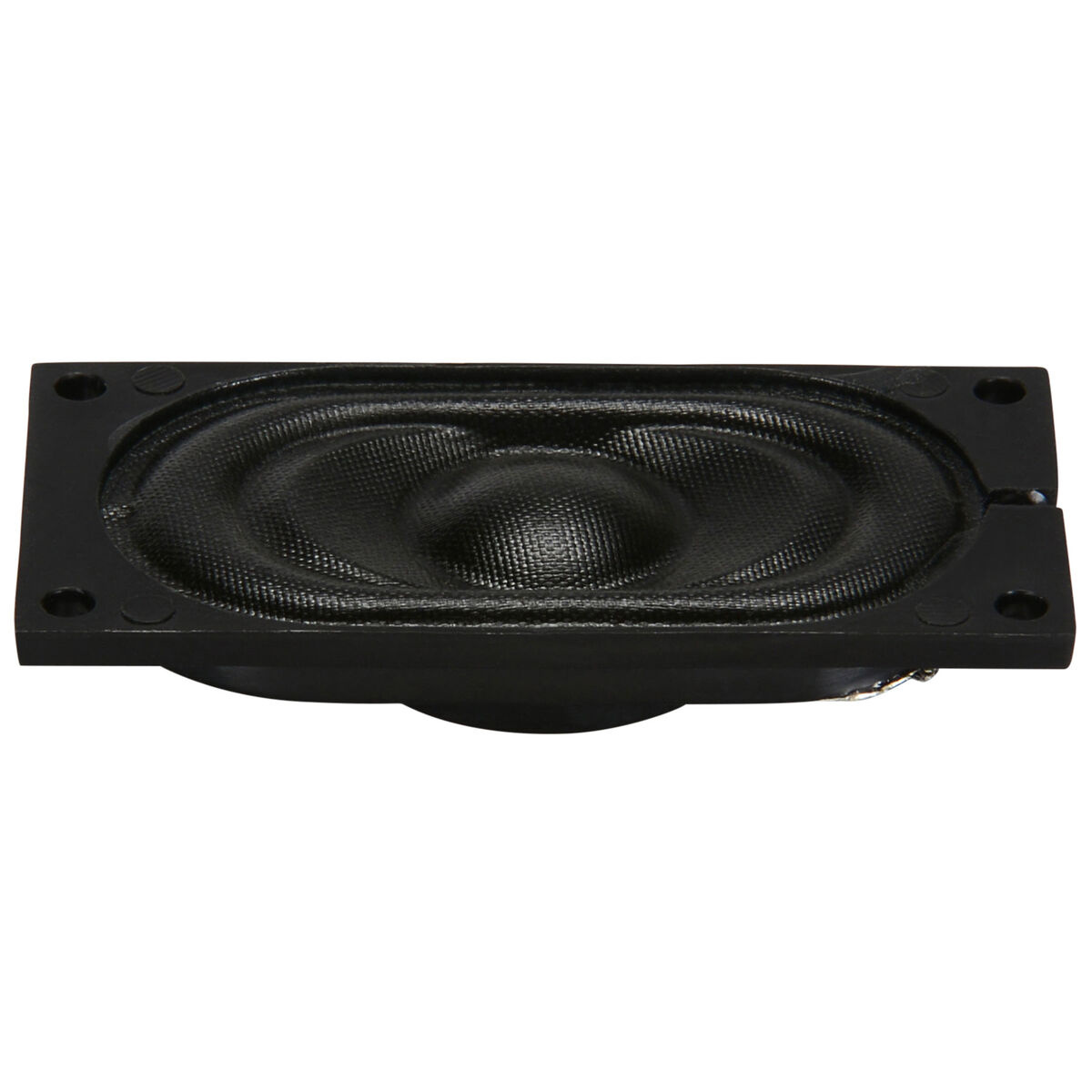

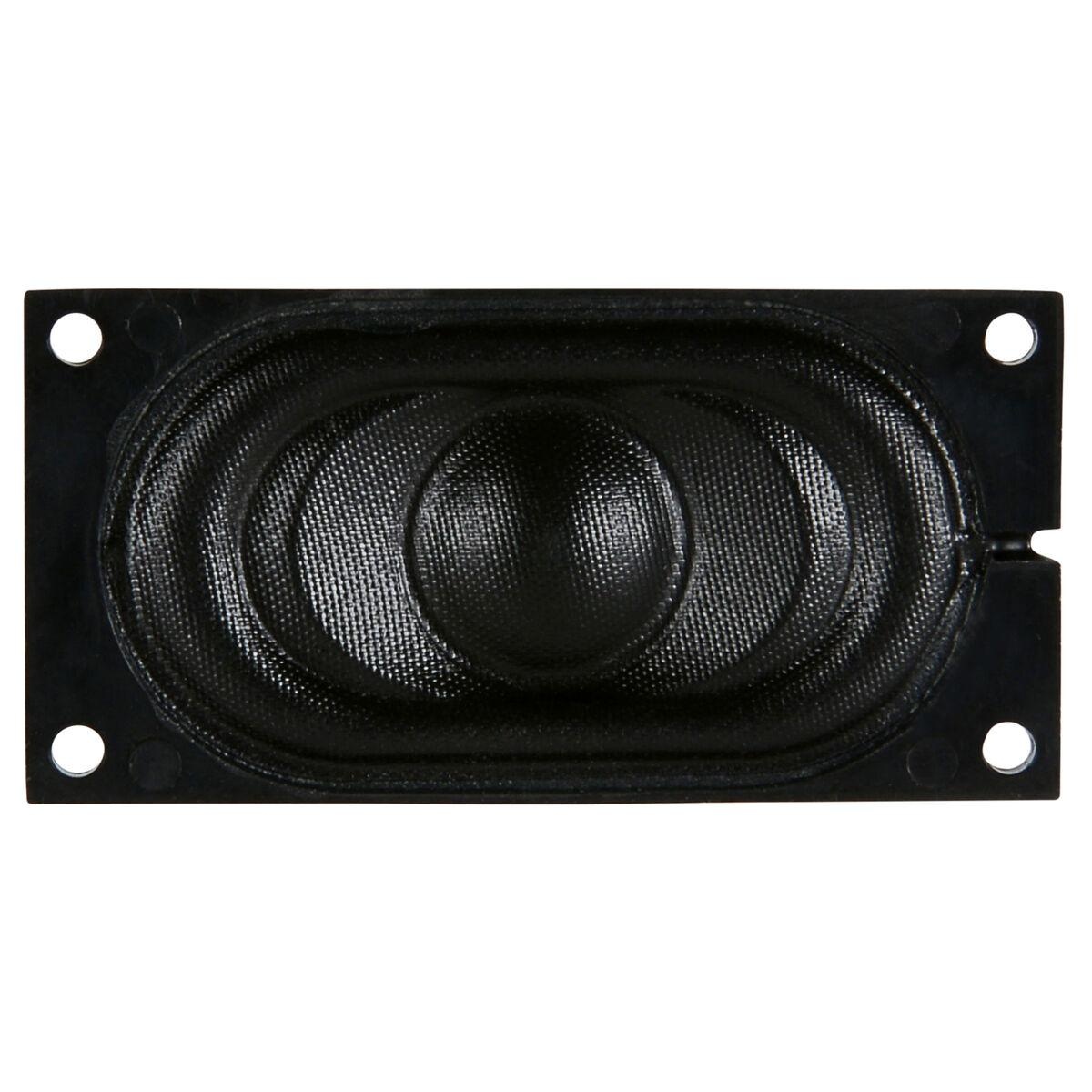

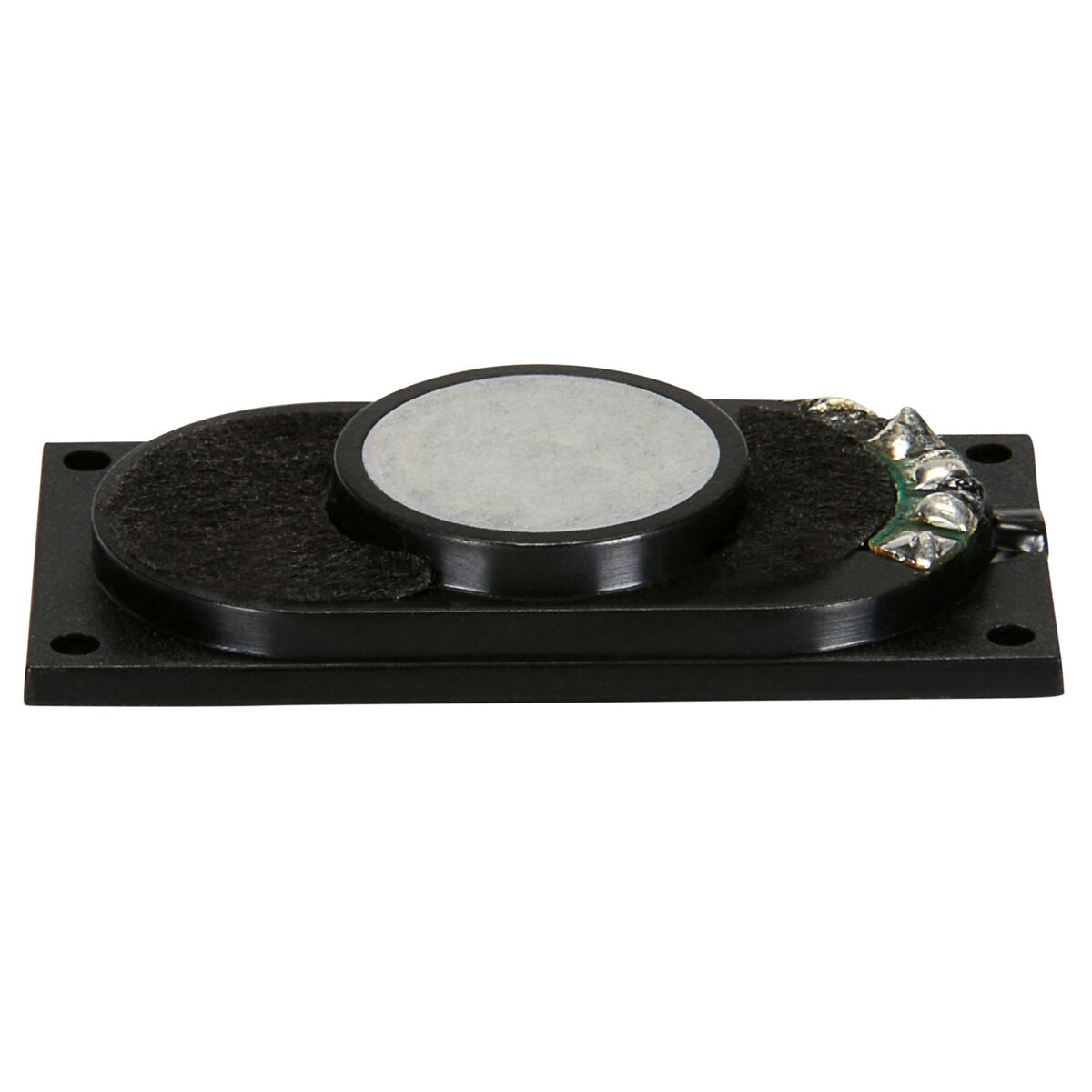

Dayton Audio CE40-20F-8 1-1/2" x 3/4" Mini Speaker

In stock

  • Article code: CE40-20F-8
  • Stock: 5 In stock

Dayton Audio’s CE40-20F-8 is a unique mini-speaker featuring a treated fabric diaphragm for smooth, natural sound with excellent self-damping. Try it as a mini-tweeter!

€ 3,95 Incl. 21% VAT

  • Buy 4 for €3,75 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio CE40-20F-8 1-1/2" x 3/4" Mini Speaker

Dayton Audio’s CE40-20F-8 is a unique mini-speaker featuring a treated fabric diaphragm for smooth, natural sound with excellent self-damping. Try it as a mini-tweeter!



Highlights

  • Lightweight treated fabric diaphragm
  • Rugged plastic frame with 4 holes for easy mounting
  • Powerful neodymium magnet
  • Use as a tweeter or extended range driver



Product details

Dayton Audio CE Series CE40-20F-8 1-1/2" x 3/4" Mini Speaker 8 Ohm



The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.



The Dayton Audio CE40-20F-8 is a compact rectangular mini-speaker featuring a racetrack-shaped, coated fabric diaphragm for extremely low resonance and excellent detail from a small driver. The highly damped diaphragm is an excellent choice for use as an extended-range mini speaker in laptops and flat-screen displays, or as a mini-tweeter to complement small woofers.

Specifications

Specifications for: CE40-20F-8 1-1/2" x 3/4" Mini Speaker

  • Woofer Series Specific woofer production line of the manufacturer.
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer.
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 1" x 2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 1 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 2 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 76 dB 2.83V/1m
  • Frequency Response 500 to 20,000 Hz
  • Voice Coil Diameter 0.50"
  • Magnet Weight
  • DC Resistance (Re) 6.76 ohms
  • Voice Coil Inductance (Le) 0.36 mH
  • Resonant Frequency (Fs) 695 Hz
  • Mechanical Q (Qms) 1.67
  • Electromagnetic Q (Qes) 11.91
  • Total Q (Qts) 1.46
  • Diaphragm Mass Inc. Airload (Mms) 0.11g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.47 mm/N
  • Surface Area of Cone (Sd) 3.5 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 0.53 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Soft Dome
  • Surround Material Cloth
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter 1.57" x 0.78"
  • Overall Depth 0.23"
  • Baffle Cutout Diameter 1.40" x 0.74"
  • Bolt Circle Diameter
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
