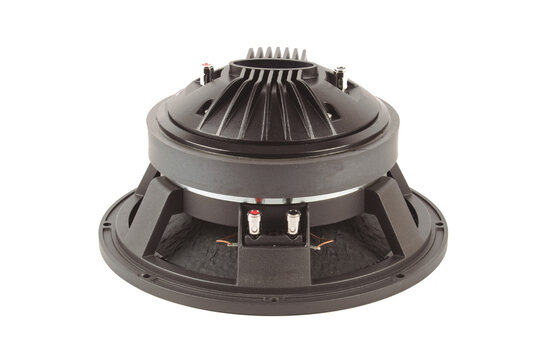

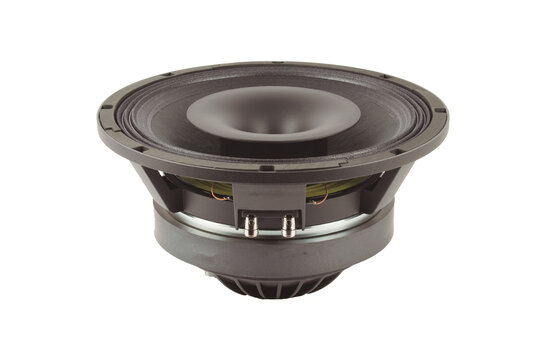

        12CXA400Fe Coaxial Woofer

        Beyma 12CXA400Fe Coaxial Woofer

        €419,95

        4 In stock

        Add to cart

        Beyma 12CXA400Fe Coaxial Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        12" | 8 Ω
        12CXA400Fe Coaxial Woofer
        12CXA400Fe Coaxial Woofer
        12CXA400Fe Coaxial Woofer
        12CXA400Fe Coaxial Woofer
        € 347,07€ 419,95 4 In stock
        • -5% Purchase 4 for only € 398,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12CXA400Fe Coaxial Woofer
        12CXA400Fe Coaxial Woofer
        12CXA400Fe Coaxial Woofer
        12CXA400Fe Coaxial Woofer

        Product description Beyma 12CXA400Fe Coaxial Woofer

        High-output 12-inch coaxial transducer with integrated compression driver and ferrite magnet, optimized for full-range systems with controlled dispersion and smooth frequency integration.



        Highlights of the Beyma 12CXA400Fe

        • 800 W / 160 W program power handling (LF / HF) with 96 / 105 dB sensitivity
        • 4” woofer and 2.85” compression driver with shared ferrite magnet
        • Flat response from 40 Hz to 20,000 Hz and 60° horn coverage for precise HF control
        • Weatherproof LF cone and demodulating rings in both sections for reduced distortion



        Product details Beyma 12CXA400Fe

        Beyma 12CXA400Fe Coaxial Transducer



        The Beyma 12CXA400Fe is a robust 12” coaxial transducer built for full-range professional audio applications requiring powerful low-frequency performance and precise high-frequency dispersion in one integrated system. It delivers 400 W AES and 800 W program power in the LF section, paired with 80 W AES and 160 W program in the HF, all supported by excellent sensitivity ratings of 96 dB (LF) and 105 dB (HF). The unit combines a 4” voice coil woofer and a 2.85” compression driver mounted concentrically, using a shared ferrite magnet assembly for compact design and optimized acoustic alignment. The LF cone is weatherproof, while the HF driver features a composite Titanium/Polyester diaphragm for accurate and extended high-frequency reproduction. Ideal for bass-reflex cabinets and high-output enclosures, the 12CXA400Fe covers a full 40 Hz to 20 kHz range and is recommended with a crossover point at 1.5 kHz (minimum 12 dB/oct). Additional features include demodulating rings in both LF and HF sections to minimize harmonic distortion and a 60° coverage horn for consistent high-frequency dispersion. With a durable build and powerful acoustic performance, this transducer is suited for stage monitors, portable PA systems, and fixed installations demanding clarity, output, and spatial precision.

        Show more

        Specifications

        Article number
        12CXA400Fe
        EAN
        8435469042780
        Woofer Type
        Coaxial Transducer
        Nominal Diameter
        Woofer 12", Compression driver 2.85”
        Power Handling (RMS)
        400 Watts
        Continuous Program Power
        Woofer 800 Watts, Tweeter 160 Watts
        Impedance (Z)
        Woofer 8 Ω, Tweeter 16 Ω
        Sensitivity (SPL at 1m / 2.83V)
        Woofer 96 dB, Tweeter 105 dB
        Frequency Response
        40-20.000 Hz
        Voice Coil Diameter
        Woofer 4”, Compession driver 2.85”
        DC Resistance (Re)
        6.6 Ω
        Voice Coil Inductance (Le)
        1.1 mH
        Resonant Frequency (Fs)
        42 Hz
        Mechanical Q (Qms)
        7.2
        Electromagnetic Q (Qes)
        0.26
        Total Q (Qts)
        0.25
        Diaphragm Mass Inc. Airload (Mms)
        0,066 kg
        Mechanical Compliance of Suspension (Cms)
        220 µm / N
        Surface Area of Cone (Sd)
        0,055 m²
        Volume of Displacement (Vd)
        210 cm³
        BL Product (BL)
        19,8 N/A
        Compliance Equivalent Volume (Vas)
        94 Liters
        Maximum Linear Excursion (Xmax)
        +/- 6 mm
        Driver's Mechanical Losses (Rms)
        2,4 kg / s
        Magnet Material
        Ferrite
        Overall Outside Diameter
        312 mm
        Overall Depth
        165 mm
        Baffle Cutout Diameter
        283 mm
        Bolt Circle Diameter
        298 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        7 mm

        Show more
