Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

In stock

  • Article code: Up2Stream 2.1 AMP
  • Stock: >10 In stock

The Up2stream Amp 2.1 is a specialized wireless subwoofer amplifier module designed for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology.

€ 99,95 Incl. 21% VAT

  • Buy 4 for €94,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Highlights

  • Rotary Knob Control
  • Equipped with 50W*2 stereo pair + 100W high-powered subwoofer
  • First Wifi 2.1 amplifier board
  • Precisely EQ Adjustment
  • Wireless Connectivity



Product details

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board



The Up2stream Amp 2.1 is a specialized wireless subwoofer amplifier module designed for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology. With wifi, Bluetooth 5.0, Airplay, Spotify Connect, also DLNA and UPnP protocols for wireless control. It's worth mentioning that the sound quality via wifi streaming is without any compression and no distance limitation as long as your wifi signal is strong enough, which upgrades your home audio system to be more usable and enjoyable to listen to.

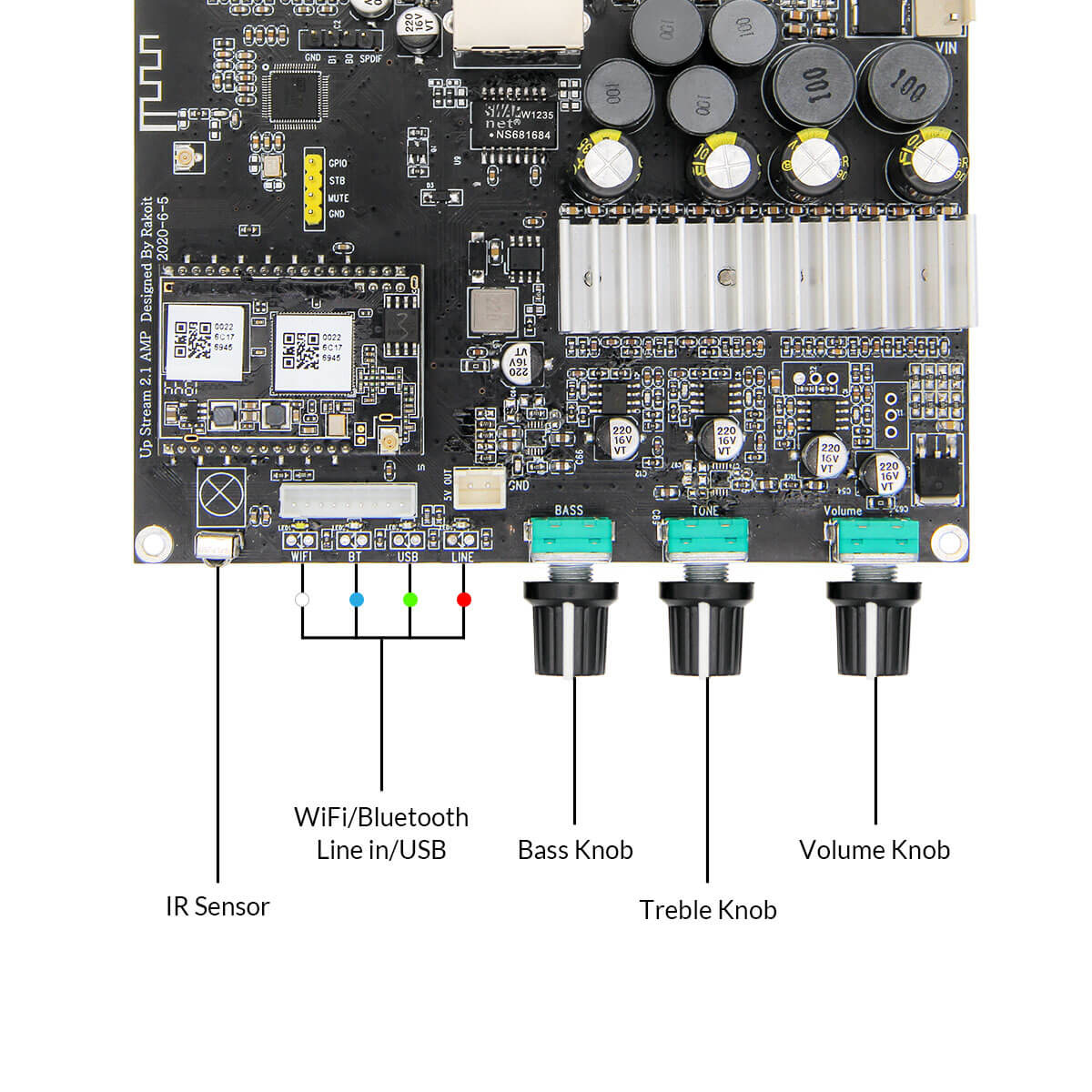

Besides adjusting the volume in real-time, you can also change your Treble and Bass while listening to your music through the corresponding knob. When it comes to audio products, especially subwoofers, players are very interested in EQ control. Up2stream Amp 2.1 can adjust Treble and Bass via remote control, app, and knobs, but the best way is to use our ACPWorkbench tuning tool, which adjusts EQ precisely.



Huge music resources supported like Spotify, Pandora, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheart Radio, Napster etc. Except online music, you also can play local music by NAS, USB storage where you have collected your favorite song for years. Streaming your audio all the way by Wifi, Bluetooth 5.0, DLNA, UpPnP, Airplay, Spotify Connect.



The App called “4stream” that is compatible to your iOS & Android system. All the features can be simply controlled by App. And you also can receive the notification for our regular online firmware update automatically in our App.

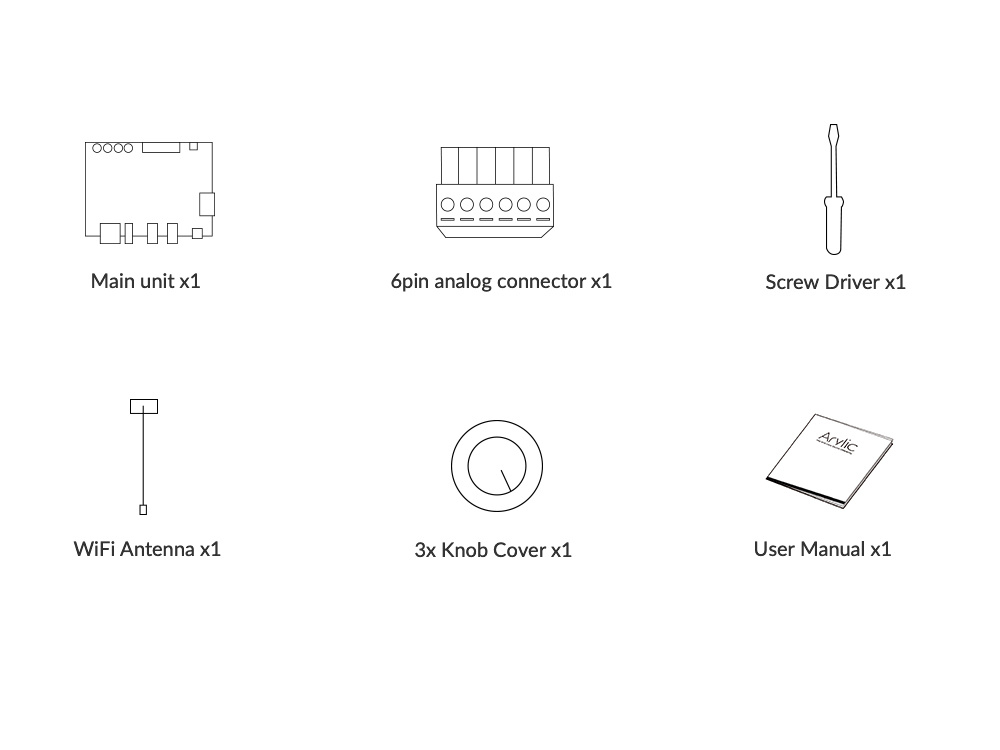

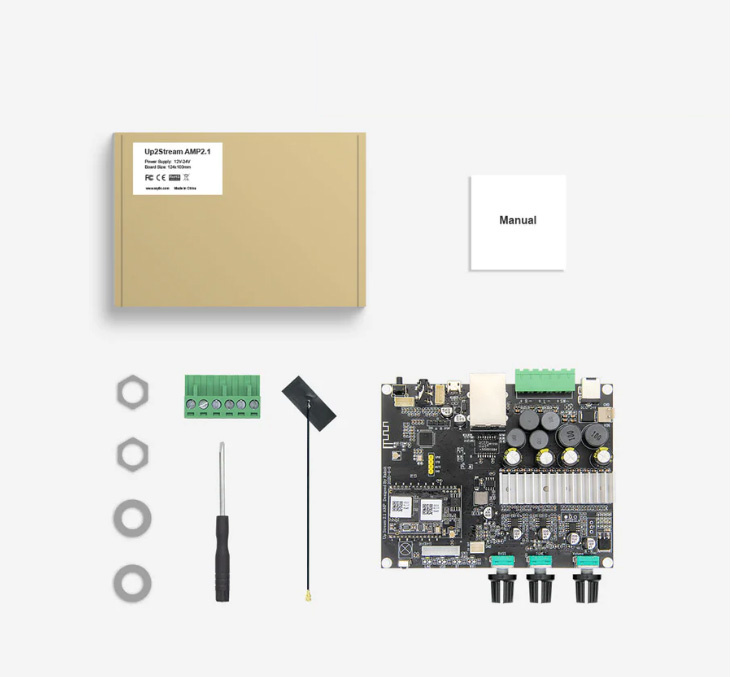

What’s in the box?

  • Up2Stream 2.1 Amp
  • 6-pin analog connector
  • Screw Driver
  • Wi-Fi Antenna
  • 3 x Know Cover
  • User manual

Specifications

Specifications for: Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

  • Rated power output (RMS) The electrical power measured in watts (W) that an amplifier can output per channel, without damaging the amplifier or the output signal is çlipped'. RMS = Root Mean Square. 2 x 50W @ 4Ω + 100W @ 2Ω BTL load at 24 V
  • Bridged power output (RMS) The electrical power expressed in watts (W) that an amplifier can output per bridged channel (2 x stereo to 1 x mono output), without damaging the amplifier or the output signal is çlipped'. RMS = Root Mean Squeare.
  • Minimum load Shows the minimum load that an amplifier can control in ohms. A lower impedance of a speaker is not recommended if it is lower than the minimum impedance of an amplifier. An amplifier works best when the impedance of the speaker falss within the impedance range that the amplifier prescribes (for example, 4 to 8 ohms). 4 Ohms
  • Signal-to-noise ratio (SNR) Shows the strength level of signal power compares to a level of noise power. Generally, higher values ​​means better specification.
  • Distortion SPEC Distortion <0.03%, @1kHz/1W/24V/4Ω
  • View all specifications
  • Distortion bridged
  • Efficiency
  • Frequency response 20Hz to 20kHz
  • Input impedance 4-8 Ohms
  • Input sensitivity
  • Auto turn-on sensitivity
  • DSP
  • DAC micro-USB DAC
  • Maximum sampling rate Up to 24bit/192kHz
  • Circuit Topology
  • Amplifier classification Class D
  • Speaker output channels
  • Subwoofer output channel
  • Analog in/out
  • Optical S/PDIF in/out
  • Coaxial in/out
  • RCA in/out
  • AUX in/out
  • Bus in/out
  • XLR in/out
  • USB Play USB music
  • Memory card slot
  • Network connection
  • Headphone jack
  • Subwoofer pre-out
  • Bluetooth 5.0, SBS/AAC
  • NFC
  • Wi-Fi IEEE802.11 b/g/n 2.4G
  • Banana plug compatible
  • Remote control Optional
  • App control
  • Auto turn-on
  • Accepted file formats
  • Equalizer (EQ) adjustment
  • Equalizer (EQ) profiles
  • Multi zone/room
  • Crossover frequency adjustment
  • Bridge mode
  • Power requirements
  • Power inlet connector
  • Power consumption
  • Stand-by power consumption
  • Dimensions (D x W x H) 124*100*25mm
  • Case material

Documenten

Reviews

User reviews 5 / 5 Reviews: (1)

  • TS By Tomas on 22-09-2020 14:14

    5 / 5

    Really impressive for the money.
    It's got enough power for any normal home use and plenty of connectivity, including AirPlay.
    Things I didn't like:
    - Getting the board to connect to my home wifi was a pain, I could connect my phone to board just fine, but then the app just didn't want to work with it - disable mobile data while doing this. After that, WiFi works just fine, amp remembers WiFi networks it was connected to and keeps a stable connection. Not having 5GHz wireless is no issue.
    - WPS button, which acts as on/standby switch, is on the back of the board by default. You can connect another one via a 9-pin header, though.
    - Not sure how to use SPDIF input, it's not in the inputs you can select by mode button and pressing it on the remote doesn't seem to do much. Board has a 5V output, so Toslink should be possible. Haven't really tried this yet, though, it's not an accessory you can buy with the amp.
    - USB connection is only live when USB input is selected. If you switch to other input, USB will disconnect. It wasn't reconnecting back on my PC by switching input back to USB, I had to unplug and plug the cable.

    Board also has a DSP, which is fantastic, but the application for programming it is sold separately - haven't had the opportunity to try it yet.
