Educational LCD Oscilloscope Kit

Name: Educational LCD Oscilloscope Kit
SKU: WSEDU08
Price: 69.95 EUR
Availability: InStock

0 reviews

Show all DIY electronics kits

Compare

NEW

€ 57,81€ 69,95 2 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Highlights

Power save mode
Test output: 1.95kHz / 3.3Vpp
High contrast LCD: 64 x 128 pixels with white LED backlight
Maximum sample rate: 1MS/s for repetitive signals, 100kS/s in real time
Trigger level adjustable: in 16 steps
Full auto set up for: Volt/div and time/div (or manual)

Product Details

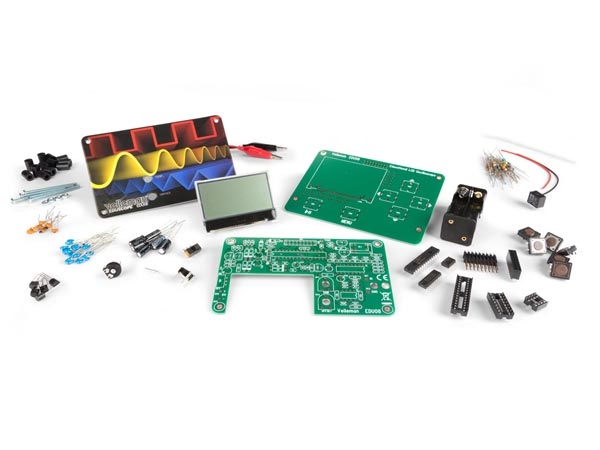

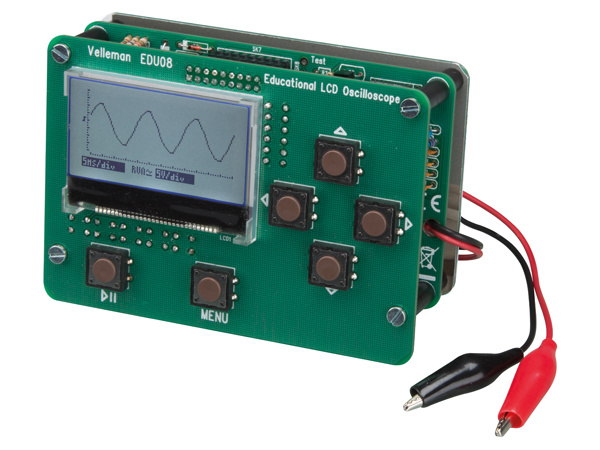

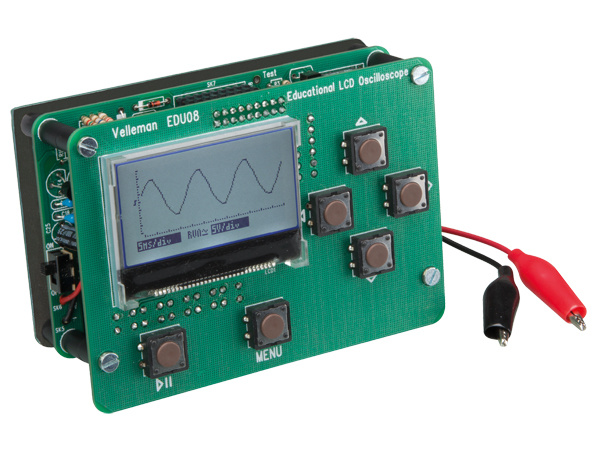

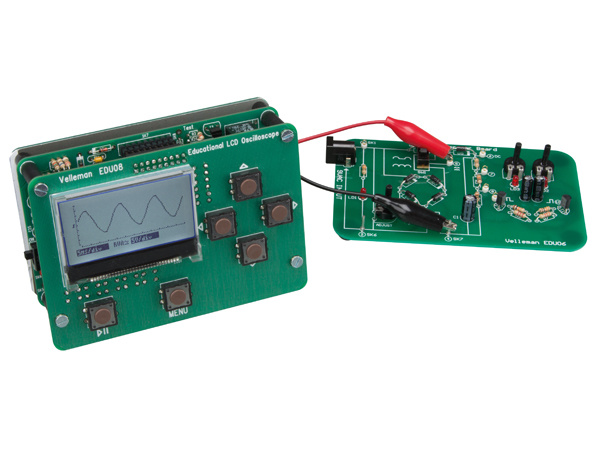

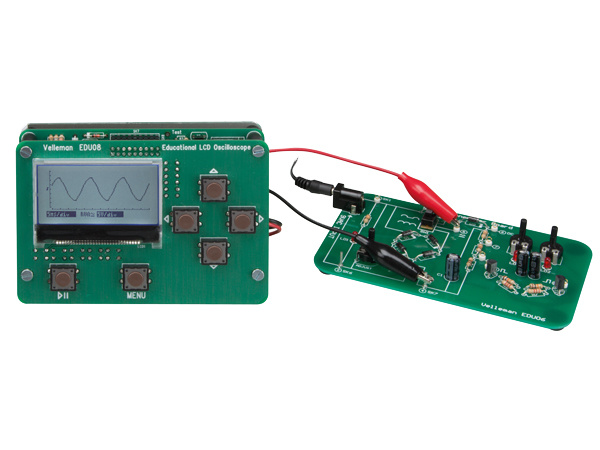

WSEDU08 Educational LCD Oscilloscope Kit

Build your own oscilloscope and learn how to visualize signals. See the signals you learn about in real life! Despite the low cost, this oscilloscope has a lot of features found only on expensive units like signal markers, frequency, dB, true RMS readouts,... A powerful auto-setup function will get you going in a snap!

Note: This scope cannot be used to perform measurements on voltages higher than 30Vpp.
