- Article number

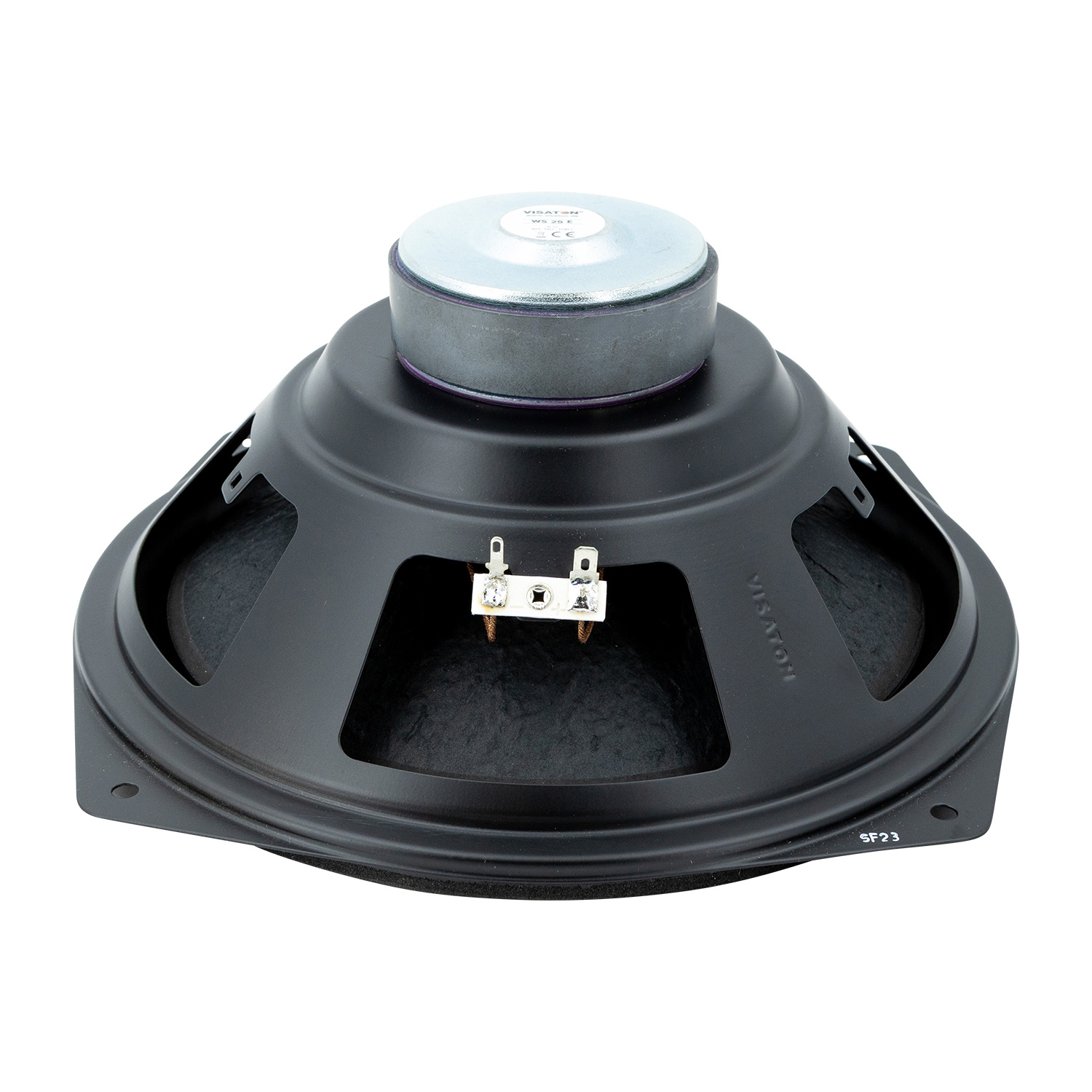

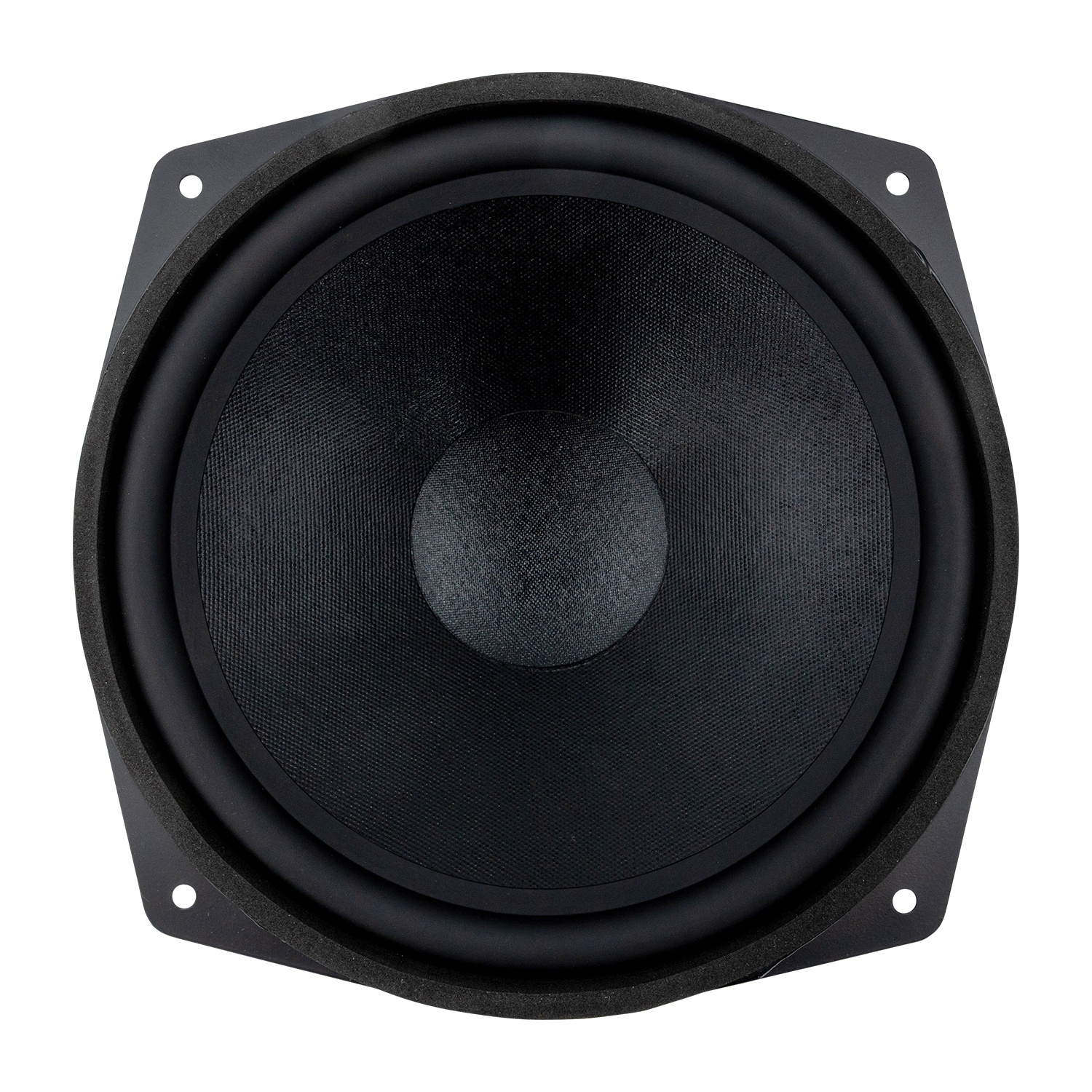

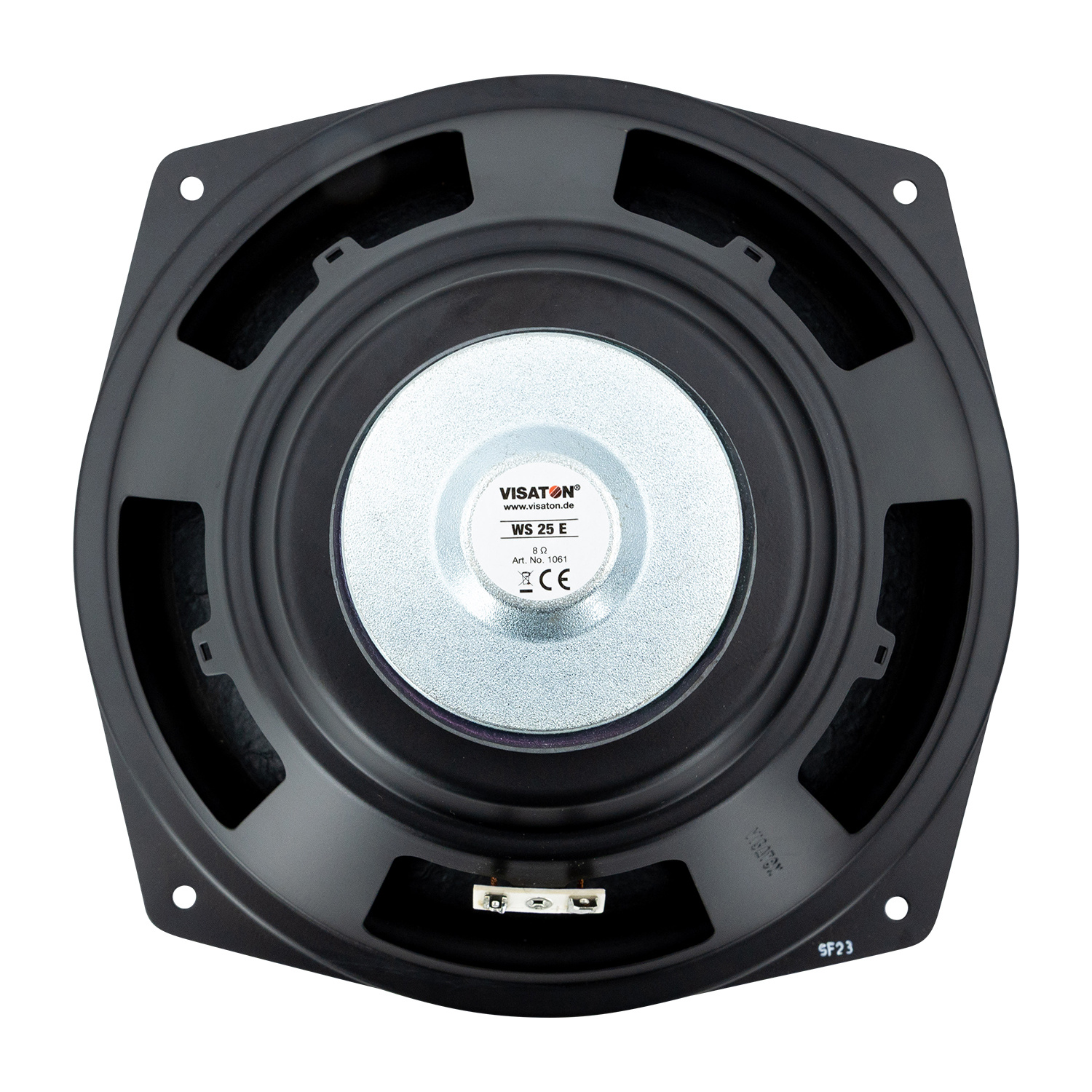

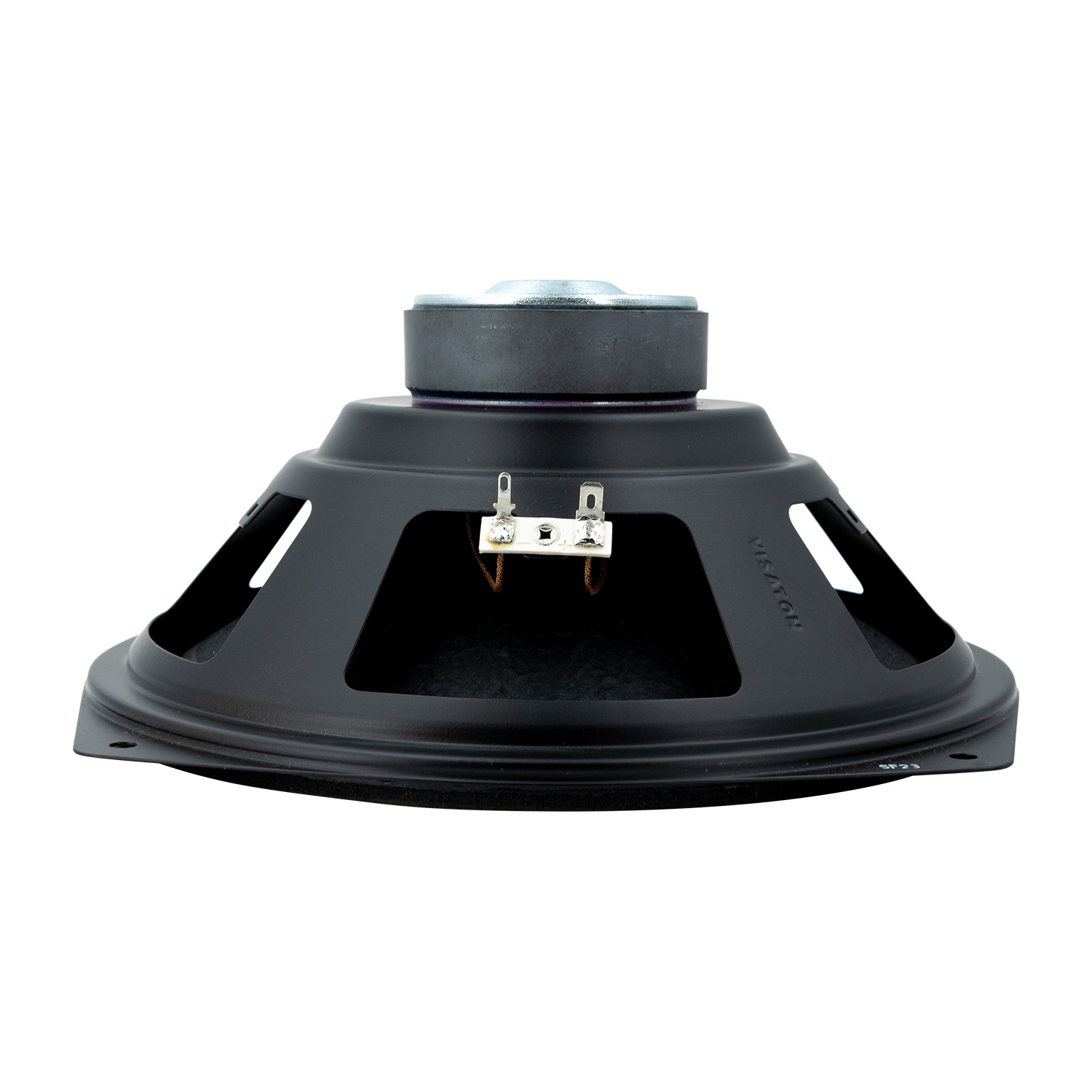

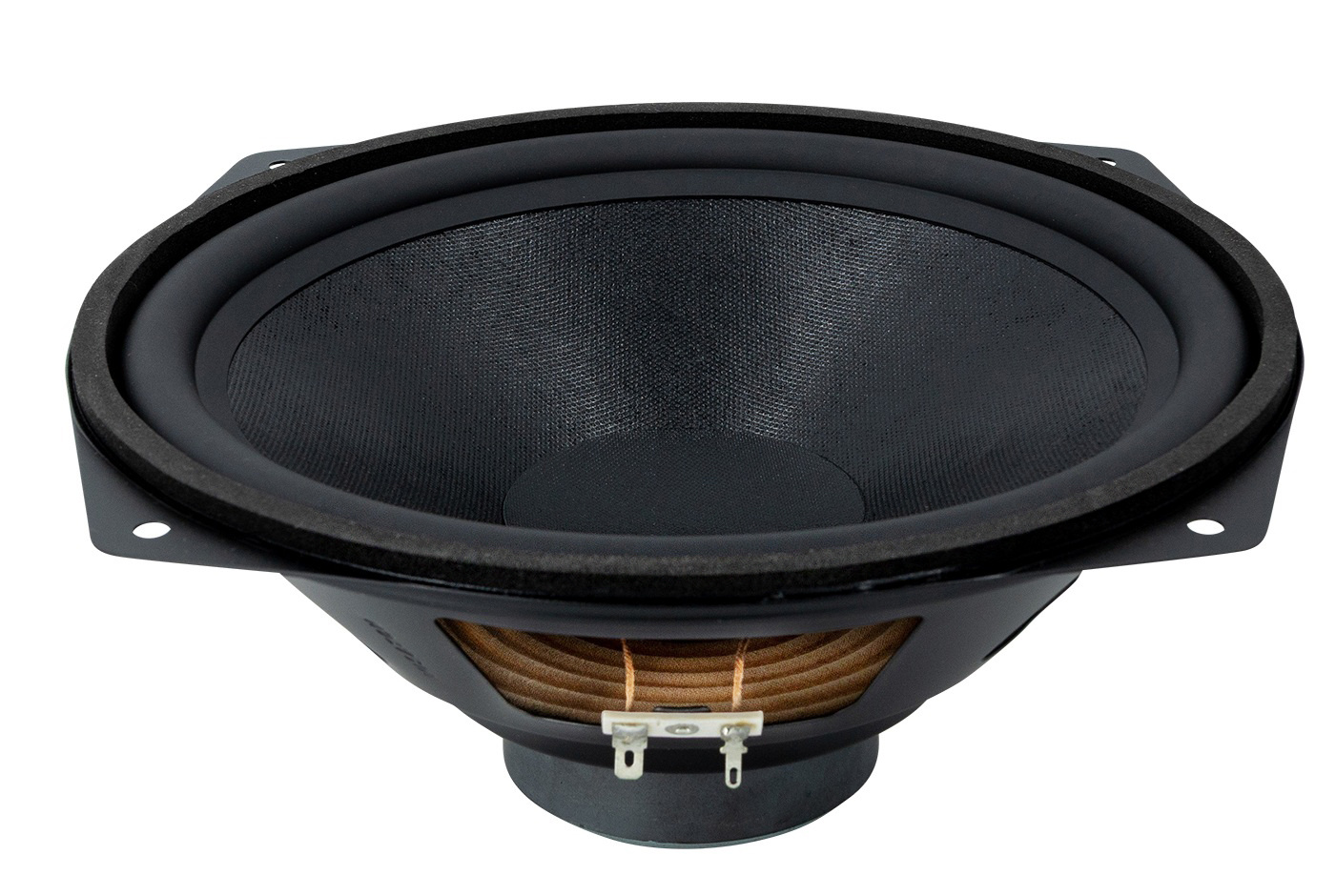

- WS 25 E - 8
- Woofer Series
- HiFi Series
- Woofer Type
- Midwoofer
- Nominal Diameter
- 10"
- Power Handling (RMS)
- 80 Watts
- Power Handling (max)
- 110 Watts
- Impedance
- 8 ohms
- Sensitivity
- 88 dB (1 W/1 m)
- Frequency Response
- 34 - 6,000 Hz
- Voice Coil Diameter
- 25 mm
- DC Resistance (Re)
- 5.9 ohms
- Voice Coil Inductance (Le)
- 0.8 mH
- Resonant Frequency (Fs)
- 34 Hz
- Mechanical Q (Qms)
- 2.82
- Electromagnetic Q (Qes)
- 2.92
- Total Q (Qts)
- 1.43
- Diaphragm Mass Inc. Airload (Mms)
- 33g
- Surface Area of Cone (Sd)
- 346 cm2
- Compliance Equivalent Volume (Vas)
- 113 liters
- Maximum Linear Excursion (Xmax)
- 5.5 mm
- Cone / Diaphragm Material
- Treated Paper
- Surround Material
- Rubber
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 245 mm
- Overall Depth
- 107 mm
- Baffle Cutout Diameter
- 225 mm
- Bolt Circle Diameter
- 262 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 6 mm
- Sealed Volume
- 132.2 liters
- Sealed F3
- 32 Hz
