        Product description

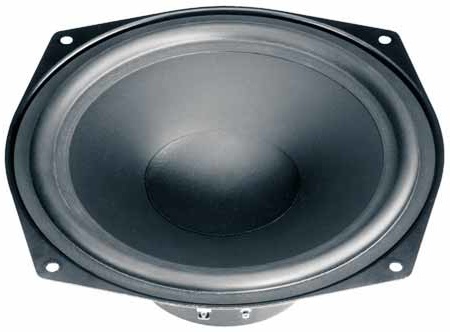

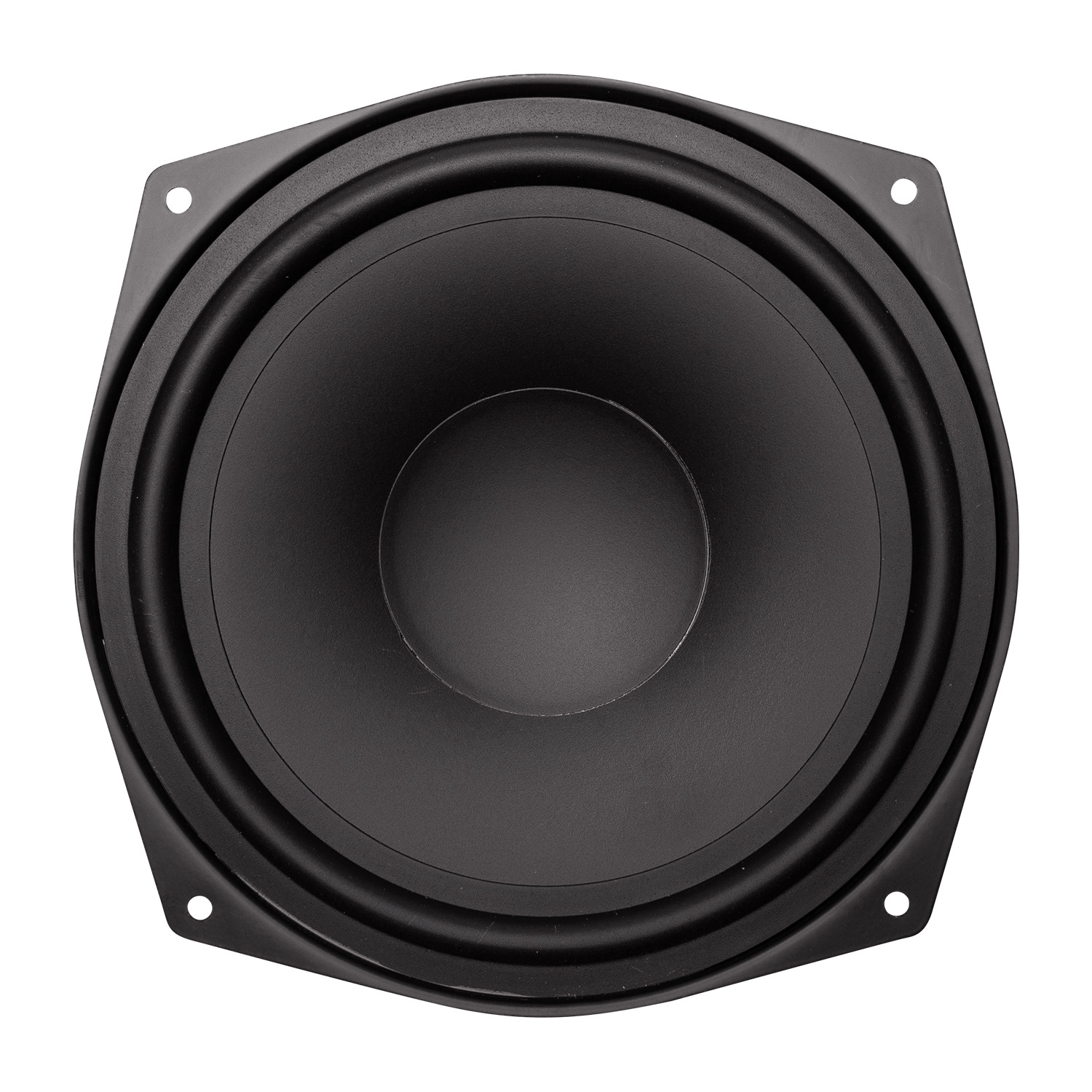

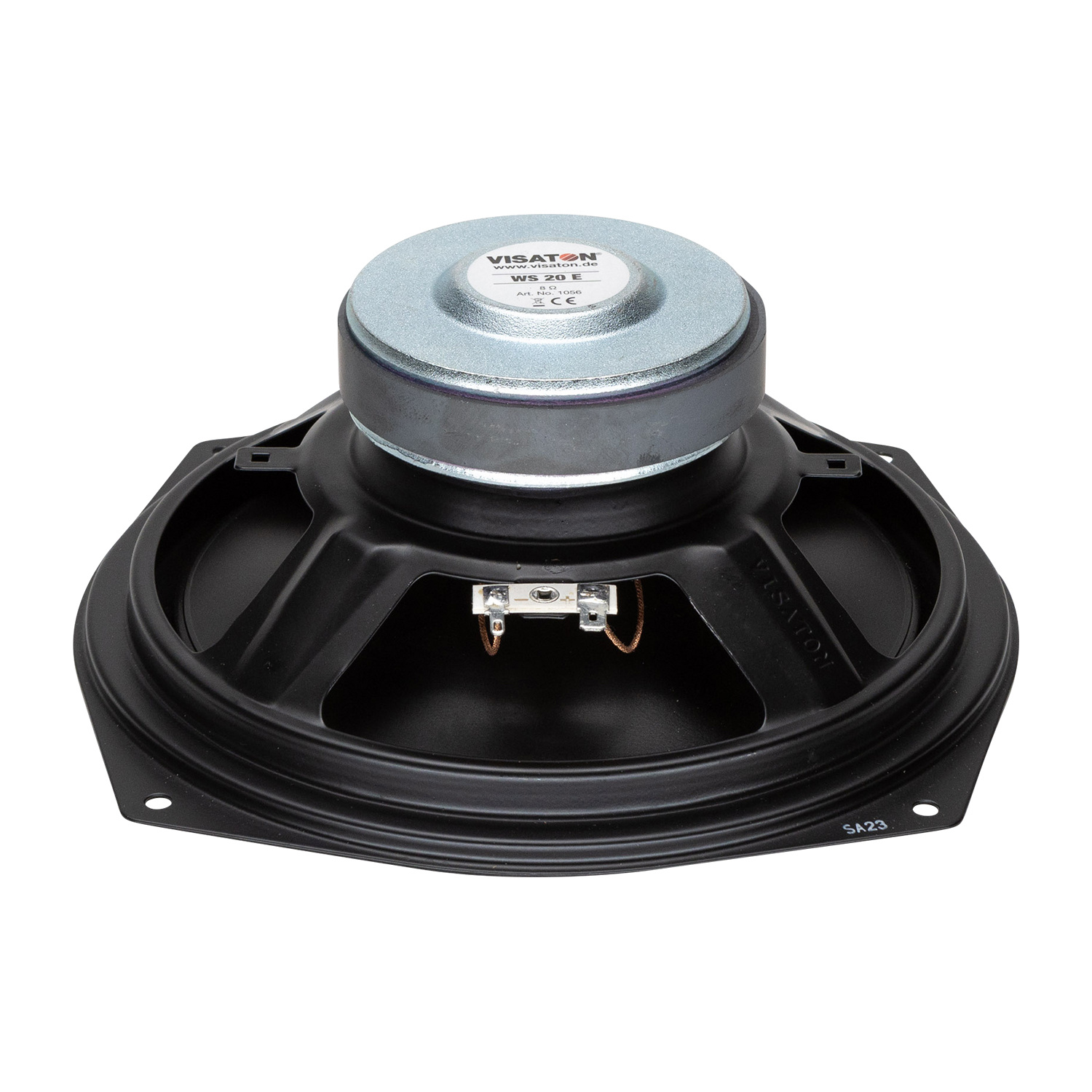

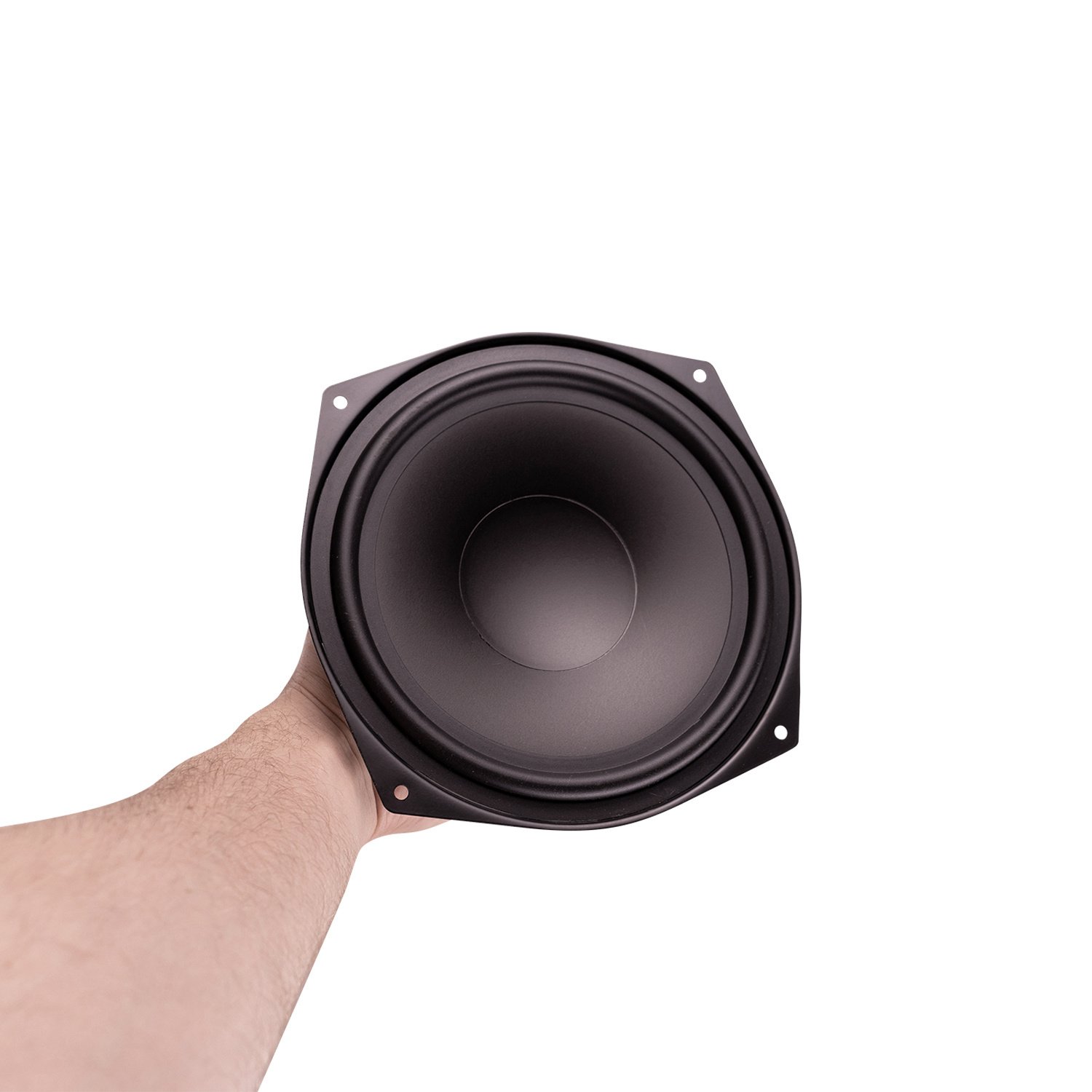

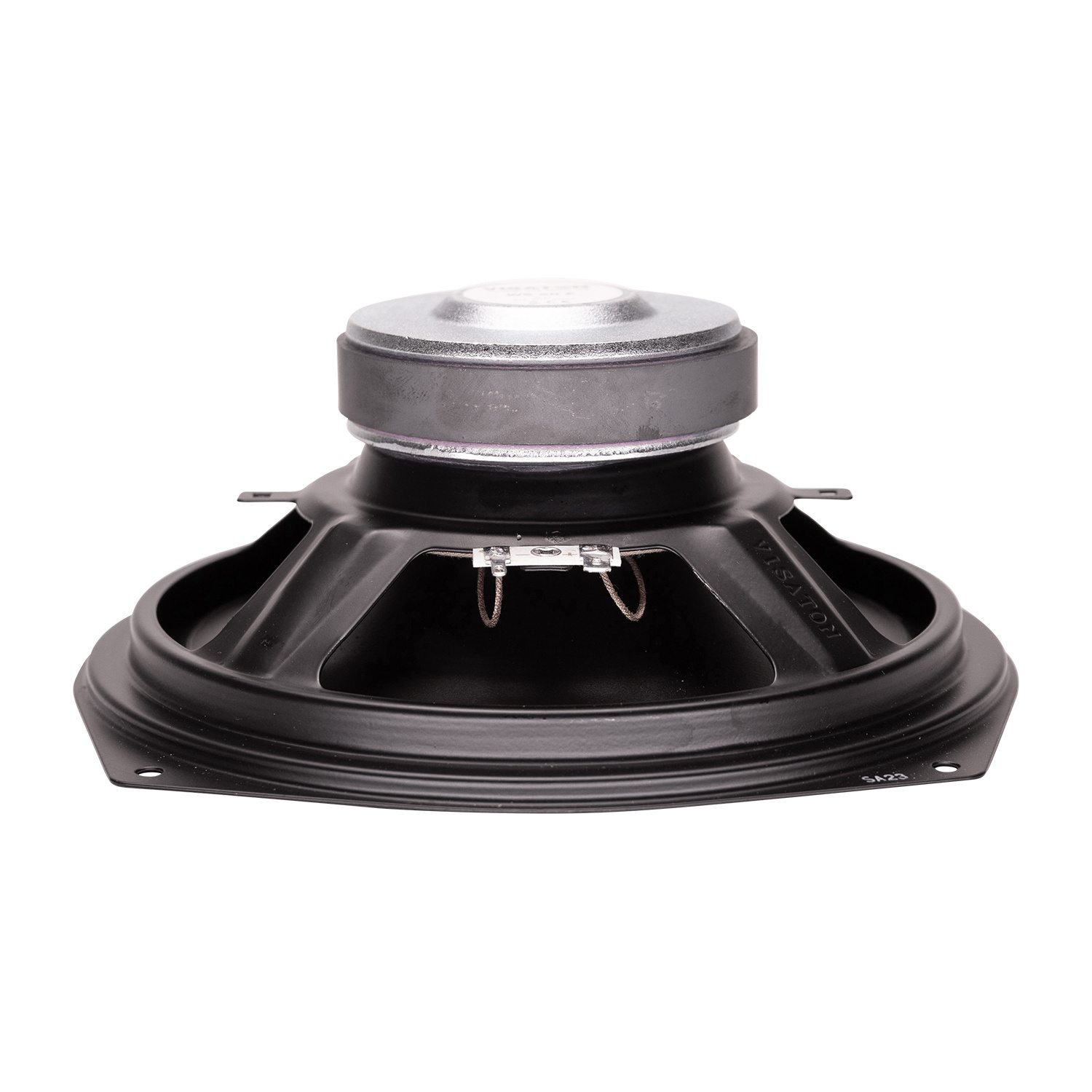

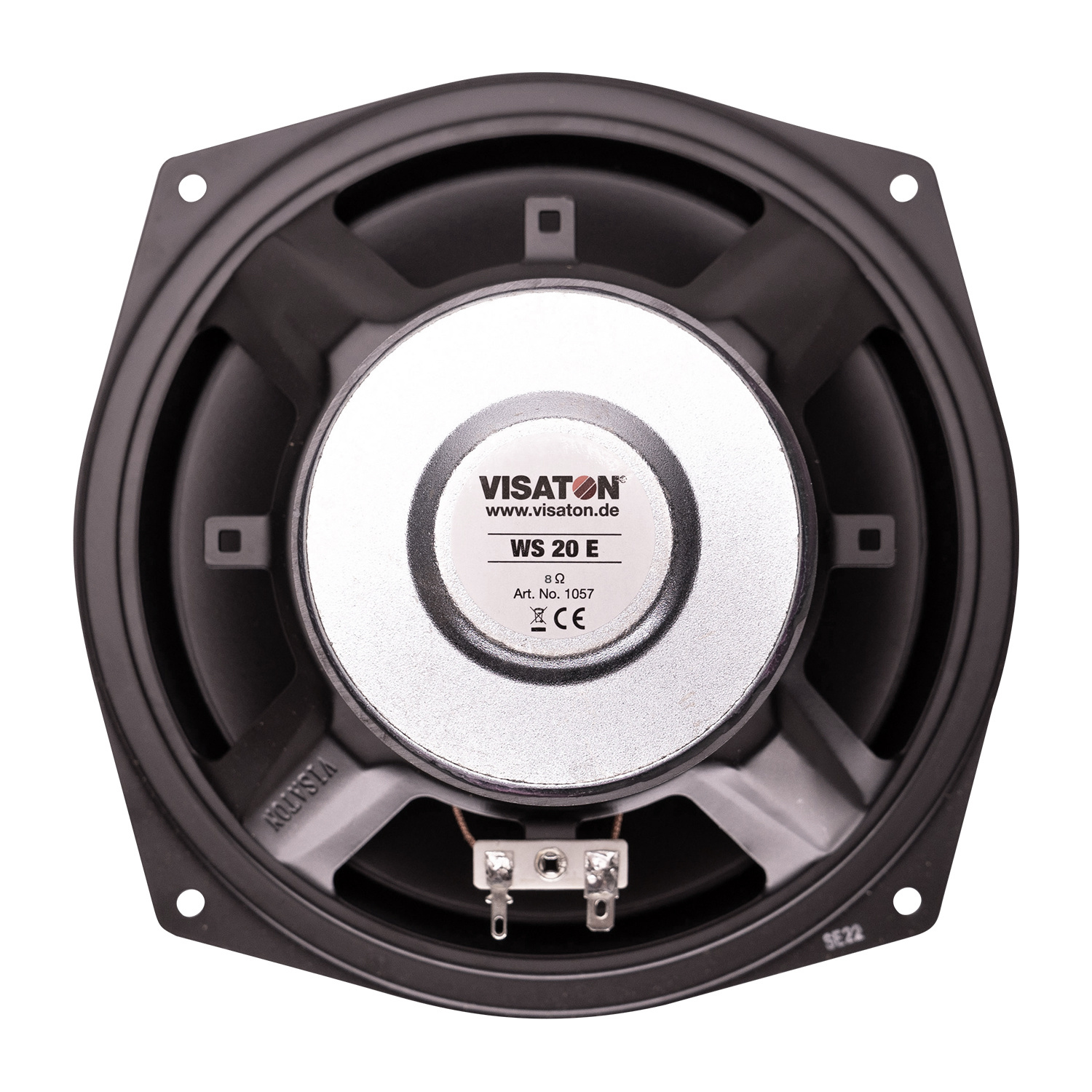

        20 cm (8") HiFi woofer with polypropylene cone.



        Highlights

        • Balanced response for easy system integration
        • Great replacement driver
        • Special basket design



        Product details

        Visaton WS 20 E 8" HiFi Woofer 8 Ohm



        This woofer has a balanced frequency response and is suitable as low-midrange driver for 4-way speaker systems. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.



        Visaton article code: 1056

        Show more

        Specifications

        Article number
        WS 20 E - 8
        Woofer Series
        HiFi Series
        Woofer Type
        Midwoofer
        Nominal Diameter
        8"
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        120 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        47 - 7,000 Hz
        Voice Coil Diameter
        30 mm
        DC Resistance (Re)
        6.8 ohms
        Voice Coil Inductance (Le)
        1.0 mH
        Resonant Frequency (Fs)
        47 Hz
        Mechanical Q (Qms)
        5.36
        Electromagnetic Q (Qes)
        1.59
        Total Q (Qts)
        1.23
        Diaphragm Mass Inc. Airload (Mms)
        21g
        Surface Area of Cone (Sd)
        240 cm2
        Compliance Equivalent Volume (Vas)
        44 liters
        Maximum Linear Excursion (Xmax)
        3 mm
        Cone / Diaphragm Material
        Polypropylene
        Surround Material
        Rubber
        Overall Outside Diameter
        207 mm
        Overall Depth
        85.9 mm
        Baffle Cutout Diameter
        186 mm
        Bolt Circle Diameter
        219 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5 mm
